Z8937120PSG

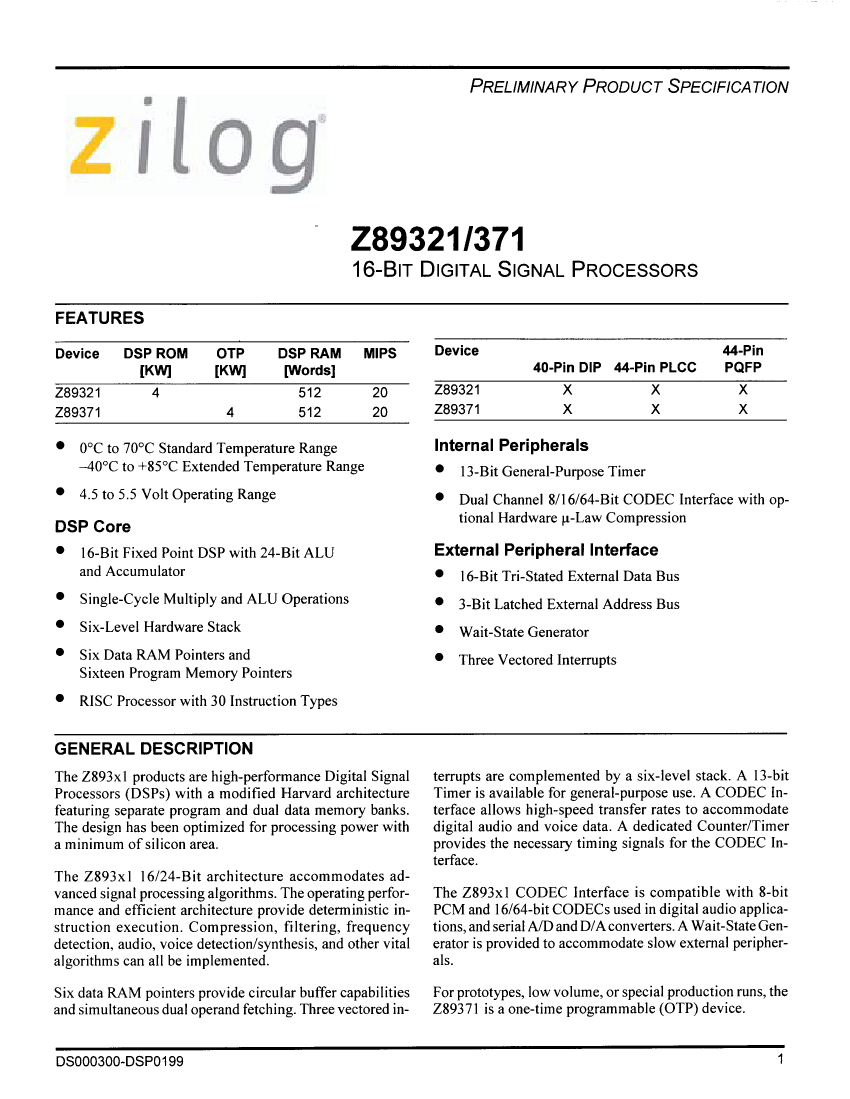

Description
Digital Signal Processor, 16-Ext Bit, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size2MB,34 Pages
ManufacturerIXYS
Environmental Compliance
Download Datasheet Parametric View All

Z8937120PSG Online Shopping

Suppliers Part Number Price MOQ In stock
Z8937120PSG - - View Buy Now

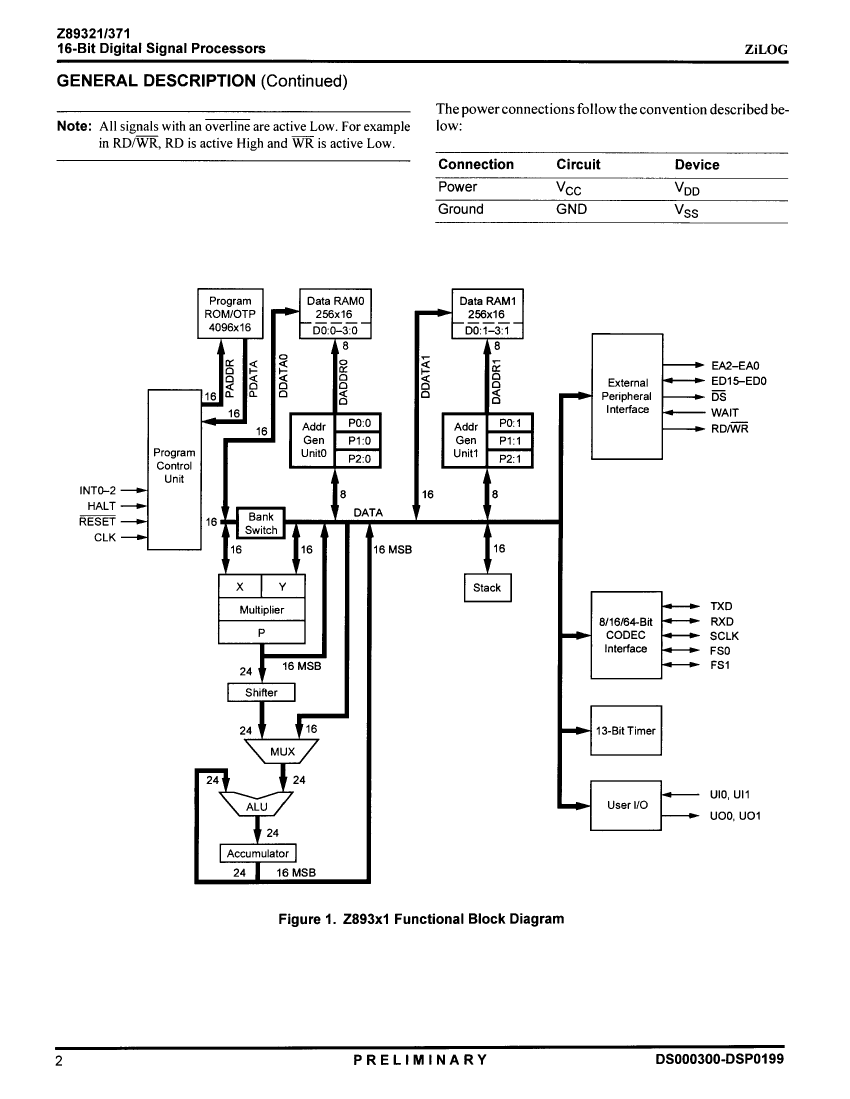

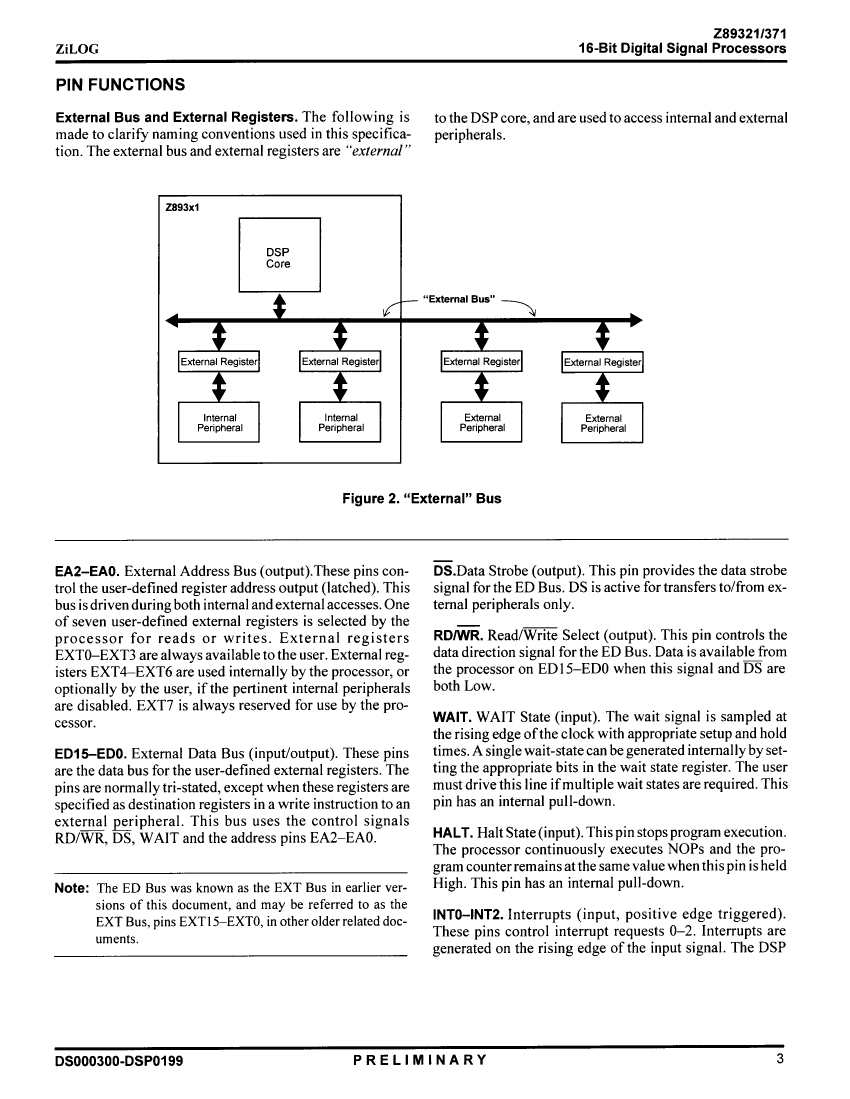

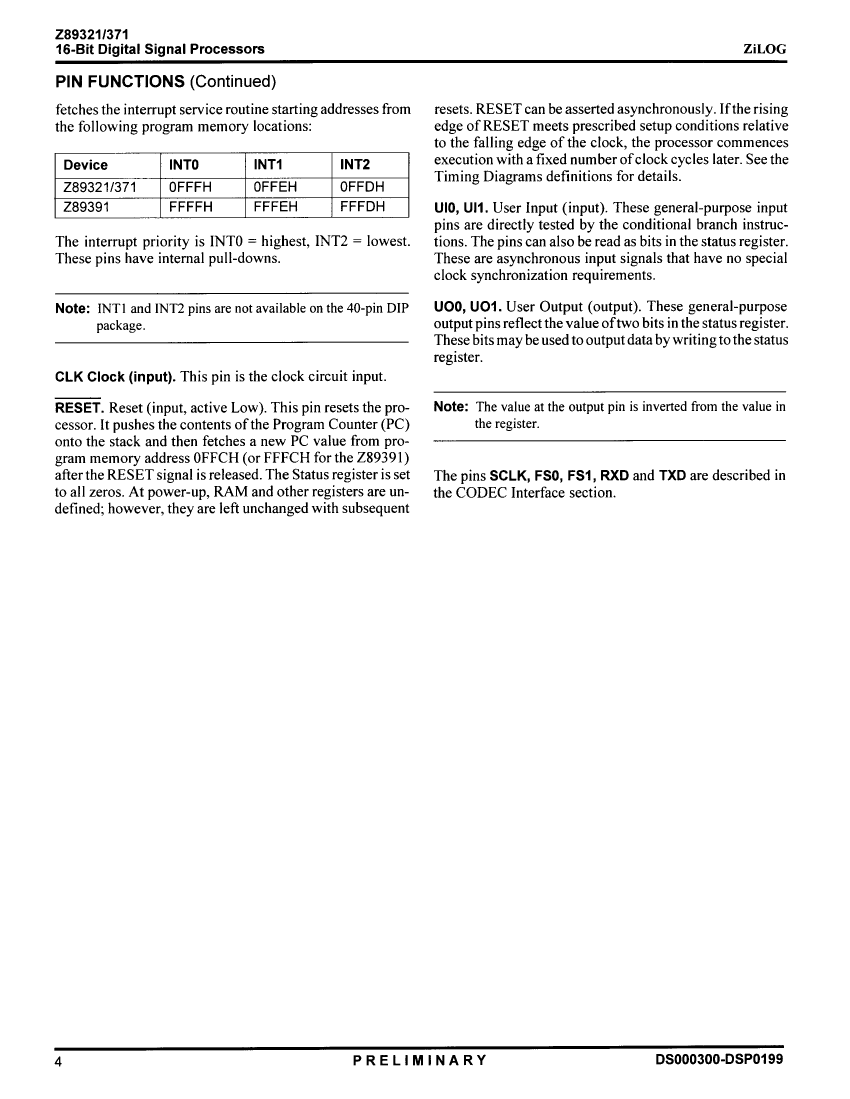

Z8937120PSG Overview

Digital Signal Processor, 16-Ext Bit, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40

Z8937120PSG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIXYS
Parts packaging codeDIP
package instructionPLASTIC, DIP-40

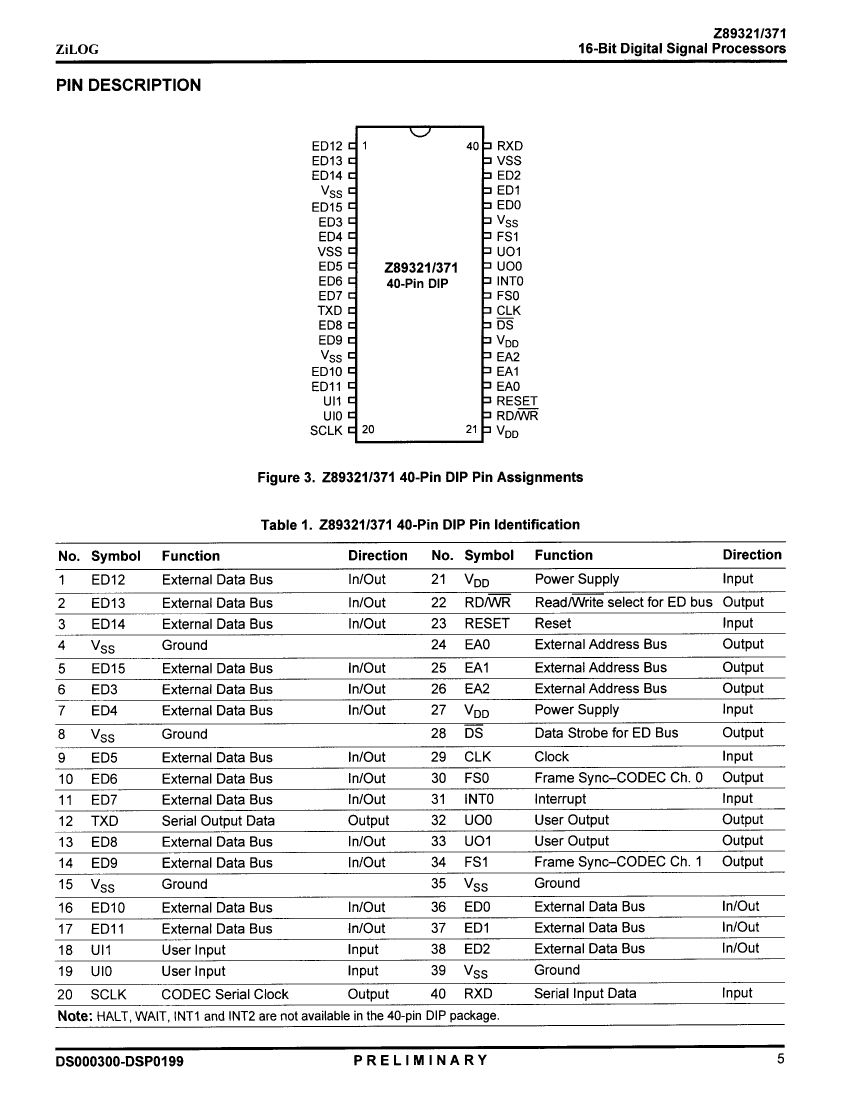

Contacts40
Reach Compliance Codecompliant
Address bus width3
barrel shifterNO
boundary scanNO
maximum clock frequency20 MHz
External data bus width16
FormatFIXED POINT
Internal bus architectureMULTIPLE
JESD-30 codeR-PDIP-T40
JESD-609 codee3
length52.325 mm
low power modeYES
Number of terminals40
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height4.24 mm
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceMATTE TIN
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width15.24 mm
uPs/uCs/peripheral integrated circuit typeDIGITAL SIGNAL PROCESSOR, OTHER
