Z8937120FSG datasheet, PDF - EEWORLD Datasheet

Z8937120FSG: DescriptionDigital Signal Processor, 16-Ext Bit, 20MHz, CMOS, PQFP44, PLASTIC, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，34 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/; Environmental Compliance

Download Datasheet Parametric View All

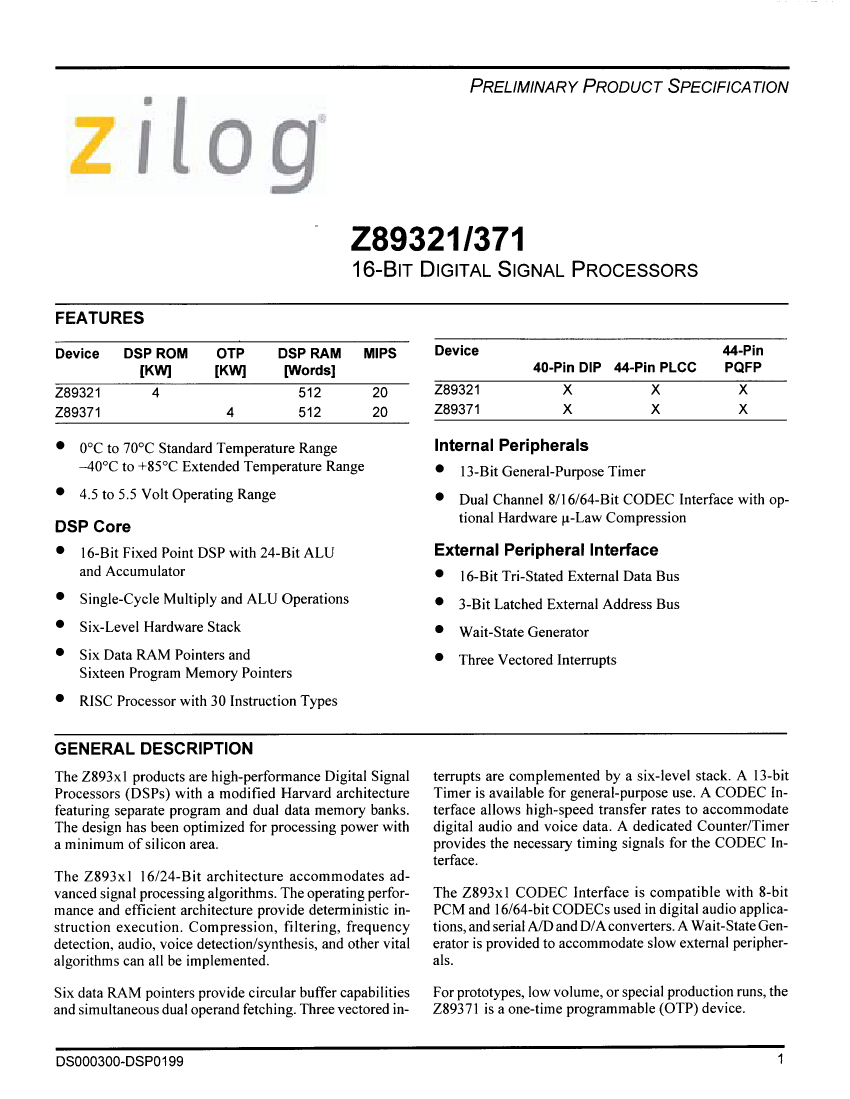

Z8937120FSG Overview

Digital Signal Processor, 16-Ext Bit, 20MHz, CMOS, PQFP44, PLASTIC, QFP-44

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	PLASTIC, QFP-44

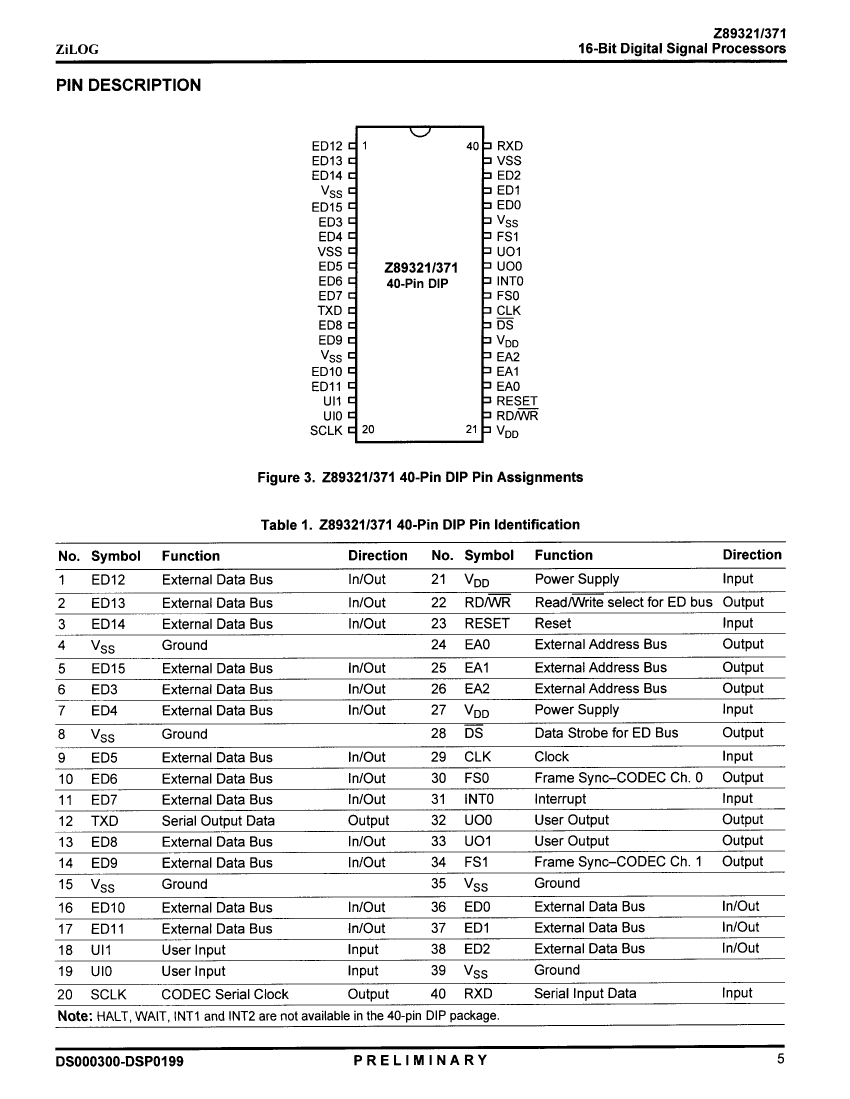

Contacts	44
Reach Compliance Code	compliant
Address bus width	3
barrel shifter	NO
boundary scan	NO
maximum clock frequency	20 MHz
External data bus width	16
Format	FIXED POINT

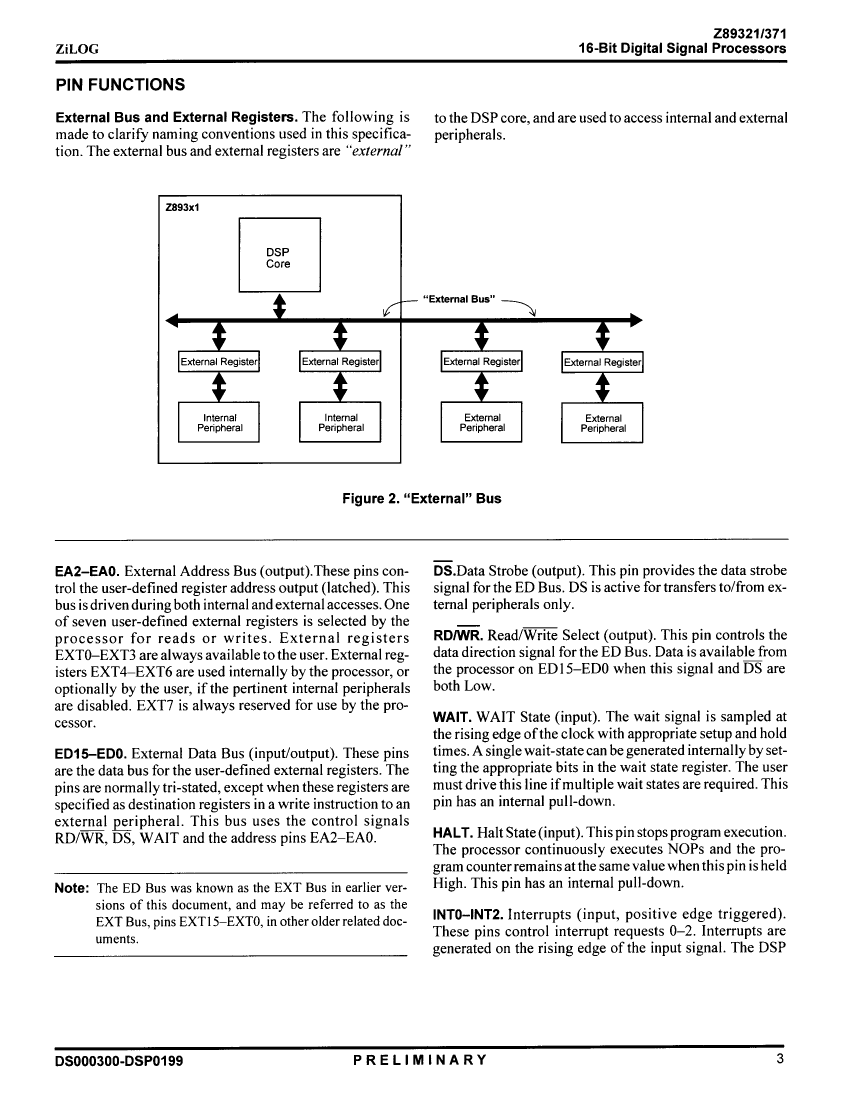

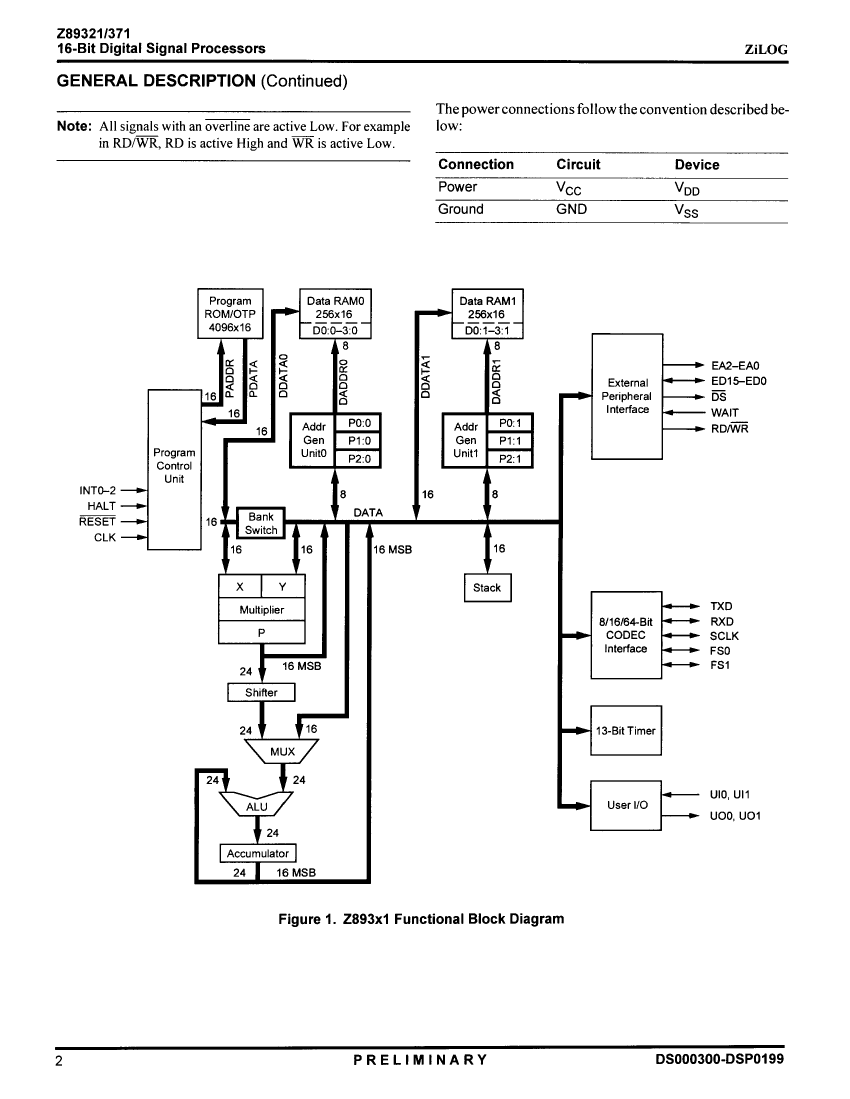

Internal bus architecture	MULTIPLE
JESD-30 code	S-PQFP-G44
JESD-609 code	e3
length	10 mm
low power mode	YES
Humidity sensitivity level	3
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	10 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
