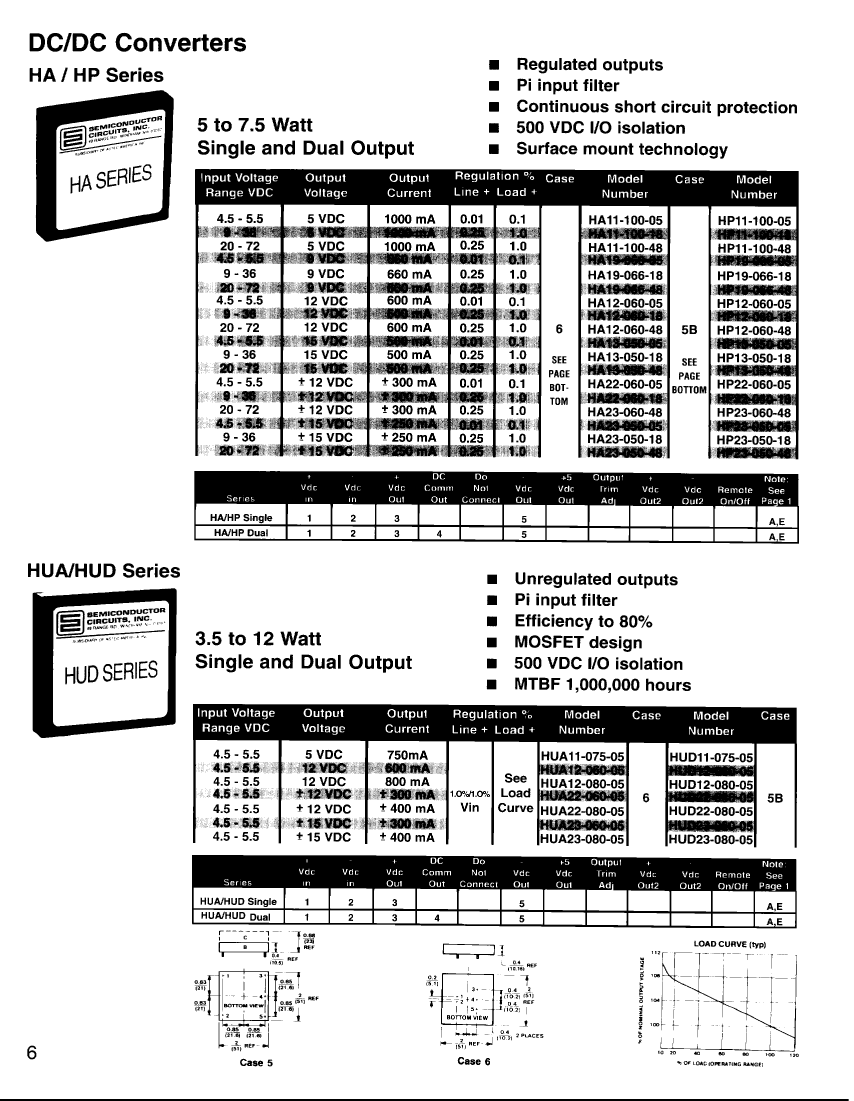

Preview

HA19-066-05: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid,; CategoryPower/power management The power supply circuit; File Size160KB，1 Pages; ManufacturerSemiconductor Circuits Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

HA19-066-05 Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid,

HA19-066-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Semiconductor Circuits Inc
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
JESD-30 code	S-XDMA-P4
Maximum grid adjustment rate	0.01%
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Number of terminals	4
Nominal output voltage	9 V
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

HA19-066-05 Related Products

	HA19-066-05	HP19-066-18	HP19-066-48	HP19-066-05
Description	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, Hybrid,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V	36 V	72 V	5.5 V
Minimum input voltage	4.5 V	9 V	20 V	4.5 V
JESD-30 code	S-XDMA-P4	S-XDMA-P4	S-XDMA-P4	S-XDMA-P4
Maximum grid adjustment rate	0.01%	0.25%	0.25%	0.01%
Maximum load regulation	0.1%	1%	1%	0.1%
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	4	4	4	4
Nominal output voltage	9 V	9 V	9 V	9 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Protect	CURRENT	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO
