68829-030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 68829-030

68829-030: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size262KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

68829-030 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

68829-030 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	68829
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0

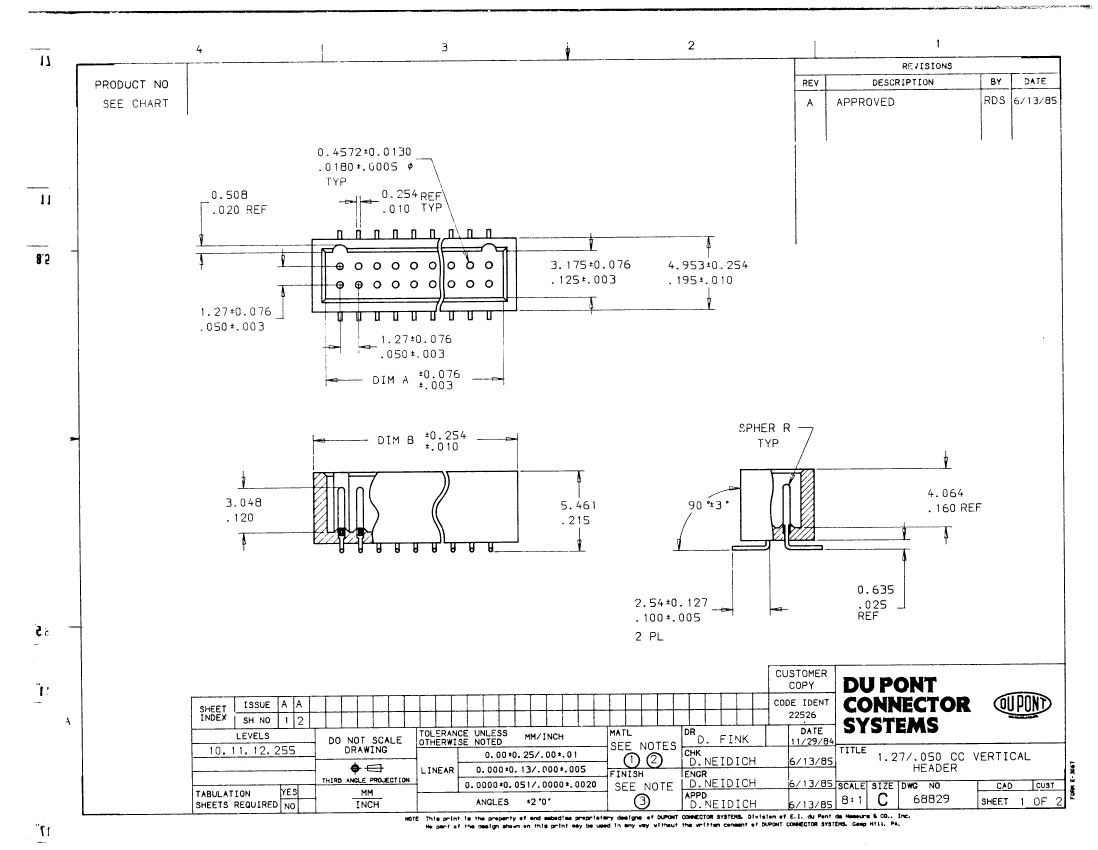

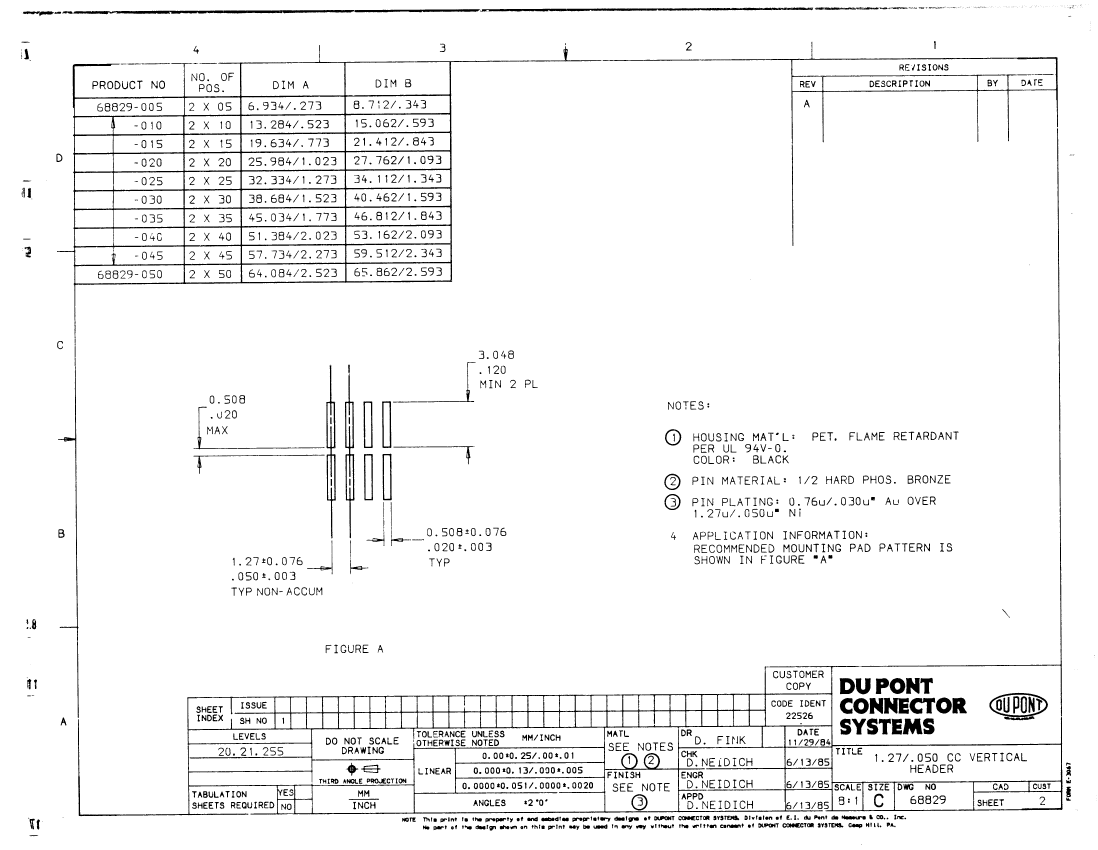

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Nov 10, 2004

68829-030 Related Products

	68829-030	68829-005	68829-010	68829-015	68829-020	68829-025	68829-035	68829-040	68829-045	68829-050
Description	Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	68829	68829	68829	68829	68829	68829	68829	68829	68829	68829
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	10	20	30	40	50	70	80	90	100
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
