M4809HL1U: DescriptionDC-DC Unregulated Power Supply Module, 1 Output, 1W, SIP-4; CategoryPower/power management The power supply circuit; File Size35KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

M4809HL1U Overview

DC-DC Unregulated Power Supply Module, 1 Output, 1W, SIP-4

M4809HL1U Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	MODULE
package instruction	,
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	52.8 V
Minimum input voltage	43.2 V
Nominal input voltage	48 V
JESD-30 code	R-XSMA-P4
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	9 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 1108, REV. -

M (U) - 1W Serie

s

DC-DC Converters

Fixed Input, 1000V Isolation, Unregulated, Single Output, Mini-Package

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

1000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

M (U) Single Output Mini Package-1W Series Input Characteristics

Part Number

M05XXHL/F1U

M12XXHL/F1U

M24XXHL/F1U

Nominal Input Voltage

5Vdc

12Vdc

24Vdc

Input Voltage Range

4.5~5.5Vdc

10.8~13.2Vdc

21.6~26.4Vdc

Maximum Input Voltage*

7Vdc

15Vdc

28Vdc

54Vdc

M48XXHL/F1U

48Vdc

43.2~52.8Vdc

*

Voltage above this value may cause permanent damage to the device.

M (U) Single Output Mini Package-1W Series Output Characteristics

Parameter

1W Output Power

Line Regulation

Efficiency at 100% Load

Temperature Coefficient

1W Ripple and Noise

Switching Frequency

1.

2.

80

75

100

65

75

MIN

0.25

TYP

MAX

1

+ 1.2

85

±0.03

150

Units

W

%

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

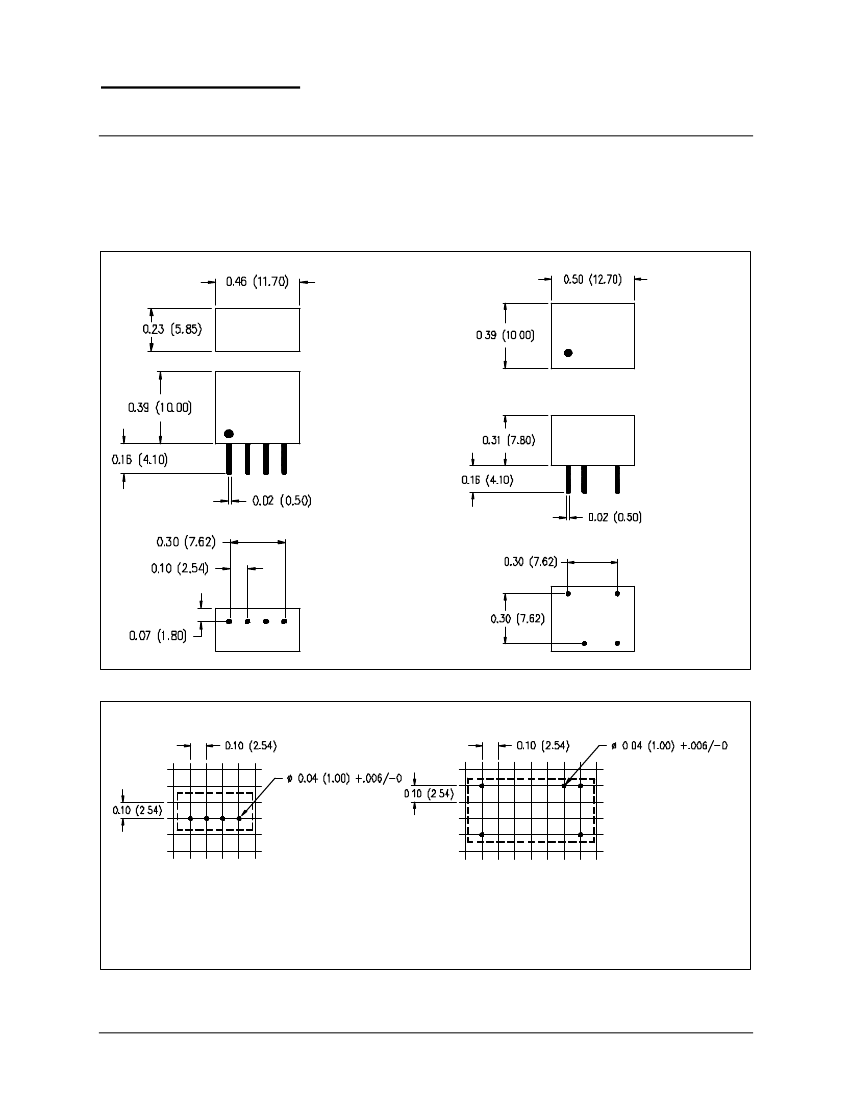

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
