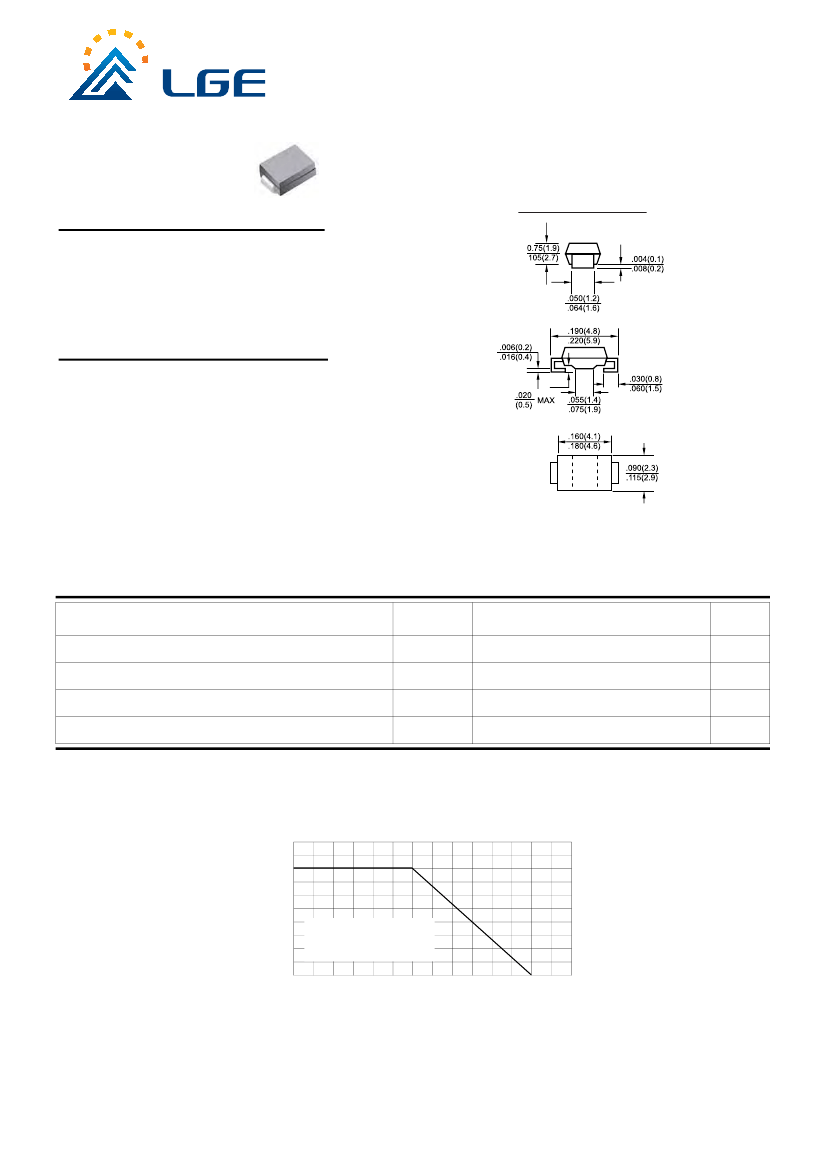

SZ103D-SZ10D0
Surface Mount Silicon Zener Diodes
V
Z
: 3.3 - 200 Volts
P
D
: 1 Watt
Features
Complete Voltage Range 3.3 to 200 Volts
High peak reverse power dissipation
High reliability
Low leakage current
Pb / RoHS Free
SMA/DO-214AC
Mechanical Data
Case : SMA (DO-214AC) Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Lead formed for Surface mount
Polarity : Color band denotes cathode end
Mounting position : Any
Weight : 0.064 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
Rating at 25 °C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75 °C (Note1)
Maximum Forward Voltage at I
F
= 200 mA
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
T
J
Ts
Value
1.0
1.2
- 55 to + 150
- 55 to + 150
Unit
W
V
°C
°C
Note :
(1) P.C.B. Mounted on 0.31x0.31x0.08" (8x8x2mm) copper areas pads.
Fig. 1 MAXIMUM CONTINUOUS POWER DERATING
P
D
, MAXIMUM DISSIPATION
(WATTS)
1.25
1.00
0.75
0.50
0.25
0
0
P.C.B. Mounted on
0.31x0.31x0.08" (8x8x2mm)
copper areas pads
25
50
75
100
125
150
175
T
L,
LEAD TEMPERATURE (°C)
http://www.luguang.cn
mail:lge@luguang.cn
SZ103D-SZ10D0
Surface Mount Silicon Zener Diodes
ELECTRICAL CHARACTERISTICS
(Ta = 25 °C unless otherwise specified)
Nominal Zener
Maximum Zener
Impedance
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω )
Z
ZK
@ I
ZK
(Ω )
I
ZK
(mA)
Maximum Reverse
Leakage Current
I
R
@ V
R
(μA)
(V)
Maximum DC
Zener Current
I
ZM
(mA)
Maximum
Surge Current
I
RM
(2)
(mApk)
1380
1260
1190
1070
970
890
810
730
660
605
550
500
454
414
380
344
305
285
250
225
205
190
170
150
135
125
115
110
95
90
80
70
65
60
55
50
45
40
37
34
30
28
25
22
Type
Voltage
V
Z
(1)
@ I
ZT
(V)
SZ103D
3.3
76.0
10
400
1.0
100
1.0
276
SZ103G
3.6
69.0
10
400
1.0
100
1.0
252
SZ103J
3.9
64.0
9.0
400
1.0
50
1.0
234
SZ104D
4.3
58.0
9.0
400
1.0
10
1.0
217
SZ104H
4.7
53.0
8.0
500
1.0
10
1.0
193
SZ105B
5.1
49.0
7.0
550
1.0
10
1.0
178
SZ105G
5.6
45.0
5.0
600
1.0
10
2.0
162
SZ106C
6.2
41.0
2.0
700
1.0
10
3.0
146
SZ106I
6.8
37.0
3.5
700
1.0
10
4.0
133
SZ107F
7.5
34.0
4.0
700
0.5
10
5.0
121
SZ108C
8.2
31.0
4.5
700
0.5
10
6.0
110
SZ109B
9.1
28.0
5.0
700
0.5
10
7.0
100
SZ1010
10
25.0
7.0
700
0.25
10
7.6
91
SZ1011
11
23.0
8.0
700
0.25
5.0
8.4
83
SZ1012
12
21.0
9.0
700
0.25
5.0
9.1
76
SZ1013
13
19.0
10
700
0.25
5.0
9.9
69
SZ1015
15
17.0
14
700
0.25
5.0
11.4
61
SZ1016
16
15.5
16
700
0.25
5.0
12.2
57
SZ1018
18
14.0
20
750
0.25
5.0
13.7
50
SZ1020
20
12.5
22
750
0.25
5.0
15.2
45
SZ1022
22
11.5
23
750
0.25
5.0
16.7
41
SZ1024
24
10.5
25
750
0.25
5.0
18.2
38
SZ1027
27
9.5
35
750
0.25
5.0
20.6
34
SZ1030
30
8.5
40
1000
0.25
5.0
22.8
30
SZ1033
33
7.5
45
1000
0.25
5.0
25.1
27
SZ1036
36
7.0
50
1000
0.25
5.0
27.4
25
SZ1039
39
6.5
60
1000
0.25
5.0
29.7
23
SZ1043
43
6.0
70
1500
0.25
5.0
32.7
22
SZ1047
47
5.5
80
1500
0.25
5.0
35.8
19
SZ1051
51
5.0
95
1500
0.25
5.0
38.8
18
SZ1056
56
4.5
110
2000
0.25
5.0
42.6
16
SZ1062
62
4.0
125
2000
0.25
5.0
47.1
14
SZ1068
68
3.7
150
2000
0.25
5.0
51.7
13
SZ1075
75
3.3
175
2000
0.25
5.0
56.0
12
SZ1082
82
3.0
200
3000
0.25
5.0
62.2
11
SZ1091
91
2.8
250
3000
0.25
5.0
69.2
10
SZ10B0
100
2.5
350
3000
0.25
5.0
76.0
9.0
SZ10B1
110
2.3
450
4000
0.25
5.0
83.6
8.6
SZ10B2
120
2.0
550
4500
0.25
5.0
91.2
7.8
SZ10B3
130
1.9
700
5000
0.25
5.0
98.8
7.0
SZ10B5
150
1.7
1000
6000
0.25
5.0
114.0
6.4
SZ10B6
160
1.6
1100
6500
0.25
5.0
121.6
5.8
SZ10B8
180
1.4
1200
7000
0.25
5.0
136.8
5.2
200
1.2
1900
9990
0.25
5.0
152.0
4.7
SZ10D0
Notes :
(1) The type number listed have a standard tolerance on the nominal zener voltage of ±10%,
altered the fourth number of type from " 0 " for ±10% tolerance to be " 5 " for ±5.0% tolerance.
(2) Surge current is a non-repetitive, 8.3ms pulse width square wave or equivalent sine-wave superimposed
on I
ZT
per JEDEC Method
(3) " SZ " will be omitted in marking on the diode.
