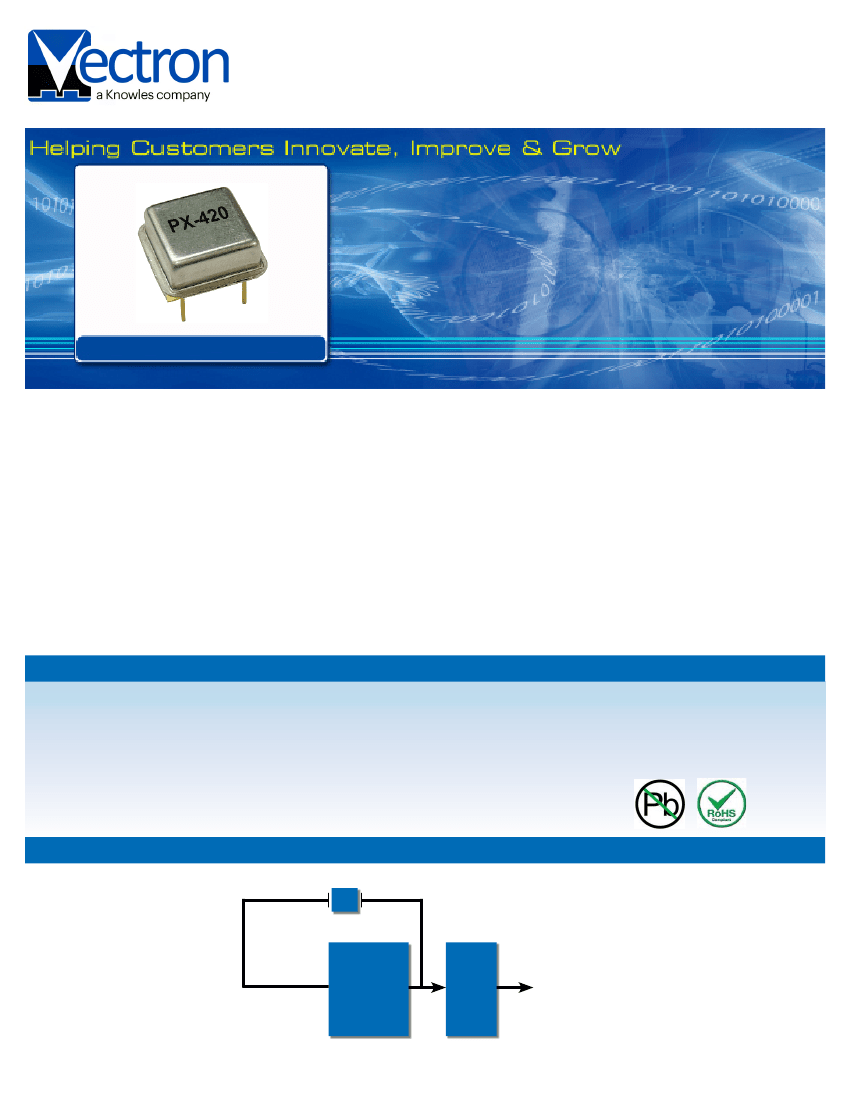

Vectron offers a High Temperature Crystal Oscillator (PX-420) product platform for extreme environment applications. Typical operating
temperature range is from -55°C to +230°C with a frequency stability of +/- 250 ppm over the entire operating temperature range.
Vectron’s vertical integration in the following technical areas ensures the ability to design and manufacture state of the art high temperature
frequency control products:
•
•
•
•
•
BAW & SAW Design & Fabrication to produce high quality resonators.
RF Oscillator Circuit Design.
Established 250°C High Temperature Electronics Packaging Expertise.
Established 250°C High Temperature Electronics Assembly & Test Expertise.
Environmental Screening.
Vectron’s manufacturing processes, from quartz resonator fabrication to oscillator electronics assembly and test, are painstakingly controlled
via ISO and SPC procedures. Vectron fabricates high temperature quartz resonators using proprietary manufacturing processes designed
specifically for high temperature and harsh environment applications. In order to ensure high reliability in the field, critical electrode
metallization and testing processes are conducted inside state-of-the-art Class 1K cleanrooms, while oscillator assembly is conducted in Class
10K cleanrooms. All high temperature oscillators are 100% tested before delivery.
Features
• Continuous operating temperature range -55°C to 230°C
• Low jitter and phase noise
• 3.3Vdc or 5Vdc operation
• Compliant crystal mount for high shock & vibration
• Output frequency 500KHz to 40MHz standard
(see HT RTCXO datasheet for 32.768KHz requirements)
• Standard 4 pin ½ DIP package
• Product is free of lead and compliant to EC RoHS directive
• Made in USA
Applications
•
Oil / Gas downhole tool
•
Geophysical services
•
High temperature industrial process control
•
Extended temperature Military/Aerospace
•
Avionics
•
Engine control
Block Diagram
Crystal
Oscillator
Circuit
Output
Buffer
RF
Output
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
1 of 5
Performance Specifications
Specification Parameters
Frequency Range
Supply (Vdd)
Current
Level “0” & “1”
Output
Rise & Fall Time
Symmetry
Operating Temperature
-55°C to +125°C (C)
0°C to +150°C (1)
-20°C to +180°C (Z)
-55°C to +180°C (Y)
10Hz -70 dBc/Hz
100Hz -105 dBc/Hz
1kHz -130 dBc/Hz
±40ppm (J)
±50ppm (K)
±100ppm (S)
-55°C to +125°C
Values
500KHz to 40MHz (see HT RTCXO datasheet for 32.768KHz requirements)
+5.0Vdc ±5% (D)
+3.3Vdc ±5% (E)
5mA typical @ 20MHz, 3.3V
<0.4V / >Vdd - 0.5V
HCMOS compatibility (A)
1ns typical / 5ns Max
40/60%
0°C to +200°C (2)
0°C to +230°C (3)
(other custom temperature ranges are
available, consult factory)
Jitter (12kHz - 20MHz)
Phase Noise (typical @20MHz, HCMOS, 3.3V)
<0.5ps
10kHz -145 dBc/Hz
100kHz -155 dBc/Hz
1MHz -155 dBc/Hz
±250ppm (W)
±350ppm (Y)
Temperature Stability
Package Size
Storage Temperature
0.5” x 0.5” x 0.2” 4 pin ½
DIP resistance welded
EnviromentalSpecifications
Performance Compliance
Environmental Compliance
Vibration-Sine
Vibration-Random
Shock
Seal Test
Seal Test
Temperature Cycling
Acceleration
20g to 2kHz Sine
20grms to 2kHz Random
1000g, 0.5ms
Fine
Gross
10 Cycles minimum
5000g Y1 axis
MIL-STD-202 Method 204 Condition D
MIL-STD-202 Method 214 Condition I-F
MIL-STD-202 Method 213 Condition E
MIL-STD-883 Method 1014 Condition A2
MIL-STD-202 Method 112 Condition D
MIL-STD-883 Method 1010 Condition B
MIL-STD-883 Method 2001 Condition A

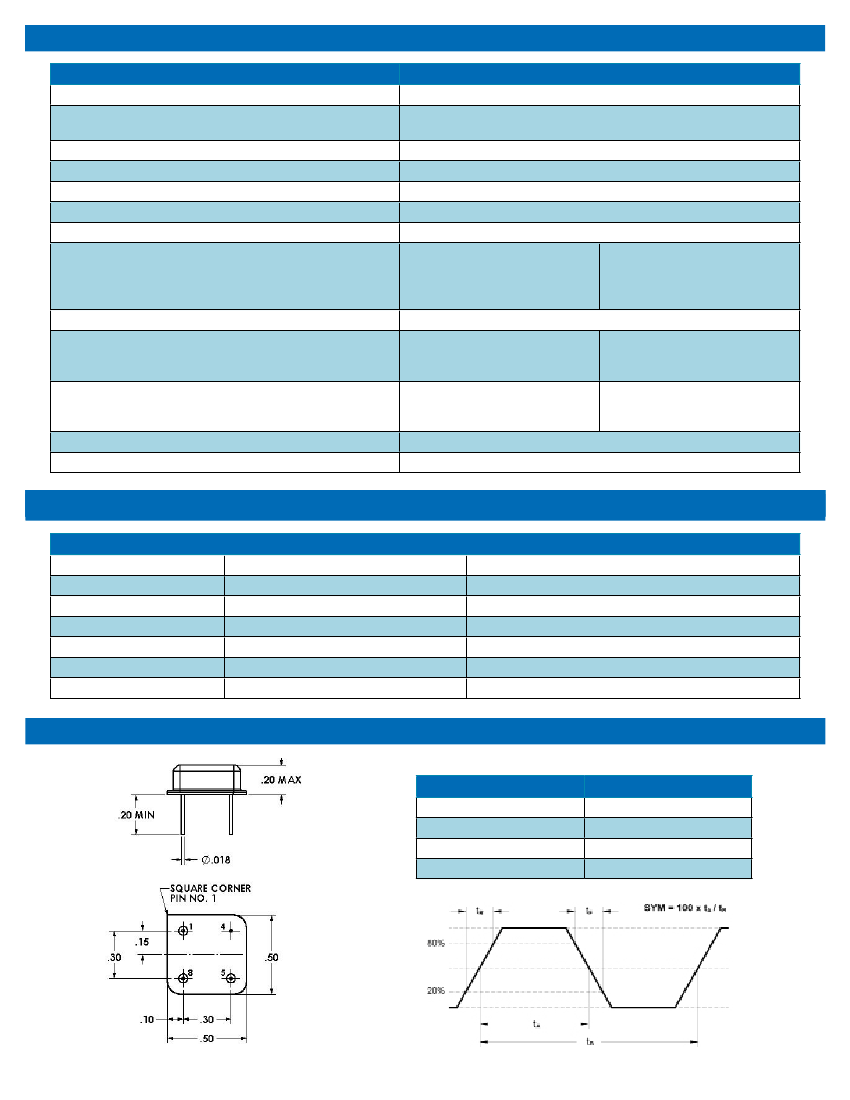

Physical Specifications
Dimensions in inches
Pin
1
4
5
8
Function
Enable/Disable option
Case & Electrical Ground
RF Output
V
CC
Power Supply Voltage
Vcc
GND
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
2 of 5

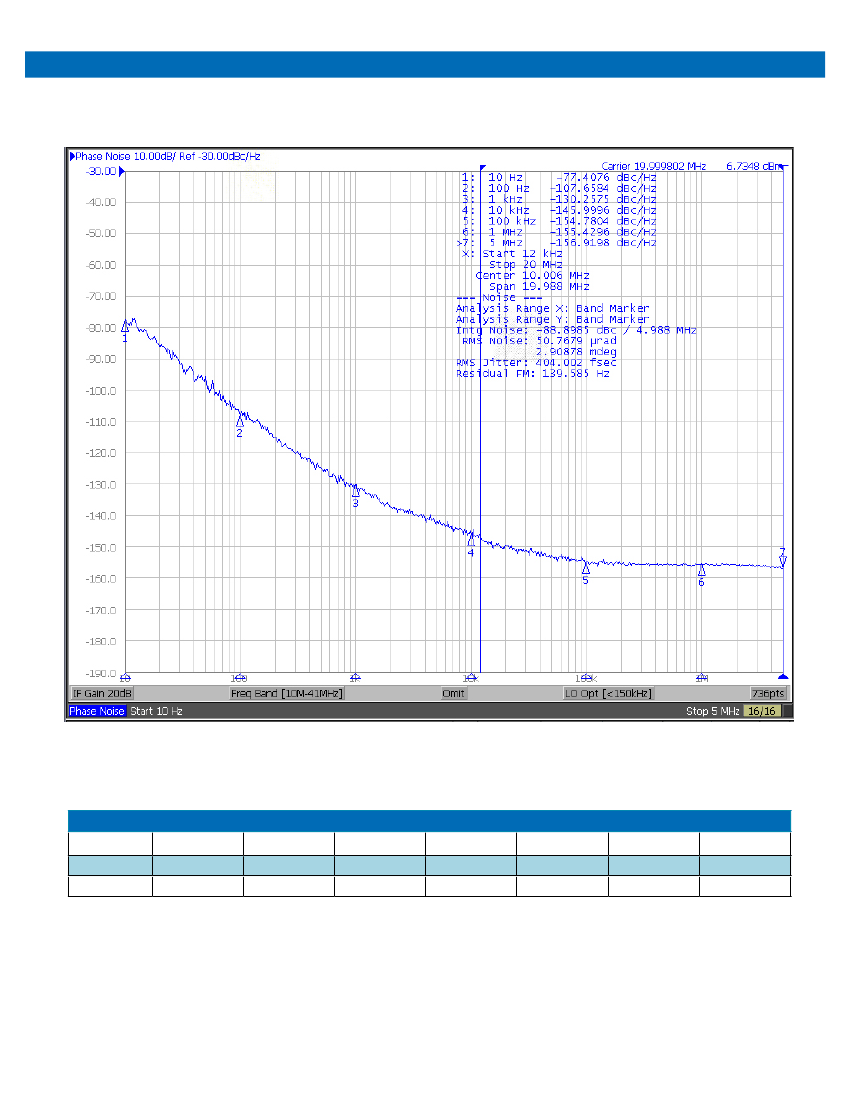

Phase Noise Performance
Standard Frequency List
32.768KHz
*
4.096MHz
16.384MHz
512.000kHz
5.000MHz
20.000MHz
1.000MHz
7.3728MHz
24.000MHz
1.024MHz
8.000MHz
32.000MHz
2.000MHz
8.192MHz
32.768MHz
2.048MHz
10.000MHz
40.000MHz
3.686MHz
12.000MHz
4.000MHz
16.000MHz
*
Refer to High Temperature Low Power Real Time Clock Oscillators datasheet for 32.768KHz frequency applications.
Vectron International • 267 Lowell Road, Hudson, Unit 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
3 of 5
Ordering Information
PX - 420 0 - D A Y - W X X X - 10M0000000
Product Family
High Temp Products
Package Type
420: 4 pin
½
DIP
Factory Use
Supply Voltage
D: 5.0V ±5%
E: 3.3V ±5%
Output
A: HCMOS/ACMOS
Frequency
Screening
B: “B” Level Screening
X: No Screening
Accuracy
F: ±25ppm
X: No Accuracy Code
Enable
A: Enable Hi, Tristate
C: Enable Low, Tristate
D: Enable Low
X: No Enable
Temp Stability (PX)
J: ± 40ppm
S: ± 100ppm
U: ± 150ppm
V: ± 200ppm
W: ± 250ppm
Y: ± 350ppm
Temperature Range
1: 0°C to 150°C
Z: -20°C to 180°C
Y: -55°C to 180°C
2: 0°C to 200°C
5: -55°C to 200°C
3: 0°C to 230°C
6: -55°C to 230°C
Temperature Range and Stability Table
Temp Range
J:
±
40ppm
1: 0°C to 150°C
S:
±
100ppm
U: ±
150ppm
W:
±
250ppm
J:
±
40ppm
Z: -20°C to 180°C
S:
±
100ppm
U: ±
150ppm
W:
±
250ppm
S:
±
100ppm
Y: -55°C to 180°C
U: ±
150ppm
W:
±
250ppm
S:
±
100ppm
2: 0°C to 200°C
U: ±
150ppm
V:
±
200ppm
W:
±
250ppm
S:
±
100ppm
5: -55°C to 200°C
U: ±
150ppm
V:
±
200ppm
W:
±
250ppm
V:
±
200ppm
3: 0°C to 230°C
W:
±
250ppm
Y: ±
350ppm
V:
±
200ppm
6: -55°C
to 230°C
W:
±
250ppm
Y: ±
350ppm
Temp Stability
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Tight Stability
Tight Stability
Standard
PX-420
*Note: not all combination of options are available.
Other specifications may be available upon request.
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
4 of 5
This page is purposely left blank
For Additional Information, Please Contact
Vectron International
267 Lowell Road, Unit 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Europe:
Vectron International
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: 86.21.6194.6886
Fax: 86.21.6194.6699
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
