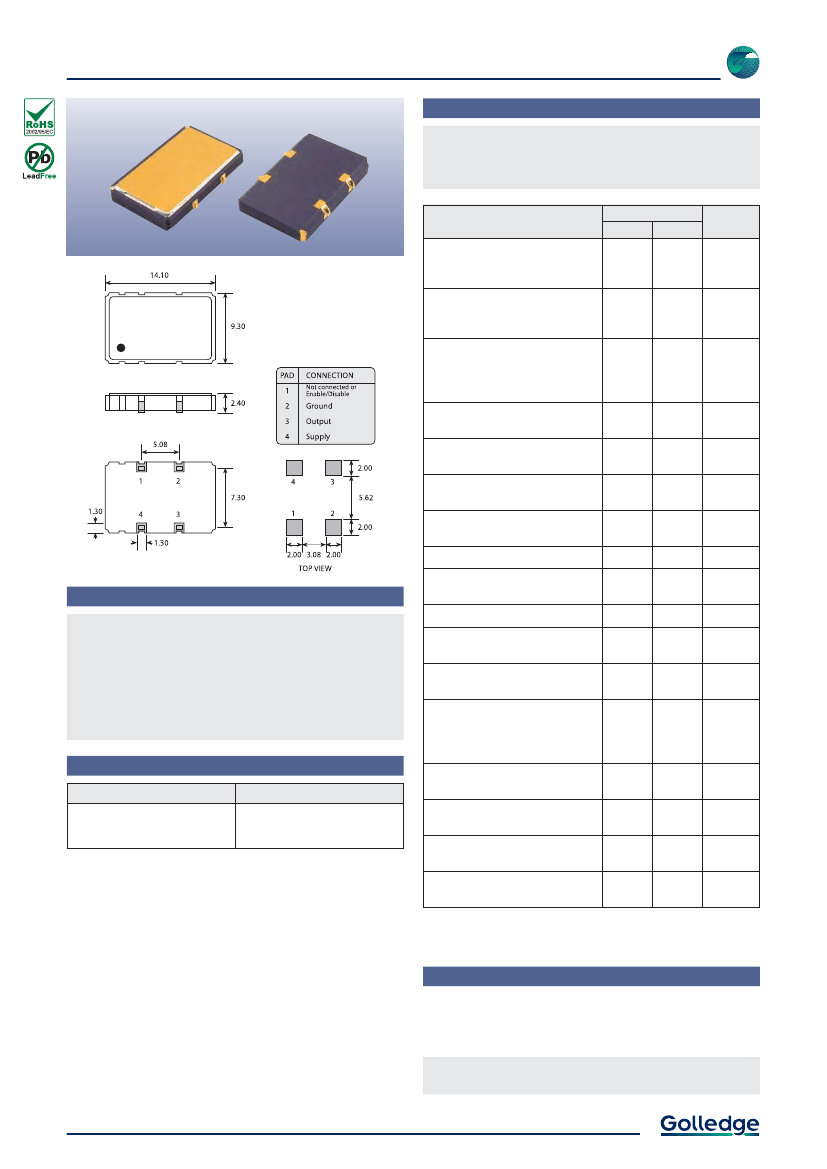

5V CMOS Oscillator -55+125°C
Specifications
MCSO & MCSOH
MCSO: 10.0kHz ~ 20.0MHz
MCSOH:
20.0
~ 160MHz
Product
MCSO
MCSOH
Option
Codes
Parameters
Frequency range:
10.0kHz ~ 20.0MHz
20.0 ~ 160MHz
Frequency stability*:
±100ppm
±50ppm
tighter stabilities on request
T
specify
A
B
C
Operating temperature range:
0 to +70°C
-40 to +85°C
-55 to +125°C
Operable temperature range:
-55 to +125°C
Storage temperature range:
-65 to +125°C
Supply voltage (V
DD
):
Supply current (max):
Driving ability:
Logic levels:
+5.0V (±10%)
15mA
50mA
CMOS / 10 LSTTL
Features
Start up time:
‘0' level = +0.4V max
‘1' level = 90%V
DD
min
5ms max
Military temperature range -55+125°C option
Excellent shock & vibration resistance
Enable / disable tristate option (> 500kHz)
J-leads option
Waveform symmetry:
40:60 max @ 50%V
DD
Rise / fall times:
7ns max
3ns max
Enable / disable function:
None (pad 1 NC)
Tristate* (control via pad 1)
* not available under 500kHz
Terminations:
Stand-offs
J-leads (drawing on request)
Shock resistance:
5,000G, 0.3ms, ½ sine
Vibration resistance:
10G rms 10.0 ~ 2,000Hz
Soldering condition:
260°C, 10 sec max
E
Enable / Disable Function
Input (pad 1)
Open
‘1’ level
‘0’ level
Output (pad 3)
Enabled
Enabled
High Impedance
J
Standard.
Optional - Please specify required code(s) when ordering
* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, sup-
ply voltage change, load change and ageing over 10 years.
Ordering Information
Product name + option codes (if any) + frequency
eg:
MCSO/BE 16.0MHz
±100ppm -40 to +85°C Enable / disable
MCSOH/TAJ 80.0MHz
±50ppm 0 to +70°C, J-leads
Option code X (eg MCSO/X) denotes a custom specification.
Available on T&R (1k pcs/reel) or trays (50pcs/tray).
Refer to our website for T&R and soldering details.
Tel:
+44 1460 256 100
01 May2004
18 Oct 1998
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
