ZTT5.00MT
Ceramic Resonator
1 SCOPE
This specification shall cover the characteristics of the ceramic resonator with the
type ZTT5.00MT.
2 PART NO
PART NUMBER CUSTOMER PART NO SPECIFICATION NO
ZTT5.00MT

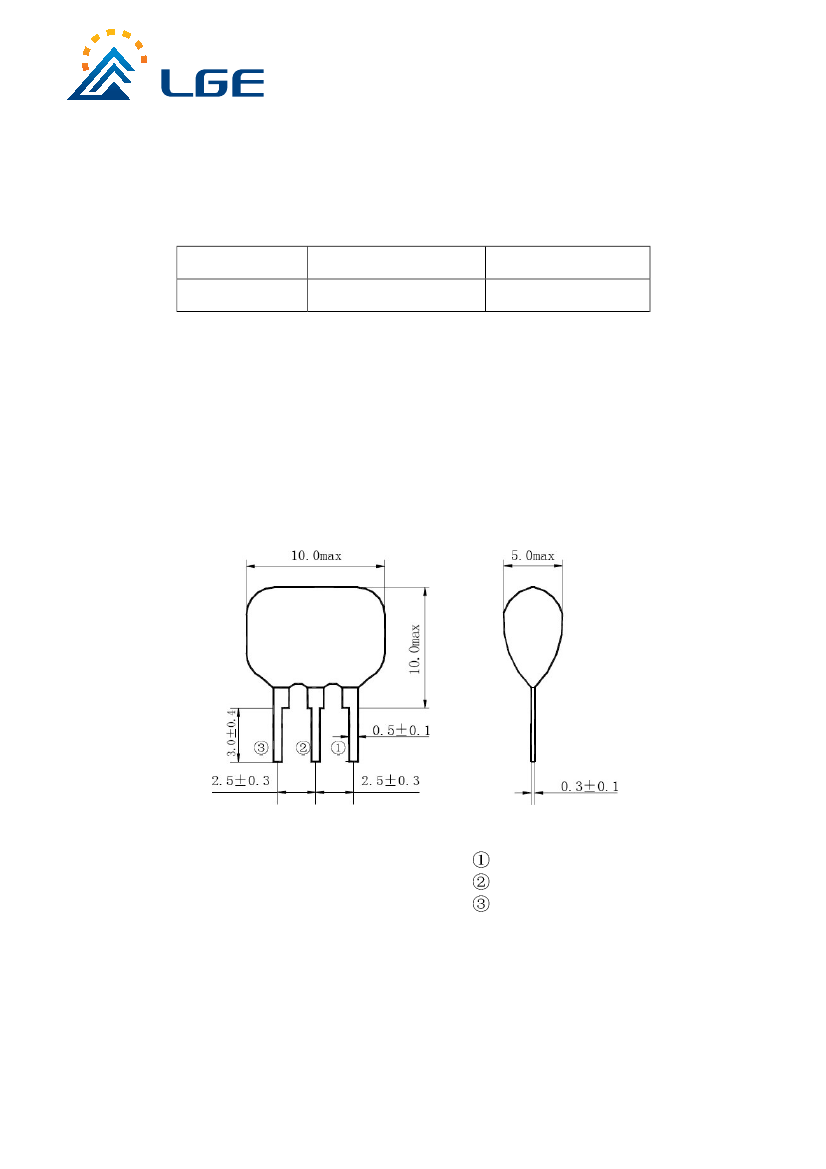

3 OUTLINE DRAWING AND DIMENSIONS
3.1 Appearance: No visible damage and dirt.
3.2 Construction: Leads are soldered on electrode and body is molded by resin.
3.3 Except the chip(ceramic element, ceramic base, capacitance slice), the materials
don’t contain lead.
3.4
Dimensions
Input
Ground
Output
http://www.luguang.cn
mail:lge@luguang.cn
ZTT5.00MT
Ceramic Resonator
4 RATING AND ELECTRICAL SPECIFICATIONS
4.1 RATING
Items
Withstanding Voltage (V)
Insulation Resistance Ri, M
min.
Operating Temperature Range (
Storage Temperature Range (
)
)
Content
50 (DC 1min)
100 100V 1min
-20 +80
-40 +85
Content
5.000
0.5
25
0.3 Oscillation Frequency
drift -20 +80
6V DC
15V p-p
0.3
For Ten Years
4.2 ELECTRICAL SPECIFICATIONS
Items
Oscillation Frequency Fosc MHz
Frequency Accuracy %
Resonant Impedance Ro
Ω
max.
Temperature Coefficient of Oscillation
Frequency
%
max.
Rating Voltage U
R
Aging Rate
5 MEASUREMENT
%
V max.
max.
5.1 Measurement Conditions: Parts shall be measured under a condition ( Temp.
20±15 ,Humidity
65±20% R.H.) unless the standard condition(Temp. 25±3
,Humidity 65±5% R.H.) is regulated to measure.
5.2 Test Circuit
IC 1/6TC4069UBP×2
X CERAMIC RESONATOR
http://www.luguang.cn
mail:lge@luguang.cn
ZTT5.00MT
Ceramic Resonator
6 PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS
No.
Item
Condition of Test
Subject the resonator at +40
2
and
90%-95% R.H. for 500h, resonator shall be
measured after being placed in natural
conditions for 1h.
Subject the resonator to +85
5
for
500h, resonator shall be measured after being
placed in natural conditions for 1hr.
Performance
Requirements
It shall fulfill the
specifications in
Table 1.
6.1
Humidity
High
Temperature
Exposure
Low
Temperature
Exposure
6.2
6.3
6.4
6.5
6.6
6.7
6.8
It shall fulfill the
specifications in
Table 1.
Subject the resonator to –25
5
for It shall fulfill the
500h, resonator shall be measured after being specifications in
placed in natural conditions for 1h.
Table 1.
Subject the resonator to 25
for 30 min.
It shall fulfill the
followed by a high temperature of
85
Temperature
for 30 min. Cycling shall be repeated 5 times. specifications in
Cycling
Resonator shall be measured after being Table 1.
placed in natural conditions for 1h.
Subject the resonator to vibration for 2h each
in x y and z axis with the amplitude of It shall fulfill the
1.5mm, the frequency shall be varied specifications in
Vibration
uniformly between the limits of 10Hz-55Hz Table 1.
and then resonator shall be measured.
No
visible
Resonator shall be measured after 3 times' damage and it
Mechanical
random dropping from the height of 100cm shall fulfill the
Shock
on concrete floor.
specifications in
Table 1.
Lead terminals are immersed up to 2 mm
Resistance to from resonator’s body in soldering bath of It shall fulfill the
260
5
for 5s 1s and then resonator specifications in
Soldering
shall be measured after being placed in Table 1.
Heat
natural conditions for 1h
More than 95%
of the terminal
Lead terminals are immersed up to 2mm from
surface of the
Solderability resonator’s body in soldering bath of 250
resonator shall be
5
for 2s 0.5s.
covered
with
fresh solder.
(To be continued)
http://www.luguang.cn
mail:lge@luguang.cn
ZTT5.00MT
Ceramic Resonator
6. PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS
No.
6.9
Item
Condition of Test
Performance
Requirements
Terminal
Strength
6.9.1 Terminal
Pulling
6.9.2 Terminal
Bending
Force of 5N is applied to each lead in axial
direction for 10s 1s.
When force of 5N is applied to each lead in
axial direction,the lead shall folded up 90
from the axial direction and folded back to
the axial direction. The speed of folding
shall be each 3s.
No visible damage
and it shall fulfill
the specifications
in Table 1.
Table 1
Item
Oscillation Frequency Change
fosc/fosc
Resonant Impedance
(%) max
Ro
max
Specification after test
0.3
25
Note:The limits in the above table are referenced to the initial measurements.
http://www.luguang.cn
mail:lge@luguang.cn
ZTT5.00MT
Ceramic Resonator
7 PACKAGE
To protect the products in storage and transportation it is necessary to pack them
outer and inner package .On paper pack, the following requirements are requested.
7.1 Dimensions and Mark
At the end of package, the warning (moisture proof, upward put) should be stick to
it.
Dimensions and Mark (see below)
NO.
1
2
3
4
5
6
7
Name
Inner
Box
Quantity
40
2
1
1.2m
1
2.9m
1
Notes
Box
Package
Adhesive tape
Label
Belt
Certificate of approval
7.2 Section of package
Package is made of corrugated paper with thickness of 0.8cm.Package has 2 inner
boxes, each has 20 inner box (each box
for plastic bag).
http://www.luguang.cn
mail:lge@luguang.cn
