TMC2243H8C

Description
Digital Filter, 10-Bit, CMOS, PPGA69,
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size685KB,12 Pages
ManufacturerRaytheon Company
Websitehttps://www.raytheon.com/
Download Datasheet Parametric Compare View All

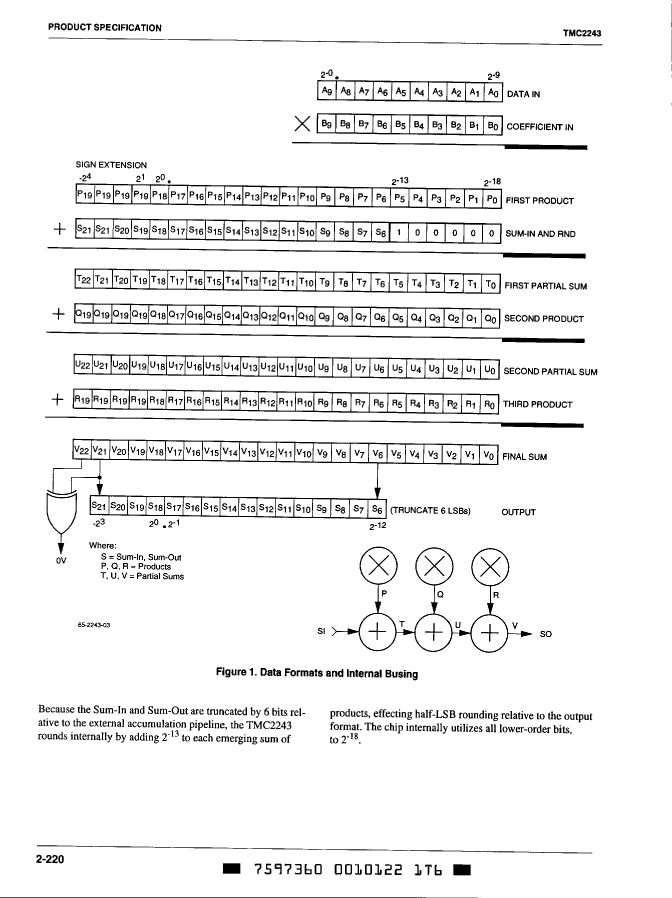

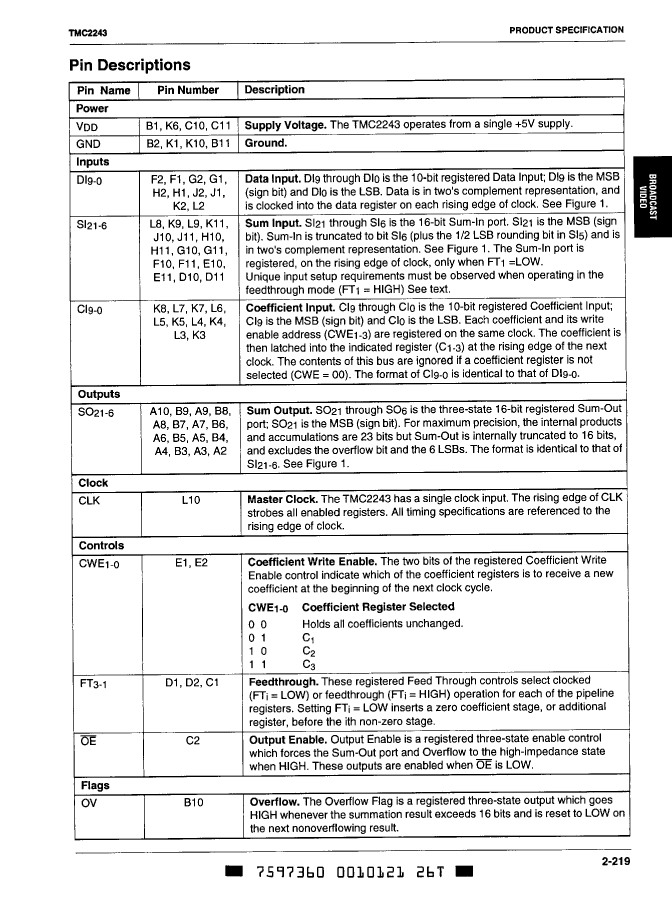

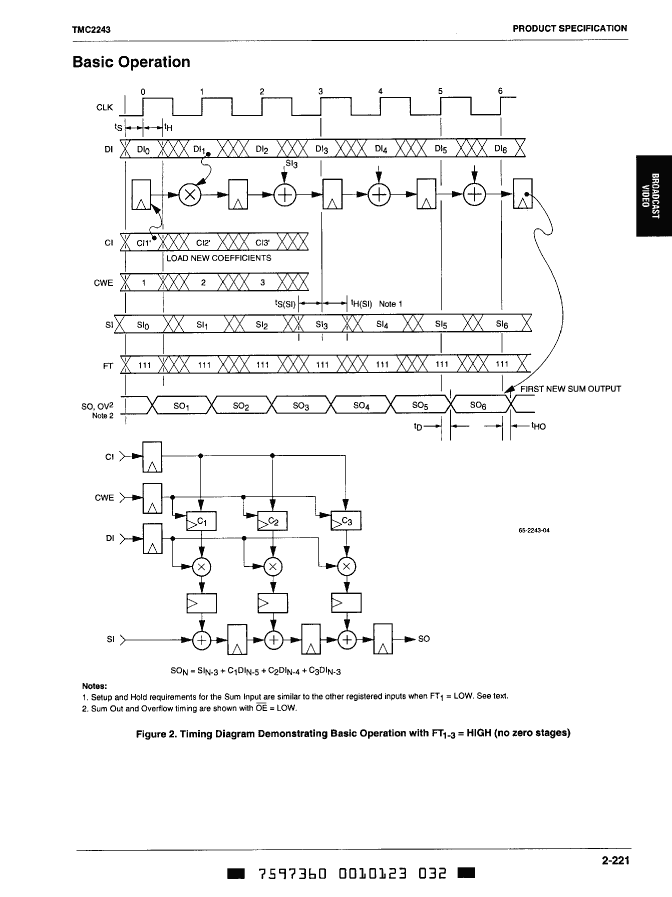

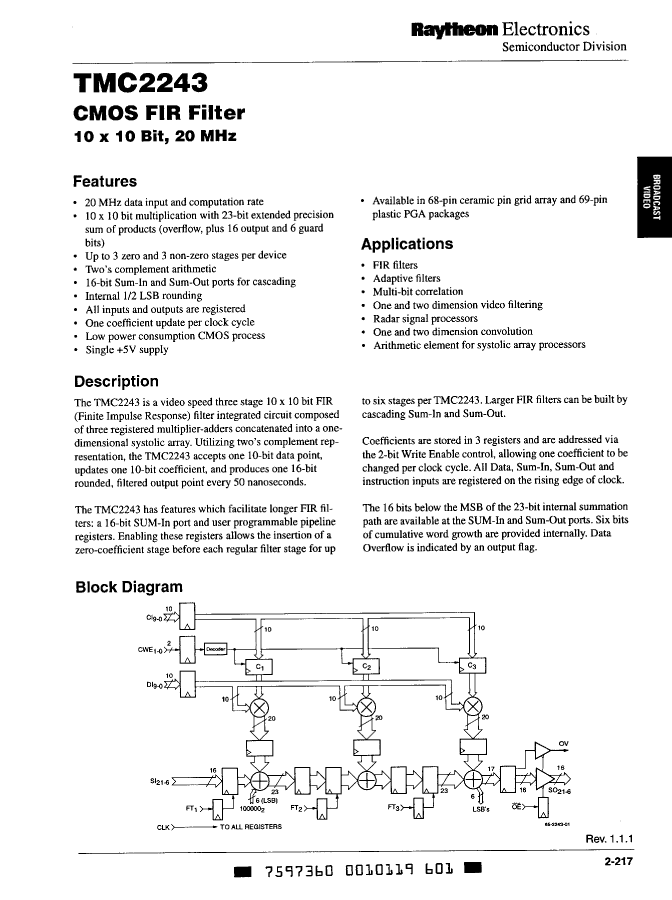

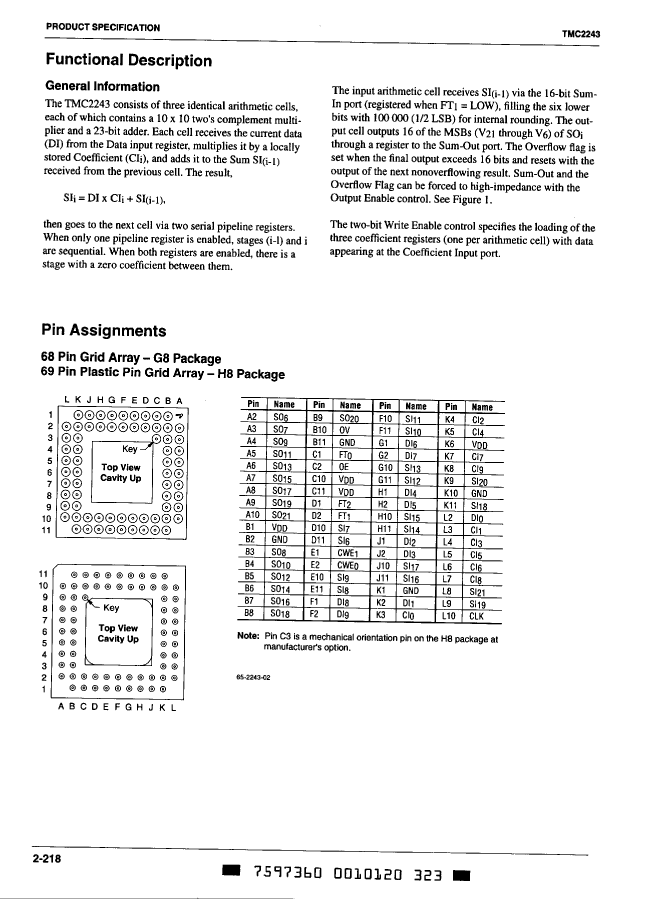

TMC2243H8C Overview

Digital Filter, 10-Bit, CMOS, PPGA69,

TMC2243H8C Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRaytheon Company
Reach Compliance Codeunknown
boundary scanNO
maximum clock frequency20 MHz
External data bus width10
JESD-30 codeS-PPGA-P69
JESD-609 codee0
low power modeNO
Number of terminals69
Maximum operating temperature70 °C
Minimum operating temperature
Output data bus width16
Package body materialPLASTIC/EPOXY
encapsulated codePGA
Encapsulate equivalent codePGA68,11X11
Package shapeSQUARE
Package formGRID ARRAY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum slew rate90 mA
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationPERPENDICULAR
Maximum time at peak reflow temperatureNOT SPECIFIED
uPs/uCs/peripheral integrated circuit typeDSP PERIPHERAL, DIGITAL FILTER

TMC2243H8C Related Products

TMC2243H8C TMC2243G8C TMC2243G8V
Description Digital Filter, 10-Bit, CMOS, PPGA69, Digital Filter, 10-Bit, CMOS, CPGA68, Digital Filter, 10-Bit, CMOS, CPGA68,
Is it Rohs certified? incompatible incompatible incompatible
Reach Compliance Code unknown unknown unknown
boundary scan NO NO NO
maximum clock frequency 20 MHz 20 MHz 20 MHz
External data bus width 10 10 10
JESD-30 code S-PPGA-P69 S-CPGA-P68 S-CPGA-P68
JESD-609 code e0 e0 e0
low power mode NO NO NO
Number of terminals 69 68 68
Maximum operating temperature 70 °C 70 °C 125 °C
Output data bus width 16 16 16
Package body material PLASTIC/EPOXY CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
encapsulated code PGA PGA PGA
Encapsulate equivalent code PGA68,11X11 PGA68,11X11 PGA68,11X11
Package shape SQUARE SQUARE SQUARE
Package form GRID ARRAY GRID ARRAY GRID ARRAY
Certification status Not Qualified Not Qualified Not Qualified
Maximum slew rate 90 mA 90 mA 90 mA
Maximum supply voltage 5.25 V 5.25 V 5.5 V
Minimum supply voltage 4.75 V 4.75 V 4.5 V
Nominal supply voltage 5 V 5 V 5 V
surface mount NO NO NO
technology CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD
Terminal form PIN/PEG PIN/PEG PIN/PEG
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Terminal location PERPENDICULAR PERPENDICULAR PERPENDICULAR
uPs/uCs/peripheral integrated circuit type DSP PERIPHERAL, DIGITAL FILTER DSP PERIPHERAL, DIGITAL FILTER DSP PERIPHERAL, DIGITAL FILTER
Maker Raytheon Company Raytheon Company -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED -
power supply 5 V 5 V -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED -
