QFS-016-01-H-D-DP-A-GP

Description
Board Stacking Connector, 32 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,
CategoryThe connector    The connector
File Size5MB,5 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

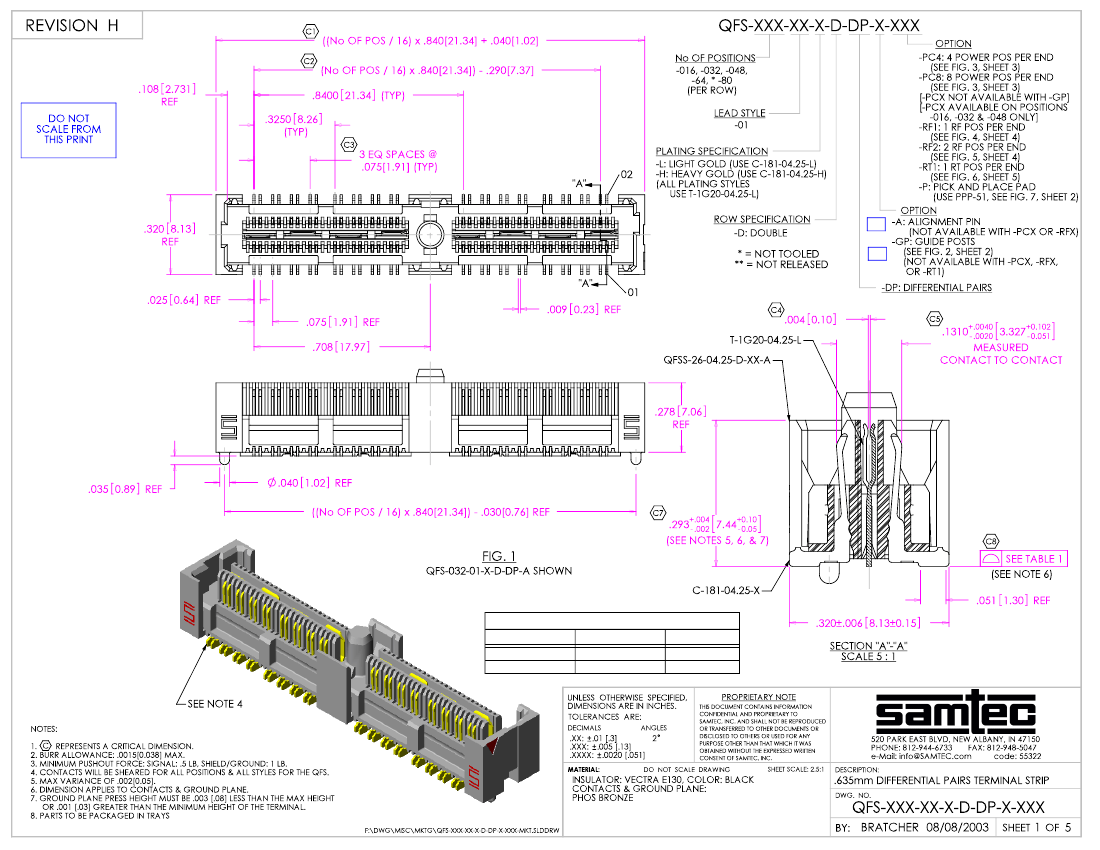

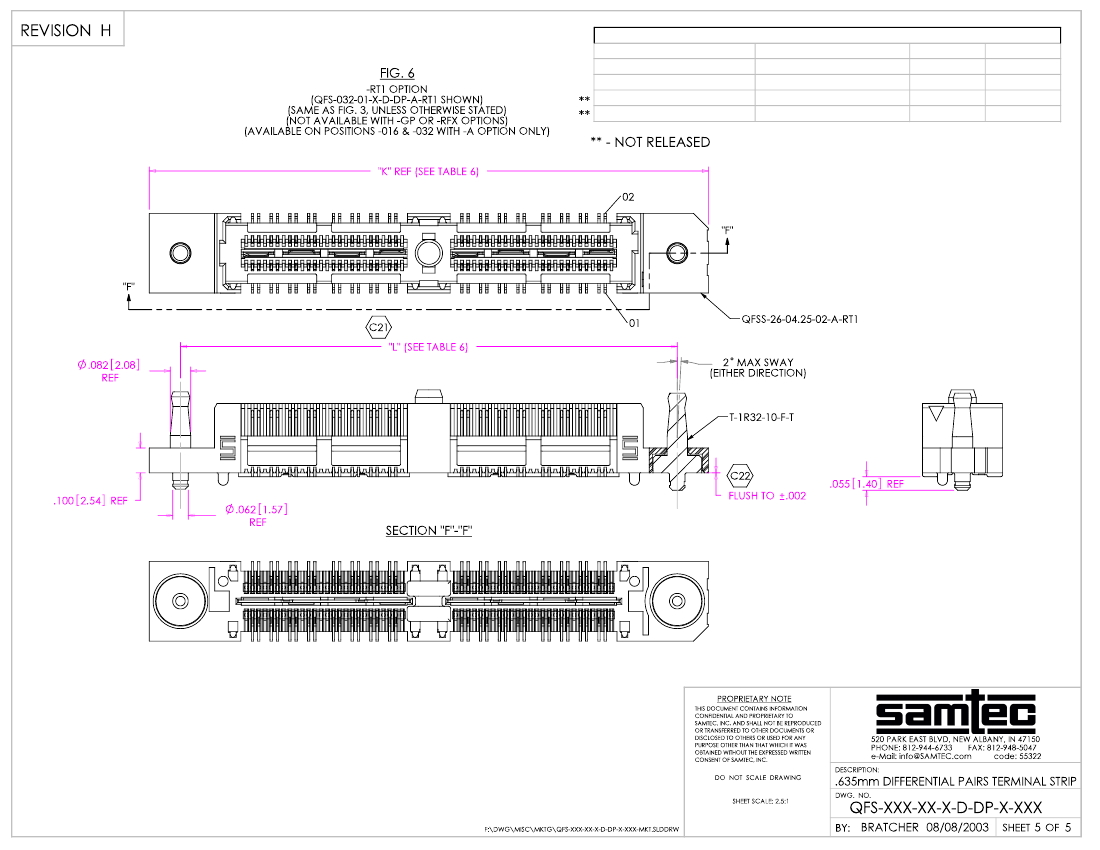

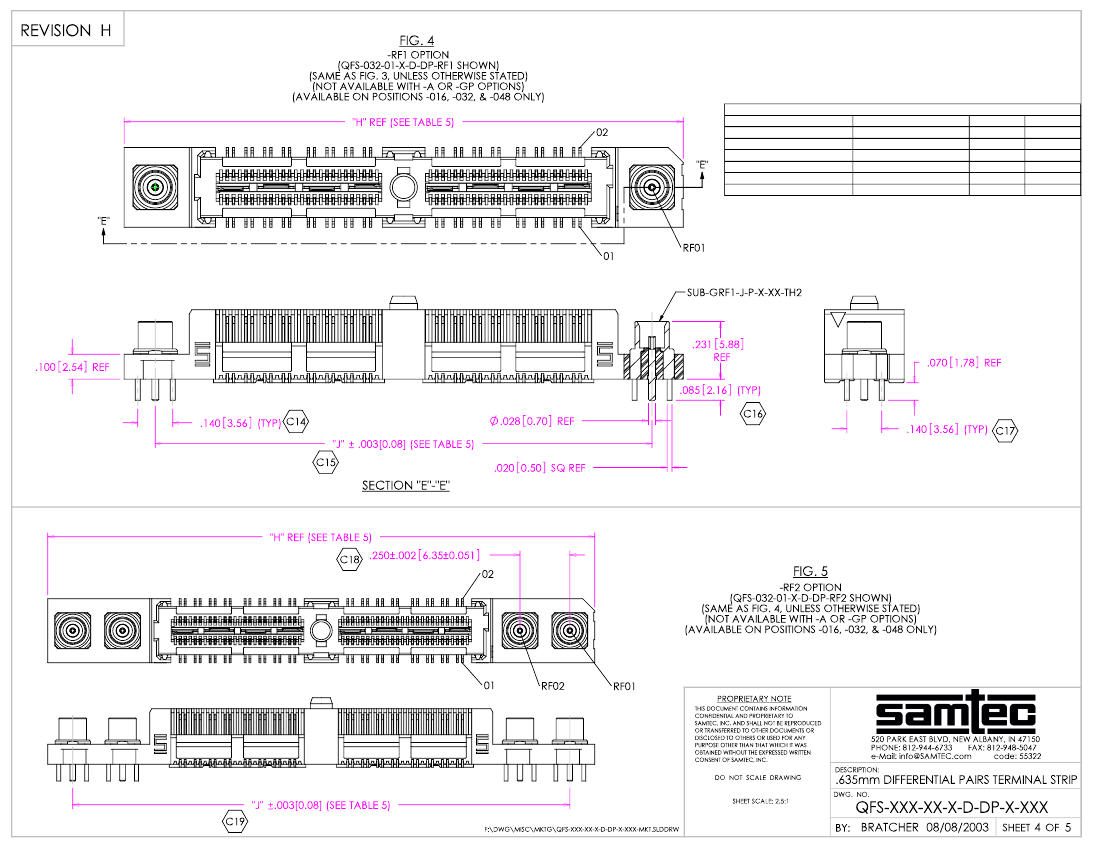

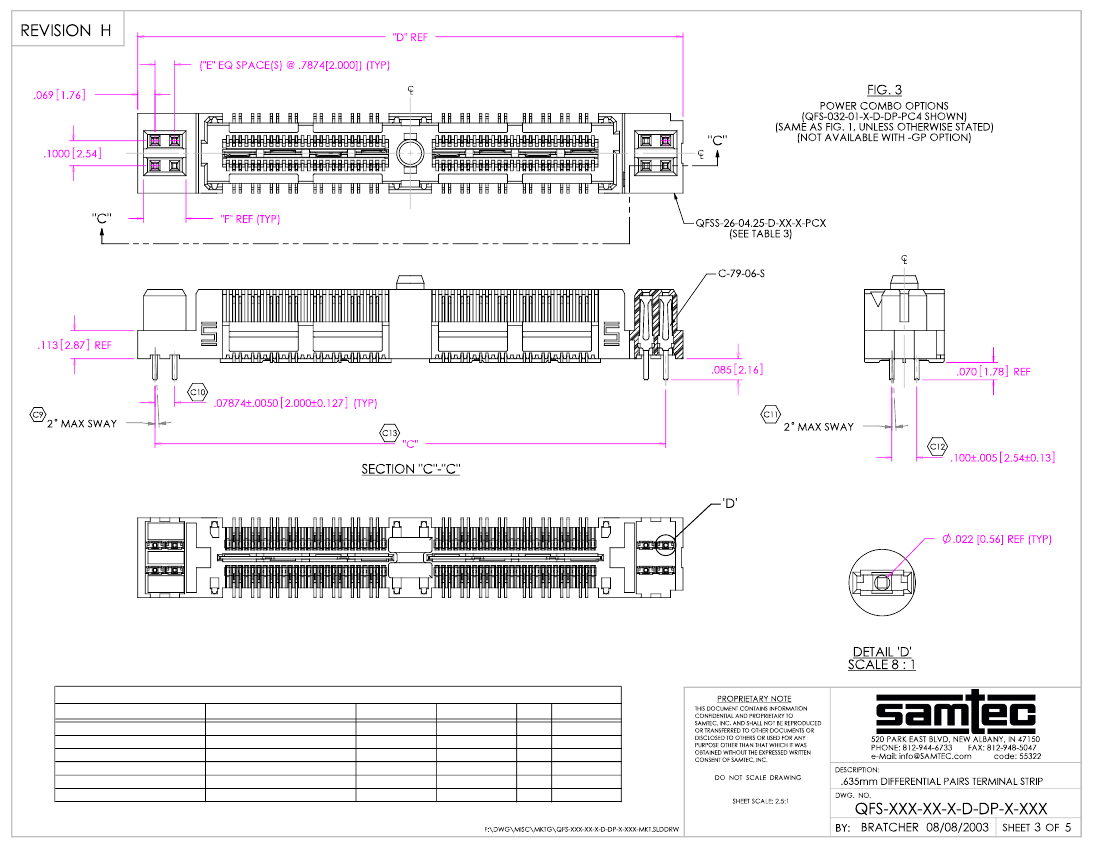

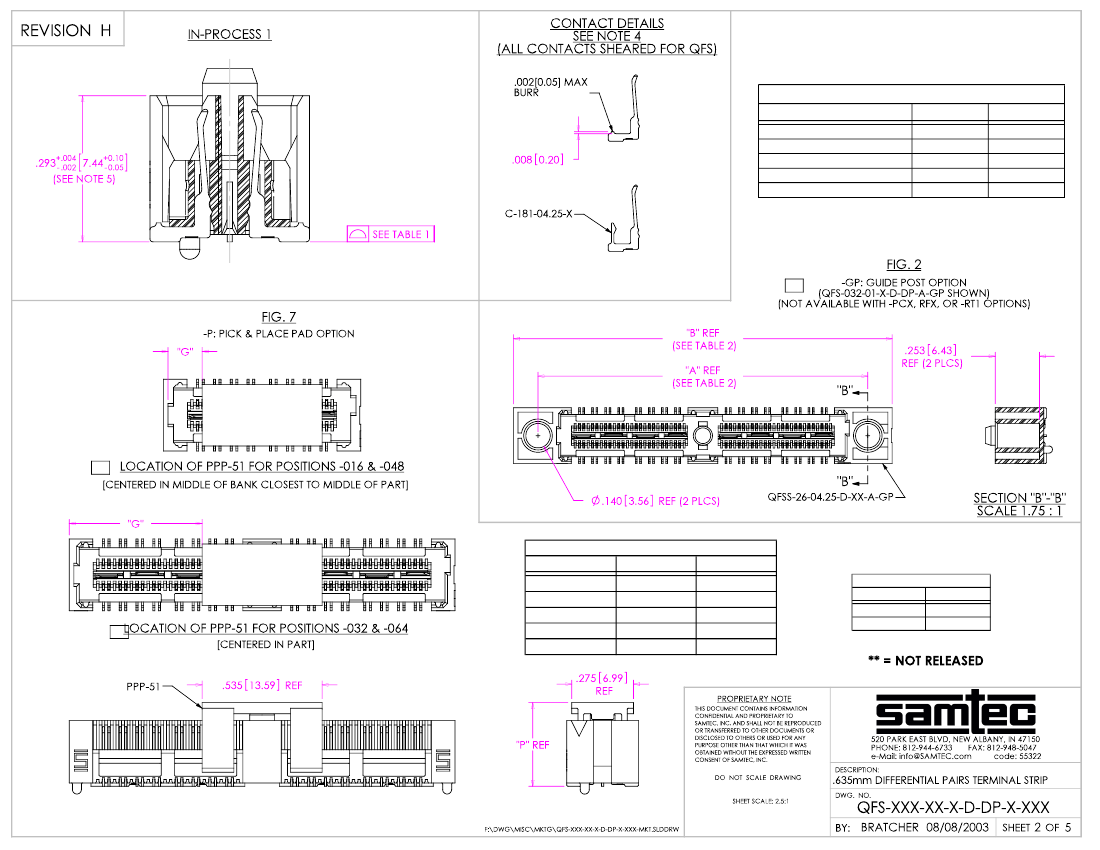

QFS-016-01-H-D-DP-A-GP Overview

Board Stacking Connector, 32 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,

QFS-016-01-H-D-DP-A-GP Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompliant
Connector typeBOARD STACKING CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberQFS
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts32
H
H
TABLE 1
No OF POSITIONS
-016 THRU -048
-064 AND -080
No OF BANKS
1 THRU 3
4 AND 5
COPLANARITY
.004[.10]
.006[.15]
