PCF5020MT472 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PCF5020MT472

PCF5020MT472: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size162KB，5 Pages; ManufacturerViking Tech Corp

Download Datasheet Parametric Compare View All

PCF5020MT472 Overview

General Purpose Inductor

PCF5020MT472 Parametric

Parameter Name	Attribute value
Maker	Viking Tech Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PCF

Preview

Download Datasheet

View All

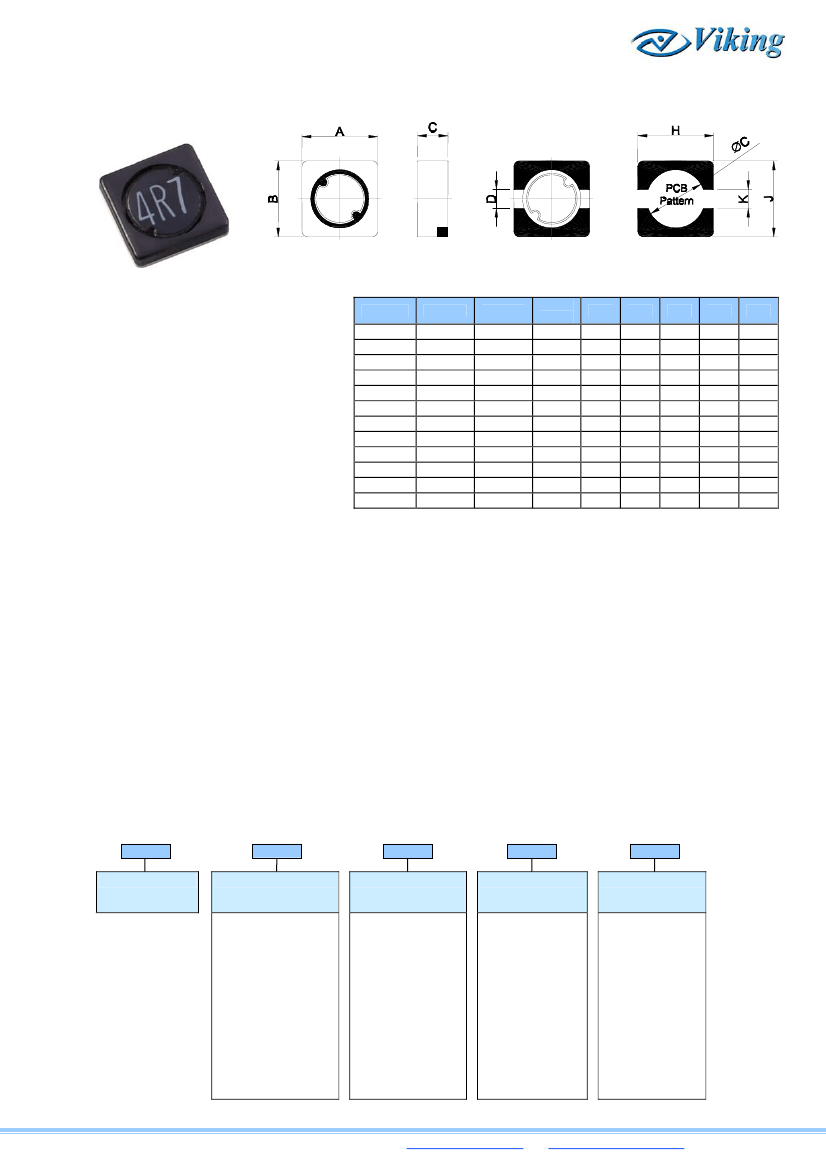

Shielded SMD Power Inductor－PCF

■Dimensions

Type

PCF4010

PCF4020

PCF4030

PCF5010

PCF5020

PCF5030

PCF6915

PCF6919

PCF7040

PCF1015

PCF1040

PCF1062

3.8±0.3

5.0±0.3

6.9±0.3

7.0±0.4

10.0±0.3

3.8±0.3

5.0±0.3

6.9±0.3

7.0±0.4

10.0±0.3

max.

1.25

2.00

3.00

1.20

2.00

3.00

1.50

1.90

4.30

1.50

4.00

6.70

1.2

2.0

2.5

1.8

2.5

4.4

5.9

7.3

8.0

10.6

4.4

5.9

7.3

8.0

10.6

1.1

1.9

2.0

1.6

2.3

Unit: mm

ΦC

3.0

4.2

5.3

6.0

8.0

■Features

－Directly

connected electrode on ferrite core

－Available

in magnetically shielded

－Low

DC resistance

－Suitable

for large current

－Available

on tape and reel for auto surface

mounting

■Applications

－Power

Supply For VTRs

－OA

Equipment.

－Notebook

PCs

－Portable

Communication Equipment

－DC/DC

Converters, etc.

■Inductance

and rated current ranges

－PCF4010

－PCF4020

－PCF4030

－PCF5010

－PCF5020

－PCF5030

－PCF6915

－PCF6919

－PCF7040

－PCF1015

－PCF1040

－PCF1062

1.0½180µH

0.47½1800µH

1.5½560µH

1.2½1000µH

1.0½6800µH

1.0½2500µH

1.0½820µH

1.0½1500µH

0.36½1000µH

1.0½2200µH

0.56½1000µH

0.56½39µH

1.60½0.110A

1.84½0.036A

1.90½0.090A

1.77½0.067A

2.70½0.030A

4.00½0.045A

3.28½0.100A

3.52½0.095A

9.24½0.180A

4.10½0.100A

12.6½0.280A

10.18½1.30A

■Characteristics

－Rated

Current:

4010/4020/5010/5020/5030/6915/6919/7040: The

DC current when the inductance becomes 30%

lower than its initial value.

4030/1015/1040/1062: The DC current when the

inductance becomes 35% lowers than its initial

value. (Ta=25°C)

－Operating

temperature range: -40½+105°C

－Electrical

specifications at 25°C

■Product

Identification

PCF

Product Type

4010

Dimensions

(AxBxC)

4010: 3.8×3.8×1.25

4020: 3.8×3.8×2.0

4030: 3.8×3.8×3.0

5010: 5.0x5.0x1.2

5020: 5.0x5.0x2.0

5030: 5.0x5.0x3.0

6915: 6.9x6.9x1.5

6919: 6.9x6.9x1.9

7040: 7.0x7.0x4.3

1015: 10x10x1.5

1040: 10x10x4.0

1062: 10x10x6.7

Inductor

Tolerance

±20%

±30%

Packaging

Style

T: Tape and Reel

1R1: 1.1µH

470: 47µH

101: 100µH

101

Inductance

Tel: 886-3-5972931

Fax: 886-3-5973494

E-mail:

sales@viking.com.tw

http://www.viking.com.tw

115

PCF5020MT472 Related Products

	PCF5020MT472	PCF7040NT1R2	PCF7040MT4R3	PCF6919MT122	PCF6919MT152	PCF5020MT562	PCF6919NT2R2	PCF7040MT102
Description	General Purpose Inductor	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor	General Purpose Inductor,	General Purpose Inductor,
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknown	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Maker	Viking Tech Corp	-	-	Viking Tech Corp	Viking Tech Corp	Viking Tech Corp	Viking Tech Corp	Viking Tech Corp
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	-	conform to	conform to
core material	-	FERRITE	FERRITE	FERRITE	FERRITE	-	-	FERRITE
DC Resistance	-	0.04 Ω	0.041 Ω	31.85 Ω	36.72 Ω	-	-	6 Ω
Nominal inductance(L)	-	1.2 µH	4.3 µH	1200 µH	1500 µH	-	-	1000 µH
Inductor Applications	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	-	POWER INDUCTOR
Number of functions	-	1	1	1	1	-	-	1
Number of terminals	-	2	2	2	2	-	-	2
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C	-	-	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-40 °C
Maximum rated current	-	2.1 A	2.06 A	0.1 A	0.095 A	-	-	0.18 A
Shape/Size Description	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE
shield	-	YES	YES	YES	YES	-	-	YES
surface mount	-	YES	YES	YES	YES	-	-	YES
Terminal location	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	-	DUAL ENDED
Terminal shape	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	-	-	ONE SURFACE
Test frequency	-	0.1 MHz	0.1 MHz	0.001 MHz	0.001 MHz	-	-	0.001 MHz
Tolerance	-	30%	20%	20%	20%	-	-	20%
