PWP04-68KJB048: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.4W, 68000ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, 4008, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size2MB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

PWP04-68KJB048 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.4W, 68000ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, 4008, RADIAL LEADED, ROHS COMPLIANT

PWP04-68KJB048 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
structure	Rectangular
JESD-609 code	e1
lead spacing	7.62 mm
Manufacturer's serial number	PWP
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	6.35 mm
Package length	10.16 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	2 mm
method of packing	BULK
Rated power dissipation(P)	0.4 W
Rated temperature	70 °C
resistance	68000 Ω
Resistor type	FIXED RESISTOR
series	PWP
size code	4008
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	WIRE
Tolerance	5%

Preview

Download Datasheet

View All

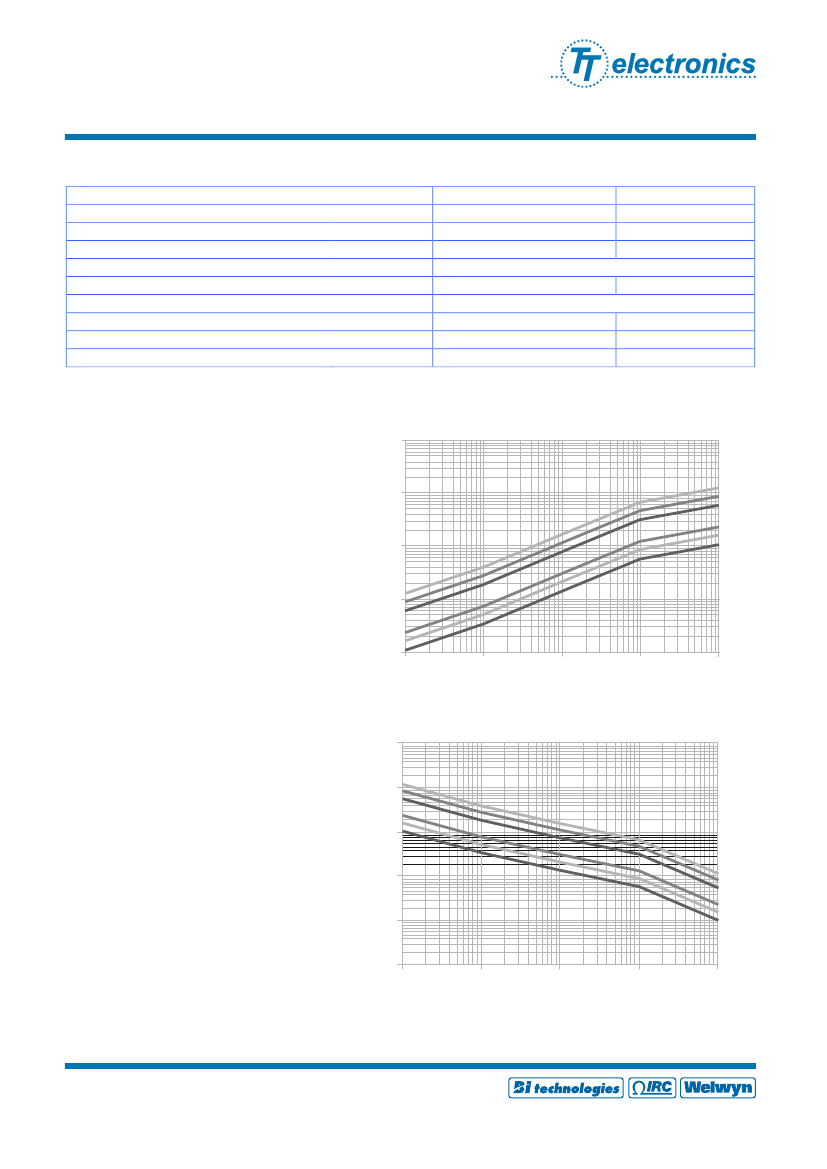

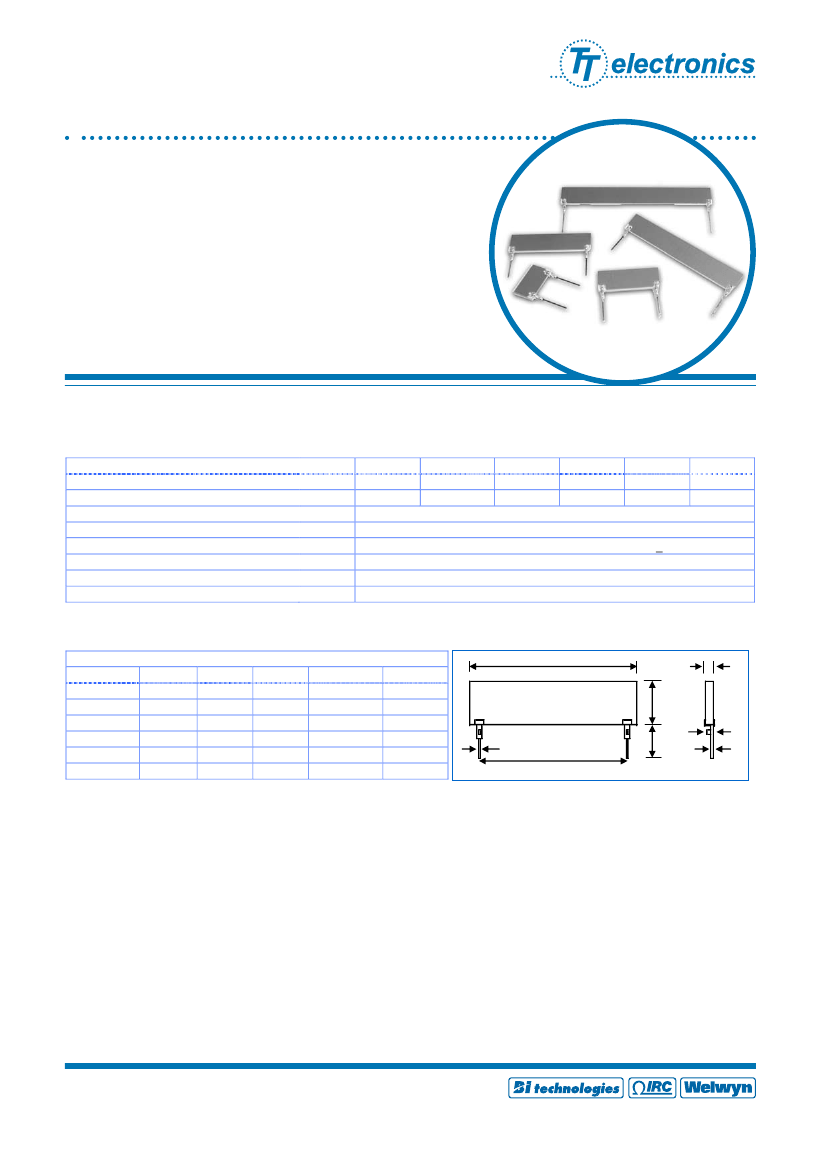

Pulse Withstanding

Planar Resistors

PWP Series



Excellent pulse withstand capability



Energy ratings 5J to 70J

Excellent reliability



Ideally suited for medical applications



Custom design service available



RoHS compliant





































































 



































































































































































































½









½½½





General Note

TT electronics reserves the right to make changes in product specification without notice or liability.









All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com





















03. 12
