NJM022BV-(TE1) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJM022BV-(TE1)

NJM022BV-(TE1): DescriptionOperational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, SSOP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size212KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJM022BV-(TE1) Overview

Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, SSOP-8

NJM022BV-(TE1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SSOP-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.25 µA
Minimum Common Mode Rejection Ratio	60 dB
Nominal Common Mode Rejection Ratio	92 dB
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	4.4 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.45 mm
Nominal slew rate	1 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	1000
width	3.5 mm

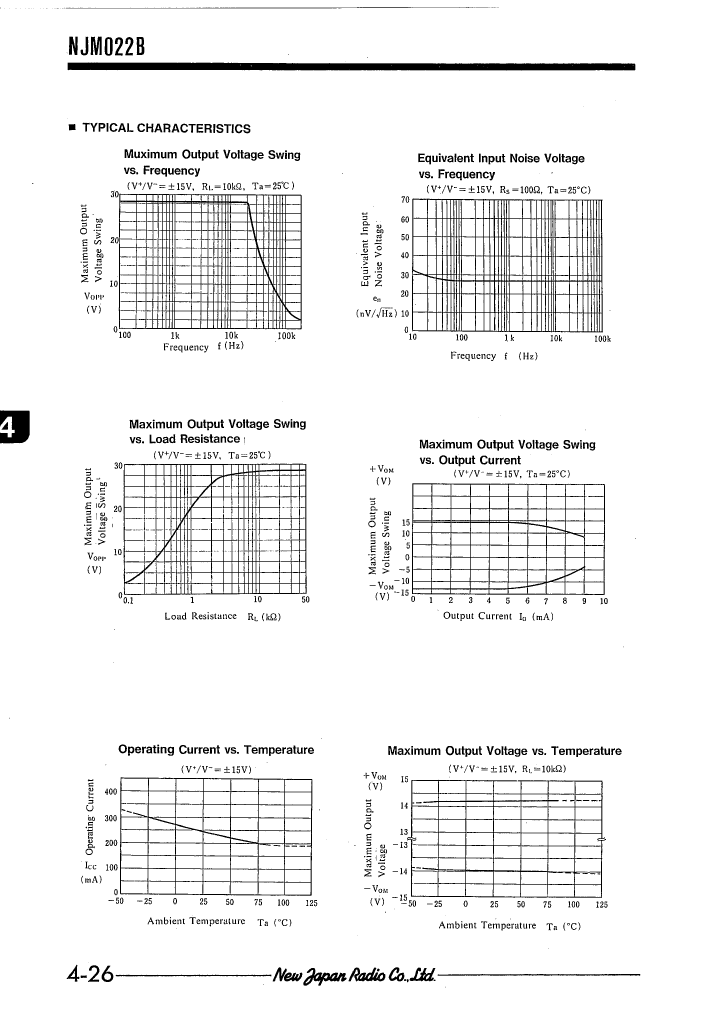

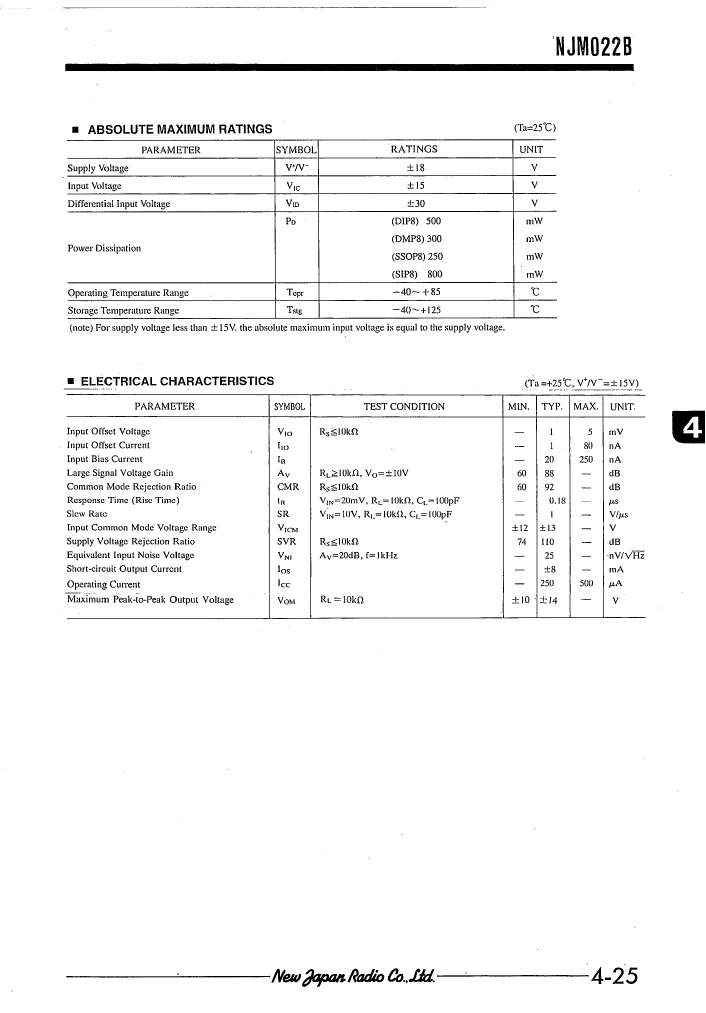

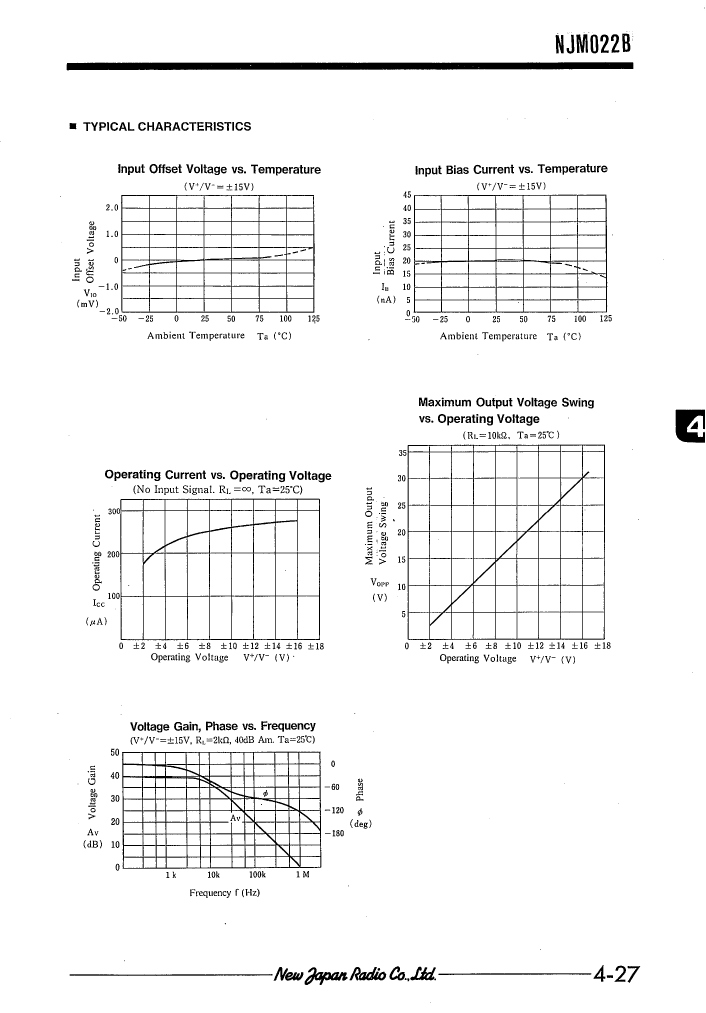

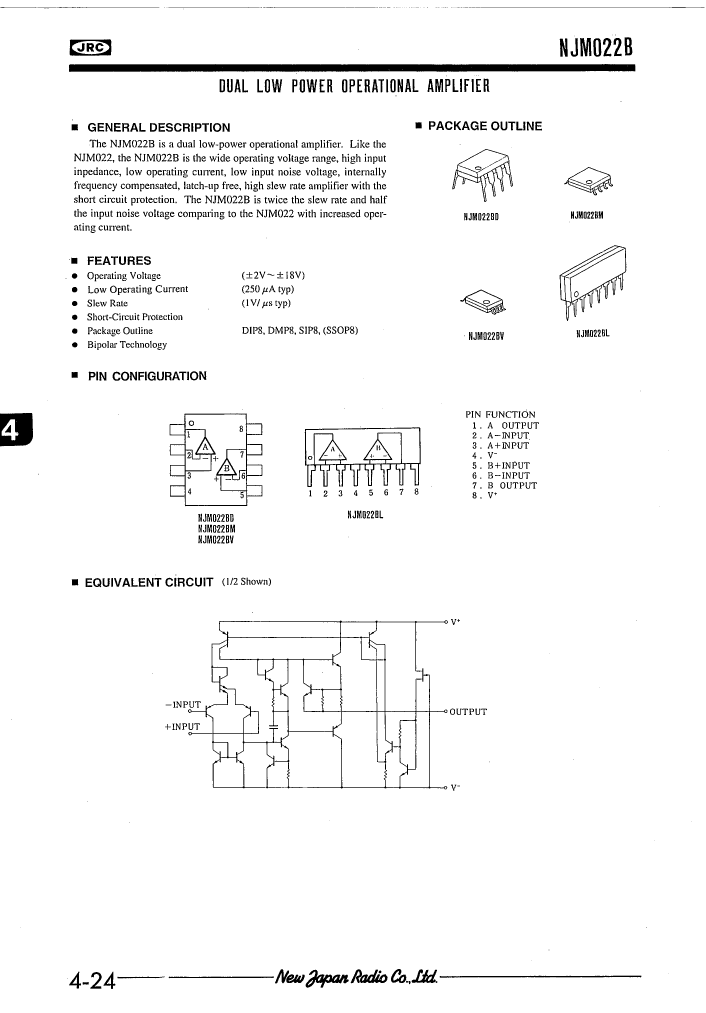

Preview

Download Datasheet

View All

NJM022BV-(TE1) Related Products

	NJM022BV-(TE1)	NJM022BM-(TE4)	NJM022BM-(T1)	NJM022BM-(T2)	NJM022BM-(TE1)	NJM022BM-(TE3)	NJM022BM-(TE2)	NJM022BV-(TE2)
Description	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, SSOP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, DMP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, DMP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, DMP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, DMP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, DMP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, DMP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, SSOP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SSOP-8	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SSOP-8
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA
Minimum Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB
Nominal Common Mode Rejection Ratio	92 dB	92 dB	92 dB	92 dB	92 dB	92 dB	92 dB	92 dB
Maximum input offset voltage	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	R-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	R-PDSO-G8
JESD-609 code	e6	e6	e6	e6	e6	e6	e6	e6
length	4.4 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	4.4 mm
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	SOP	SOP	SOP	SOP	SOP	SOP	LSSOP
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.45 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	1.45 mm
Nominal slew rate	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Minimum voltage gain	1000	1000	1000	1000	1000	1000	1000	1000
width	3.5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	3.5 mm
