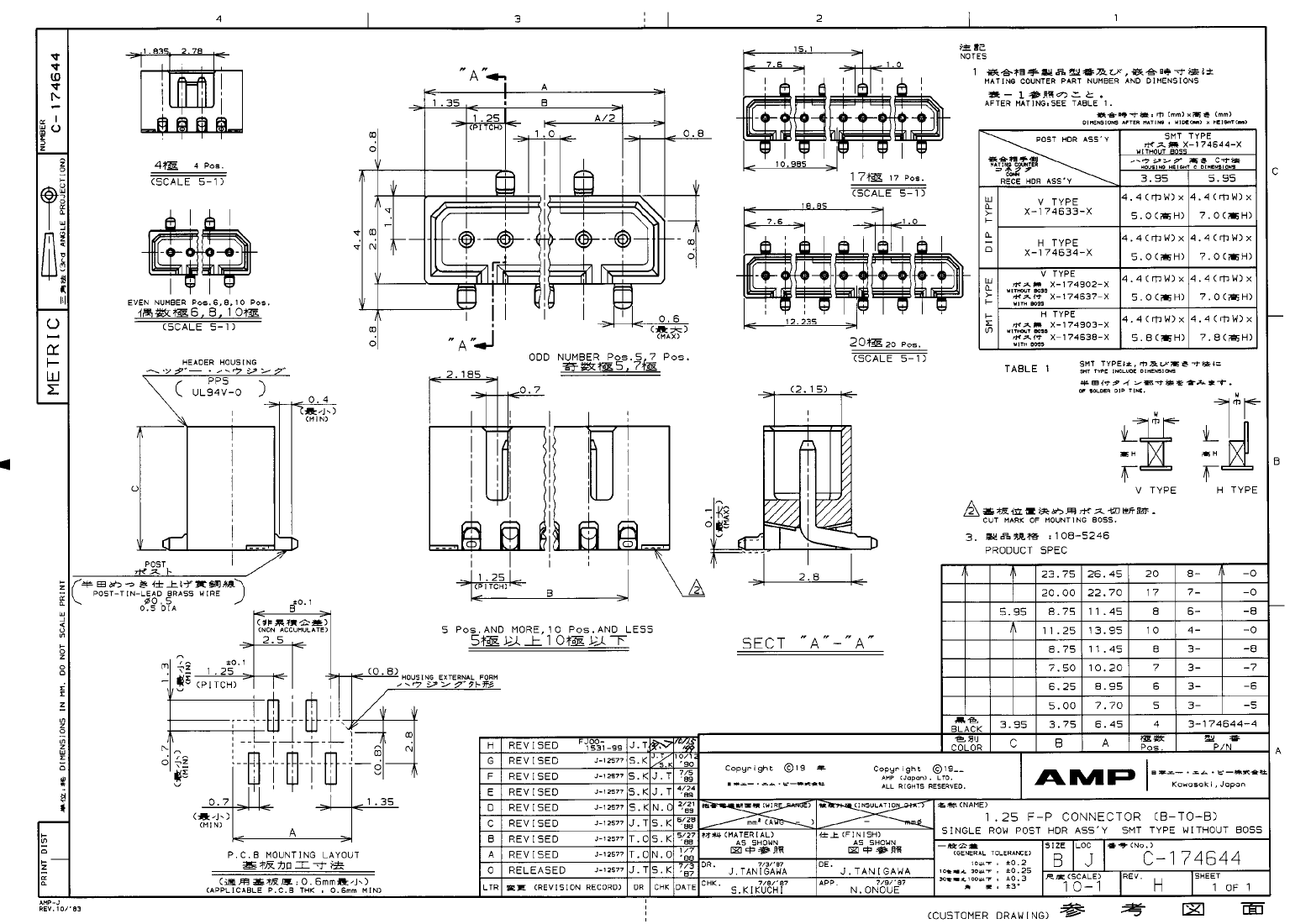

Preview

8-174644-0: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.049 PITCH,BLACK; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

8-174644-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.049 PITCH,BLACK

8-174644-0 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	LOOSE PIECE
body width	0.11 inch
subject depth	0.234 inch
body length	1.041 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	174644
Plug contact pitch	0.049 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Total number of contacts	20

Preview

Download Datasheet

View All

8-174644-0 Related Products

	8-174644-0	4-174644-0	3-174644-7	3-174644-6	3-174644-5	3-174644-8	3-174644-4	7-174644-0
Description	HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,5 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,4 CONTACTS,PIN,0.049 PITCH,BLACK	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT
Reach Compliance Code	unknown	compli	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Manufacturer's serial number	174644	174644	174644	174644	174644	174644	174644	174644
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	1	1	1	1	1	1	1	1
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.5 mm
Total number of contacts	20	10	7	6	5	8	4	17
body width	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	-
subject depth	0.234 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	-
body length	1.041 inch	0.549 inch	0.402 inch	0.352 inch	0.303 inch	0.451 inch	0.254 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	SN-PB	SN-PB	SN-PB	SN-PB	-
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	-
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	-
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	-
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	-
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	-
PCB row number	2	2	2	2	2	2	2	-
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-
PCB contact row spacing	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	-
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	-
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	-
Guideline	UL	UL	UL	UL	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Base Number Matches	-	1	1	1	1	1	1	1
