PT08SE-16-26S(470) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PT08SE-16-26S(470)

Preview

PT08SE-16-26S(470): DescriptionMIL Series Connector; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT08SE-16-26S(470) Overview

MIL Series Connector

PT08SE-16-26S(470) Parametric

Parameter Name	Attribute value
Objectid	7070498285
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	16 weeks
YTEOL	9.55
Other features	STANDARD: MIL-DTL-26482
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CIRCULAR CONNECTOR
Contact point gender	FEMALE
Number of contacts	26
Contact size	20
Coupling type	BAYONET
rotation
other instructions	Plug, 90 Degree
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; MOISTURE RESISTANT
Filter function	NO
insulator material	NEOPRENE RUBBER
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
polarization	N
Shell surface	BLACK ZINC COBALT
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	26
Unique insertion number	16-26

Preview

Download Datasheet

View All

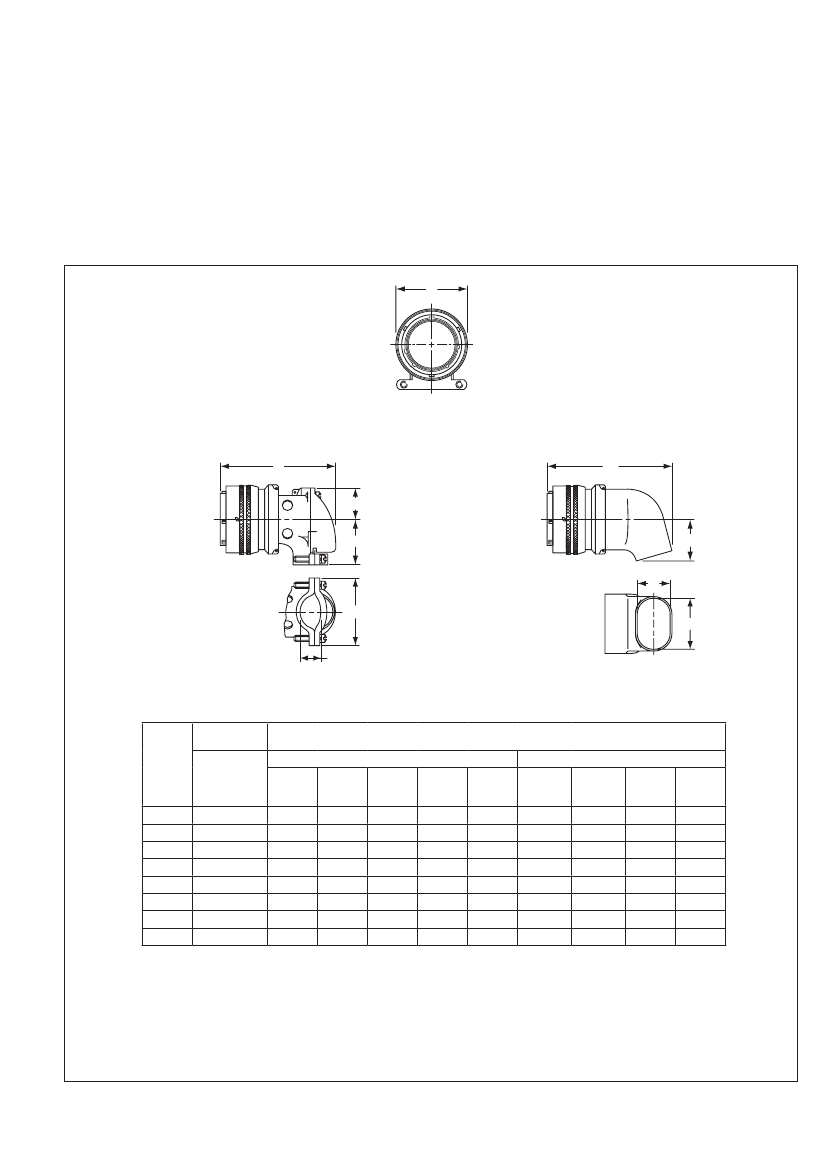

PT08 SE

SP08 SE

90 degree plug

G

TERMINATION ASSEMBLIES

“SE” Open Wire Seal, “SE” (SR) Strain Relief

“SP” Potting Boot 75 degrees

L

E

B

L

A

PT08SE-XX-XXX

SP08SE-XX-XXX

PT08SE-XX-XXX (SR)

SP08SE-XX-XXX (SR)

H

D

PT08SP-XX-XXX

SP08SP-XX-XXX

C

K

To complete part number see how to order on page 36.

All lockwire holes are .044 Dia. Min.

Plug

Front View

Class “SE”, “SE” (SR)

Shell

Size

G

Dia.

Max.

B

±.031

C

+.010

–.025

D

±.062

E

+.047

–.025

L

Max.

A

±.025

Plug

Side View

Class “SP”

H

±.015

K

±.015

L

Max.

10

12

14

16

18

20

22

24

.921

1.046

1.171

1.297

1.422

1.562

1.672

1.797

.749

.812

.905

1.030

1.015

1.077

1.139

1.250

.170

.264

.310

.330

.444

.510

.515

.656

1.191

1.254

1.316

1.562

1.625

1.719

1.750

.393

.450

.519

.583

.621

.683

.739

.787

2.137

2.222

2.370

2.572

2.680

2.753

2.799

3.037

.547

.625

.734

.750

.781

.859

.906

1.181

.438

.516

.625

.656

.703

.766

.812

.918

.562

.688

.781

.890

1.000

1.125

1.234

1.374

2.031

2.093

2.203

2.250

2.296

2.343

2.390

2.624

All dimensions for reference only.
