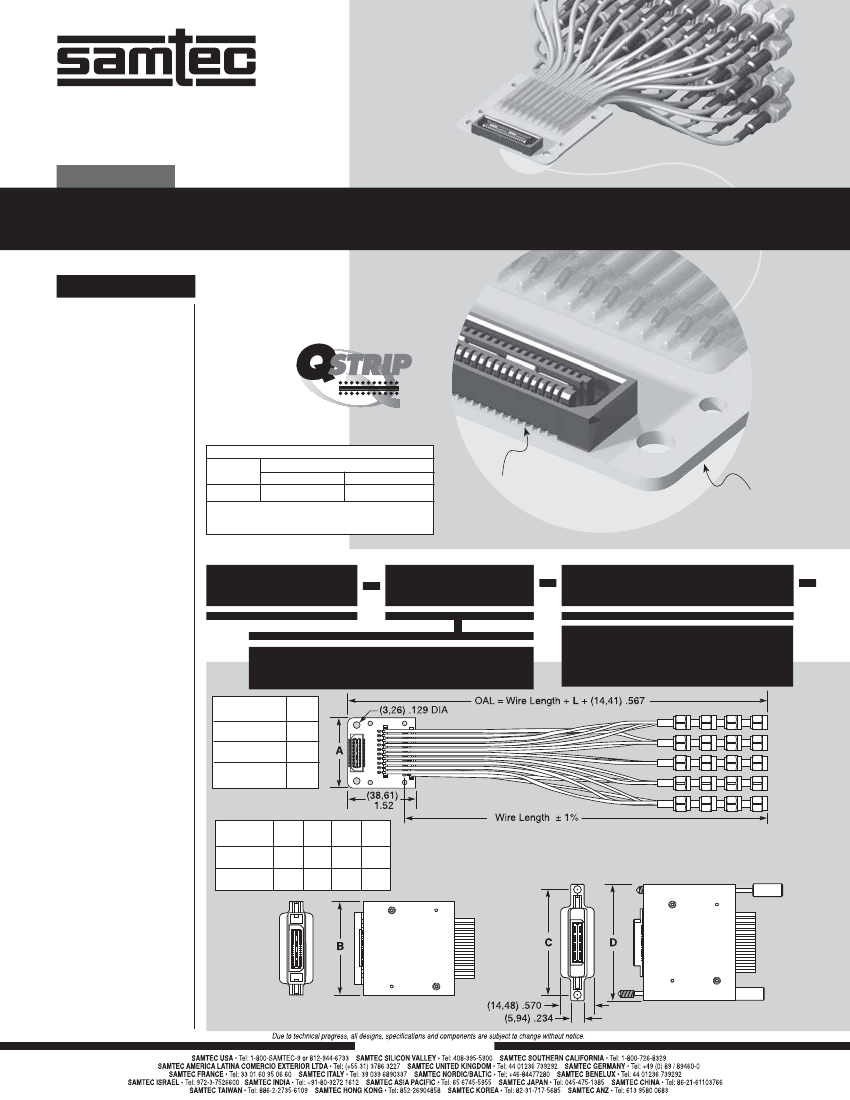

F-211 SUPPLEMENT
EQRF–020–0152–S–L–SMA–P–1
EQRF SERIES
COMBINATION Q SERIES /RF CABLE
SPECIFICATIONS
For complete specifications
see www.samtec.com?EQRF
Q Series
®
:
See QTE or QSE Series
RF:
See SMA, MCX or
MMCX Series
RoHS Compliant:
Yes
®
Mates with:
QTE, QSE,
MMCX, MCX, SMA
Connectors:
®
RG 178 Cable:
Impedance:
50Ω
Capacitance:
89.61pF/meter
Propagation Delay:
4.83 nsec/meter
Max Attenuation
(cable only):
1.71dB @ 1GHz for 1 meter
Conductor Size:
30 AWG, (0,31mm) .012" dia.
Conductor Material:
Silver Plated Copper
Conductor Resistance:
0.34Ω/meter max
Current Rating:
3A
Insulator Diameter:
(0,86mm) .034"
Insulator Material:
PTFE
Dielectric Constant:
2.1dK
Shield Material:
Silver Plated Copper Clad Steel
Jacket Material:
FEP
Jacket Diameter:
(1,80mm) .071"
Jacket Temp Rating:
-50°C to +250°C
Jacket Color:
Amber
RoHS Compliant:
Yes
Cable
Length
EQRF
Rated @ 7dB Insertion Loss
–DP
–SE
6" (152mm)
4.62 GHz / 9.24 Gbps 4.62 GHz / 9.24 Gbps
Performance data for other cable lengths and complete
test data available at www.samtec.com?EQRF or contact
sig@samtec.com
0,80mm pitch
Vertical or
Edge Mount
orientation
EQRF
NO. OF POSITIONS
PER ROW
WIRE
LENGTH
–“XXXX”
–020, –040
(40 Positions Per Bank)
GENDER/
ORIENTATION
–S–S & –S–M
–T–S & –T–M
–SL & –TL
–SR & –TR
L
(20,88)
.822
(21,64)
.852
(17,35)
.683
= Wire Length in millimeters
0152mm (06.00") MIN
RG 316 Cable:
Impedance:
50Ω
Capacitance:
96.432pF/meter
Propagation Delay:
4.83 nsec/meter
Max Attenuation
(cable only):
1.25dB @ 1GHz for 1 meter
Conductor Size:
26 AWG, (0,51mm) .020" dia.
Conductor Material:
Silver Plated Copper
Conductor Resistance:
0.13Ω/meter max
Current Rating:
5A
Insulator Diameter:
(1,52mm) .060"
Insulator Material:
PTFE
Dielectric Constant:
2.1dK
Shield Material:
Silver Plated Copper Clad Steel
Jacket Material:
FEP
Jacket Diameter:
(2,54mm) .100"
Jacket Temp Rating:
-50°C to +250°C
Jacket Color:
Amber
RoHS Compliant:
Yes
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
NO. OF
POSITIONS
40
80
A
B
C
D
(39,69) (40,61) (45,47) (50,76)
1.563 1.599 1.790 1.999
(65,60) (66,52) (71,37) (76,67)
2.583 2.619 2.810 3.019
(–S–M SHOWN)
(–T–S SHOWN)
WWW.SAMTEC.COM

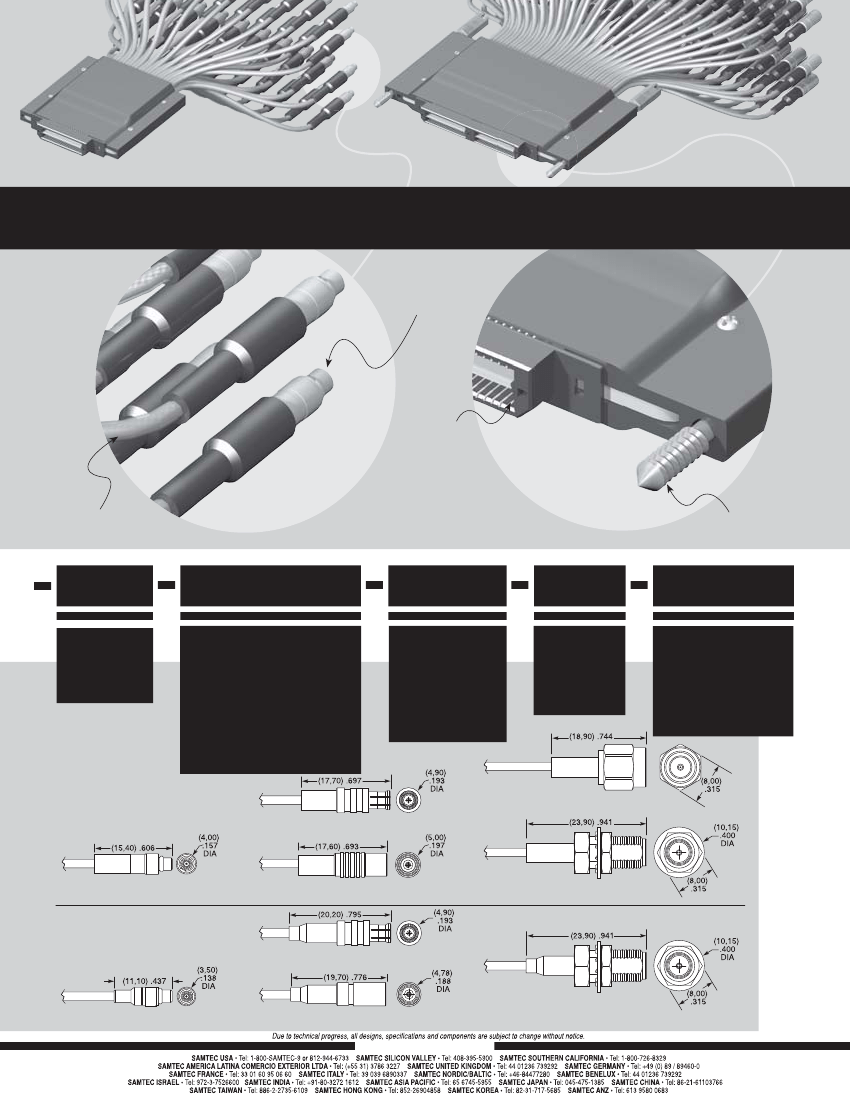

EQRF–020–0152–T–M–MMCX–P–1
EQRF–040–0152–T–S–MCX–J–2
Choice of SMA,
MCX or MMCX
RF termination
Socket or
Terminal
Choice of RG 316
or RG 178 cable
Optional
Captive Screws
Q SERIES
®
GENDER
Q SERIES
®
ORIENTATION
RF
CONNECTOR
RF
GENDER
COAX
CABLE
–T
= Terminal
–M
= Edge Mount
–MMCX
= RF Plug
–P
= Plug
–1
= RG 316
–S
= Socket
–S
= Edge Mount with Captive Screws
–MCX
= RF Jack or Plug
–J
= Jack
(MCX & SMA only)
–2
= RG 178
(See RF Connector Type
for Availability)
–R
= Surface Mount, Notch Right
–SMA
= RF Jack or Plug
–L
= Surface Mount, Notch Left
RG 316 Cable Options
–MCX-P
(–1 Coax Option)
–SMA–P
(–1 Coax Option)
–MMCX-P
(–1 Coax Option)
–MCX-J
(–1 Coax Option)
–SMA-J
(–1 Coax Option)
RG 178 Cable Options
–MCX-P
(–2 Coax Option)
–MMCX-P
(–2 Coax Option)
–MCX-J
(–2 Coax Option)
–SMA–J
(–2 Coax Option)
WWW.SAMTEC.COM
