LPC-19T9MG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LPC-19T9MG

LPC-19T9MG: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LPC-19T9MG Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

LPC-19T9MG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

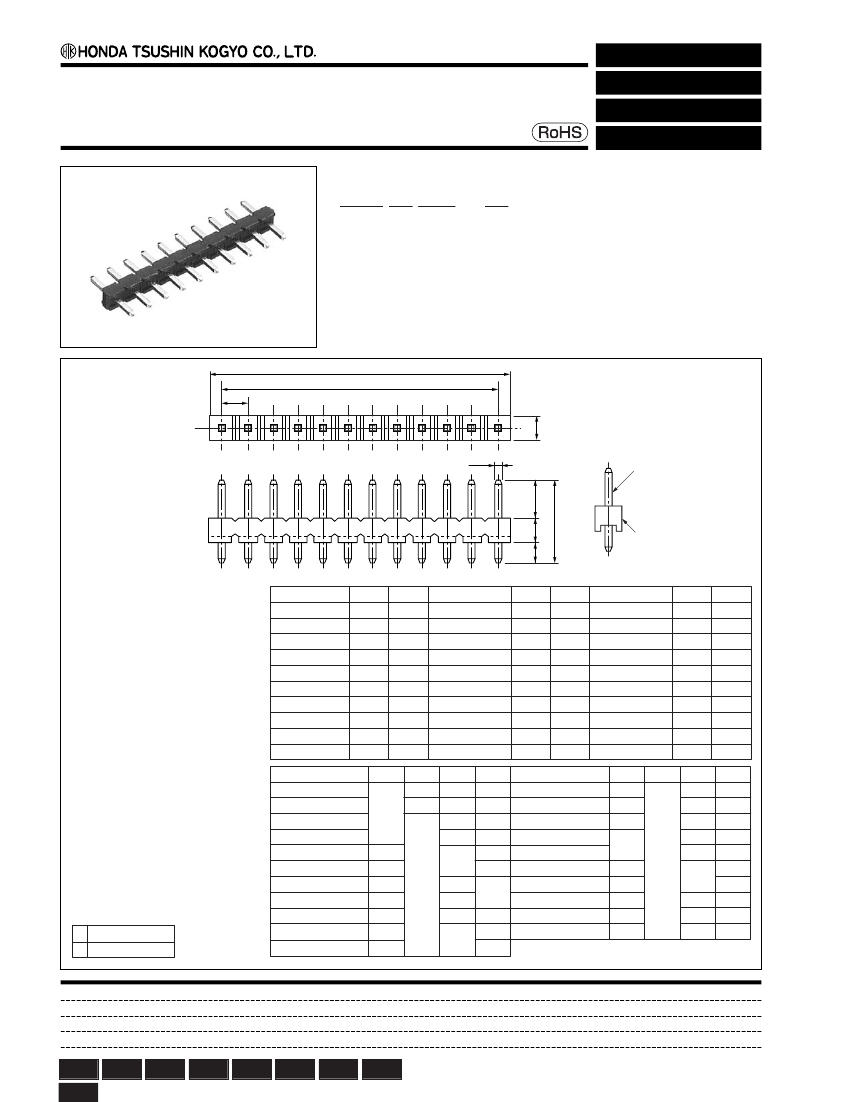

2 mm pitch connector

Straight through hole type male connector for PCB

LPC-( )(T )M( )

●

Configuration of product Part No.

For PCB

Straight Through hole

LPC- ( ) (T ) M ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 1-30

➂

Length No. of contact:

Refer to the table of dimensions below.

➃

Contact plating

+S: Tin plate

G : Gold plate

œ0.5

➁

➀

●

Dimmensions

Part No.

LPC-1(T )M( )

(E)

–

Part No.

LPC-11(T )M( )

Part No.

LPC-21(T )M( )

(E)

2.6

LPC-2(T )M( )

LPC-3(T )M( )

LPC-4(T )M( )

LPC-5(T )M( )

LPC-6(T )M( )

LPC-7(T )M( )

LPC-8(T )M( )

LPC-9(T )M( )

LPC-10(T )M( )

Part No.

LPC-( )M( )

*See note #1

LPC-( )T1M( )

LPC-( )T3M( )

LPC-12(T )M( )

LPC-13(T )M( )

LPC-14(T )M( )

LPC-15(T )M( )

LPC-16(T )M( )

LPC-17(T )M( )

LPC-18(T )M( )

LPC-19(T )M( )

LPC-20(T )M( )

(E)

LPC-22(T )M( )

LPC-23(T )M( )

LPC-24(T )M( )

LPC-25(T )M( )

LPC-26(T )M( )

LPC-27(T )M( )

LPC-28(T )M( )

LPC-29(T )M( )

LPC-30(T )M( )

12.4

2.6

2.7

1.65

4.5

7.6

9.1

6.65

9.5

12.6

12.1

8.5

13.6

14.6

LPC-( )T13M( )

LPC-( )T14M( )

LPC-( )T15M( )

LPC-( )T16M( )

LPC-( )T18M( )

LPC-( )T19M( )

LPC-( )T20M( )

LPC-( )T21M( )

LPC-( )T22M( )

LPC-( )T23M( )

3.4

15.2

8.5

3.5

13.6

5.4

2.6

9.6

1.8

2.5

1.5

2.5

2.6

19.8

14.6

6.8

9.5

18.1

LPC-( )T4M( )

LPC-( )T5M( )

Because some combinations of

“Configurations of Product Part No.”, are

under consideration for development,

please contact us for availability details.

LPC-( )T6M( )

LPC-( )T7M( )

LPC-( )T8M( )

LPC-( )T9M( )

LPC-( )T10M( )

LPC-( )T12M( )

7.5

5.5

2.6

2.5

2.6

●

Components

➀

Insulator

➁

Contacts

*Note #1:

for 16 contacts or less

Mating connectors:

LPC series female connectors or shunt plugs
