85613-003 datasheet, PDF - EEWORLD Datasheet

85613-003: DescriptionBoard Connector, 120 Contact(s), 5 Row(s), Female, Receptacle; CategoryThe connector The connector; File Size187KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

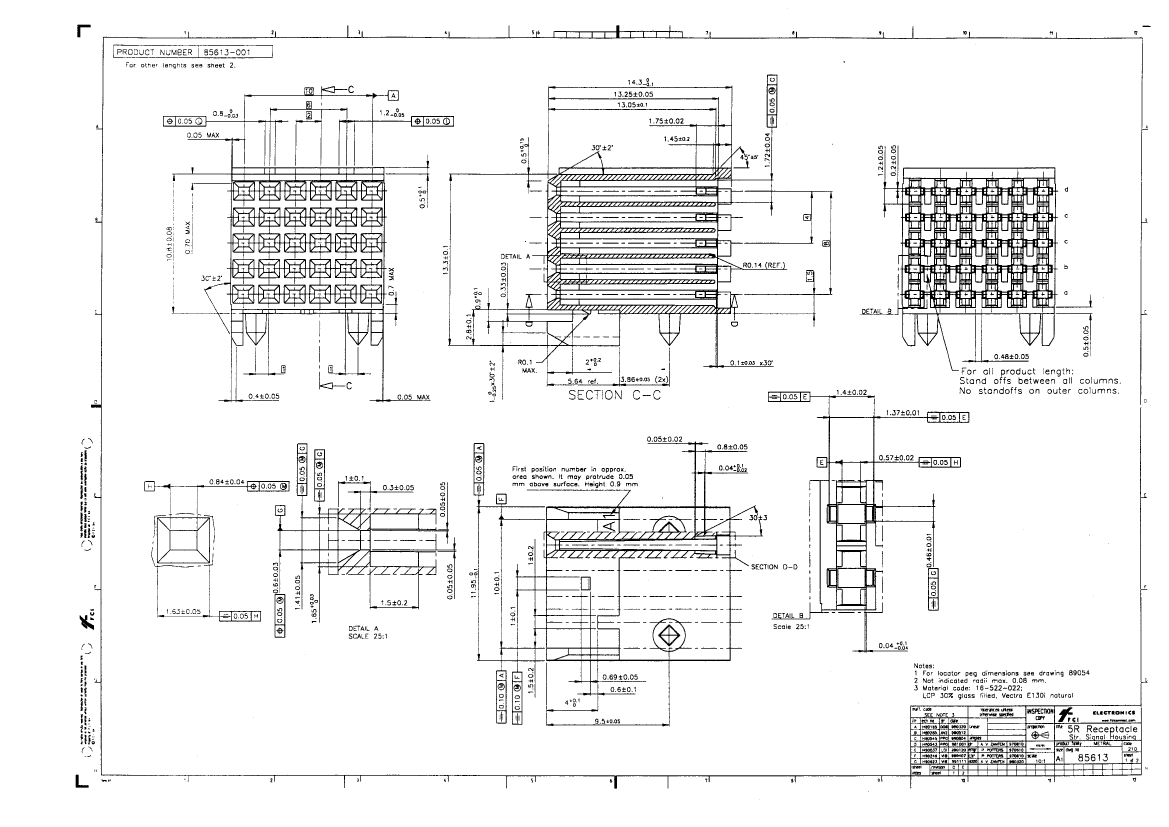

85613-003 Overview

Board Connector, 120 Contact(s), 5 Row(s), Female, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	85613
Mixed contacts	NO
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Total number of contacts	120

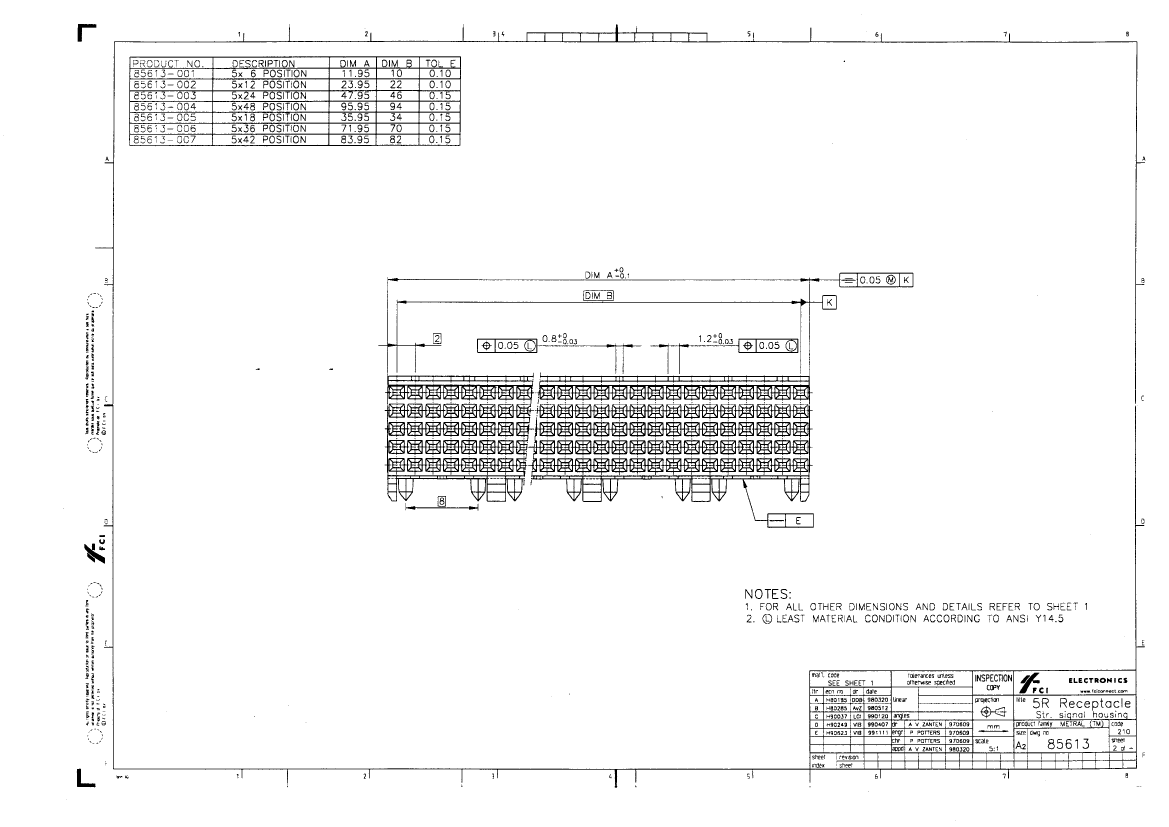

	85613-003	85613-001	85613-002	85613-004	85613-005	85613-006	85613-007
Description	Board Connector, 120 Contact(s), 5 Row(s), Female, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Female, Receptacle	Board Connector, 60 Contact(s), 5 Row(s), Female, Receptacle	Board Connector, 240 Contact(s), 5 Row(s), Female, Receptacle	Board Connector, 90 Contact(s), 5 Row(s), Female, Receptacle	Board Connector, 180 Contact(s), 5 Row(s), Female, Receptacle	Board Connector, 210 Contact(s), 5 Row(s), Female, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	85613	85613	85613	85613	85613	85613	85613
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Number of rows loaded	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Total number of contacts	120	30	60	240	90	180	210
