ANATECH ELECTRONICS, INC.

Manufacturer of RF & Microwave Filters and Products

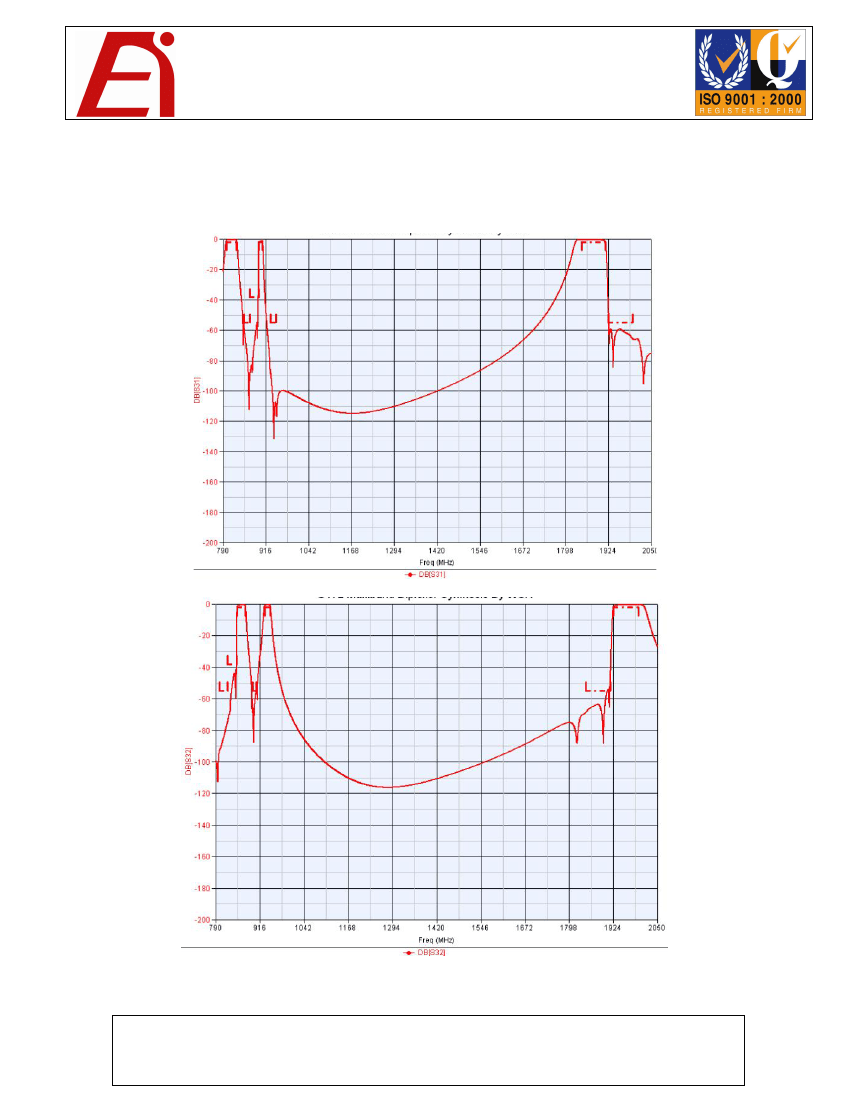

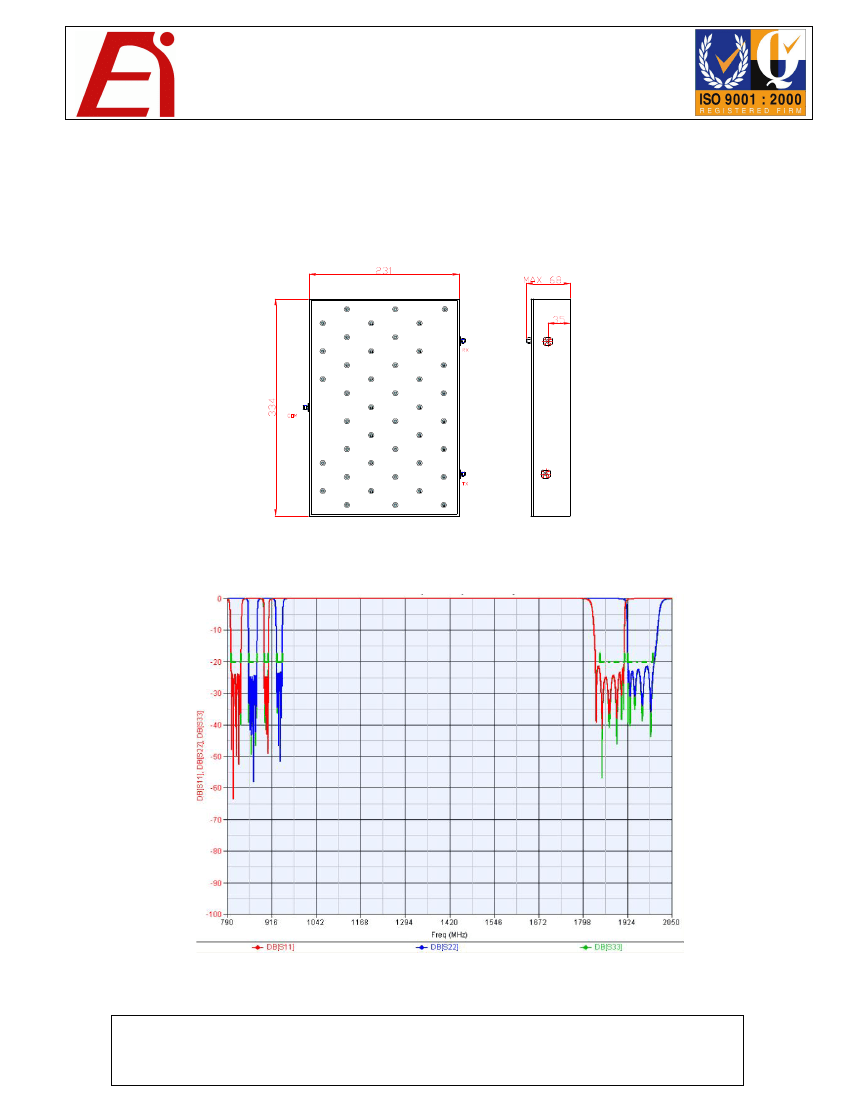

SMR 800- iDEN- PCS Multiband Diplexer Assembly

P/N: AD800-900-1800TR288

RX

Freq(MHz)

Insertion loss(dB)

Ripple(dB)

return loss(dB)

Rejection (dB @MHz)

TX

Freq(MHz)

Insertion loss(dB)

Ripple(dB)

return loss(dB)

Rejection (dB @MHz)

Impedance

Power handling

Temp. Range

Connector Type

Dimensions

806-824 / 896-901 / 1850-1910

2.5

1.8 at band edges only

14dB (<VSWR 1.5:1)

45dB@851-869

30dB@869-894

45dB@935-940

45dB@1930-1990

45dB@2400-2500

851-869 / 935-940 / 1930-1990

2.5

1.8 at band edges only

14dB (<VSWR 1.5:1)

45dB@806-824

30dB@924-849

45dB@896-901

45dB@1850-1910

45dB@2400-2500

50 ohm

10W

-40°C ~ +45°C

N-F

About 334x231x68mm (max),

including the height of tuning screws

ANATECH ELECTRONICS INC. 70 Outwater Lane, Garfield, NJ 07026

Tel: (973) 772-4242 Fax: (973) 772-4646

E-Mail: sales@anatechelectronics.com

Website: www.anatechelectronics.com
