AD9060SZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD9060SZ

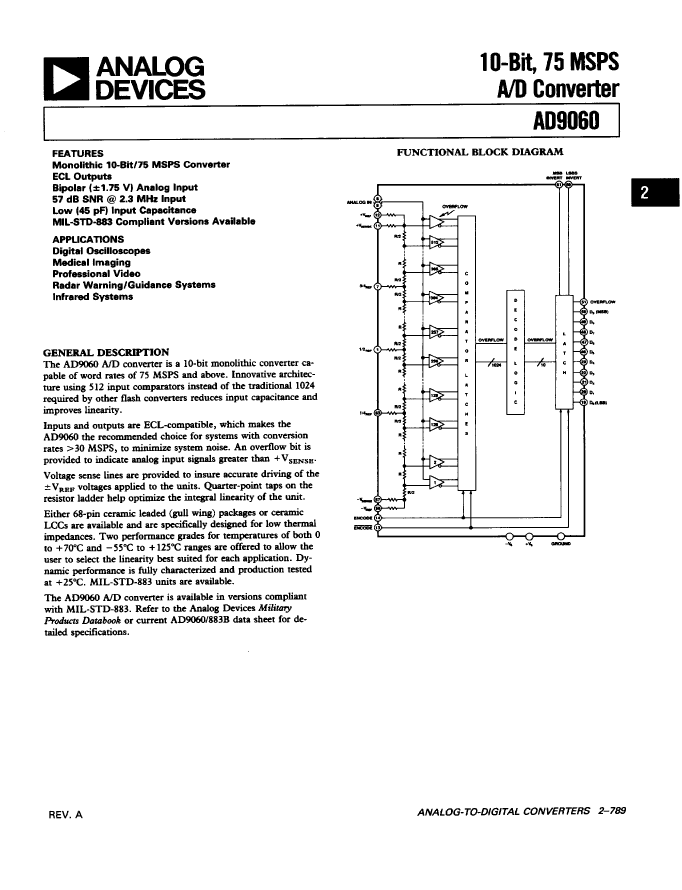

AD9060SZ: DescriptionIC 1-CH 10-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQFP68, GULL WING, CERAMIC, LCC-68, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size477KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Parametric Compare View All

AD9060SZ Overview

IC 1-CH 10-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQFP68, GULL WING, CERAMIC, LCC-68, Analog to Digital Converter

AD9060SZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ADI
Parts packaging code	QFP
package instruction	QFP,
Contacts	68
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	1.75 V
Minimum analog input voltage	-1.75 V
Converter type	ADC, FLASH METHOD
JESD-30 code	S-CQFP-G68
length	24.13 mm
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	10
Number of functions	1
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Sampling rate	75 MHz
Maximum seat height	3.622 mm
Nominal supply voltage	5 V
surface mount	YES
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.13 mm

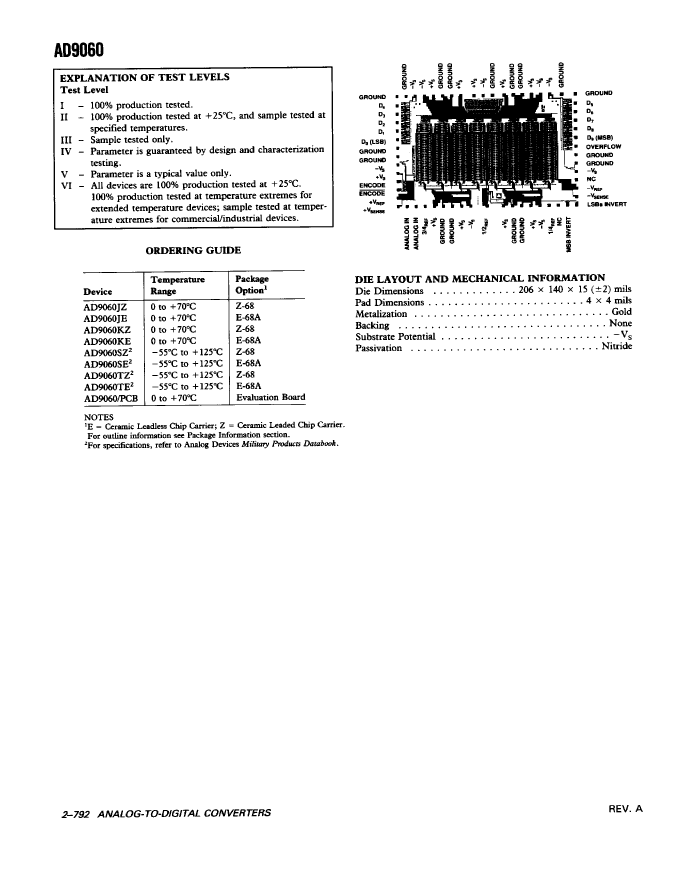

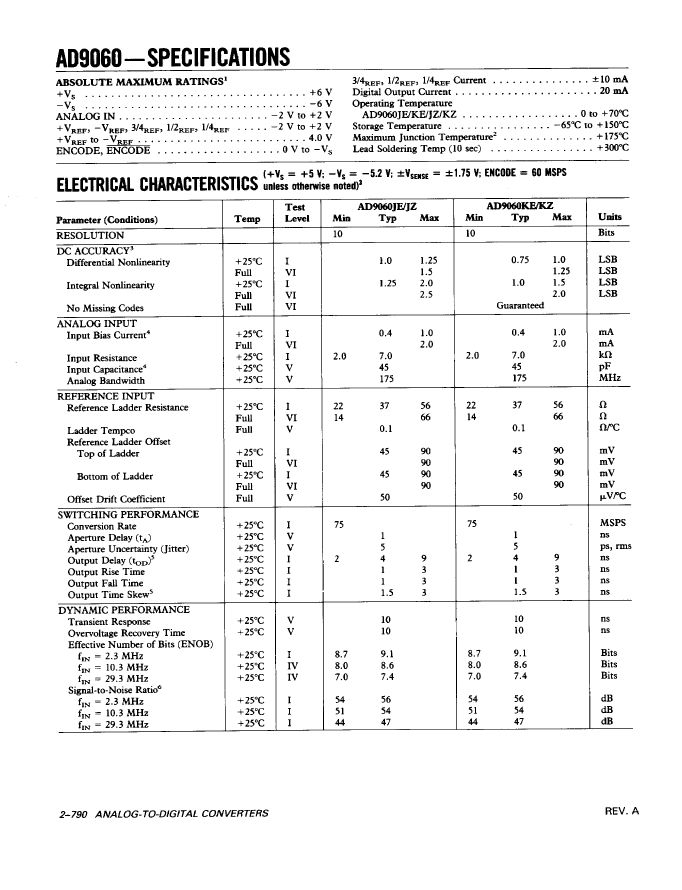

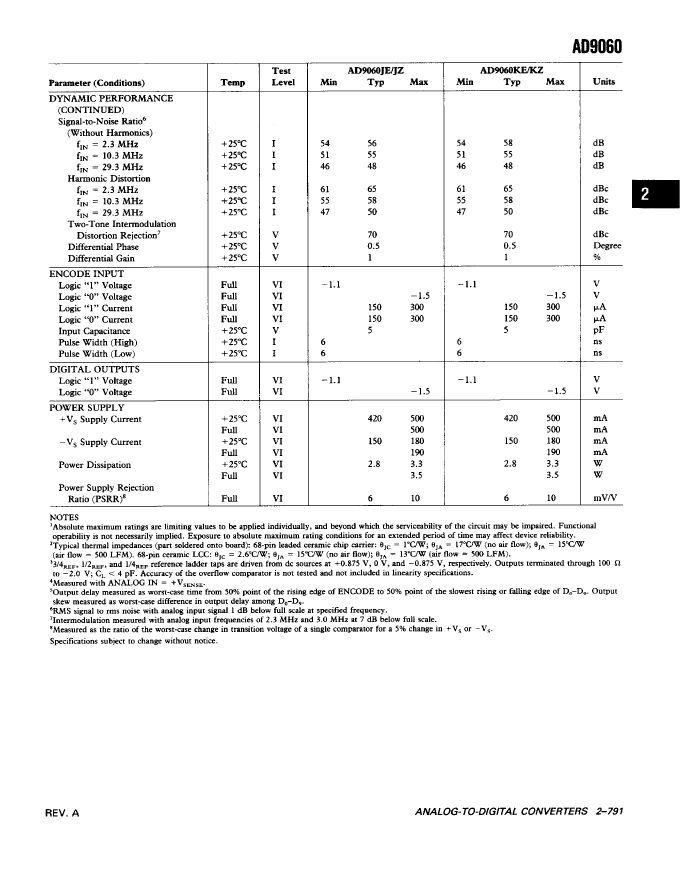

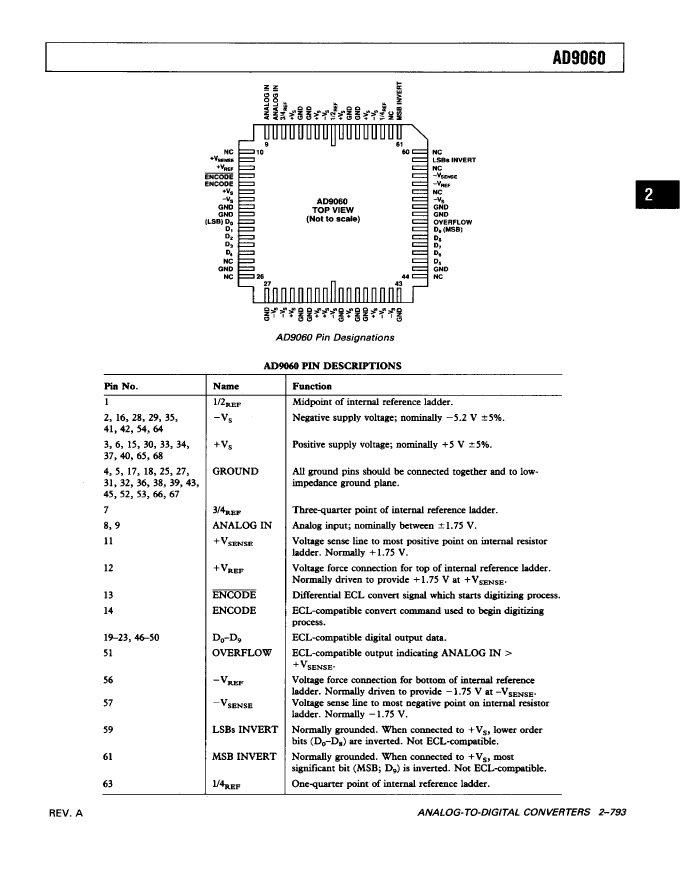

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AD9060SZ Related Products

	AD9060SZ	AD9060KZ	AD9060TZ	AD9060TE
Description	IC 1-CH 10-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQFP68, GULL WING, CERAMIC, LCC-68, Analog to Digital Converter	IC 1-CH 10-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQFP68, CERAMIC, LCC-68, Analog to Digital Converter	IC 1-CH 10-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQFP68, GULL WING, CERAMIC, LCC-68, Analog to Digital Converter	IC 1-CH 10-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQCC68, CERAMIC, LCC-68, Analog to Digital Converter
Is it Rohs certified?	conform to	incompatible	conform to	incompatible
Maker	ADI	ADI	ADI	ADI
Parts packaging code	QFP	QFP	QFP	LCC
package instruction	QFP,	CERAMIC, LCC-68	QFP,	CERAMIC, LCC-68
Contacts	68	68	68	68
Reach Compliance Code	compliant	unknown	compliant	compliant
ECCN code	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	1.75 V	1.75 V	1.75 V	1.75 V
Minimum analog input voltage	-1.75 V	-1.75 V	-1.75 V	-1.75 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	S-CQFP-G68	S-CQFP-G68	S-CQFP-G68	S-CQCC-N68
length	24.13 mm	24.13 mm	24.13 mm	24.13 mm
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of analog input channels	1	1	1	1
Number of digits	10	10	10	10
Number of functions	1	1	1	1
Number of terminals	68	68	68	68
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFP	HQFP	QFP	QCCN
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK, HEAT SINK/SLUG	FLATPACK	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	220	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	75 MHz	75 MHz	75 MHz	75 MHz
Maximum seat height	3.622 mm	3.625 mm	3.622 mm	2.997 mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED
width	24.13 mm	24.13 mm	24.13 mm	24.13 mm
