D37P33E4GX00 datasheet, PDF - EEWORLD Datasheet

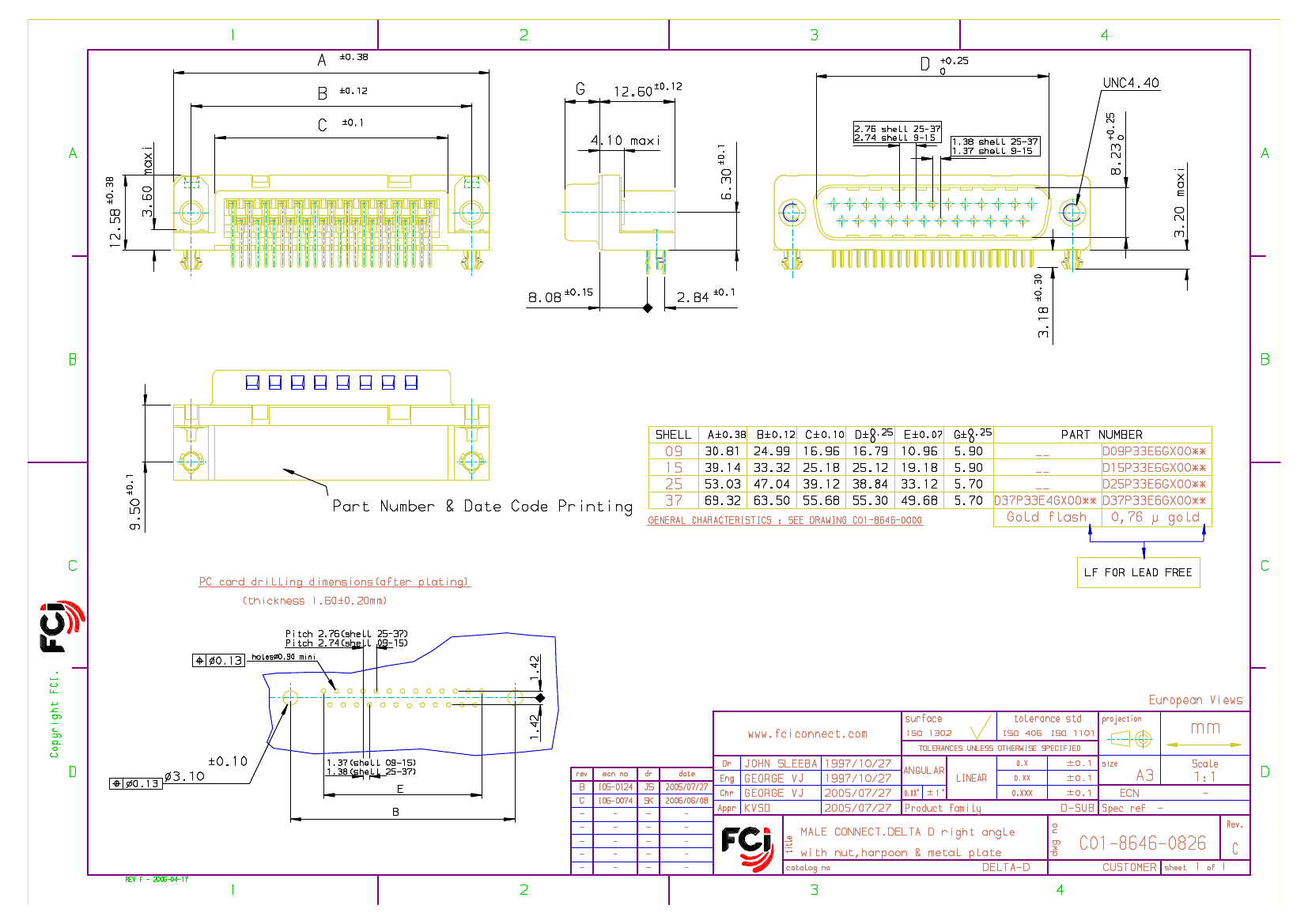

D37P33E4GX00: DescriptionD Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D37P33E4GX00 Overview

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.495 inch
subject depth	0.726 inch
body length	2.736 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	D37P33E4GX00
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.

	D37P33E4GX00	D09P33E6GX00	D25P33E6GX00	D15P33E6GX00	D37P33E6GX00
Description	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH	GOLD FLASH	NOT SPECIFIED	GOLD FLASH	GOLD FLASH
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	D37P33E4GX00	D09P33E6GX00	D25P33E6GX00	D15P33E6GX00	D37P33E6GX00
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	4/C	1/E	3/B	2/A	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	9	25	15	37
