D15S81C6GX8C datasheet, PDF - EEWORLD Datasheet

D15S81C6GX8C: DescriptionD Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S81C6GX8C Overview

D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	D15S81C6GX8C
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0

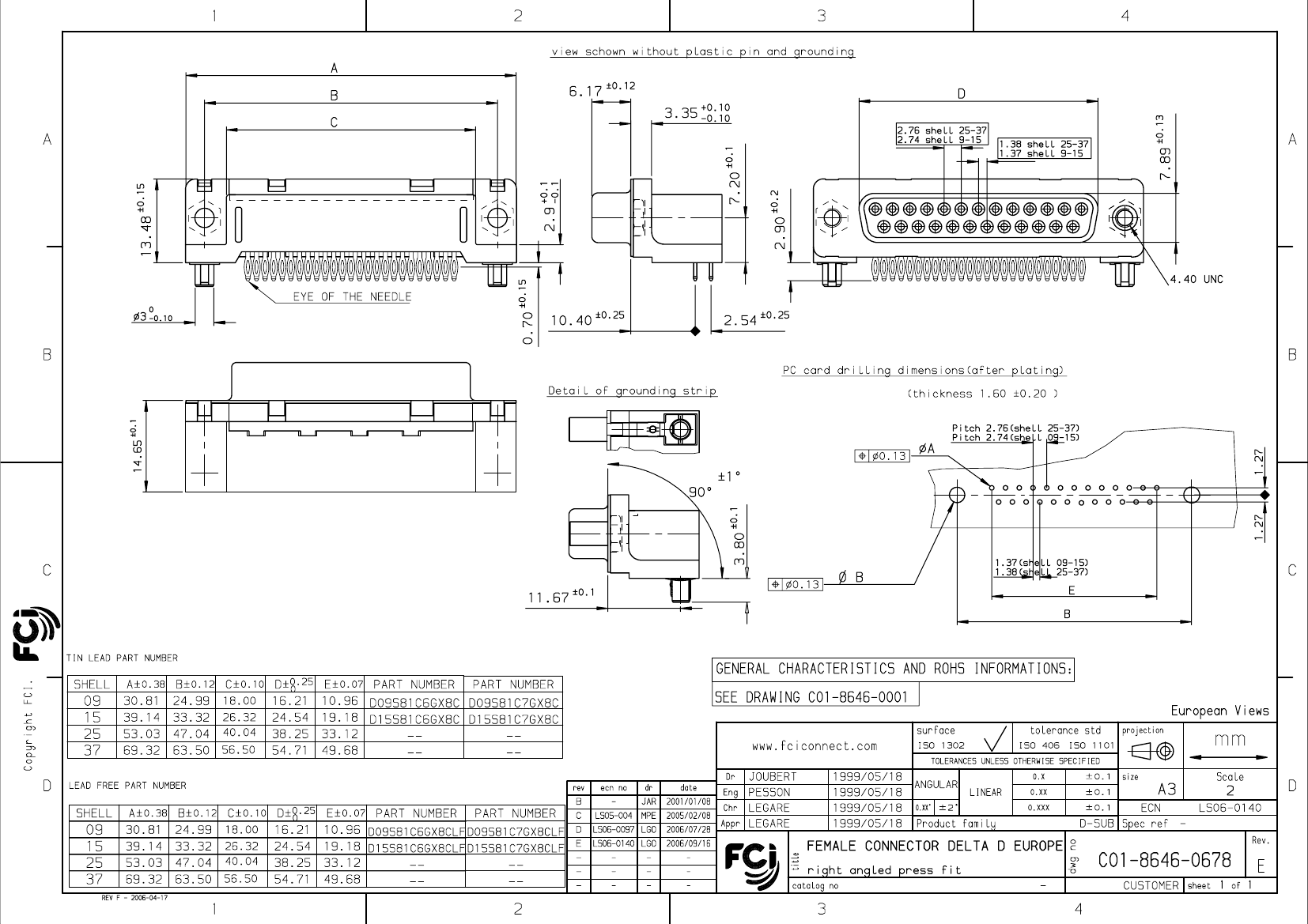

PDM: Rev:E

STATUS:

Released

Printed: Jan 18, 2011

.

	D15S81C6GX8C	D09S81C7GX8CLF	D09S81C6GX8C	D09S81C7GX8C	AMEPR30D-36100AZ-U	D15S81C7GX8C
Description	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	up to 2A \| AC-DC LED driver	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE
DIN compliance	NO	NO	NO	NO	-	NO
empty shell	NO	NO	NO	NO	-	NO
Filter function	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	-	NO
insulator material	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	-	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	-	NO
Manufacturer's serial number	D15S81C6GX8C	D09S81C7GX8CLF	D09S81C6GX8C	D09S81C7GX8C	-	D15S81C7GX8C
Mixed contacts	NO	NO	NO	NO	-	NO
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell surface	TIN	-	TIN	TIN	-	TIN
Shell material	STEEL	-	STEEL	STEEL	-	STEEL
Housing size	2/A	1/E	1/E	1/E	-	2/A
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	PRESS FIT
Total number of contacts	15	9	9	9	-	15
UL Flammability Code	94V-0	-	94V-0	94V-0	-	94V-0
