D25P23B6UX00LF

Description
D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE
CategoryThe connector    The connector
File Size74KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

D25P23B6UX00LF Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE

D25P23B6UX00LF Parametric

Parameter NameAttribute value
Objectid2142355035
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.5
Board mount optionsHOLE .122
body width0.531 inch
subject depth0.576 inch
body length2.07 inch
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderMALE
contact modeSTAGGERED
Contact styleRND PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
insulator materialPOLYESTER
MIL complianceNO
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1#4-40
Installation option 2THREADED INSERT
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.84 mm
Rated current (signal)5 A
Shell surfaceTIN/ZINC CHROMIUM
Shell materialSTEEL
Housing size3/B
Terminal pitch2.76 mm
Termination typeSOLDER
Total number of contacts25
UL Flammability Code94V-0

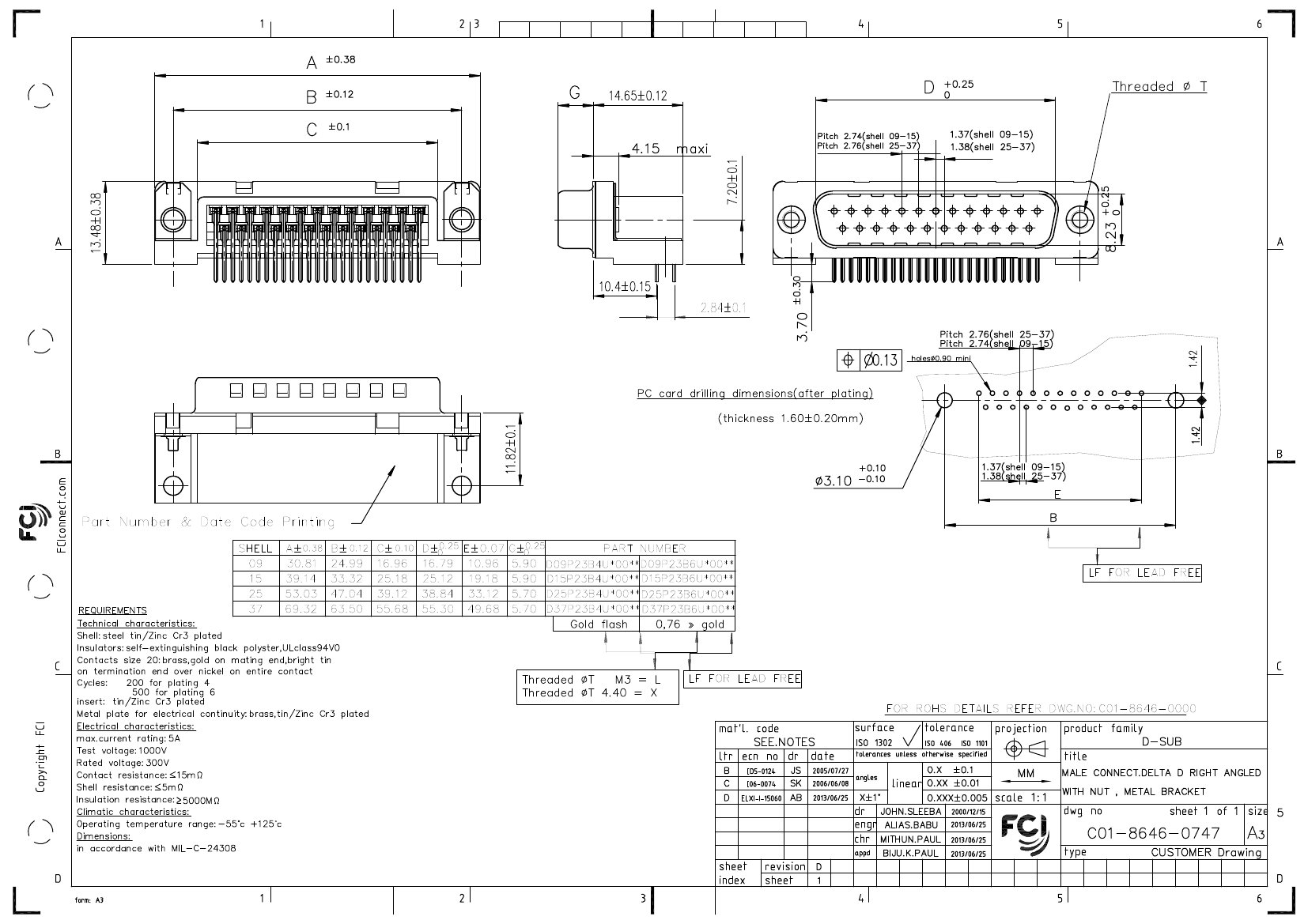

PDS: Rev :D
STATUS:Released
Printed: Jul 13, 2013
