E5908-11G134-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> E5908-11G134-L

E5908-11G134-L: DescriptionTelecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

E5908-11G134-L Overview

Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT

E5908-11G134-L Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	OTHER STACKING CONNECTOR: 64 CONTACTS
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	E5908
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

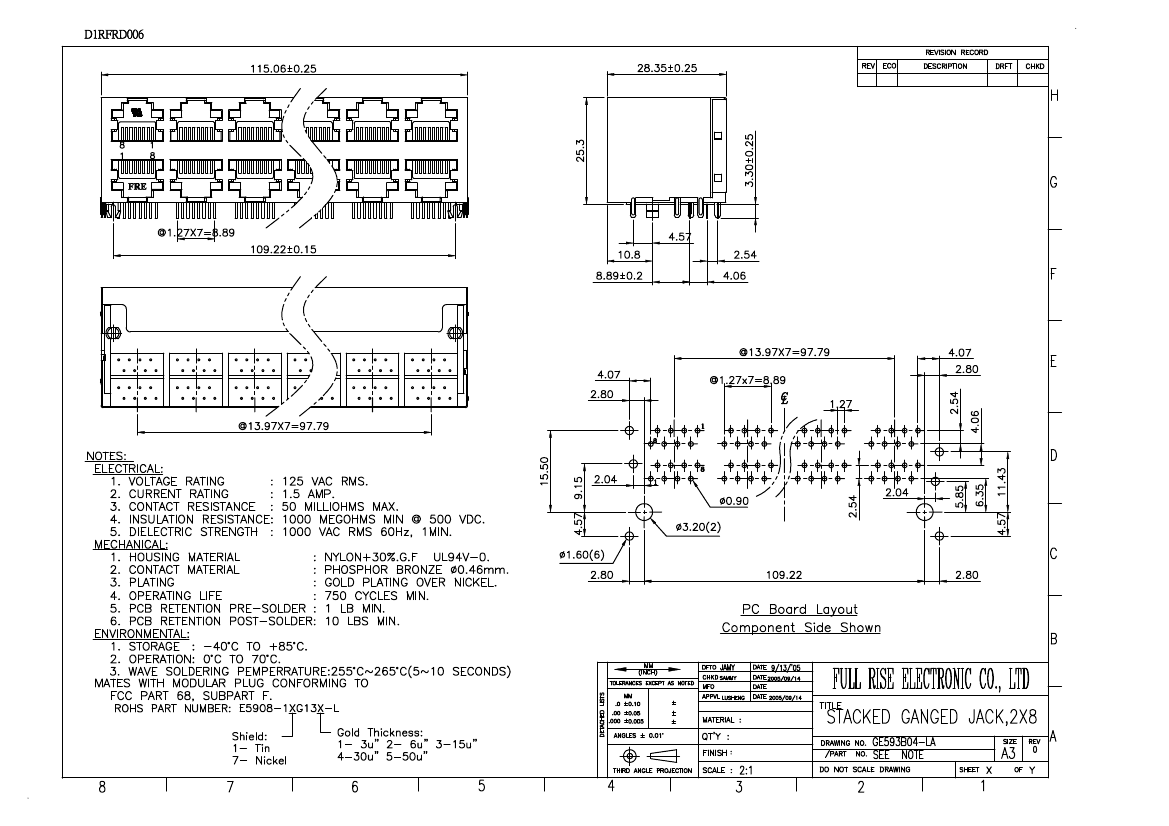

Preview

Download Datasheet

View All

E5908-11G134-L Related Products

	E5908-11G134-L	E5908-17G131-L	E5908-17G133-L	E5908-17G134-L	E5908-17G135-L	E5908-11G131-L	E5908-11G132-L	E5908-11G133-L	E5908-11G135-L	E5908-17G132-L
Description	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS	OTHER STACKING CONNECTOR: 64 CONTACTS
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (3) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (3) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL	GOLD (3) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (3) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (6) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	E5908	E5908	E5908	E5908	E5908	E5908	E5908	E5908	E5908	E5908
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	64	64	64	64	64	64	64	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
