Gate Drive Transformer

Preview

Download Datasheet

View All

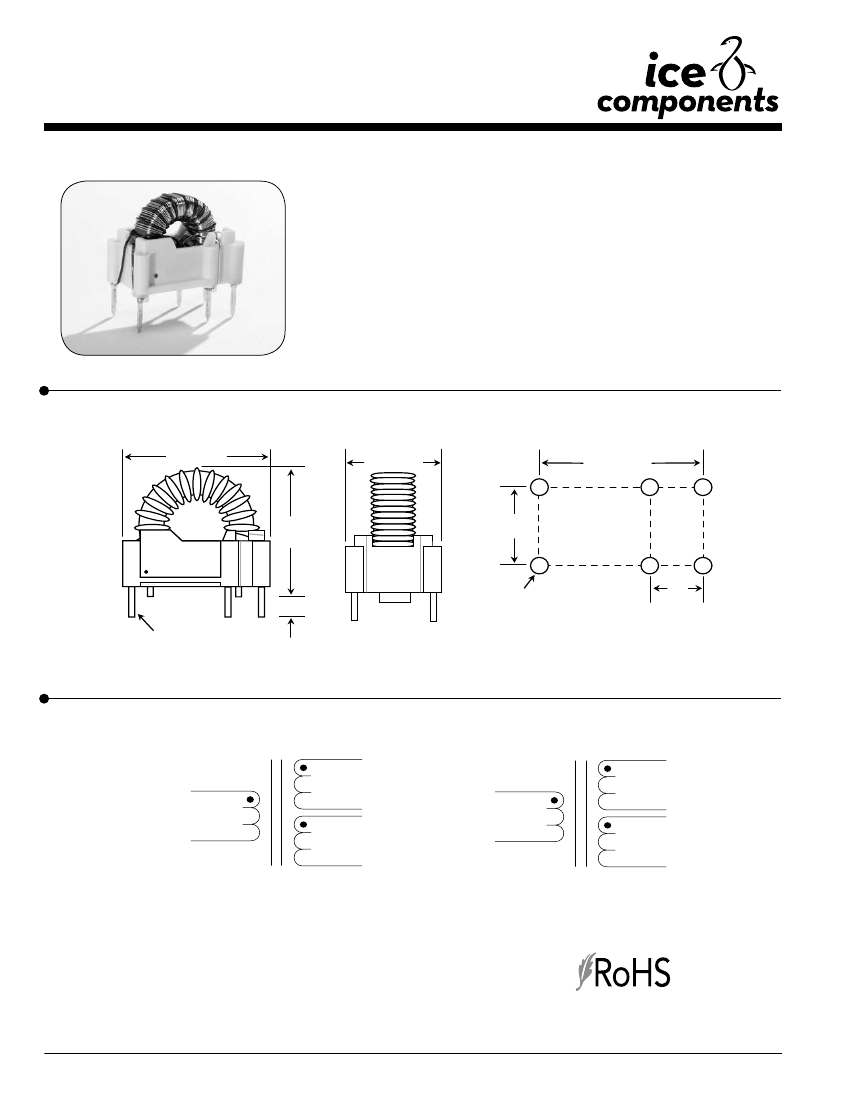

GT04 Series

Gate Drive Transformer

Features

• Meets medical safety isolation

requirements

• Designed for frequencies from

20 kHz to 300 kHz

• Available in UL Class F (155˚C) or

Economical Class B (130˚C) Versions

Applications

• Gate Drive Transformer

• Signal Transformer Across

Isolation Barriers

• Off-Line AC/DC Converters

• High-Powered DC/DC Converters

Packaging

Tray=45 pieces, Box=12 trays, Box=540 pieces

Mechanical

20.57 max

12.19 max

19.05

max

8.9 ref

5.0

Recommended PCb Layout

17.8 ref

GT04-XXX-XXX-X

ICA YYWW-X

3.5+/-0.3

0.64 sq

1.2 dia

Unit: mm

Schematic

Drive

Gate

Drive

Gate

Specifications subject to change without notice.

800.729.2099 tel

www.icecomponents.com

(02/08) GT04-1
