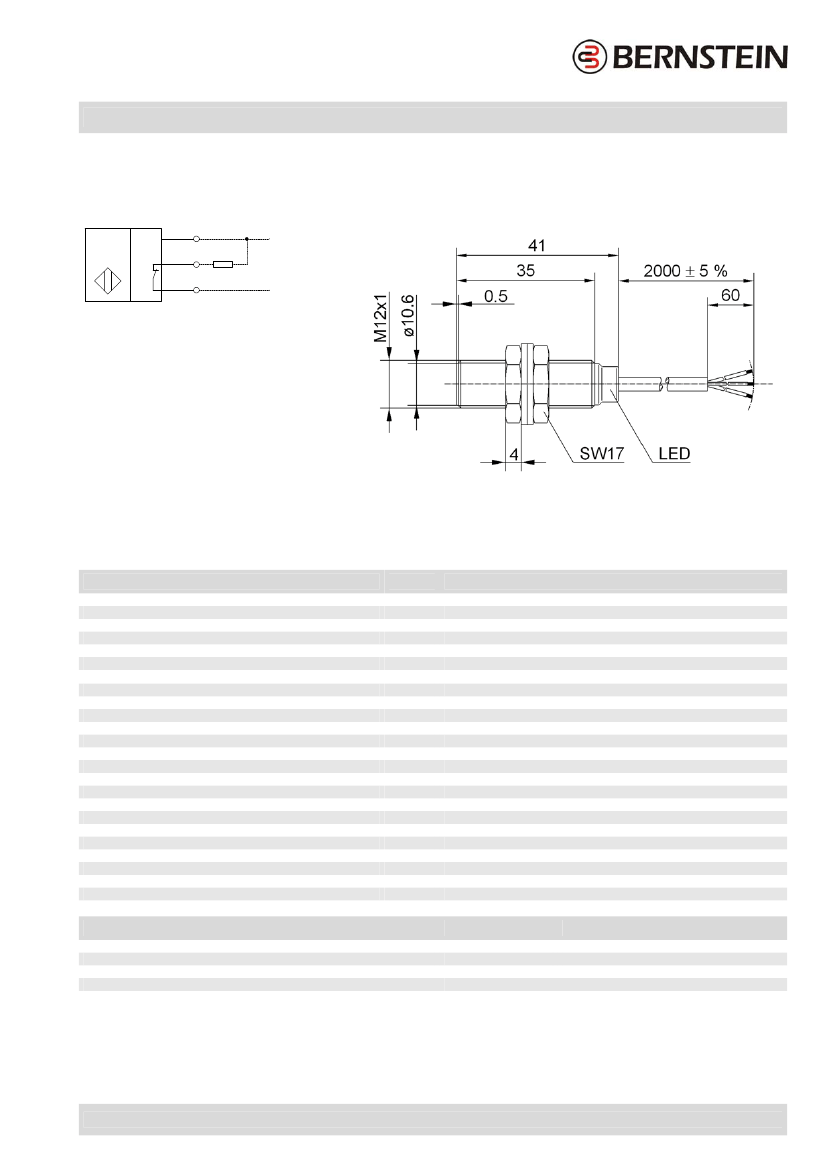

Technical Data
Inductive Proximity Switch
Series M12
Description
Wiring Diagram
BN
KIB-M12NÖ/002-KL2V
Article number
6502103003
+
I
BK
BU
-
Identifying characteristics in accordance with EN 60947-5-2
Electrical data
Rated operating distance
Standard target
Effective operating distance
Assured operating distance
Switching element function
Repeat accuracy
Differential travel (hysteresis)
Rated operational voltage
Operational voltage range
Rated insulation voltage
Rated impulse withstand voltage
Voltage drop
Utilization category
Rated operational current
Minimum operational current
Off–state current
No–load supply current
Switching element
Short–circuit protection
Frequency of operating cycles
Rated supply frequency
Mounting
False polarity protection
Time delay before availability
S
n
S
r
S
a
R
H
U
e
U
B
U
i
U
imp
U
d
l
e
I
m
l
r
l
o
f
2 mm
12 mm x 12 mm, t = 1 mm, Material: FE360
1,8 ... 2,2 mm
0 ... 1,6 mm
DC, N.C.
≤
5%
10 %
12 – 24 V DC
10 – 36 V DC
75 V DC
500 V
≤
1,5 V
DC 13
≤
200 mA
≤
1 mA
< 0,1 mA
≤
11 mA
Permanent overload and s.c.p.
pulsed
800 Hz
DC
flush
yes
≤
50 ms
t
v
Electromagnetic compatibility (EMC)
Electromagnetic field test
Electrostatic discharge test
Electrical fast transient immunity test (Burst)
Radiated disturbance field strength
IEC 61000-4-3
IEC 61000-4-2
IEC 61000-4-4
EN 55011
This document will not become the contractual basis; the details included herein do not constitute any descriptions of expected conditions, so that warranties/claims
for defects on account of possible variations of the actual qualities from the qualities described herein are explicitly excluded. All rights reserved. Specifications
subject to change without notice!
Date of issue: 19.06.2013 / Page 1 of 2
Document : 6502103003_en / Last update: 2 / 0248-13
BERNSTEIN AG, Tieloser Weg 6, D-32457 Porta Westfalica / www.bernstein.eu
Vorlage : 0850174275 Orig. 2
Technical Data
Inductive Proximity Switch
Mechanical Data
Front cap
Enclosure
End cap
Ambient air temperature
Type of protection
Pollution degree
Indication
Termination type
For attachment
PA6.6, black
Brass, nickel plated
PA 12, transparent
-25 °C … +70 °C (cable fixed mounted)
IP67
3 (Pollution of the active zone can cause
impairments of the operating distances.)
LED, yellow
Cable 3 x 0,14 mm²; PVC – Outer jacket, black
2 x hexagon nut and 2 x toothed washer
Product reliability (in acc. with DIN EN 61709 (SN 29500))
MTTF (at nominal load, 40 °C)
> 900 years
acc. to Directive 2004 / 108 / EC
EU Conformity
This document will not become the contractual basis; the details included herein do not constitute any descriptions of expected conditions, so that warranties/claims
for defects on account of possible variations of the actual qualities from the qualities described herein are explicitly excluded. All rights reserved. Specifications
subject to change without notice!
Date of issue: 19.06.2013 / Page 2 of 2
Document : 6502103003_en / Last update: 2 / 0248-13
BERNSTEIN AG, Tieloser Weg 6, D-32457 Porta Westfalica / www.bernstein.eu
Vorlage : 0850174275 Orig. 2
