BM03B3.9-AGHS-GH-TF datasheet, PDF

Datasheet> All Categories > The connector> The connector> BM03B3.9-AGHS-GH-TF

BM03B3.9-AGHS-GH-TF: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size229KB，3 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

BM03B3.9-AGHS-GH-TF Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

BM03B3.9-AGHS-GH-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	AGH
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

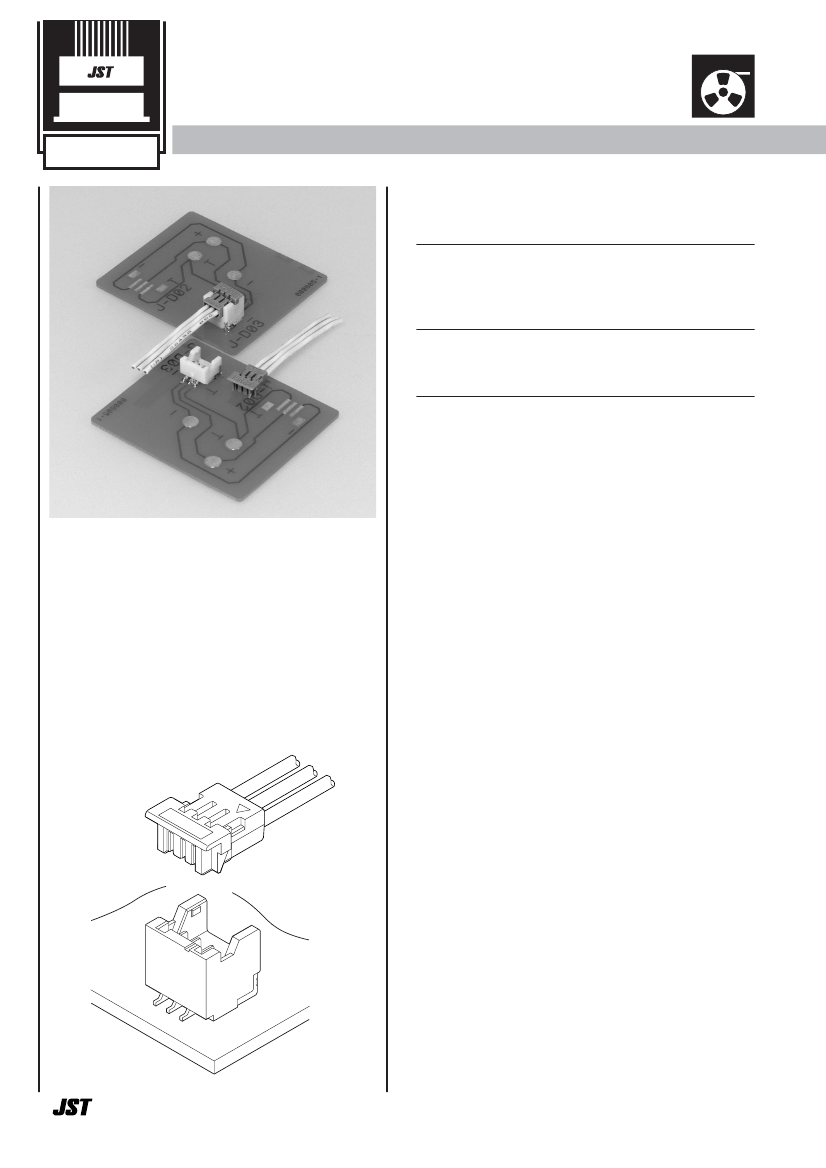

Crimp

AGH

CONNECTOR

Disconnectable Crimp style connectors

• Miniaturization

the design at low profile header side.

Emboss Tape

1.25mm

pitch

Features ––––––––––––––––––––––––

Developed for mobile phone battery connection. The mounting

height of 6.1mm, but can be reduced to 4.4mm depending on

• Distortion resistant construction

Because of the unique rib structure of the housing, the

connector is resistant to distortion when extracting.

• Applicable to surface mounting technology

The header has a sufficient area for suction for the use of

automatic surface mounting system.

1.25mm pitch crimp type connector.

This connector system has excellent

operational advantages due to its top entry

style. In addition, with the wires on the

side, it is low profile, similar to a side entry

style.

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC (AWG #26)

• Voltage rating: 50V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/20m

Ω

max.

After environmental testing/30m

Ω

max.

• Insulation resistance: 500M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: AWG #30 to #26

Insulation O.D./0.8 to 1.0mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized E60389

J50014042

BM03B3.9-AGHS-GH-TF Related Products

	BM03B3.9-AGHS-GH-TF	BM03B5.6-AGHS-GG-TF(LF)(SN)	BM03B3.9-AGHS-GH-TF(LF)(SN)	BM03B5.6-AGHS-GG-TF	AGHR-03V-1-H
Description	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to	conform to	incompatible	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW PROFILE, SHROUDED	LOW PROFILE, SHROUDED	LOW PROFILE, SHROUDED	LOW PROFILE, SHROUDED	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL	GOLD OVER NICKEL	GOLD (16) OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	AGH	AGH	AGH	AGH	AGH
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	CABLE
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	CRIMP
Total number of contacts	3	3	3	3	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	JST	-	JST	JST	JST
Contact completed and terminated	GOLD FLASH OVER NICKEL	TIN OVER NICKEL	GOLD FLASH OVER NICKEL	TIN OVER NICKEL	-
JESD-609 code	e4	e3	e4	e3	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Terminal pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	-
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT
