K99X-15P-KBLK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> K99X-15P-KBLK

K99X-15P-KBLK: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

K99X-15P-KBLK Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug, ROHS COMPLIANT

K99X-15P-KBLK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
body width	0.494 inch
body length	0.994 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
MIL compliance	NO
Plug contact pitch	0.109 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	CABLE AND PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	IDC
Total number of contacts	15

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

K99X-9P-BLK

Part Number Builder

LR78160

K99X

Series

Number of

Contact

Type

Mounting

Option

BLK

Color

Option

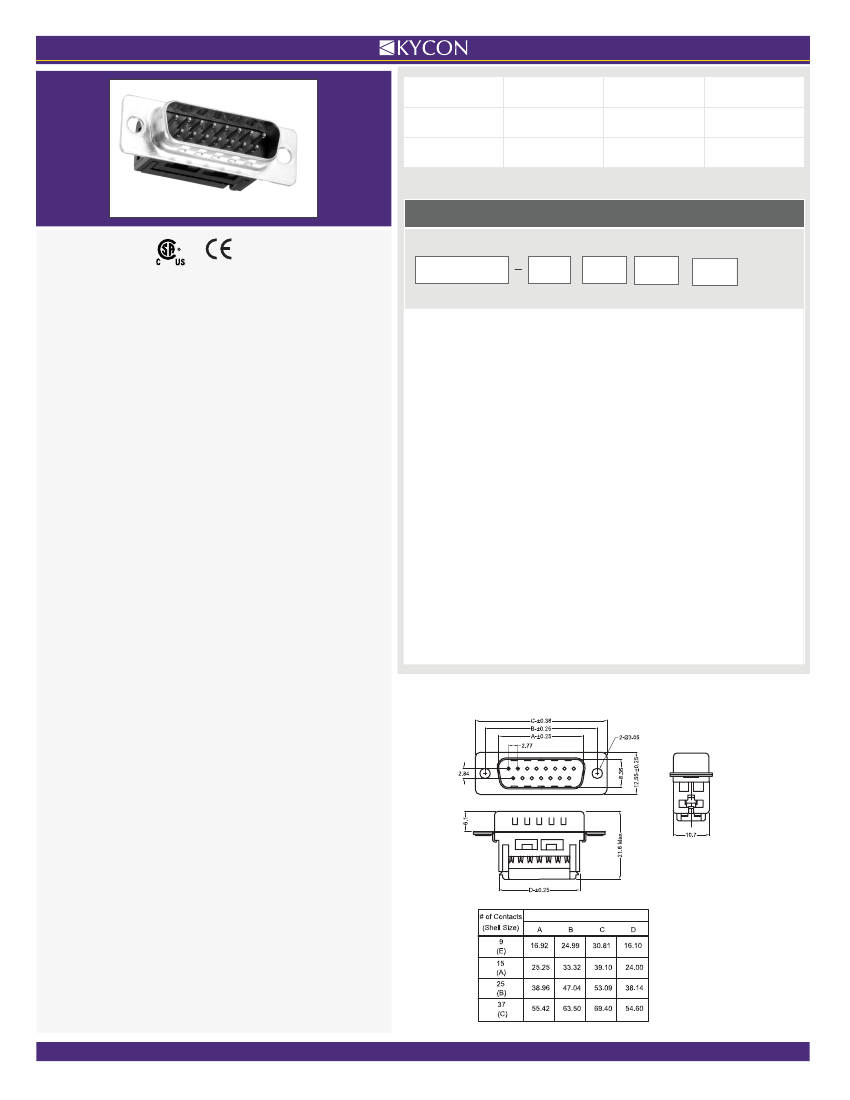

D-SUBMINIATURE CONNECTORS:

K99X

Series

IDC Termination D-Subminiature

Product Features

Series

K99X

IDC D-Subminiature Connector, Metal Construction

Number of Contact

- 9 Contacts

- 15 Contacts

- 25 Contacts

- 37 Contacts

Contact Type

Pin Contact (Plug)

Socket Contact (Receptacle)

Mounting Option

Blank

- Without Mounting Hardware

- With Riveted Threaded #4-40 Bushing

Color Option

BLK

Black Color

Contact Kycon for Other Options

Applications Include Computer Peripherals, Data Processing,

Telecommunications, Industrial Controls and

Local Area Networks

Bright Tin Shells for Exceptional Conductivity,

Grounding and EMI/RFI Shielding

Indentations (Dimples) on Metal Plug Shells for Exceptional

Grounding and Mating Retention

Plastic Strain Relief Available Separately

Flat Cable can be Connected to a Single Connector or

Daisy Chained.

Automatic Assembly Machine Compatible

Design Meets the Requirements of MIL-C-24308,

EIA RS-232 and RS-449.

Performance Specifications

Materials and Finish

Shell

Steel, Tin Plated

SR Series

PBT Thermoplastic

Contact Material

Plug

Brass

Socket

Phosphor Bronze

K99X-xxP

Dimensions in mm

Electrical Characteristics

Rated Current

Rated Voltage

30V RMS

Contact Resistance

13 milliohms Max.

Dielectric Withstanding Voltage

1000V AC for 1 Minute

Insulation Resistance

1000 Megohms Min.

Temperature Rating

-55ºC to +105ºC

Wire Accommodation

Flat Cable or Discrete Wire 26 or 28 AWG Stranded or Solid,

and 30 AWG Solid Wires on .050" (1.27mm) Centers

Dimensions (Inch/mm)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

2013

K99X-15P-KBLK Related Products

	K99X-15P-KBLK	K99X-15S-KBLK	K99X-25P-KBLK	K99X-25S-KBLK	K99X-37P-KBLK	K99X-37S-KBLK	K99X-9P-KBLK	K99X-9S-KBLK
Description	D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
body length	0.994 inch	0.994 inch	1.534 inch	1.534 inch	2.182 inch	2.182 inch	0.666 inch	1.213 inch
Body/casing type	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A	4 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	2/A	3/B	3/B	4/C	4/C	1/E	1/E
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	15	15	25	25	37	37	9	9
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	-	BRASS	-	NOT SPECIFIED	NOT SPECIFIED
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	-
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-
