Remote release for subsequent mounting onto FAZ-NA/RT
Additional installation of standard auxiliary switch is possible
Position indicator red–green
Tested according to UL 489
Do not cut
Extension terminal 35 mm
2
Z-EK/35/UL for
copper conductors
Incoming terminal 50 mm
2
Z-EB/50/UL
For covering of not used pins, use busbar tag
shrouds ZV-BS-UL
Connection Diagram
•
•
Connection Diagram
Three-Pole Busbar
Two-Pole Busbar
Single-Pole Busbar
Shunt Trip Release FAZ-XAA-NA
Description
FaZ-Xaa-na12-110Vac
FaZ-Xaa-na110-415Vac
Busbar Block UL 489 (Pin)
Description
UL 489
iec/en 60947-2
Electrical
Can be
mounted onto
Operational
voltage range
Frequency
Mechanical
Frame size
Device height
Device width
Mounting
Degree of protection,
built-in
Terminal protection
Terminals
Terminal capacity
One and two wires
FAZ-NA / FAZ-NA-DC /
FAZ-RT
12–110 Vac
12–60 Vdc
50/60 Hz
FAZ-NA / FAZ-NA-DC /
FAZ-RT
110–415 Vac
110–230 Vdc
50/60 Hz
Electrical
Rated operational voltage
Rated frequency
Rated voltage
Overvoltage category
Rated impulse
withstand voltage U
imp
Rated current
Rated conditional short-
circuit current AC with
350A gG
Short-circuit current
Mechanical
Busbar cross section
Flame class according to
UL 94
Pollution degree
Comparative tracking index
Minimum clearance
(internal/external)
Minimum creepage
distance (internal/external)
Resistance to climatic
conditions
45 mm
45 mm
105 mm
105 mm
17.5 mm
17.5 mm
Quick fastening with two lock-in positions on EN 50022
IP40
IP40
Finger and hand touch safe according to BGV A3, ÖVE-EN 6
Open mouthed/lift
Open mouthed/lift
18–10 AWG
18–10 AWG
480/277 Vac
96 Vdc
50/60 Hz
480 Vac
—
—
80A at 40°C
—
10 kA
—
V0
—
—
—
—
—
—
—
690 Vac
III
9.5 kV
80A at 30°C
15 kA
—
16 mm
2
Cu
—
2
CTI 600
> 9.5/25.4 mm
> 12.7/50.8 mm
According to
DIN/EN 60068
16
eaton corporation
UL 489 and UL 1077 DIN Rail Miniature Circuit Breakers
UL 1077 Din rail supplementary protectors
FaZ circuit breakers
product overview
UL 1077 DIN rail supplementary protectors
FAZ circuit breakers
PRODUCT OVERVIEW
Optimum and efficient protection
Features
•
Complete range of UL 1077 recognized DIN rail mounted
miniature circuit breakers up to 63A current rating
Standard ratings of 10 kAIC up to 277/480 Vac
Current limiting design provides fast short-circuit interruption
that reduces the let-through energy, which can damage
the circuit
Suitable for supplementary protection
Thermal-magnetic overcurrent protection
•
•
•
•
•
Six levels of short-circuit protection,
categorized by B, C, D, K, S, and Z curves
Optimum product quality, tested reliability and safety stand for
best protection of personnel, installations and plant. Eaton’s FAZ
DIN rail mountable circuit breaker is designed for use in control
panel applications.
Powerful offering for machine and system builders
The FAZ is available with B, C, D, K, S, and Z characteristics in
accordance with UL 1077 CSA C22.2 No.235 and IEC 60947-2.
,
These devices are CE marked.
Typical applications
Supplementary protection
•
•
•
•
•
Trip-free design—breaker can not be defeated by holding the
handle in the ON position
Captive screws cannot be lost
Fulfill UL 1077 CSA C22.2 No.235 and also IEC 60947-2
,
Standard
Field-installable shunt trip and auxiliary switch subsequent
mounting
Module width of only 17 mm (per pole)
.7
Contact position indicator (red/green)
Easy installation on DIN rail
Possibility for sealing the toggle in ON or OFF position
•
•
•
•
•
•
•
Control circuits
Lighting
Business equipment
Appliances

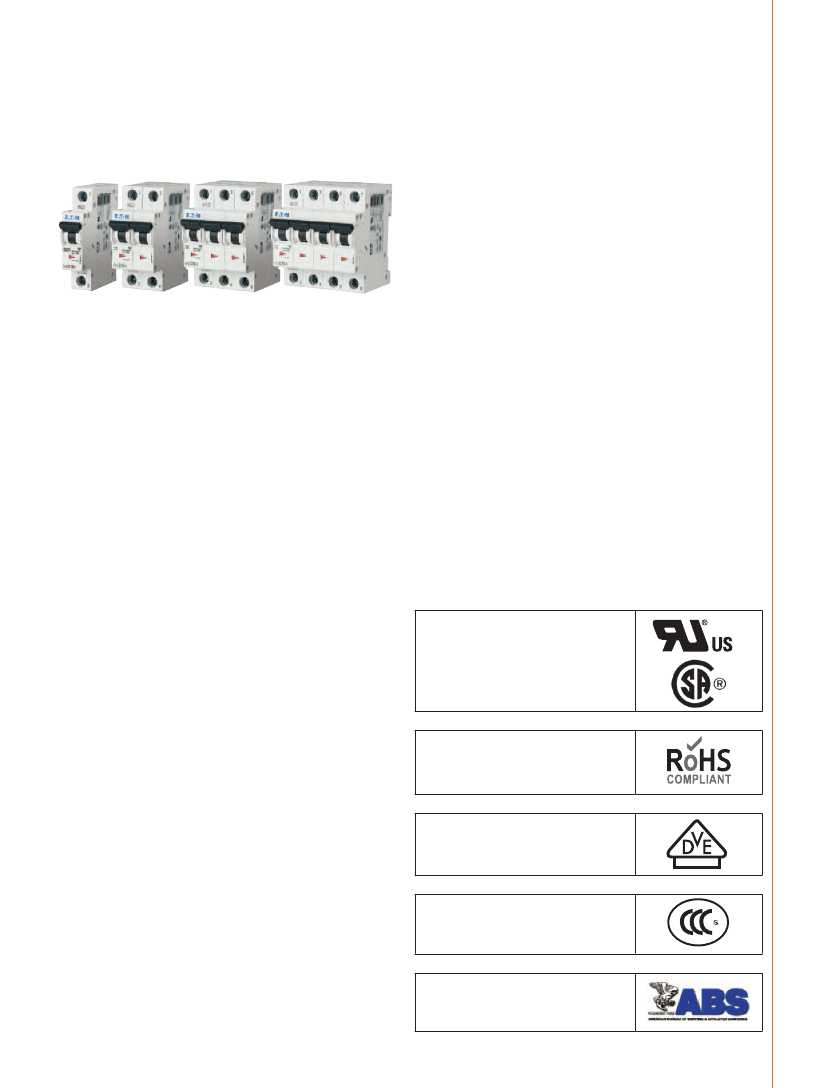

FAZ complies with the latest national and
international standards
Standards—Supplementary Protection
UL 1077, CSA C22.2 No. 235
Apply to supplementary protectors intended for use
as overcurrent, or overvoltage or
undervoltage protection within an appliance or
other electrical equipment where branch circuit
protection is already provided, or is not required.
RoHS
These devices are RoHS compliant.
VDE
Devices with B, C, and D curves
are VDE compliant.
CCC
Devices with B, C, and D curves
are CCC compliant.
ABS
These devices are ABS compliant.
eaton corporation
UL 489 and UL 1077 DIN Rail Miniature Circuit Breakers
17
UL 1077 DIN rail supplementary protectors
FAZ circuit breakers
PRODUCT OVERVIEW
Discover these advanced features

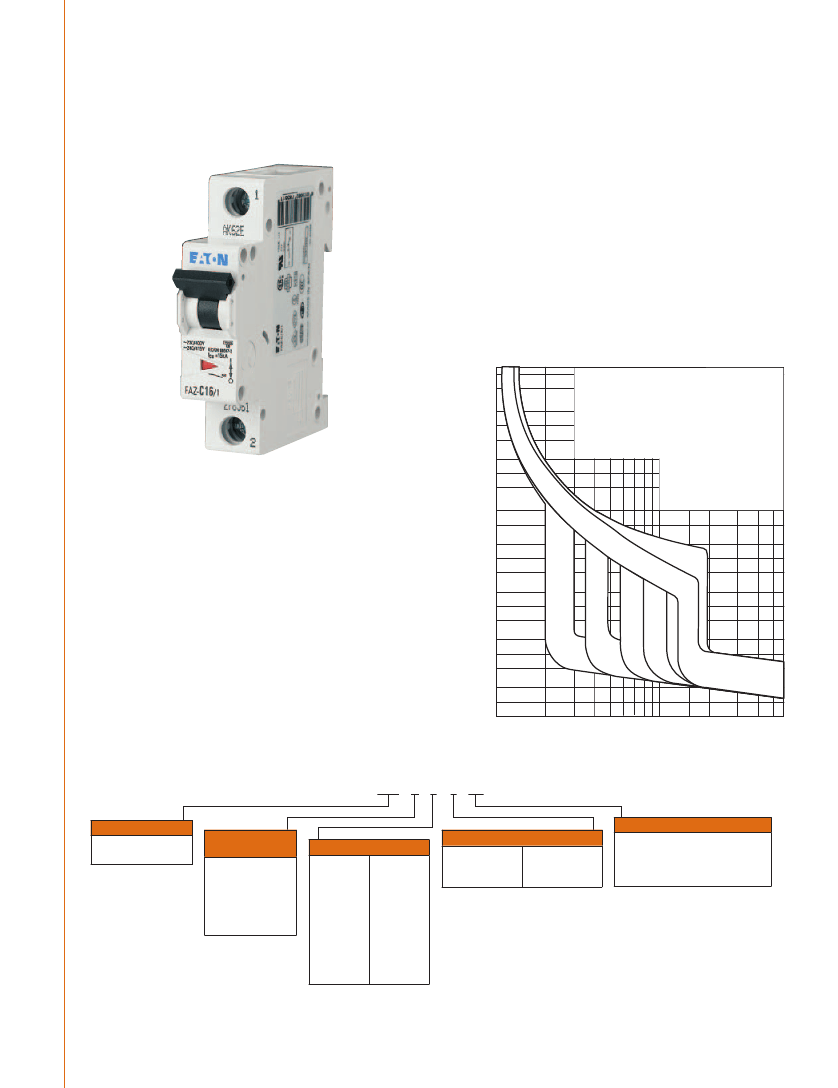

Six tripping curves to choose from
Eaton FAZ supplementary protectors are available with six
different tripping characteristics, including Type B, C, D, K, S, and Z.
Definitions for each trip curve are contained on the ordering pages
and can be used to determine the optimal characteristic for your
application. For example, low-level short-circuit faults in control
wiring, such as PLCs, are best protected by devices with Type B
trip characteristics (3–5X continuous rating of the device (I
n
).
Even though not required by NEC or CEC for supplementary
protectors, Eaton’s FAZ devices are current limiting, which
means that they interrupt fault currents within one half cycle.
Current limiting devices offer superior protection by reducing
peak let-through current and energy.
1.05
1.30
1.45
Breakers install on
standard DIN rail
Captive Posidrive
terminal screws
with finger and
back-of-hand
protection (IP20)
Trip-free design;
breaker cannot be
defeated by holding
the handle in the
ON position
Breaker information
printed on the front
of the device for
quick identification
Available in one-, two-,
three-, four-pole, 1+N
and 3+N models
7200
3600
1200
600
300
120
60
30
10
5
1.13
Color-coded indicator
provides breaker
status for easy
troubleshooting
Time-current characteristic acc. to UL 1077
a
Conventional
c
2.55 I :
N
non-tripping current
t = 1–60 s (I
N
< 32A)
t = 1–120 s (I
N
< 32A)
I
nt
= 1.13 I
N
: t > 1 h
b
Conventional tripping
current
I
t
= 1.45 I
N
: t < 1 h
d
Type B: 3 I : t > 0.1 s
N
e
Type B: 5 I : t < 0.1 s
N
f
Type C: 5 I : t > 0.1 s
N
g
Type C: 10 I : t < 0.1 s
N
h
Type D: 10 I : t > 0.1 s
N
i
Type D: 20 I : t < 0.1 s
N
t
(sec)
2
1
0.5
0.2
0.1
0.05
0.02
0.01
0.005
0.002
0.001
0.0005
Z
B
C
K
D
S
1
2
3
4 5 6 7 8 9 10 15 20
I/I
n
30 40 50
Catalog Numbering System
FAZ
-
C 6
/
1 SP
Breaker Family
Single Package
Trip
Characteristic
Ampere Rating
Number of Poles
FAZ
= Supplementary
protector
B
= 3–5X
I
n
a
C
= 5–10X
I
n
a
D
= 10–20X
I
n
a
K
= 8–12X
I
n
a
S
= 13–17X
I
n
a
Z
= 2–3X
I
n
a
0.5
=
1
=
2
=
3
=
4
=
5
=
6
=
7
=
8
=
10
=
0.5A
1A
2A
3A
4A
5A
6A
7A
8A
10A
13
15
16
20
25
30
32
40
50
63
=
=
=
=
=
=
=
=
=
=
13A
15A
16A
20A
25A
30A
32A
40A
50A
63A
1
= Single-pole
2
= Two-pole
3
= Three-pole
4
= Four-pole
1N
= 1 + neutral
3N
= 3 + neutral
= Single packaging of
single-pole curve B, C and
D for select amperes only
Blank
= Standard packaging
SP
a
I
= Rated current for instantaneous trip characteristics.
n
18
eaton corporation
UL 489 and UL 1077 DIN Rail Miniature Circuit Breakers
product Selection
UL 1077 DIN rail supplementary protectors
FAZ circuit breakers
PRODUCT SELECTION
1.13
7200
3600
1200
600
300
120
60
30
10
1
•
•
•
•
•
Designed for resistive or slightly inductive loads
Response time of instantaneous trip: 3–5X
I
n
current rating
UL recognized and CSA Certified as supplementary protectors
For international and domestic use (conform to IEC 60947-2)
UL file number 177451
1.45
FAZ product selection—B curve (3–5X
I
n
current rating)
Specified non-tripping
current
I
NT
= 1.13 x I
N
for t > 1 h
Specified tripping current
I
T
= 1.45 x I
N
for t < 1 h
a
2.55 I :
N
t = 1–60 s (I
N
< 32A)
t = 1–120 s (I
N
> 32A)
b
Type B: 3 x I : t > 0.1 s
N
c
Type B: 5 x I : t < 0.1 s
N
t [sec]
Suitable for applications where protection against low-level short-
circuit faults in control wiring is desired. Instantaneous trip is
3–5X continuous rating of device (I
n
). Applications include PLC
wiring, business equipment, lighting, appliances and some
motors. Low magnetic trip point.
5
2
1
0.5
0.2
0.1
0.05
0.02
0.01
2
1
B
3
0.005
0.002
0.001
0.0005
1
2
3
4
5
6 7 8 9 10
15
20
30
40
50
I / I
N
B Curve (3–5X I
n
Current Rating)—designed for resistive or slightly inductive loads
a
Single-pole
b
catalog
amperes number
two-pole
catalog
number
three-pole
catalog
number
Four-pole
catalog
number
Single-pole + neutral three-pole + neutral
catalog
number
catalog
number
1
2
3
4
5
6
7
8
10
12
13
15
16
20
25
30
32
40
50
63
FAZ-B1/1-SP
FAZ-B2/1-SP
FAZ-B3/1-SP
FAZ-B4/1-SP
FAZ-B5/1-SP
FAZ-B6/1-SP
FAZ-B7/1-SP
FAZ-B8/1-SP
FAZ-B10/1-SP
FAZ-B12/1-SP
FAZ-B13/1-SP
FAZ-B15/1-SP
FAZ-B16/1-SP
FAZ-B20/1-SP
FAZ-B25/1-SP
FAZ-B30/1-SP
FAZ-B32/1-SP
FAZ-B40/1-SP
FAZ-B50/1-SP
FAZ-B63/1-SP
FAZ-B1/2
FAZ-B2/2
FAZ-B3/2
FAZ-B4/2
FAZ-B5/2
FAZ-B6/2
FAZ-B7/2
FAZ-B8/2
FAZ-B10/2
FAZ-B12/2
FAZ-B13/2
FAZ-B15/2
FAZ-B16/2
FAZ-B20/2
FAZ-B25/2
FAZ-B30/2
FAZ-B32/2
FAZ-B40/2
FAZ-B50/2
FAZ-B63/2
FAZ-B1/3
FAZ-B2/3
FAZ-B3/3
FAZ-B4/3
FAZ-B5/3
FAZ-B6/3
FAZ-B7/3
FAZ-B8/3
FAZ-B10/3
FAZ-B12/3
FAZ-B13/3
FAZ-B15/3
FAZ-B16/3
FAZ-B20/3
FAZ-B25/3
FAZ-B30/3
FAZ-B32/3
FAZ-B40/3
FAZ-B50/3
FAZ-B63/3
FAZ-B1/4
FAZ-B2/4
FAZ-B3/4
FAZ-B4/4
FAZ-B5/4
FAZ-B6/4
FAZ-B7/4
FAZ-B8/4
FAZ-B10/4
FAZ-B12/4
FAZ-B13/4
FAZ-B15/4
FAZ-B16/4
FAZ-B20/4
FAZ-B25/4
FAZ-B30/4
FAZ-B32/4
FAZ-B40/4
FAZ-B50/4
FAZ-B63/4
FAZ-B1/1N
FAZ-B2/1N
FAZ-B3/1N
FAZ-B4/1N
FAZ-B5/1N
FAZ-B6/1N
FAZ-B7/1N
FAZ-B8/1N
FAZ-B10/1N
FAZ-B12/1N
FAZ-B13/1N
FAZ-B15/1N
FAZ-B16/1N
FAZ-B20/1N
FAZ-B25/1N
FAZ-B30/1N
FAZ-B32/1N
FAZ-B40/1N
FAZ-B50/1N
FAZ-B63/1N
FAZ-B1/3N
FAZ-B2/3N
FAZ-B3/3N
FAZ-B4/3N
FAZ-B5/3N
FAZ-B6/3N
FAZ-B7/3N
FAZ-B8/3N
FAZ-B10/3N
FAZ-B12/3N
FAZ-B13/3N
FAZ-B15/3N
FAZ-B16/3N
FAZ-B20/3N
FAZ-B25/3N
FAZ-B30/3N
FAZ-B32/3N
FAZ-B40/3N
FAZ-B50/3N
FAZ-B63/3N
a
In North America, these switches are UL recognized and CSA Certified as supplementary protection devices. Per the intent of NEC (National Electrical Code), Article 240, and CEC
(Canadian Electrical Code), Part 1 C22.1, supplementary breakers cannot be used as a substitute for the branch circuit protective device. They can be used to provide overcurrent
protection within an appliance or other electrical equipment where branch circuit overcurrent protection is already provided, or is not required.
b
Option for single packaging on single-pole B, C and D curves only; add suffix SP when ordering.
eaton corporation
UL 489 and UL 1077 DIN Rail Miniature Circuit Breakers
19
UL 1077 DIN rail supplementary protectors
FAZ circuit breakers
PRODUCT SELECTION
1.13
7200
3600
1200
600
300
120
60
1.45

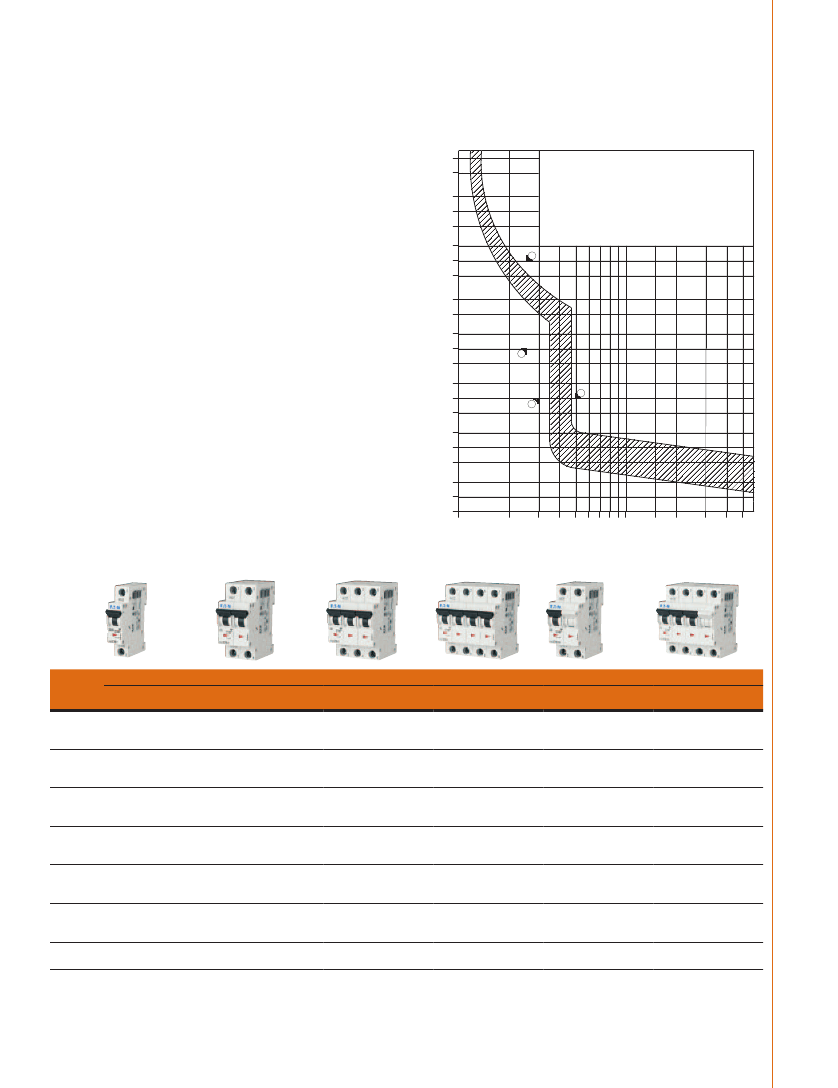

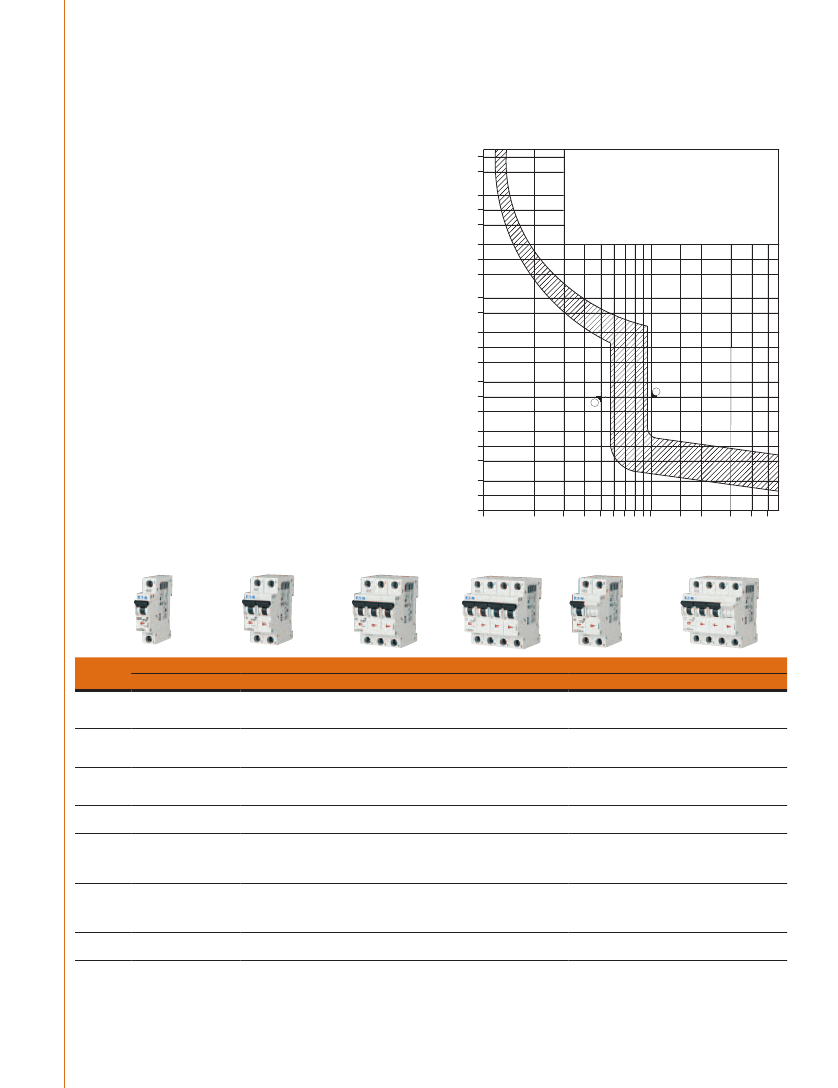

FAZ product selection—C curve (5–10X
I
n
current rating)
•
•
•
•
•
Designed for inductive loads
Response time of instantaneous trip: 5–10X
I
n
current rating
UL recognized and CSA Certified as supplementary protectors
For international and domestic use (conform to IEC 60947-2)
UL file number 177451
Specified non-tripping
current
I
NT
= 1.13 x I
N
for t > 1 h
Specified tripping current
I
T
= 1.45 x I
N
for t < 1 h
a
Type C: 5 x I : t > 0.1 s
N
b
Type C: 10 x I : t < 0.1 s
N
t [sec]
Suitable for applications where medium levels of inrush current
are expected. Instantaneous trip is 5–10X rating of device (I
n
).
Applications include small transformers, lighting, pilot devices,
control circuits, and coils. Medium magnetic trip point.
30
10
5
2
1
0.5
0.2
0.1
0.05
0.02
0.01
0.005
0.002
0.001
0.0005
1
2
3
4
5
6 7 8 9 10
15
20
30
40
50
1
C
2
C Curve (5–10X I
n
current rating)—designed for inductive loads
I / I
N
a
Single-pole
b
amperes
catalog number
two-pole
catalog number
three-pole
catalog number
Four-pole
catalog number
Single-pole + neutral three-pole + neutral
catalog number
catalog number
0.5
1
1.6
2
3
4
5
6
7
8
10
13
15
16
20
25
30
32
40
50
63
FAZ-C0.5/1-SP
FAZ-C1/1-SP
FAZ-C1.6/1-SP
FAZ-C2/1-SP
FAZ-C3/1-SP
FAZ-C4/1-SP
FAZ-C5/1-SP
FAZ-C6/1-SP
FAZ-C7/1-SP
FAZ-C8/1-SP
FAZ-C10/1-SP
FAZ-C13/1-SP
FAZ-C15/1-SP
FAZ-C16/1-SP
FAZ-C20/1-SP
FAZ-C25/1-SP
FAZ-C30/1-SP
FAZ-C32/1-SP
FAZ-C40/1-SP
FAZ-C50/1-SP
FAZ-C63/1-SP
FAZ-C0.5/2
FAZ-C1/2
FAZ-C1.6/2
FAZ-C2/2
FAZ-C3/2
FAZ-C4/2
FAZ-C5/2
FAZ-C6/2
FAZ-C7/2
FAZ-C8/2
FAZ-C10/2
FAZ-C13/2
FAZ-C15/2
FAZ-C16/2
FAZ-C20/2
FAZ-C25/2
FAZ-C30/2
FAZ-C32/2
FAZ-C40/2
FAZ-C50/2
FAZ-C63/2
FAZ-C0.5/3
FAZ-C1/3
FAZ-C1.6/3
FAZ-C2/3
FAZ-C3/3
FAZ-C4/3
FAZ-C5/3
FAZ-C6/3
FAZ-C7/3
FAZ-C8/3
FAZ-C10/3
FAZ-C13/3
FAZ-C15/3
FAZ-C16/3
FAZ-C20/3
FAZ-C25/3
FAZ-C30/3
FAZ-C32/3
FAZ-C40/3
FAZ-C50/3
FAZ-C63/3
FAZ-C0.5/4
FAZ-C1/4
FAZ-C1.6/4
FAZ-C2/4
FAZ-C3/4
FAZ-C4/4
FAZ-C5/4
FAZ-C6/4
FAZ-C7/4
FAZ-C8/4
FAZ-C10/4
FAZ-C13/4
FAZ-C15/4
FAZ-C16/4
FAZ-C20/4
FAZ-C25/4
FAZ-C30/4
FAZ-C32/4
FAZ-C40/4
FAZ-C50/4
FAZ-C63/4
FAZ-C0.5/1N
FAZ-C1/1N
FAZ-C1.6/1N
FAZ-C2/1N
FAZ-C3/1N
FAZ-C4/1N
FAZ-C5/1N
FAZ-C6/1N
FAZ-C7/1N
FAZ-C8/1N
FAZ-C10/1N
FAZ-C13/1N
FAZ-C15/1N
FAZ-C16/1N
FAZ-C20/1N
FAZ-C25/1N
FAZ-C30/1N
FAZ-C32/1N
FAZ-C40/1N
FAZ-C50/1N
FAZ-C63/1N
FAZ-C0.5/3N
FAZ-C1/3N
FAZ-C1.6/3N
FAZ-C2/3N
FAZ-C3/3N
FAZ-C4/3N
FAZ-C5/3N
FAZ-C6/3N
FAZ-C7/3N
FAZ-C8/3N
FAZ-C10/3N
FAZ-C13/3N
FAZ-C15/3N
FAZ-C16/3N
FAZ-C20/3N
FAZ-C25/3N
FAZ-C30/3N
FAZ-C32/3N
FAZ-C40/3N
FAZ-C50/3N
FAZ-C63/3N
a
In North America, these switches are UL recognized and CSA Certified as supplementary protection devices. Per the intent of NEC (National Electrical Code), Article 240, and CEC (Canadian Electrical
Code), Part 1 C22.1, supplementary breakers cannot be used as a substitute for the branch circuit protective device. They can be used to provide overcurrent protection within an appliance or other
electrical equipment where branch circuit overcurrent protection is already provided, or is not required.
b
Option for single packaging on single-pole B, C and D curves only; add suffix SP when ordering.
20
eaton corporation
UL 489 and UL 1077 DIN Rail Miniature Circuit Breakers
[i=s]This post was last edited by nich20xx on 2020-5-31 05:33[/i]1 Introduction
The STM32F407xx and STM32F10XXX series maintain a relatively similar compatibility mode. All functional pins are pin-to-...
The BOOST power architecture is a very classic boost power solution. It is a switching power supply that uses the time ratio of the switch tube to maintain a stable output. It is widely used in electr...
Mobile communication and its characteristics: Mobile communication: Mobile communication refers to the communication between mobile users or between mobile users and fixed users. Compared with other c...
The most significant event in the technology circle during this period is undoubtedly the news that ZTE was banned by the United States. Once the news came out, it shocked the entire Chinese techno...[Details]
The global PV inverter market will shrink from $6.3 billion in 2017 to $3.7 billion in 2022 due to falling prices, according to GlobalData.
Global PV Inverter Market Value to Shrink to $3.7 Bil...[Details]
For 80,000
ZTE
(000063.SZ) employees and more Chinese ICT (information and communication technology) industry practitioners, the news from across the ocean on the evening of April 16 kept t...[Details]
1. Principle 1. Infrared emission protocol There are many infrared communication protocols. This experiment uses the NEC protocol. This protocol uses PWM modulation and uses pulse width to represen...[Details]
For STM32, there are two ways to reset the software: 1) Use the official software library The system reset function is directly provided in the stm32f10x_nvic.c file of the official software li...[Details]
In the actual project development process, we often need to get the running time of a section of code. The usual method is to use an oscilloscope to measure it. This blog post will use SysTick to acc...[Details]
In the actual project development process, it is common to encounter modifications to the hardware circuit, and then the modified part requires the modification of the driver. Thinking about the comi...[Details]
Today, under the guidance of a low-level expert, I learned how to configure the PWM module! Woof! First open the file configured last time, as follows: Then, we need to use TIM1 to set PWM: Then,...[Details]
After we understand the use of libopencm3, we find that libopencm3 is only suitable for small projects. Its biggest feature is the convenience of USB. So when we configure large projects, is there a ...[Details]
1. Initial understanding of FSMC: FSMC consists of 4 modules: (1) AHB interface (including FSMC configuration register) (2) NOR flash memory and PSRAM controller (when driving LCD, LCD is like a PSRA...[Details]
The Wassenaar Arrangement, everything started during the Cold War. Let's learn more about it with the embedded editor.
background
After the end of World War II, the United States ...[Details]
Recently, the "Smart Photovoltaic Industry Development Action Plan (2018-2020)" jointly issued by six departments has put this concept on the forefront. Photovoltaic smart solutions will become the ne...[Details]
China Energy Storage Network:
At the Boao Forum, Zhu Min, the current dean of the National Institute of Finance at Tsinghua University, said: "When talking about blockchain, we must first sep...[Details]
In the Chinese automobile market, the trend of new energy vehicles and driverless cars is leading the transformation of China's automobile industry. As the world's largest automobile market, "Chinese...[Details]
Timing and protocol are two key points in digital system debugging, and they are also where logic analyzers can play their most valuable role. How can we use a logic analyzer to quickly complete wiri...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
