D_T-1W Series
1W, FIXED INPUT, ISOLATED & UNREGULATED
TWIN OUTPUT ULTRAMINIATURE SMD PACKAGE
DC-DC CONVERTER
RoHS
FEATURES
●
Efficiency up to 80%
●
Twin Independent Output
●
Small Footprint
●
SMD Package Styles
●
Industry Standard Pinout
●
No Heatsink Required
●
1kVDC Isolation
●
High Power Density
●
Temperature Range: -40°C ~ +85°C
●
No External Component Required
●
Internal SMD construction
●
RoHS Compliance
SELECTION GUIDE
Input
Part
Number
D050505T-1W
D050909T-1W *
D051212T-1W
D051515T-1W *
D120505T-1W *
D120909T-1W *
D121212T-1W
D121515T-1W
12
10.8-13.2
5
4.5-5.5
Voltage (VDC)
Nominal
Range
Voltage
(VDC)
5/5
9/9
12/12
15/15
5/5
9/9
12/12
15/15
Output
Current (mA)
Max.
100/100
56/56
42/42
33/33
100/100
56/56
42/42
33/33
Min.
10/10
6/6
4/4
3/3
10/10
6/6
4/4
3/3
70
75
79
80
72
75
78
80
Efficiency
(%,Typ.)
APPLICATIONS
The D_T-1W series are specially designed for
applications where a group of polar power
supplies are isolated from the input power
supply in a distributed power supply system on
a circuit board. These products apply to:
1) Where the voltage of the input power
supply is fixed (voltage variation
≤±10%);
2) Where isolation is necessary between input
and output (isolation voltage
≤1000VDC);
3) Where the regulation of the output voltage
and the output ripple and noise are not
demanding.
Such as: purely digital circuits, ordinary low
frequency analog circuits and IGBT power
device driven circuits, etc.
*Designing.
Note: The D_T-W2/W5 series also are available in our company.
COMMON SPECIFICATIONS
Item
Storage humidity
Operating temperature
Storage temperature
Temp. rise at full load
Lead temperature
Short circuit protection*
Cooling
package material
MTBF
Weight
*Supply voltage must be discontinued at the end of short circuit duration.
Test condition
Min.
Typ.
Max.
95
Unit
%
-40
-55
15
1.5mm from case for 10 seconds
85
125
25
300
1
Free air convection
s
°C
Epoxy Resin (UL94-V0)
3500
2.1
K hours
g
PART NUMBER SYSTEM
D050505T-1W
Rated Power
Package Style
The 2nd Output Voltage
The 1st Output Voltage
Input Voltage
Product Series
ISOLATION SPECIFICATIONS
Item
Isolation voltage
(Vin/Vout)
Isolation voltage
(Vo1/Vo2)
Isolation resistance
(Vin/Vout)
Isolation resistance
(Vo1/Vo2)
Isolation capacitance
(Vin/Vout)
Isolation capacitance
(Vo1/Vo2)
Test condition
Tested for 1 minute and 1mA max
Tested for 1 minute and 1mA max
Test at 500VDC
Test at 500VDC
Min.
1000
VDC
1000
1000
MΩ
1000
60
pF
60
Typ.
Max.
Unit
MORNSUN Science & Technology Co.,Ltd.
Address: No. 5, Kehui St. 1, Kehui development
center, Science Ave., Guangzhou Science City,
Luogang district, Guangzhou,P.R.China.
Tel: 86-20-28203030
Fax:86-20-38601272
Http://www.mornsun-power.com
The copyright and authority for the interpretation of the products are reserved by MORNSUN
Specifications subject to change without notice.
D_T-1W
B/1-2012
Page 1 of 3

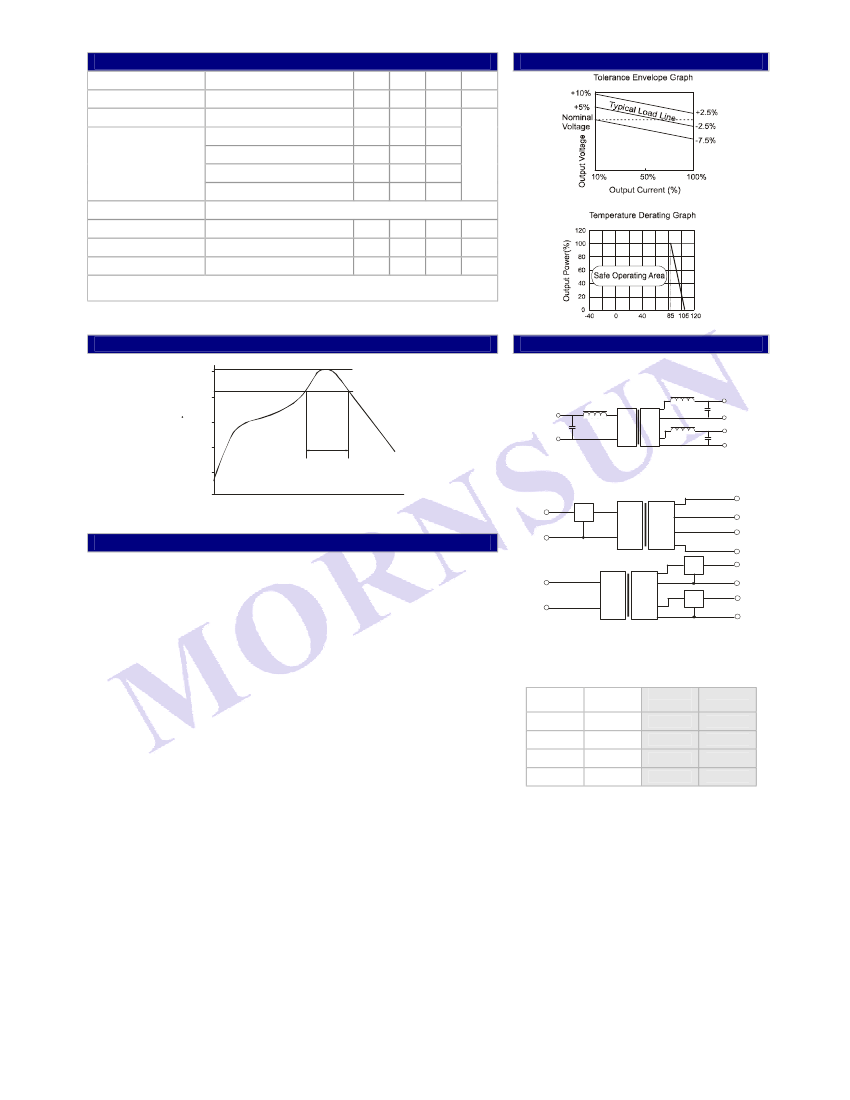

OUTPUT SPECIFICATIONS
Item
Output power
Line regulation
For Vin change of
±1%
10% to 100% load(5V output)
Load regulation
10% to 100% load(9V output)
10% to 100% load(12V output)
10% to 100% load(15V output)
Output voltage accuracy
Temperature drift
Ripple & Noise*
Switching frequency
100% full load
20MHz Bandwidth
Full load, nominal input
50
100
12.8
8.3
6.8
6.0
Test Conditions
Min.
0.1
Typ.
Max.
1
±1.2
15
10
10
10
±0.03
75
%
Unit
W
APPLICATION NOTE
See tolerance envelope graph
%/°C
mVp-p
KHz
*Test ripple and noise by
“parallel
cable” method. See detailed operation instructions at Testing of
Power Converter section, application notes.
Operating Temp.(
o
C)
RECOMMENDED REFLOW SOLDERING PROFILE
250
260
o
C
1 0 S ec M ax
RECOMMENDED CIRCUIT
Temperatur e (
o
C)
200
150
100
50
0
Time ( sec .)
22 0
o
C
L
L
Vo1
C
Vin
90 Sec Max
o
(>220 C)
C
DC DC
L
C
0V1
Vo2
0V2
GND
(Figure 1)
Vo1
Vin
REG
Remark: The curve applies only to the hot air reflow soldering
0V1
DC
GND
DC
REG
Vo2
0V2
Vo1
0V1
TYPICAL CHARECTERISTICS
1) Requirement On Output Load
To ensure this module can operate efficiently and reliably, a minimum load is specified
for this kind of DC/DC converter in addition to a maximum load (namely full load).
During operation, make sure the specified range of input voltage is not exceeded, the
minimum output load
could not be less than 10% of the full load.
If the actual output
power is very small, please connect a resistor with proper resistance at the output end
in parallel to increase the load, or use our company’s products with a lower rated output
power (D_T
–W2/W5).
2) Recommended testing circuit
If you want to further decrease the input/output ripple, an
“LC”
filtering network may
be connected to the input and output ends of the DC/DC converter, see (Figure1).
It should also be noted that the inductance and the frequency of the
“LC”
filtering
network should be staggered with the DC/DC frequency to avoid mutual interference.
However, the capacitance of the output filter capacitor must be proper. If the
capacitance is too big, a startup problem might arise. For every channel of output,
provided the safe and reliable operation is ensured, the greatest capacitance of its filter
capacitor sees (Table 1).
3) Output Voltage Regulation and Over-voltage Protection Circuit
The simplest device for output voltage regulation, over-voltage and over-current
protection is a linear voltage regulator with overheat protection that is connected to the
input or output end in series (Figure2).
4) Overload Protection
Under normal operating conditions, the output circuit of these products has no
protection against overload. The simplest method is to connect a self-recovery fuse in
series at the input end or add a circuit breaker to the circuit.
5) Cannot use in parallel and hot swap
Vin
DC
GND
DC
REG
Vo2
0V2
(Figure2)
EXTERNAL CAPACITOR TABLE (TABLE 1)
Vin
Cin
Vout
Cout
(VDC)
(µF)
(VDC)
(µF)
5
12
-
-
4.7
2.2
-
-
5
9
12
15
4.7
2.2
1
0.47
It’s not recommended to connect any external
capacitor in the application field with less than 0.5 watt
output.
The copyright and authority for the interpretation of the products are reserved by MORNSUN
Specifications subject to change without notice.
D_T-1W
B/1-2012
Page 2 of 3

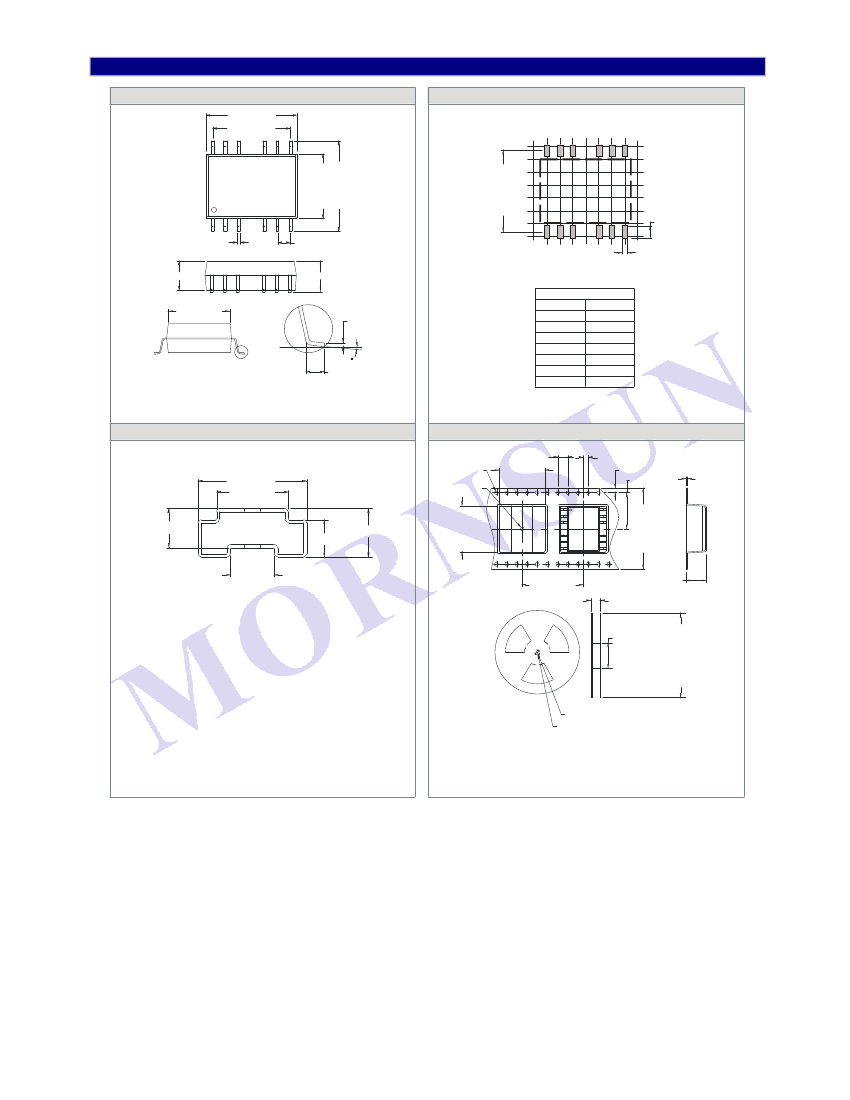

OUTLINE DIMENSIONS& RECOMMENDED FOOTPRINT
MECHANICAL DIMENSIONS
17.78 [0.700]
15.24 [0.600]
RECOMMENDED FOOTPRINT
12.70 [0.500]
17.78 [0.700]
14 13 12
10
9
8
(
Top View
)
12
3
5
6
7
16.68 [0.657]
14 13 12
10 9
8
1
2.54 [0.100]
2
3
5
6
7
2.10 [0.083]
0.60 [0.024]
(
Front View
)
5.75 [0.226]
1.00 [0.039]
6.00 [0.236]
Note: gr id 2.54*2. 54m m.
FOOTPR INT DETAILS
12.22 [0.481]
A
0.25 [0.010]
A
5 max
1.30 [0.051]
Note:
Unit: mm[inch]
Pin section tolerances:
±
0.10mm[
±
0.004inch
]
General tolerances:
±
0.25mm[
±
0.010inch]
Pin
1
2
5
6
9
10
Other s
Function
GND
Vin
0V1
Vo1
Vo2
0V2
NC
NC:No Connection
TUBE OUTLINE DIMENSIONS
REEL PACKING OUTLINE DIMENSIONS
Taping dimension:
4.00 [0.157]
∅1.50[0.059]
18.00[0.709]
2.00 [0.079]
1.75 [0.069]
14.20[0.559]
0.50[0.020]
21.50 [0.846]
14.30 [0.563]
∅1.50[0.059]
18.20[0.717]
8.00 [0.315]
7.60 [0.299]
9.80 [0.386]
8.30 [0.327]
24.00 [0.945]
Taping reel dimension:
Note:
Unit: mm[inch]
General tolerances:
±
0.50mm[
±
0.020inch]
L=530mm[20.866inch] Devices per tube quantity: 28pcs
L=220mm[8.661inch] Devices per tube quantity: 10pcs
Short tube inner package dimensions: L*W*H= 255*170*80mm
Short tube outer package dimensions(with six inner package boxes):
L*W*H= 375*280*270mm
Long tube inner package dimensions: L*W*H= 580*200*100mm
Long tube outer package dimensions(with two inner package boxes):
L*W*H= 600*215*220mm
Long tube outer package dimensions(with three inner package boxes):
L*W*H= 600*215*325mm
37.40 [1.472]
32.00 [0.260]
6.80[0.268]
∅100.00
[3.937]
∅13.00
[0.512]
∅21.50
[0.846]
Note:
Unit:mm[inch]
General tolerances:
±
0.50mm[
±
0.020inch]
Per reel of packing quantity:400pcs
Innerpackage carton dimensions:L*W*H=365*350*105mm
Tube Quantity:800pcs
Outerpackagecartondimensions:L*W*H=390*360*245mm
Tube Quantity:1600pcs
Note:
1. Operation under minimum load will not damage the converter; However, they may not meet all specification listed, and that will reduce the life
of product.
2. All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.
3. Only typical models listed, other models may be different, please contact our technical person for more details.
4. In this datasheet, all the test methods of indications are based on corporate standards.
The copyright and authority for the interpretation of the products are reserved by MORNSUN
Specifications subject to change without notice.
D_T-1W
B/1-2012
Page 3 of 3
∅330.00
[12.992]
