BTS950 datasheet, PDF - EEWORLD Datasheet

BTS950: DescriptionPower Field-Effect Transistor, 9A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-218, 5 PIN; CategoryDiscrete semiconductor The transistor; File Size138KB，6 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

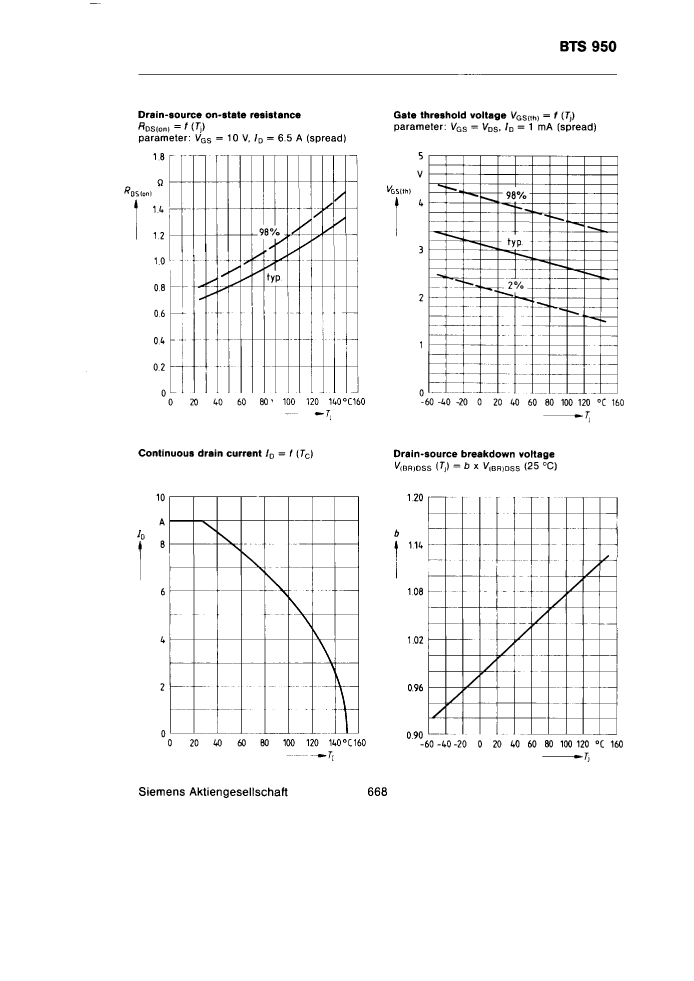

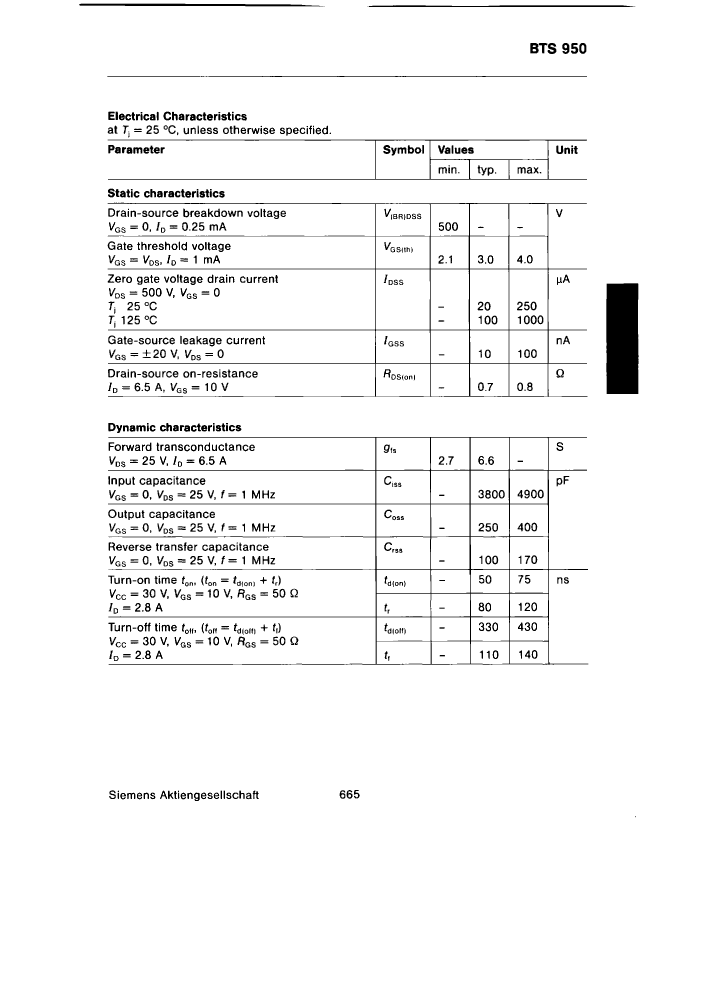

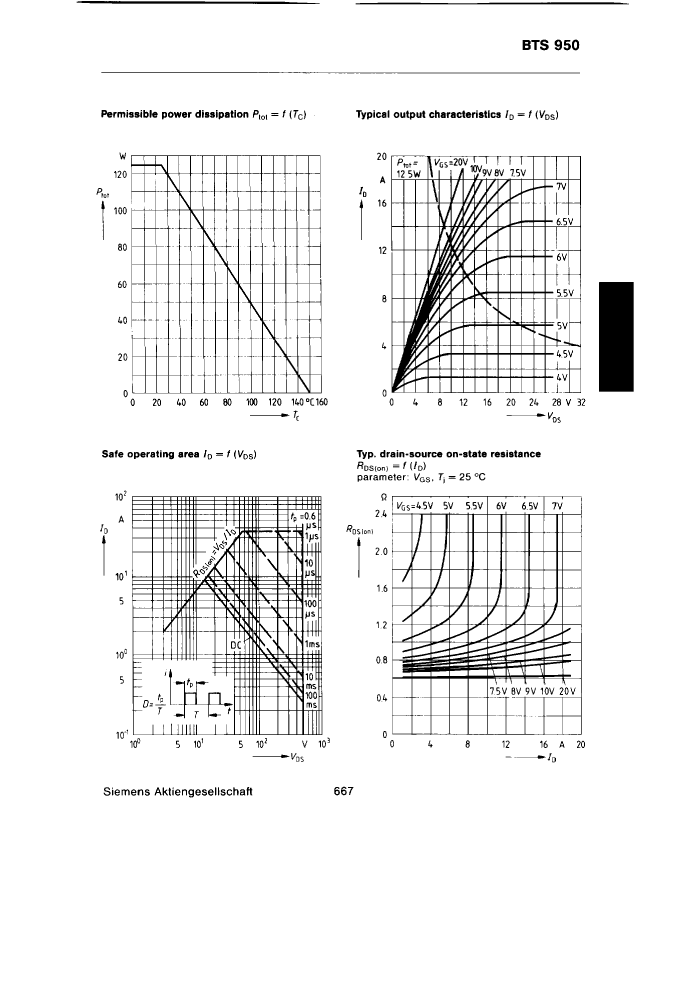

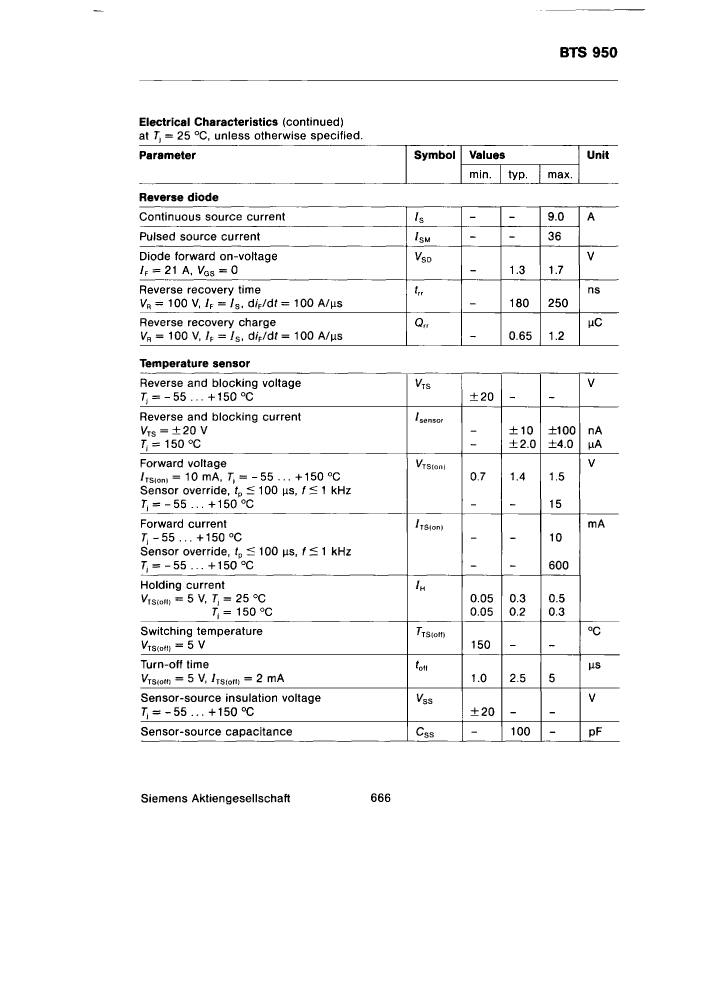

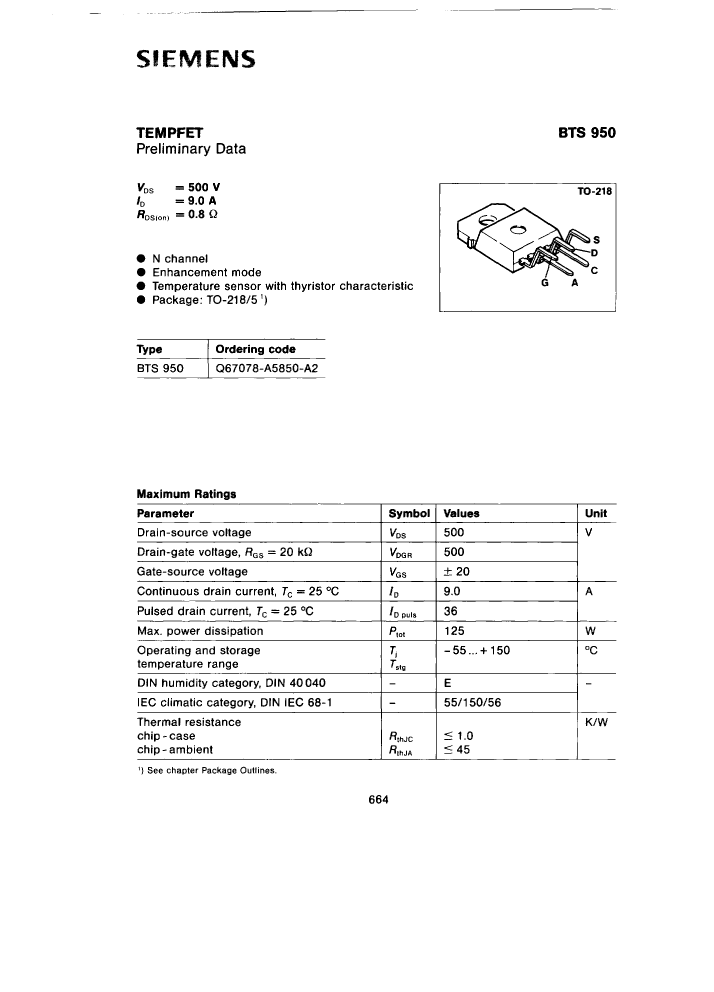

BTS950 Overview

Power Field-Effect Transistor, 9A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-218, 5 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	TO-218
package instruction	TO-218, 5 PIN
Contacts	5
Reach Compliance Code	not_compliant
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	500 V
Maximum drain current (Abs) (ID)	9 A
Maximum drain current (ID)	9 A
Maximum drain-source on-resistance	0.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T5
JESD-609 code	e0
Number of components	1
Number of terminals	5
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	36 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON

	BTS950
Description	Power Field-Effect Transistor, 9A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-218, 5 PIN
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	TO-218
package instruction	TO-218, 5 PIN
Contacts	5
Reach Compliance Code	not_compliant
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	500 V
Maximum drain current (Abs) (ID)	9 A
Maximum drain current (ID)	9 A
Maximum drain-source on-resistance	0.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T5
JESD-609 code	e0
Number of components	1
Number of terminals	5
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	36 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
