SURFACE MOUNT DISPLAY
P/N: KPDA03-107
SUPER BRIGHT YELLOW
Features
0.3 INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
I.C. COMPATIBLE.
MECHANICALLY RUGGED.
GRAY FACE,WHITE SEGMENT.
PACKAGE :300PCS / REEL.
RoHS COMPLIANT.
Description
The Super Bright Yellow source color devices are made with
DH InGaAlP on GaAs substrate Light Emitting Diode.
Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAD0135
APPROVED: J. Lu
REV NO: V.3
CHECKED: Joe Lee
DATE: NOV/19/2005
DRAWN: Y.L.LI
PAGE: 1 OF 4
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd)
@ 10mA
Min.
KPDA03-107
SUPER BRIGHT YELLOW (InGaAIP)
WHITE DIFFUSED
8000
Typ.
35400
Common Anode, Rt.
Hand Decimal.
Description
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Typ.
590
590
20
20
2.0
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Yellow
125
30
175
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAD0135
APPROVED: J. Lu
REV NO: V.3
CHECKED: Joe Lee
DATE: NOV/19/2005
DRAWN: Y.L.LI
PAGE: 2 OF 4

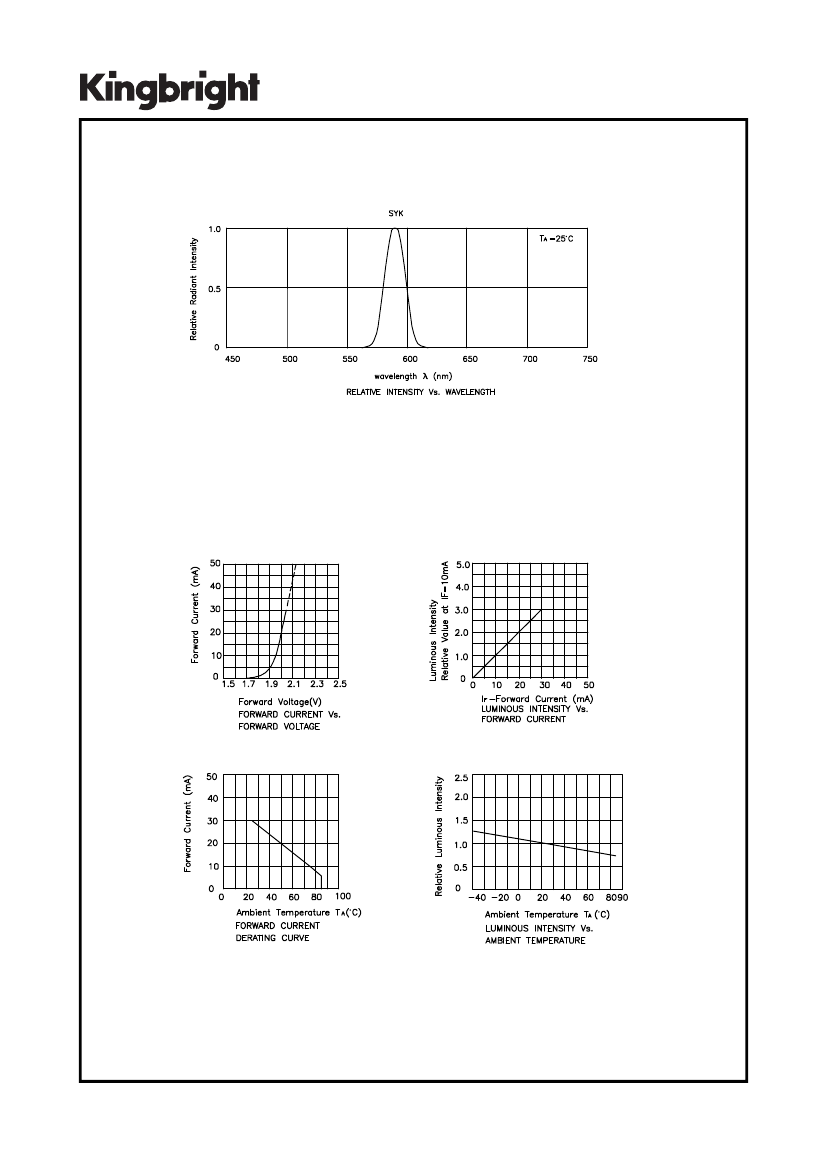

Super Bright Yellow
KPDA03-107
SPEC NO: DSAD0135
APPROVED: J. Lu
REV NO: V.3
CHECKED: Joe Lee
DATE: NOV/19/2005
DRAWN: Y.L.LI
PAGE: 3 OF 4
KPDA03-107

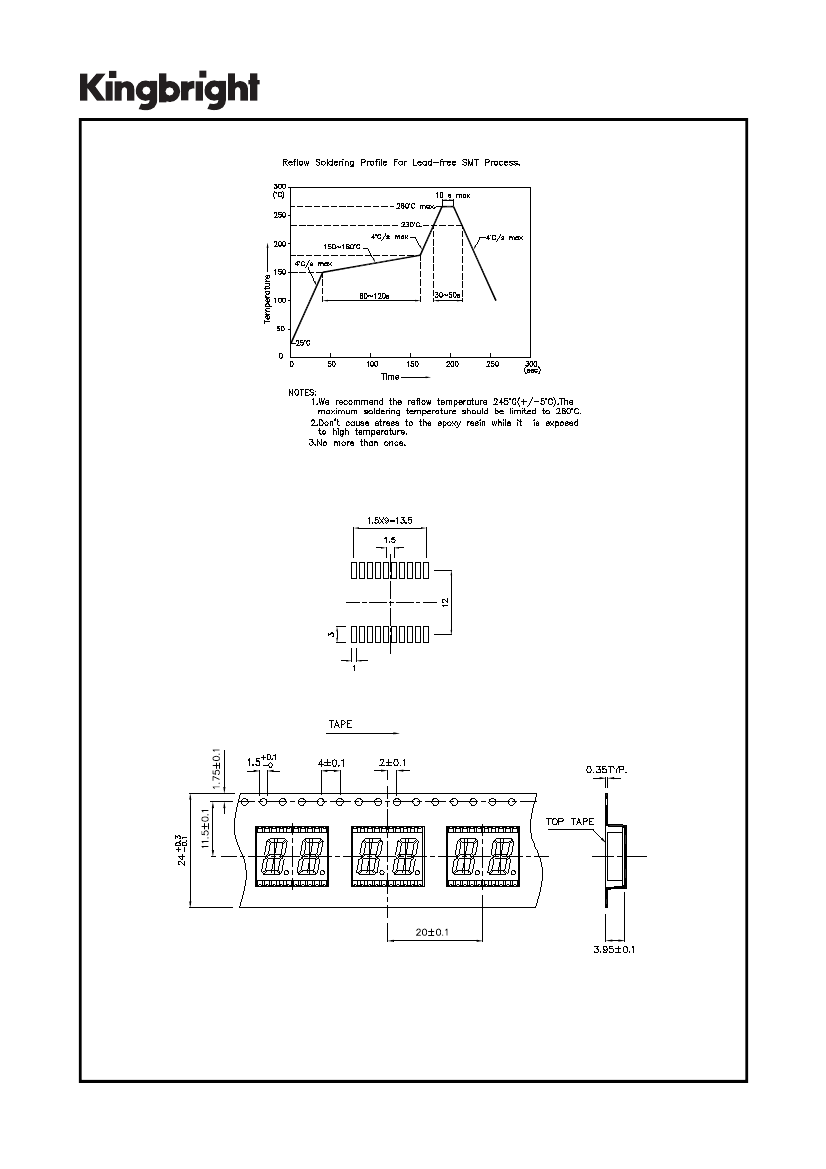

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity/ Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
