SURFACE MOUNT DISPLAY
KPDC02-121
GREEN
Features
!
0.2INCH
Description
The Green source color devices are made with InGaN
on SiC Light Emitting Diode.
DIGIT HEIGHT.
CHARACTER APPEARANCE.
!
LOW CURRENT OPERATION.
!
EXCELLENT
!
I.C. COMPATIBLE.
!
MECHANICALLY RUGGED.
!
GRAY FACE,WHITE SEGMENT.
!
PACKAGE
: 600PCS / REEL.

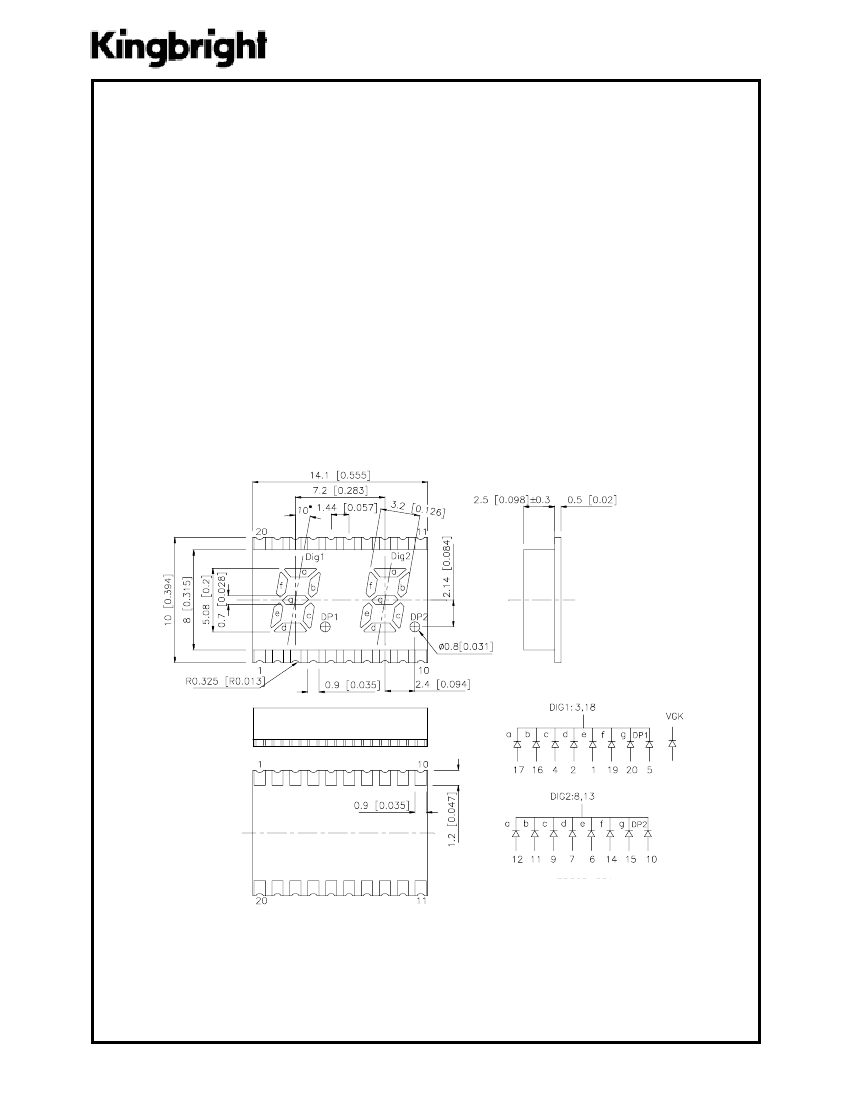

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches),Tolerance is
±0.25(0.01")
unless otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAD0087
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/25/2002
DRAWN: L.ZHANG
PAGE: 1 OF 4
Selection Guide
Par t No .
Di c e
L en s Ty p e
Iv (u c d )
@ 10 mA
Min .
KPDC02-121
GREEN (InGaN)
WHITE DIFFUSED
12000
Ty p .
55500
Common Cathode. Rt.Hand
Decimal
Des c r ip tio n
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par ameter
Peak Wavelength
Dominate Wavelength
Green
Green
Dev ic e
Ty p .
515
525
30
45
4.2
4.8
10
Max .
Un i t s
nm
nm
nm
pF
V
uA
Tes t Co n d itio n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Spectral Line Half-width Green
Capacitance
Forward Voltage
Reverse Current
Green
Green
Green
Absolute Maximum Ratings at T
)
=25°C
°
Par ameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Gr een
105
25
130
5
-40
°
C To +85
°C
Un i t s
mW
mA
mA
V
SPEC NO: DSAD0087
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/25/2002
DRAWN: L.ZHANG
PAGE: 2 OF 4

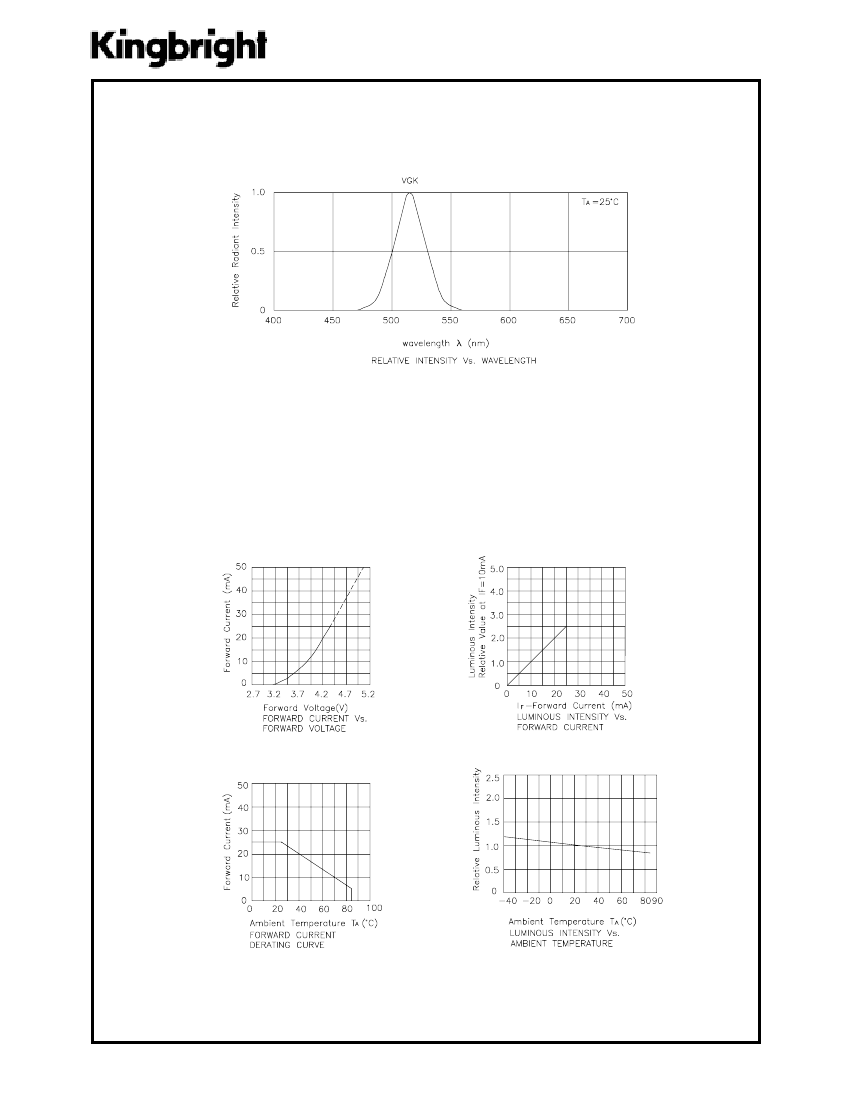

Green
KPDC02-121
SPEC NO: DSAD0087
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/25/2002
DRAWN: L.ZHANG
PAGE: 3 OF 4
KPDC02-121

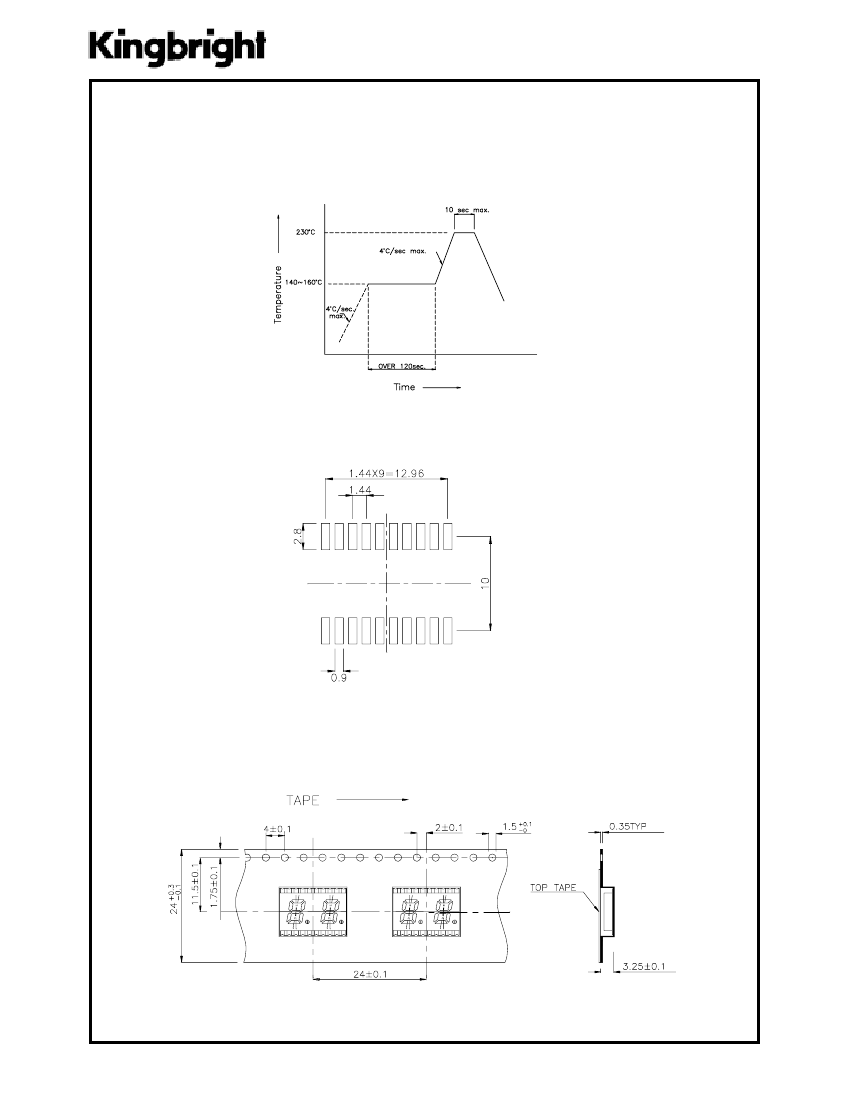

SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specification
(Units : mm)
SPEC NO: DSAD0087
APPROVED : J. Lu
REV NO: V.1
CHECKED :Joe Lee
DATE:DEC/25/2002
DRAWN: L.ZHANG
PAGE: 4 OF 4
