3.0mmx1.0mm RIGHT ANGLE SMD CHIP LED
LAMP
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: KPBA-3010SURKQBDC
Hyper Red
Blue
Features
3.0mmx1.0mm right angle SMT LED, 2.0mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Various colors and lens types available.
Package : 2000 pcs / reel.
Moisture sensitivity level : level 3.
Tinned pads for improved solderability.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.
The Blue source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

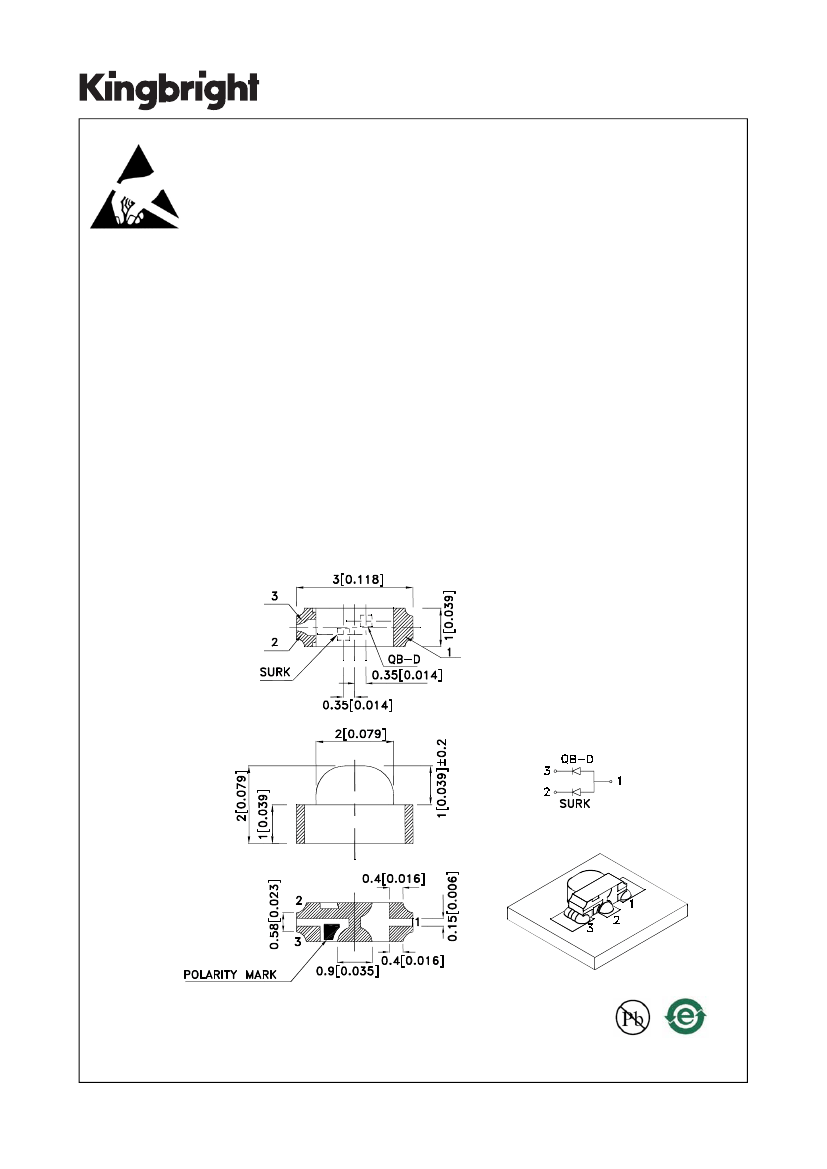

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.15(0.006") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAE2495
APPROVED: WYNEC
REV NO: V.9A
CHECKED: Allen Liu
DATE: MAR/26/2013
DRAWN: Y.Liu
PAGE: 1 OF 6
ERP: 1203003501
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
120
Hyper Red (AlGaInP)
KPBA-3010SURKQBDC
Blue (InGaN)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
Typ.
300
*80
90
*90
Water Clear
*40
40
*40
140
°
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Blue
Hyper Red
Blue
Hyper Red
Blue
Hyper Red
Blue
Hyper Red
Blue
Hyper Red
Blue
Typ.
645
460
630
465
28
25
35
100
1.95
3.3
2.5
4
10
50
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3.Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
75
30
185
5
Blue
120
30
150
Units
mW
mA
mA
V
-40°C To +85°C
-40°C To +85°C
SPEC NO: DSAE2495
APPROVED: WYNEC
REV NO: V.9A
CHECKED: Allen Liu
DATE: MAR/26/2013
DRAWN: Y.Liu
PAGE: 2 OF 6
ERP: 1203003501

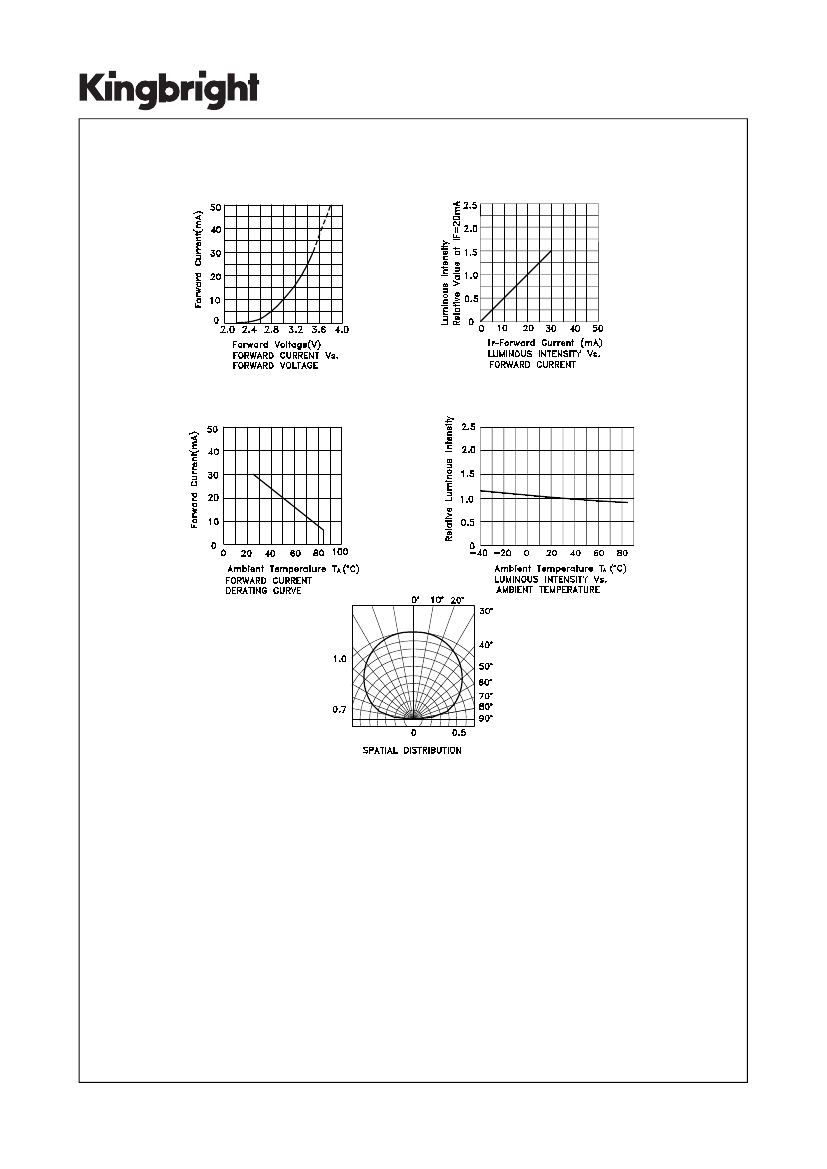

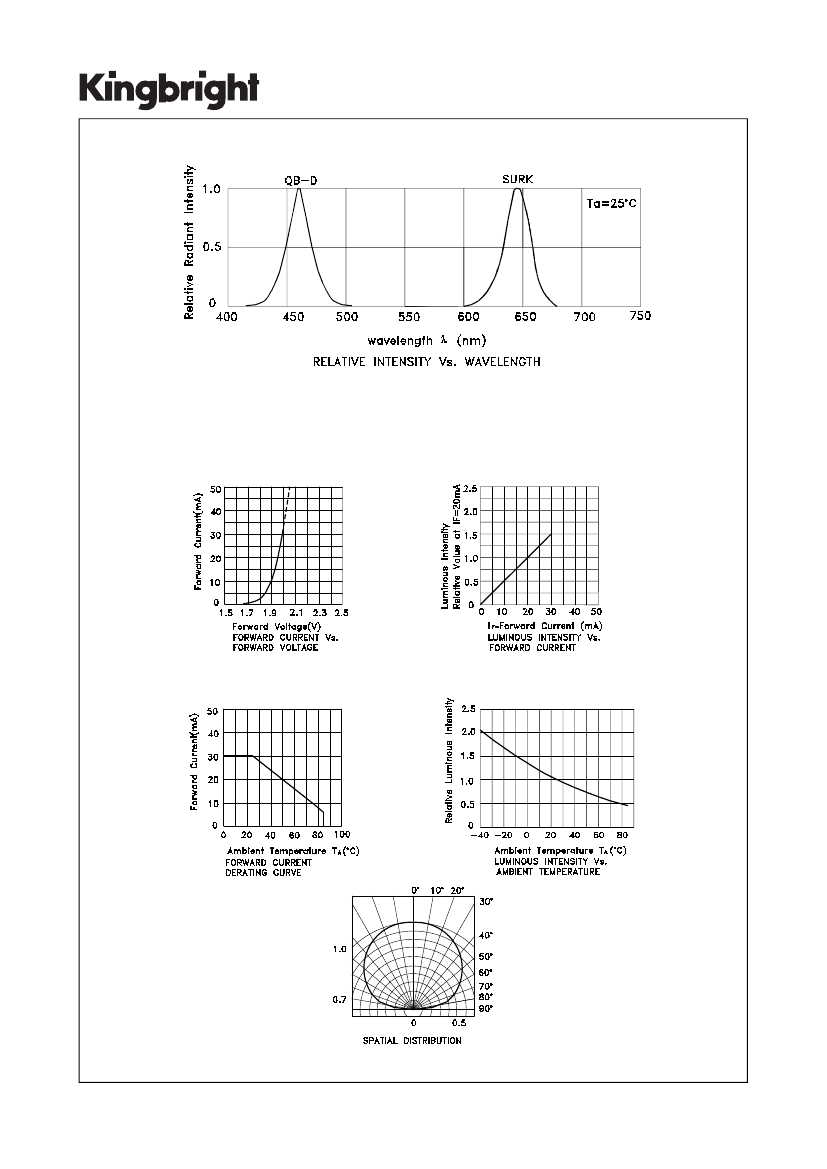

KPBA-3010SURKQBDC

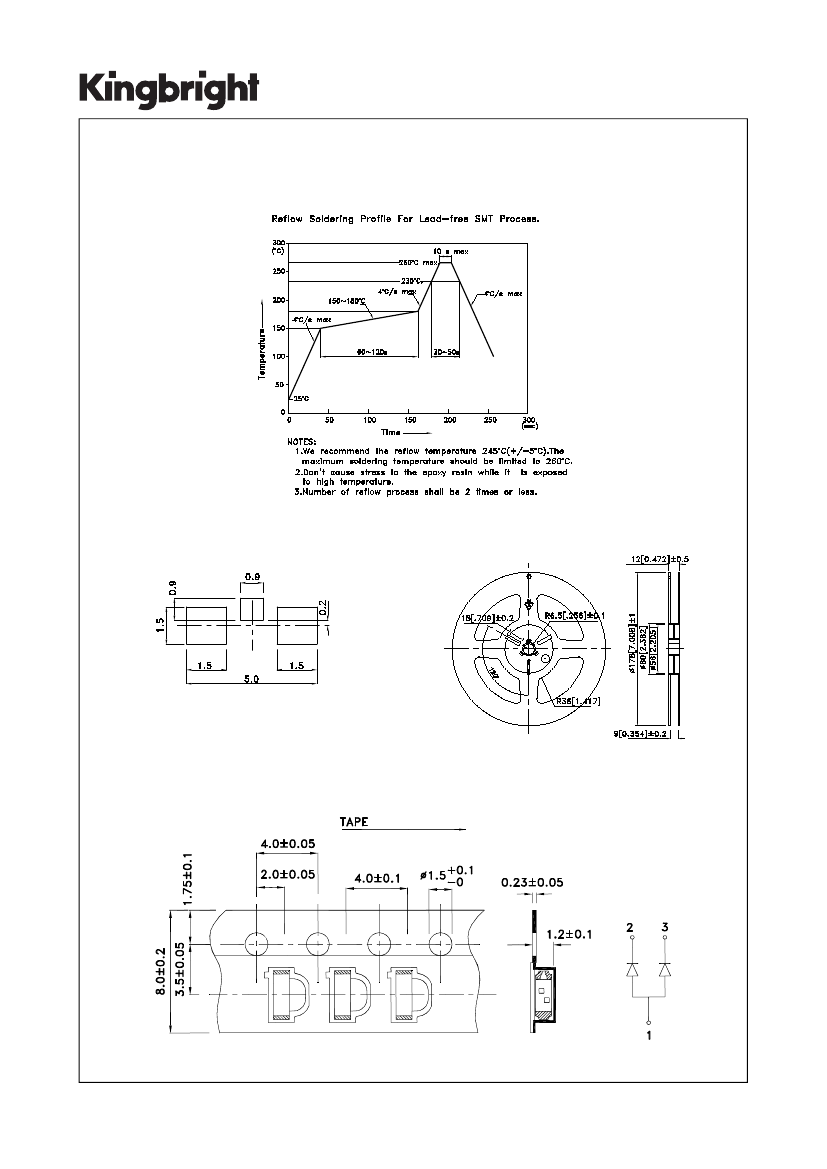

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAE2495
APPROVED: WYNEC
REV NO: V.9A
CHECKED: Allen Liu
DATE: MAR/26/2013
DRAWN: Y.Liu
PAGE: 5 OF 6
ERP: 1203003501
