5.0mm x 6.0mm SURFACE MOUNT LED LAMP
AT T E N T I O N
KA-5060VGC
GREEN
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
lSINGLE
COLOR.
Description
lSUITABLE
FOR ALL SMT ASSEMBLY AND
lAVAILABLE
ON TAPE AND REEL.
lIDEAL
FOR BACKLIGHTING.
lPACKAGE
: 500PCS / REEL.
SOLDER PROCESS.
The Green source color devices are made with InGaN
on SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.

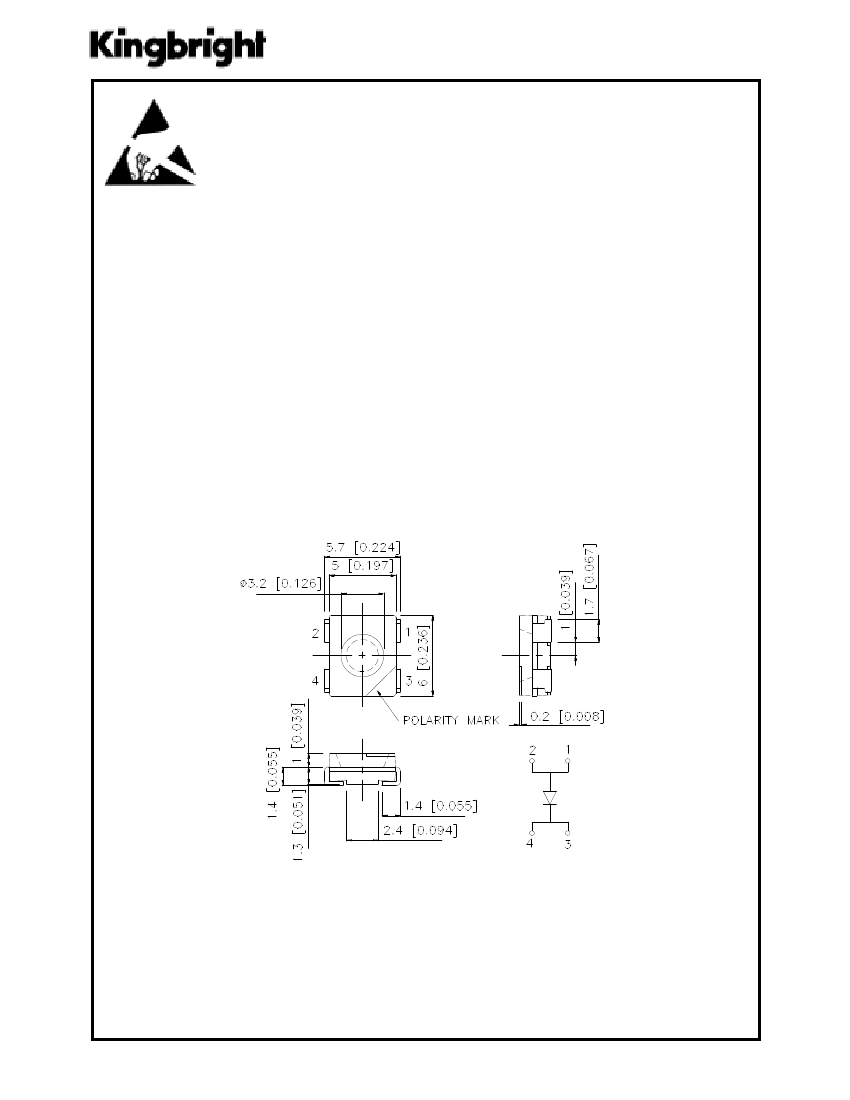

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAB9492
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: JUN/06/2003
DRAWN: S.J.HOU
PAGE: 1 OF 4
Selection Guide
P ar t N o .
KA-5060VGC
GREEN ( InGaN )
Dic e
L en s Ty p e
WATER C LEAR
Mi n .
180
Iv (m c d )
@ 30 m A
Ty p .
350
V i ew i n g
An g le
2θ1/2
100°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
p e a k
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
D omi nate Wavelength
Spectral Li ne Half-wi dth
C apaci tance
Forward Voltage
Reverse C urrent
Green
Green
Green
Green
Green
Green
D ev i c e
Ty p .
520
525
38
45
3.5
4.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t C o n d i t i o n s
I
F
= 2 0 m A
I
F
= 2 0 m A
I
F
= 2 0 m A
V
F
= 0 V ; f = 1 M H z
I
F
= 2 0 m A
V
R
= 5V
°
Absolute Maximum Ratings at T
A
=25°C
P ar am et er
D C Forward C urrent
Power di ssi pati on
Gr een
135
150
-40
°
C To +85
°C
5
30
Un its
mW
mA
V
mA
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Operati ng/Storage Temperature
Reverse Voltage
Peak Forward C urrent [1]
SPEC NO: DSAB9492
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: JUN/06/2003
DRAWN: S.J.HOU
PAGE: 2 OF 4

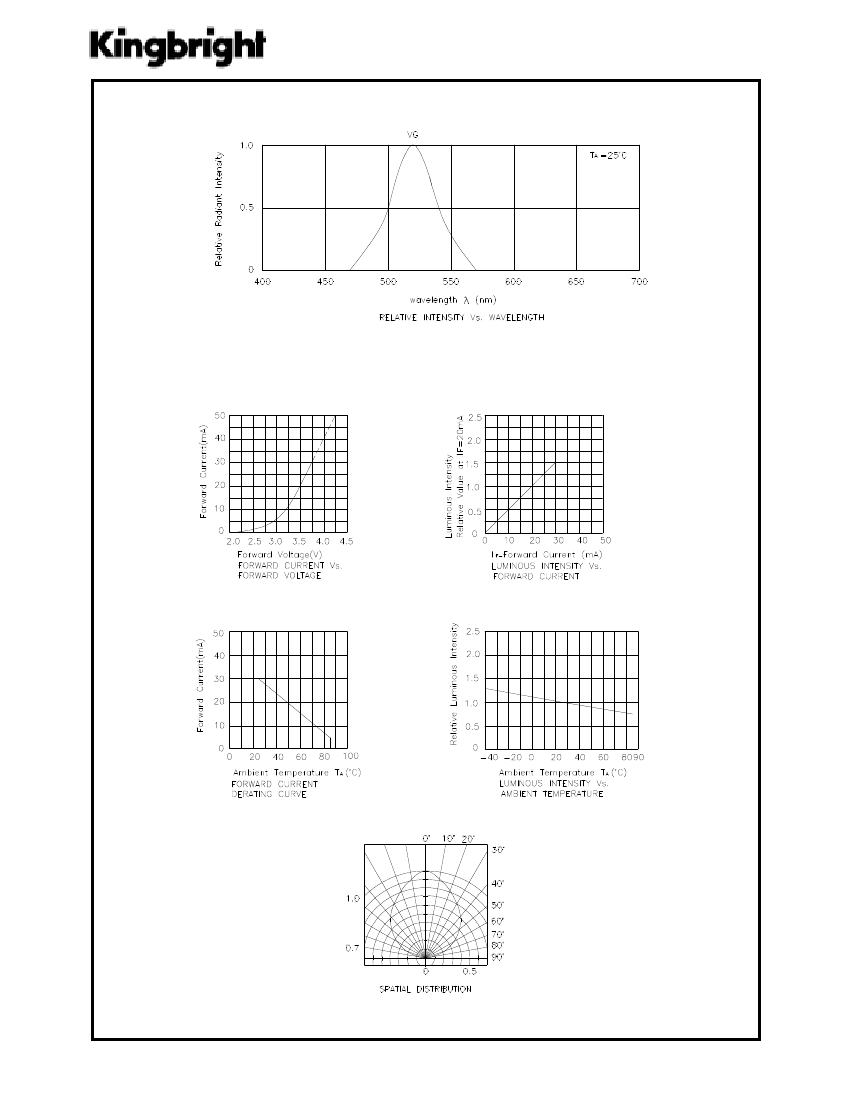

Green
KA-5060VGC
SPEC NO: DSAB9492
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: JUN/06/2003
DRAWN: S.J.HOU
PAGE: 3 OF 4
KA-5060VGC

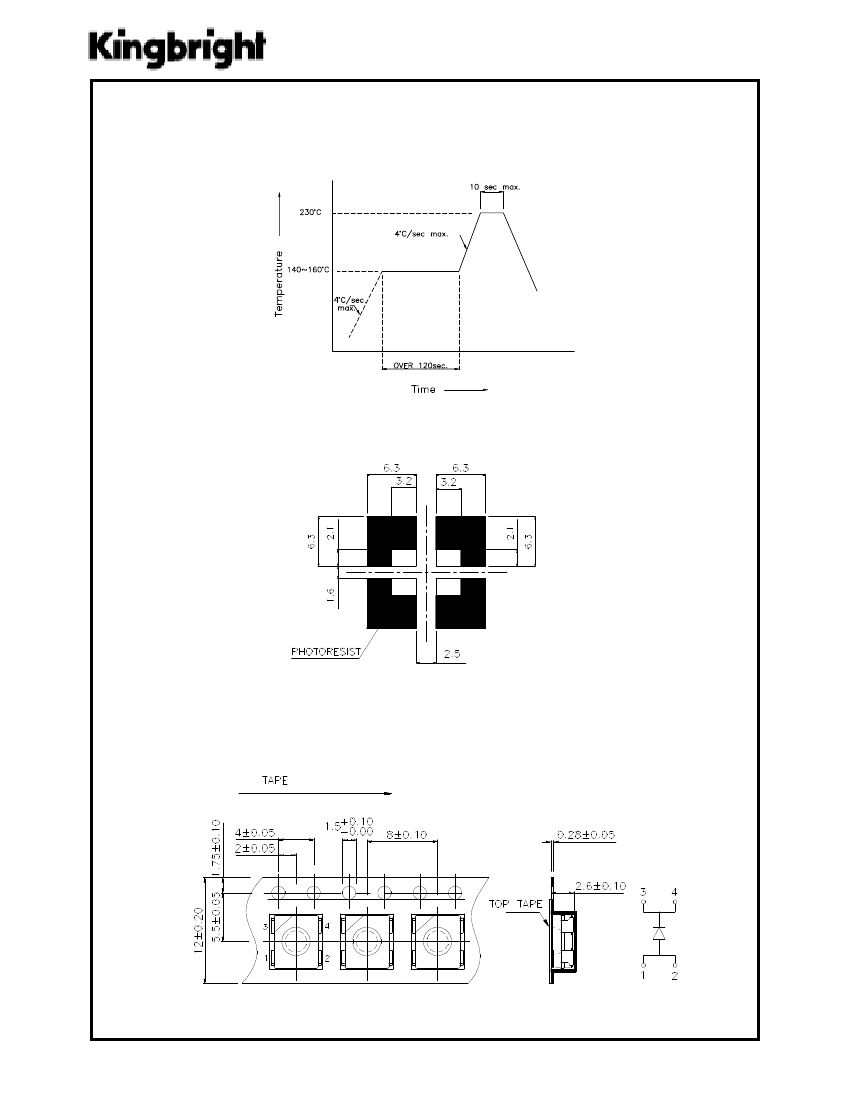

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAB9492
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: JUN/06/2003
DRAWN: S.J.HOU
PAGE: 4 OF 4
