SURFACE MOUNT DISPLAY
KPPDC04-123
GREEN
Features
!
0.4 INCH CHARACTER HEIGHT.
!
LOW CURRENT OPERATION.
!
HIGH CONTRAST AND LIGHT OUTPUT.
!
EASY
Description
The Green source color devices are made with InGaAlP
on GaAs substrate Light Emitting Diode.
MOUNTING ON P.C. BOARDS OR SOCKETS.
!
CATEGORIZED FOR LUMINOUS INTENSITY.
!
MECHANICALLY RUGGED.
!
GRAY FACE, WHITE SEGMENT.
!

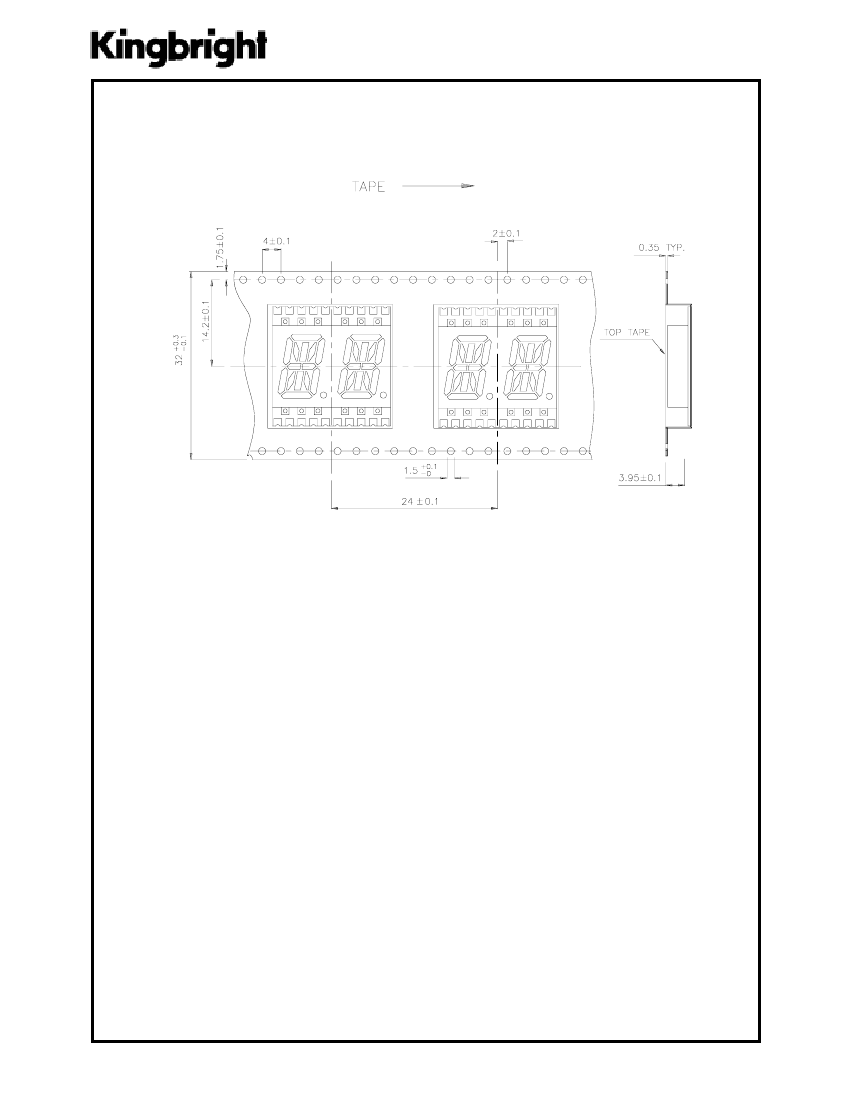

PACKAGE
: 500PCS / REEL.

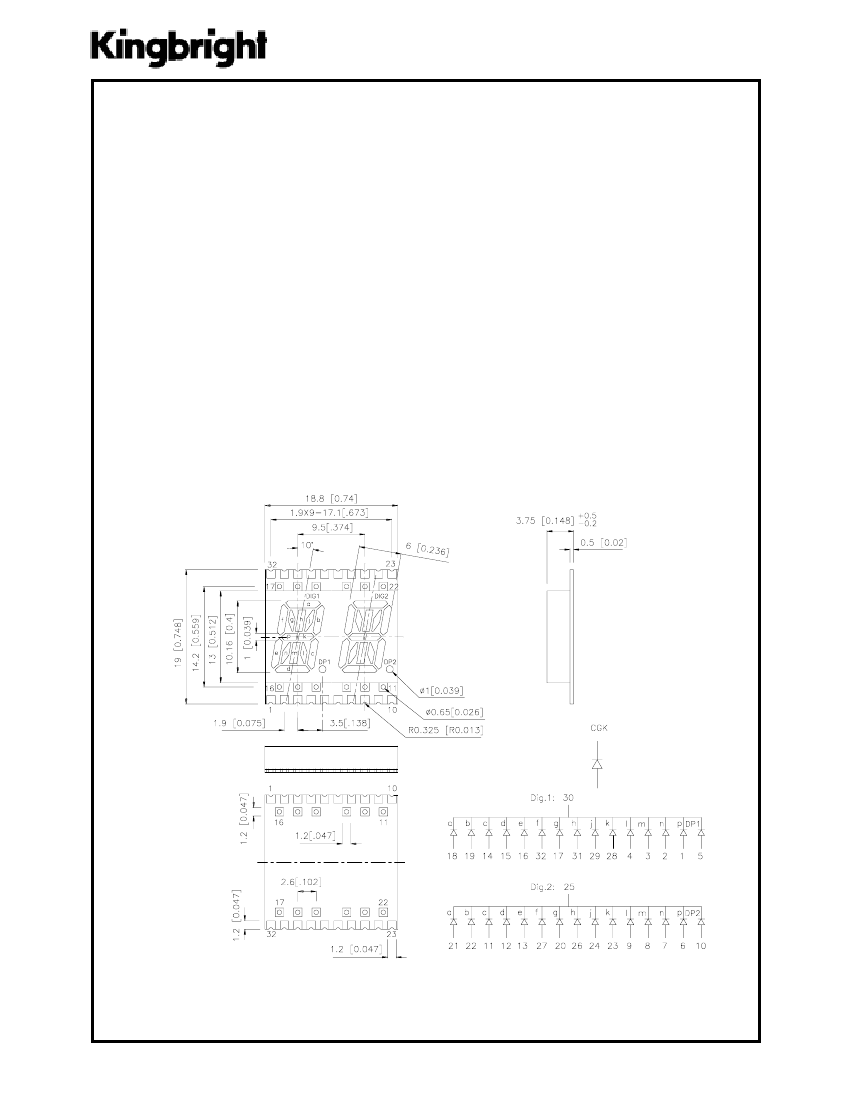

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAD0179
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: JAN/23/2003
DRAWN: K.ZHANG
PAGE: 1 OF 5
Selection Guide
P ar t N o .
Dic e
L en s Ty p e
Iv (u c d )
@ 10 m A
Min .
KPPDC04-123
GREEN (InGaAlP)
WHITE DIFFUSED
3000
Ty p .
11200
Common Cathode,Rt.
Hand Decima
D es c r i p t i o n
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Green
Green
Green
Green
Green
Green
D ev i c e
Ty p .
574
570
20
15
2.1
2.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Gr een
105
30
150
5
-40
°
C To +85
°C
Un its
mW
mA
mA
V
SPEC NO: DSAD0179
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: JAN/23/2003
DRAWN: K.ZHANG
PAGE: 2 OF 5

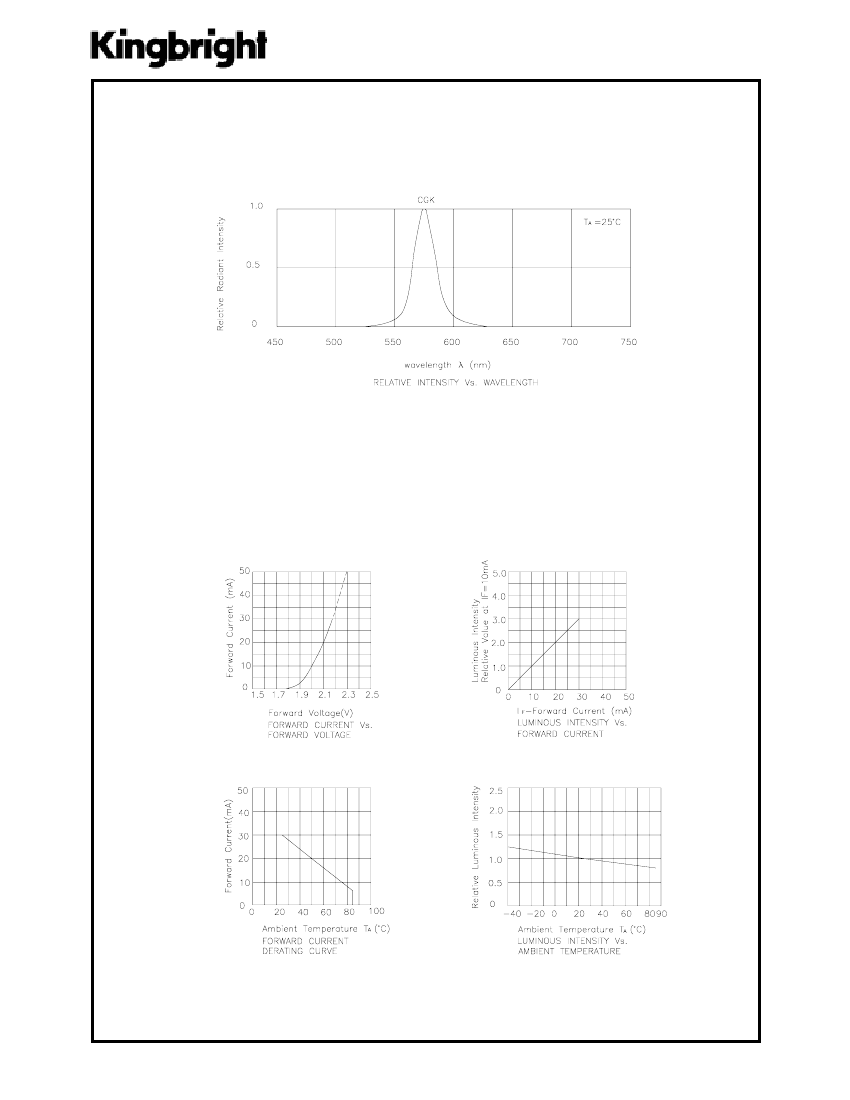

KPPDC04-123
SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
SPEC NO: DSAD0179
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: JAN/23/2003
DRAWN: K.ZHANG
PAGE: 4 OF 5
