MC14544BALS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC14544BALS

MC14544BALS: DescriptionDecoder/Driver, CMOS, CDIP18; Categorylogic logic; File Size433KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC14544BALS Overview

Decoder/Driver, CMOS, CDIP18

MC14544BALS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

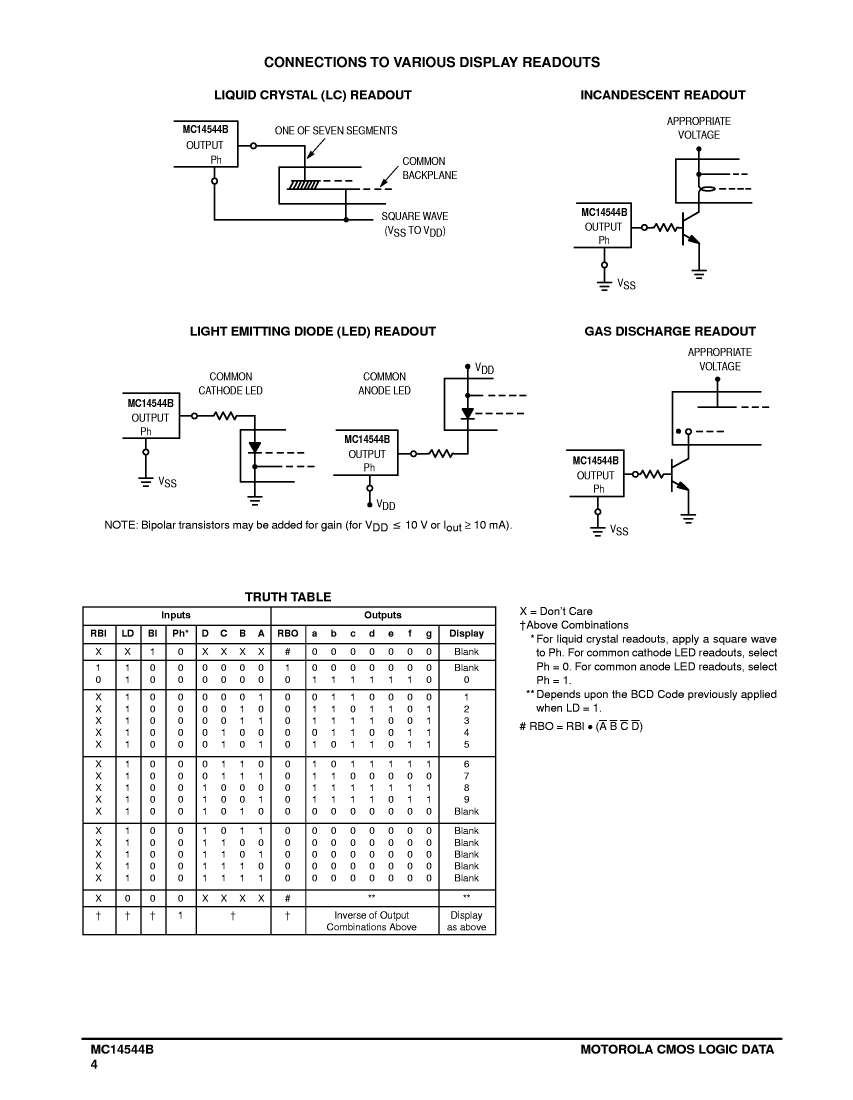

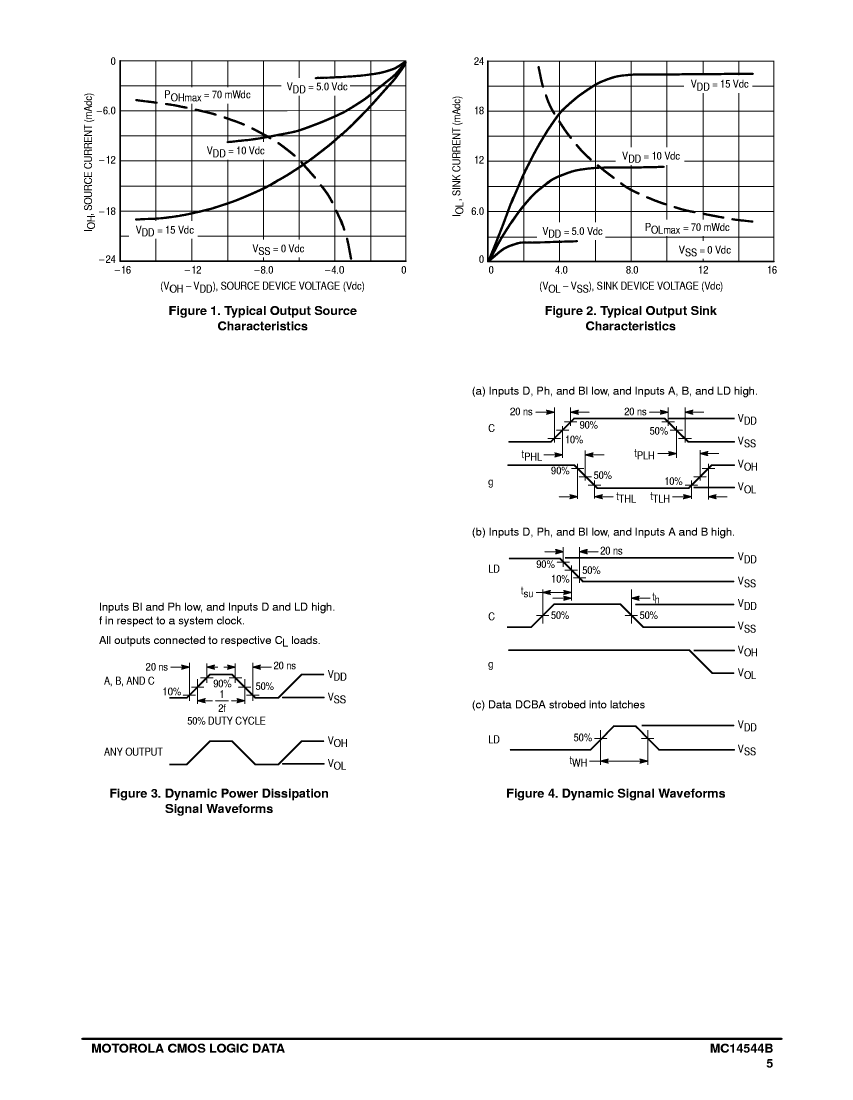

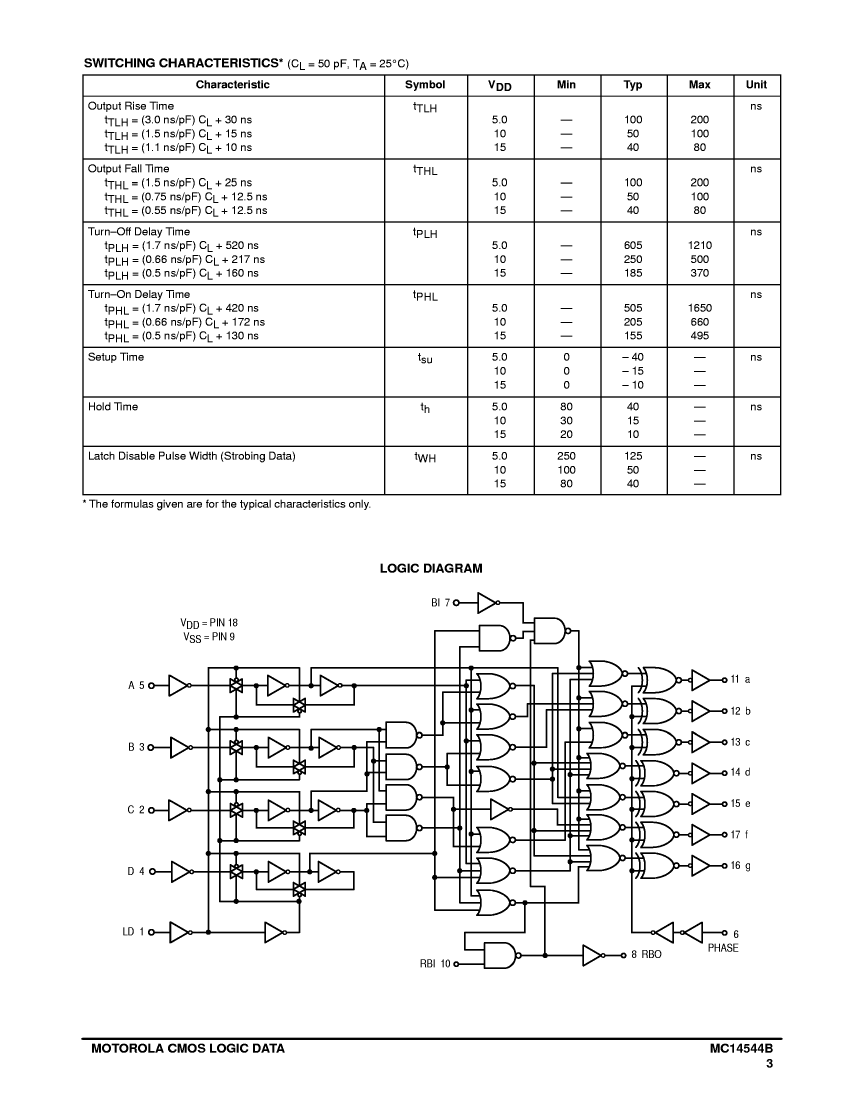

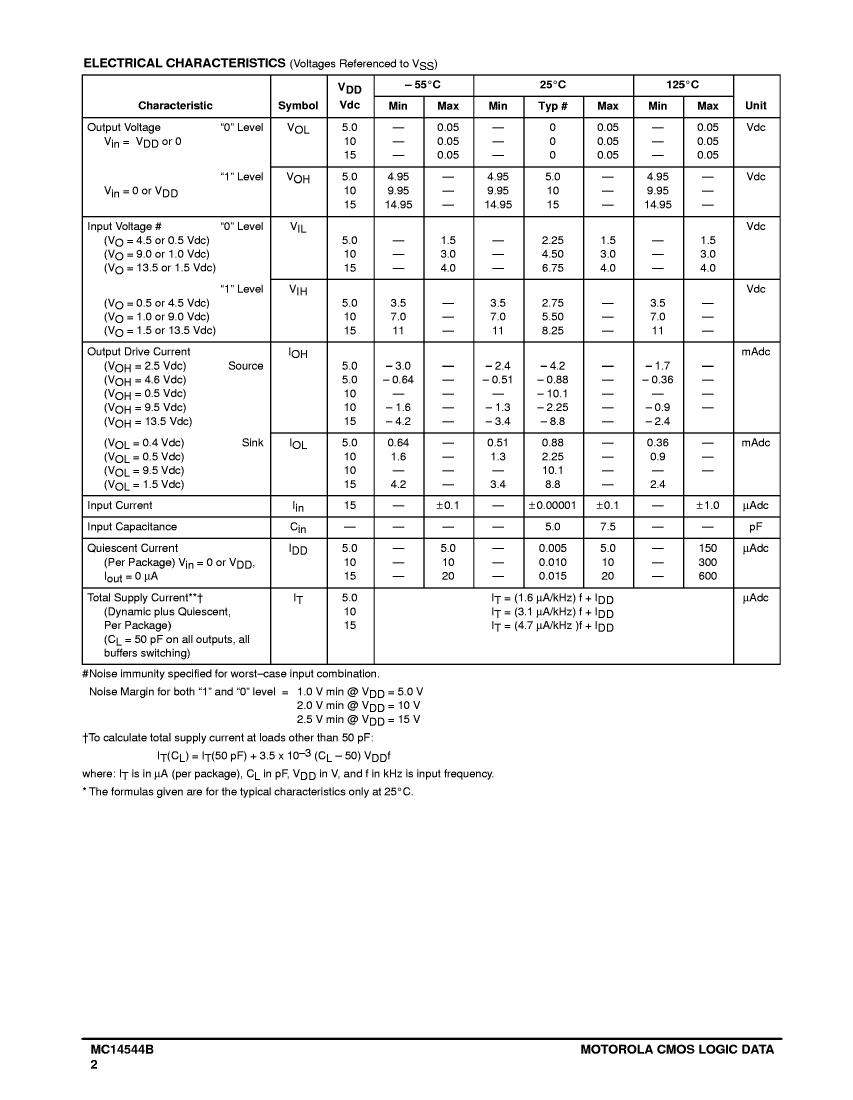

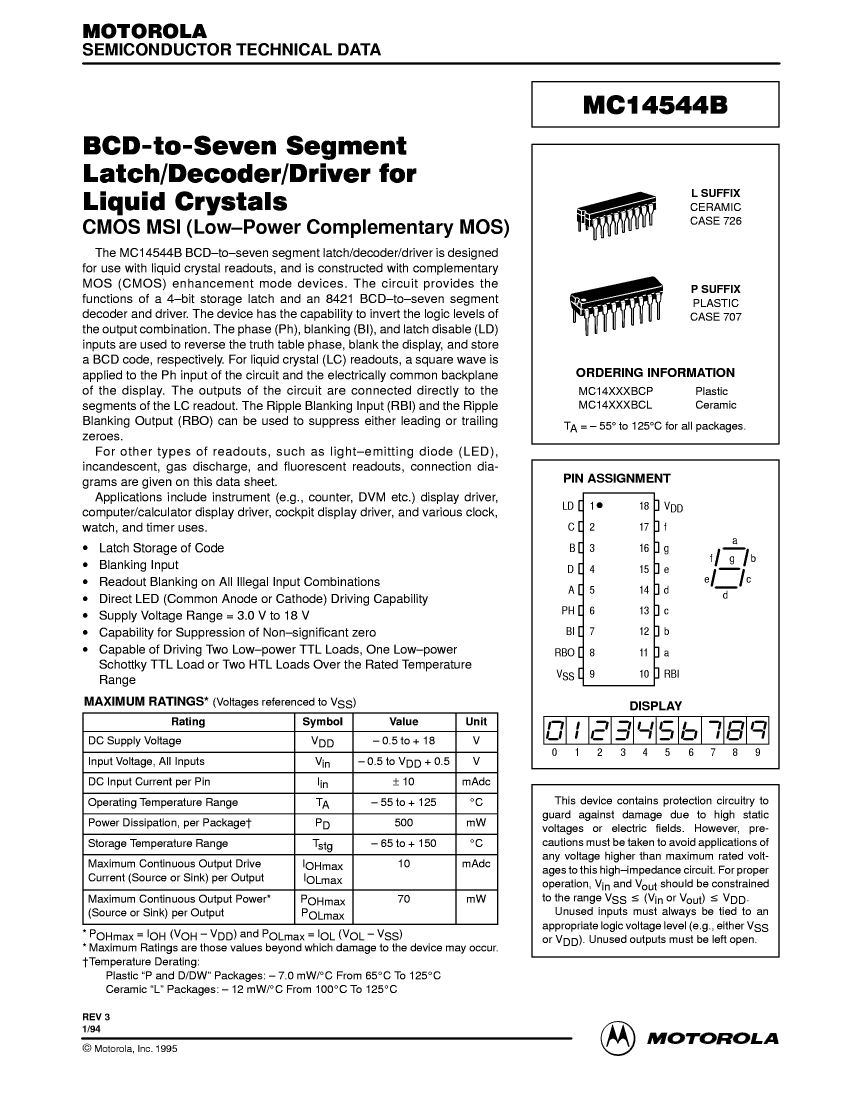

Preview

Download Datasheet

View All

MC14544BALS Related Products

	MC14544BALS	MC14544BCLDS	MC14544BCLD	MC14544BALD	MC14544BCPD
Description	Decoder/Driver, CMOS, CDIP18	Seven Segment Decoder/Driver, 4000/14000/40000 Series, Configurable Output, CMOS, CDIP18, 726-04	Seven Segment Decoder/Driver, 4000/14000/40000 Series, Configurable Output, CMOS, CDIP18, 726-04	Seven Segment Decoder/Driver, 4000/14000/40000 Series, Configurable Output, CMOS, CDIP18, 726-04	Seven Segment Decoder/Driver, 4000/14000/40000 Series, Configurable Output, CMOS, PDIP18, 707-02
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T18	R-GDIP-T18	R-GDIP-T18	R-GDIP-T18	R-PDIP-T18
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	OTHER DECODER/DRIVER	SEVEN SEGMENT DECODER/DRIVER	SEVEN SEGMENT DECODER/DRIVER	SEVEN SEGMENT DECODER/DRIVER	SEVEN SEGMENT DECODER/DRIVER
Number of terminals	18	18	18	18	18
Maximum operating temperature	125 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )
package instruction	-	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3
ECCN code	-	EAR99	EAR99	EAR99	EAR99
series	-	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
Input adjustment	-	LATCHED	LATCHED	LATCHED	LATCHED
length	-	22.73 mm	22.73 mm	22.73 mm	22.73 mm
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF
Number of functions	-	1	1	1	1
Output polarity	-	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	-	1650 ns	1650 ns	1650 ns	1650 ns
Maximum seat height	-	5.08 mm	5.08 mm	5.08 mm	4.57 mm
Maximum supply voltage (Vsup)	-	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	-	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	-	1	1	1	-
