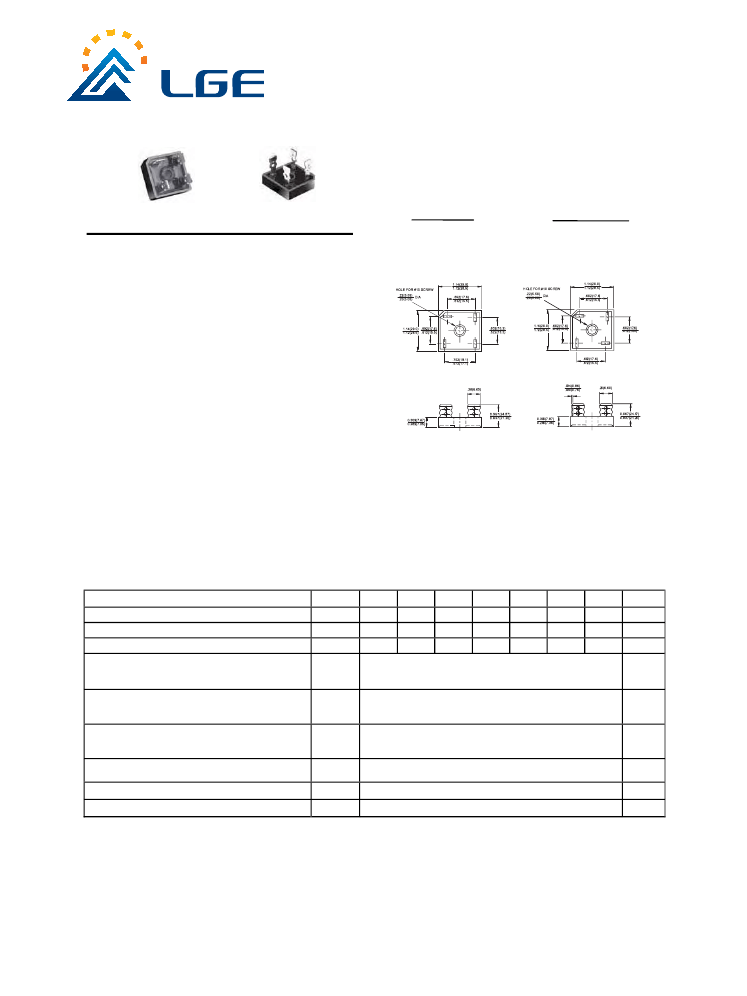

GBPC 40, 50 SERIES
High
Current 40, 50 AMPS.
Single Phase Glass Passivated Bridge Rectifiers
Voltage Range
50 to 1000 Volts
Current
40, 50.0 Amperes
Features
Glass passivated junction
The plastic material used carries Underwriters
Laboratory Flammability Recognition 94V-0
Integrally molded heatsink provide very low
thermal resistance for maximum heat
dissipation
Universal 4-way terminals; snap-on,
wrap-around, solder or P.C. board mounting
Surge overload ratings 400 amperes
Typical I
R
less than 0.2 uA
High temperature soldering guaranteed:
260℃/ 10 seconds / .375”, (9.5mm) lead
lengths
Isolated voltage from case to lead over 2500
volts
GBPC40
GBPC40-M
1.14(29.0)
HOLE FOR #10 SCREW
.22(5.59)
.20(5.08)
1.12(28.5)
DIA
.692(17.6)
.612(15.5)
1.14(29.0)
1.12(28.5)
.692(17.6)
.612(15.5)
.692(17.6)
.612(15.5)
.692(17.6)
.612(15.5)
.034(0.86)
.030(0.76)
.26(6.60)
0.967(24.57)
0.309(7.87)
0.289(7.36)
0.837(21.26)
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
GBPC40
GBPC50
@T
C
= 55℃
Peak Forward Surge Current,
Single Sine-wave Superimposed
GBPC40
on Rated Load (JEDEC method ) GBPC50
Maximum Instantaneous
GBPC40 @20A
Forward Voltage Drop Per
Element at Specified Current
GBPC50 @25A
Maximum DC Reverse Current
at Rated DC Blocking Voltage Per Element
Typical Thermal Resistance (Note 1)
Operating and Storage Temperature Range
Symbol
-005
-01
100
70
100
-02
200
140
200
-04
400
280
400
40.0
50.0
400
400
-06
600
420
600
-08
800
560
800
-10
1000
700
1000
Units
V
V
V
A
A
V
uA
℃/W
℃
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
R
θ
JC
T
J
,T
STG
50
35
50
1.1
10
1.5
-50 to +150
Notes: 1. Thermal Resistance from Junction to Case.
2. Suffix”M” - Terminal Location Face to Face.
http://www.luguang.cn
mail:lge@luguang.cn
GBPC 40, 50 SERIES
High
Current 40, 50 AMPS.
Single Phase Glass Passivated Bridge Rectifiers
RATINGS AND CHARACTERISTIC CURVES (GBPC40005 THRU GBPC4010)
GBPC50005
GBPC5010
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
80
400
FIG.2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT. (A)
300
200
100
70
AVERAGE FORWARD CURRENT. (A)
60
50
80
60
40
20
GB
PC
40
50
GB
30
40
PC
1
1.5
2
3
4 5 6 7 8 9 10
15
20 25 30 40
60 80 100
20
NUMBER OF CYCLES AT 60Hz
10
0
20
40
60
80
100
120
o
140
160
180
CASE TEMPERATURE. ( C)
FIG.3- TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
100
FIG.4- TYPICAL FORWARD CHARACTERISTICS
PER BRIDGE ELEMENT
1000
INSTANTANEOUS REVERSE CURRENT. ( A)
INSTANTANEOUS FORWARD CURRENT. (A)
BP
100
C5
G
BP
C
40
Tj=25 C
PULSE WIDTH-300 S
0
Tj=125
0
C
10
10
Tj=25
0
C
1
1
0.1
0
0.1
20
40
60
80
100
120
140
0.6
0.8
1.0
G
1.2
0
1.4
1.6
1.8
2.0
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
