85002-0804 Overview

Board Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal

85002-0804 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	85002
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

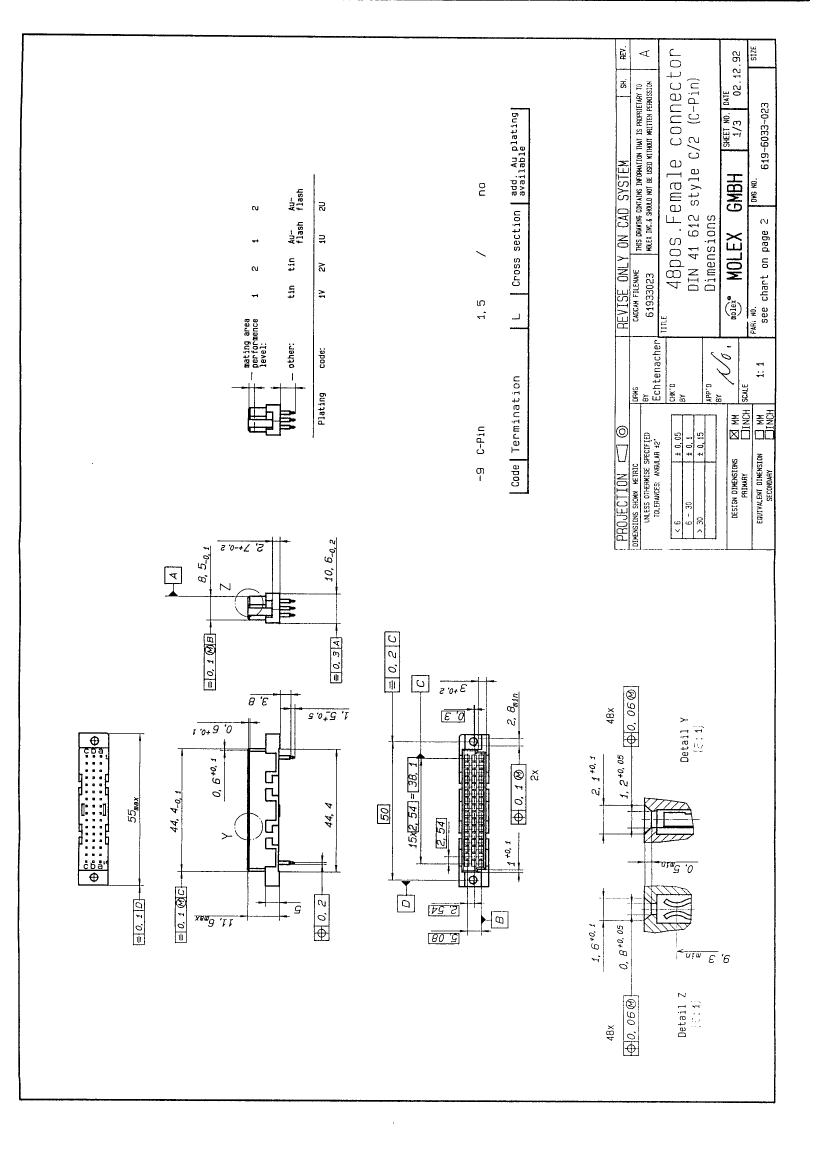

Preview

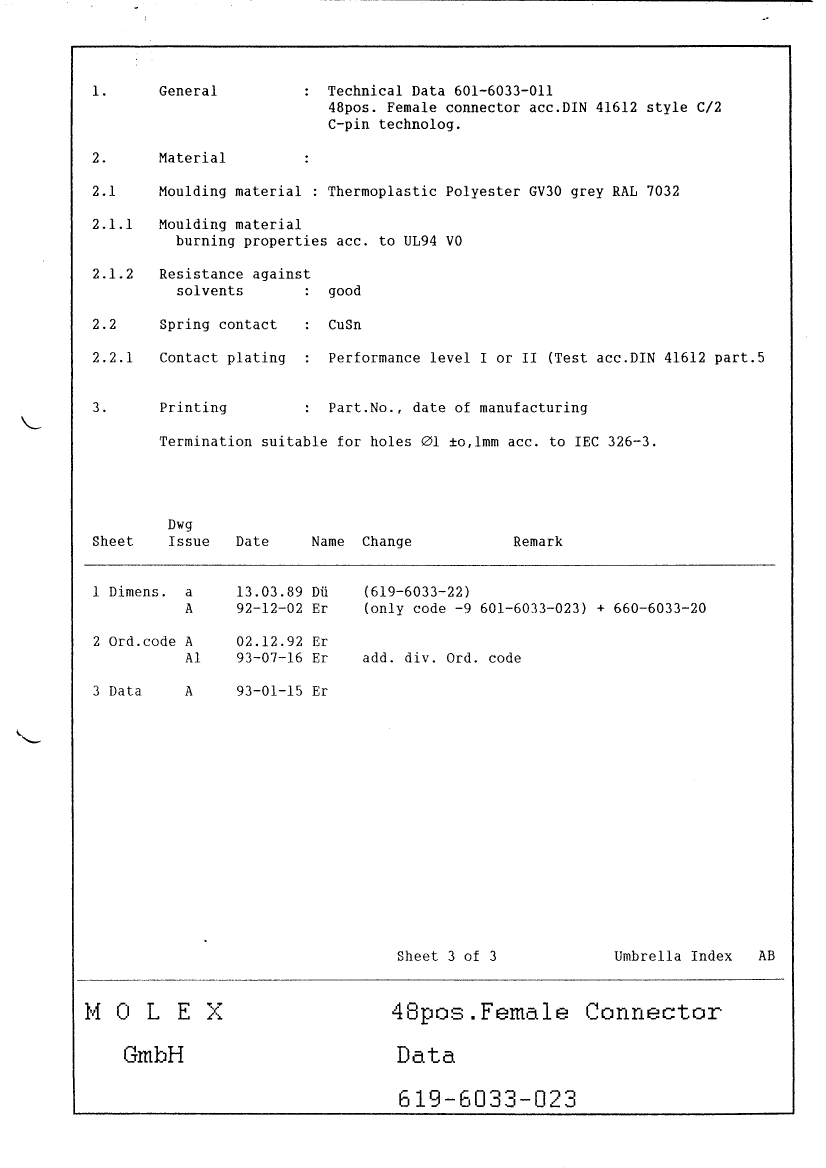

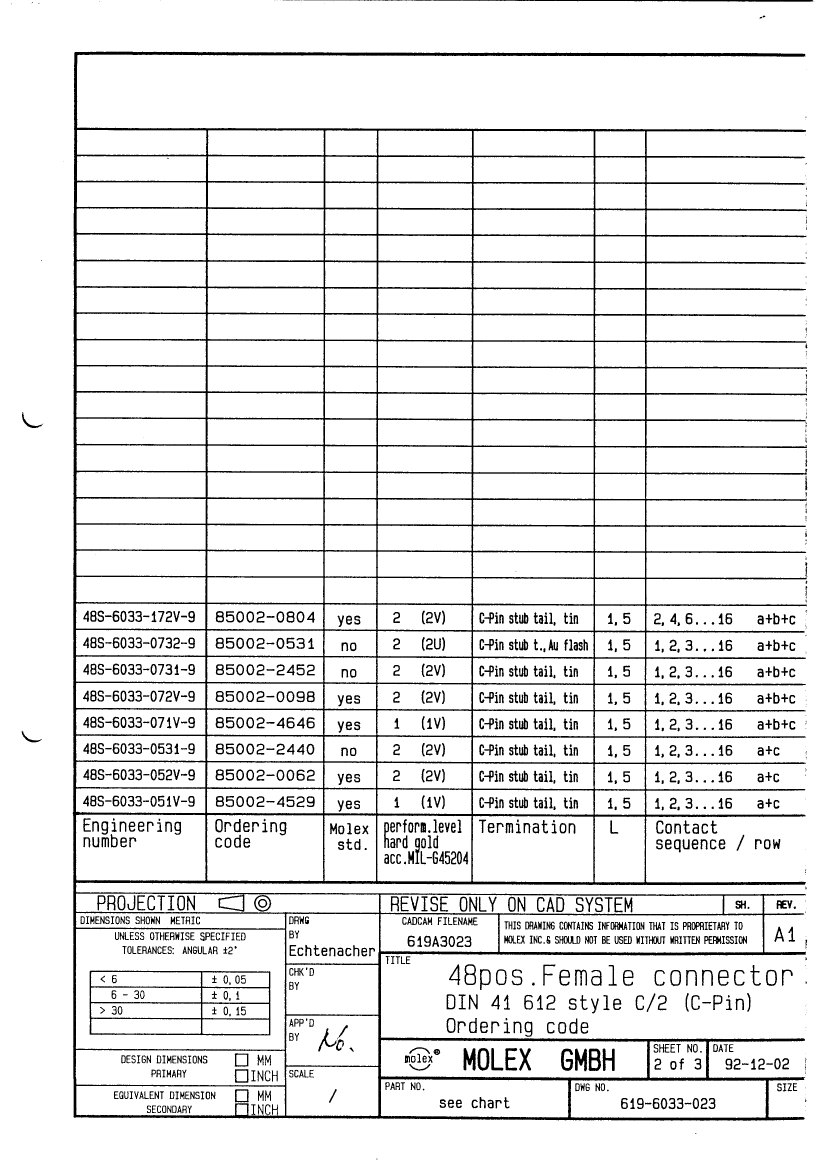

Download Datasheet

View All

85002-0804 Related Products

	85002-0804	85002-0098	85002-0062	85002-4646	85002-4529	85002-0531	85002-2440	85002-2452
Description	Board Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	85002	85002	85002	85002	85002	85002	85002	85002
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	2	3	2	3	2	3
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	48	32	48	32	48	32	48
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
