BZX84B2V7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Zener diode> BZX84B2V7

BZX84B2V7: DescriptionZener diode, 0.225W, 2.65Min, 2.7Nom, 2.75Max, 5.0mA, 20.00uA, 1.0V; CategoryDiscrete semiconductor Zener diode; File Size2MB，4 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

BZX84B2V7 Overview

Zener diode, 0.225W, 2.65Min, 2.7Nom, 2.75Max, 5.0mA, 20.00uA, 1.0V

BZX84B2V7 Parametric

Parameter Name	Attribute value
Case Style	SOT-23
Pd（W）	0.225
VZ(Min)	2.65
VZ(Nom)	2.7
VZ(Max)	2.75
IZT(mA)	5.0
IR(uA)	20.00
VR(V)	1.0
class	Diodes

Preview

Download Datasheet

View All

BZX84B2V4-BZX84B51

Surface Mount Zener Diodes

B:2% tolerance

SOT-23

Features

Planar Die Construction.

350mw Power Dissipation.

Zener Voltages From 2.4V -51V

Ideally Suited For Automated Assembly Prcesses.

Applications

350Mw Surface mount zener diode

Dimensions in inches and (millimeters)

Ordering Information

Type No.

BZX84B2V4-BZX84B51

Marking

See Table on page2

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Power Dissipation

Symbol

Value

350

Unit

Thermal Resistance, Junction to Ambient Air

θjA

357

℃/W

Operating and Storage Temperature Range

j，

stg

-65 to+150

℃

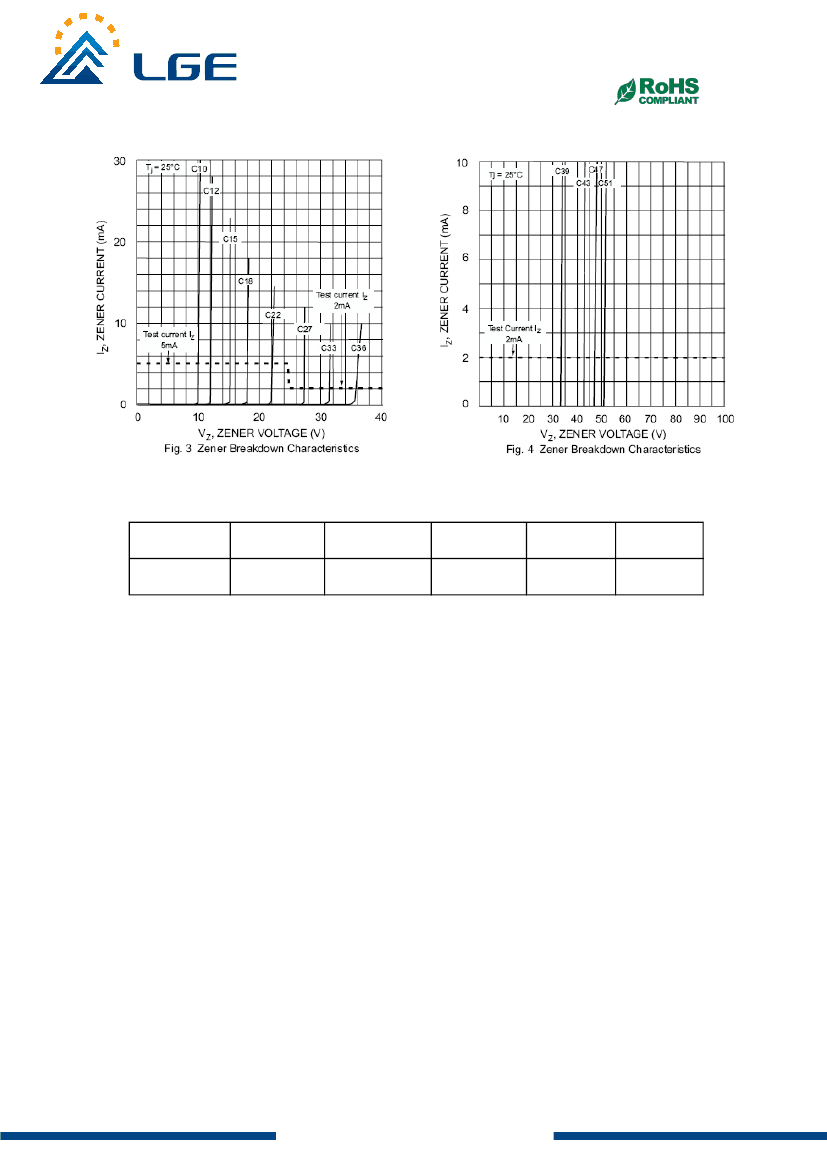

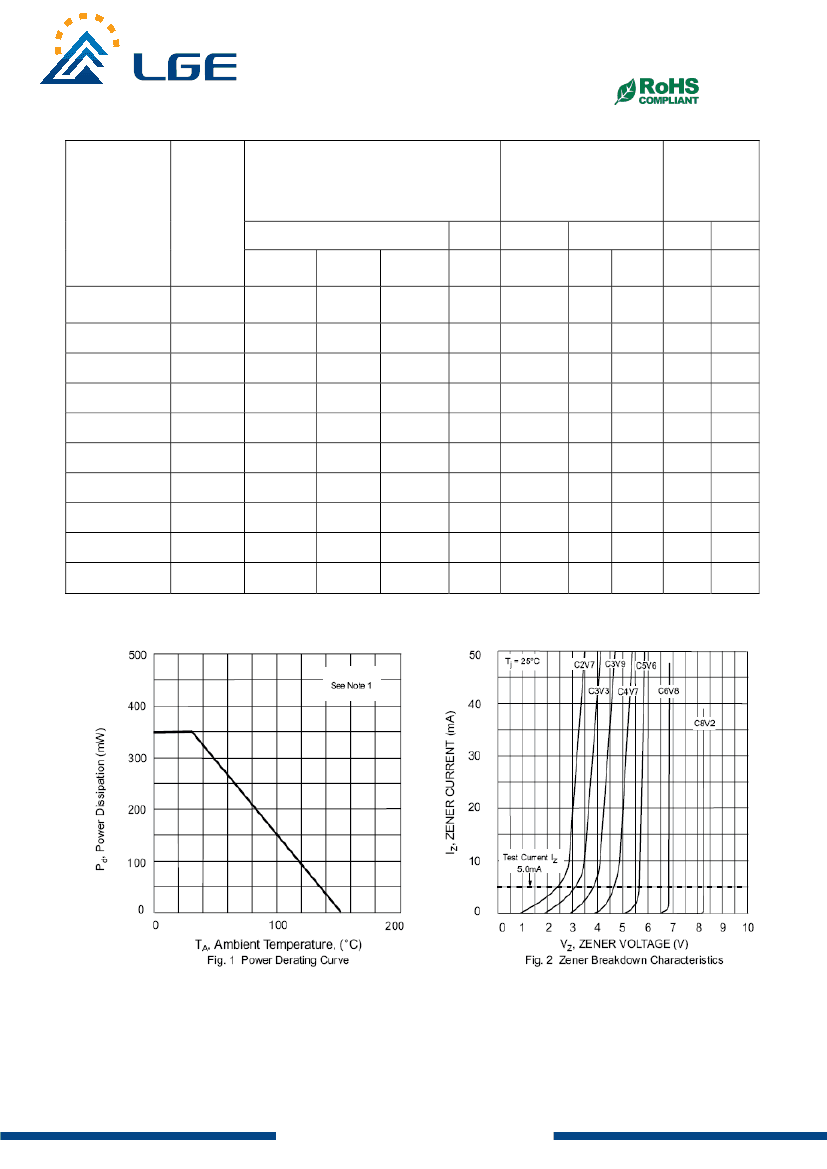

Revision:20170701-P1

www.lgesemi

mail:lge@lgesemi.com
