B82479-G1103-M: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD,; CategoryPassive components inductor; File Size37KB，3 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B82479-G1103-M Overview

General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD,

B82479-G1103-M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
core material	FERRITE
DC Resistance	0.04 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	3.9 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

SMT-Power-Inductors

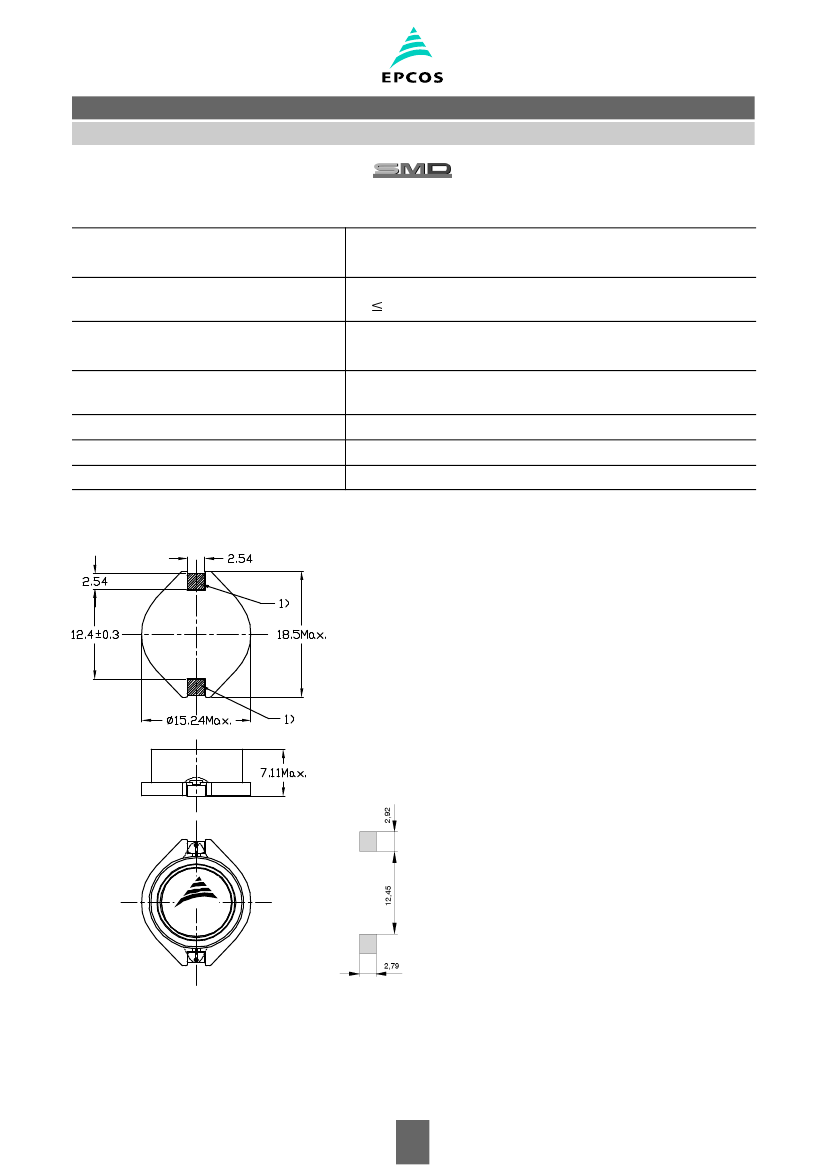

PRELIMINARY DATA SHEET

B82479-G

Rated inductance 10..1000

µH

Construction

Ferrite core

Magnetically shielded

Winding: enamel copper wire

Winding soldered to terminals

Plastic terminal carrier

Features

Very high rated current

Low DC resistance

Suitable for reflow soldering (IR and vapor phase)

Applications

Filtering of supply voltages

Coupling / decoupling

DC/DC converters

Automotive electronics

Telecommunications

Terminals

Tinned

Marking

Marking on component:

Manufacturer, L value (in

µH),

date code

Minimum marking on reel:

Manufacturer, part number, ordering code,

L value and tolerance

quantity, date of packing

Delivery mode

32-mm blister tape , reel packing

packaging quantity 250pcs/reel

The information contained in this data sheet describes the

type of component and shall not be considered as guaran-

teed characteristics.

B82479-G1-53-7659

02.11.2004

B82479-G1103-M Related Products

	B82479-G1103-M	B82479-G1104-M	B82479-G1333-M	B82479-G1223-M	B82479-G1334-M	B82479-G1473-M	B82479-G1683-M	B82479-G1153-M	B82479-G1154-M
Description	General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 68uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD,	General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, SMD,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.04 Ω	0.207 Ω	0.075 Ω	0.059 Ω	0.78 Ω	0.097 Ω	0.138 Ω	0.048 Ω	0.293 Ω
Nominal inductance(L)	10 µH	100 µH	33 µH	22 µH	330 µH	47 µH	68 µH	15 µH	150 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	3.9 A	1.7 A	2.8 A	3.1 A	0.86 A	2.4 A	2 A	3.4 A	1.3 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Base Number Matches	-	1	1	1	1	1	-	-	-
