50777-A086A: DescriptionBoard Connector, 344 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Pin, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

50777-A086A Overview

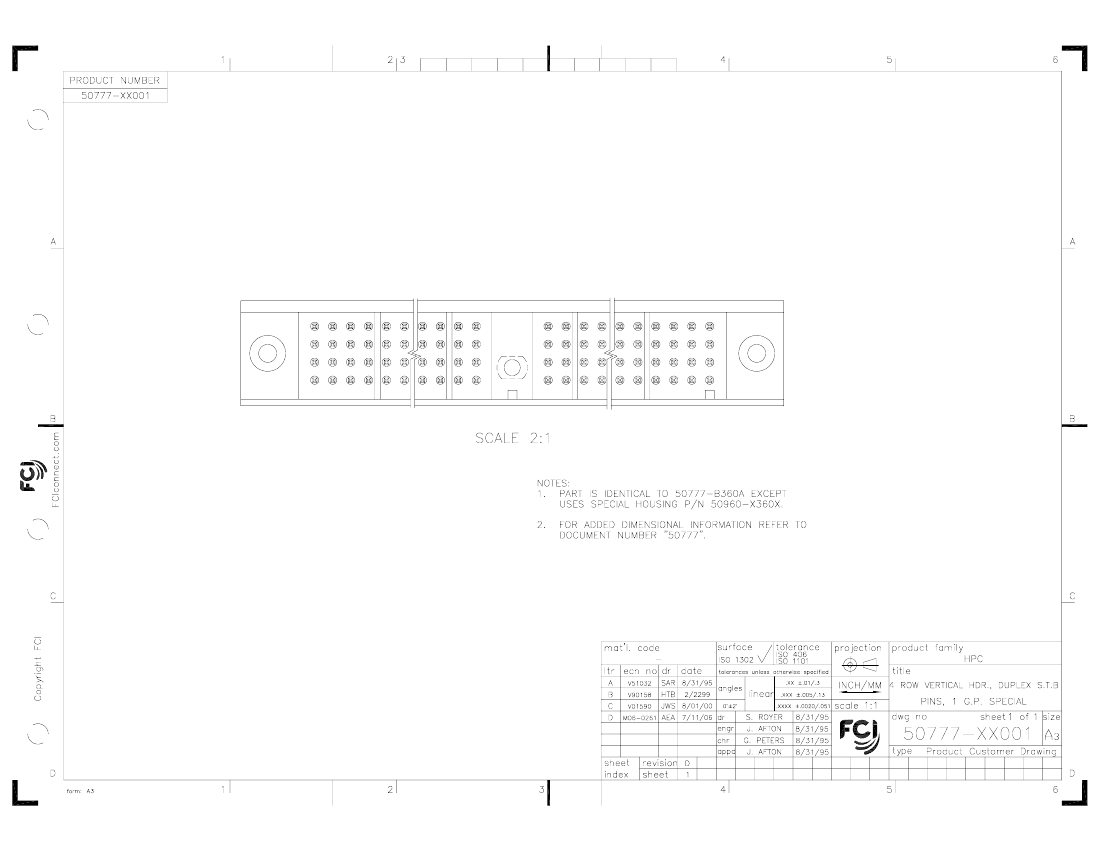

Board Connector, 344 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Pin, Black Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1576859700
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	FIRST MAKE LAST BREAK
Board mount options	HOLE .112-.124
body width	0.585 inch
subject depth	0.462 inch
body length	9.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	344
UL Flammability Code	94V-0

PDM: Rev:D

STATUS:

Released

Printed: May 14, 2011
