MAX1242CCPA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MAX1242CCPA

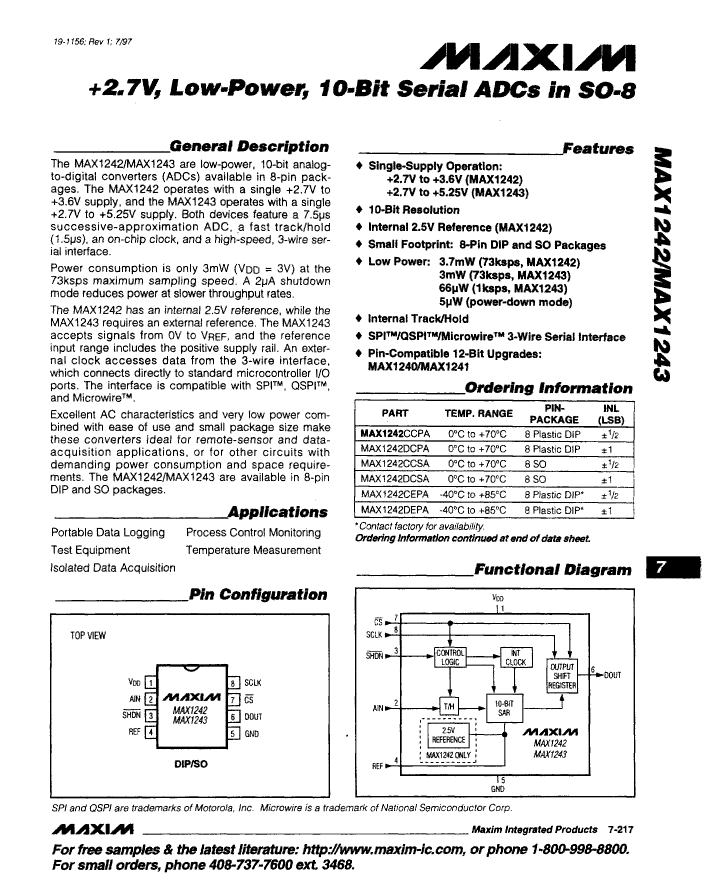

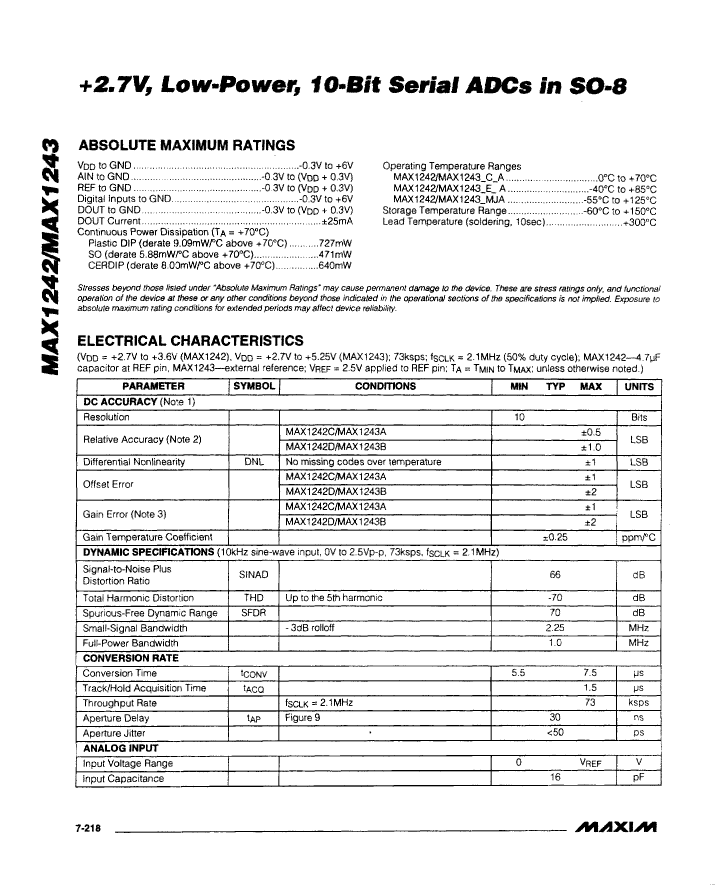

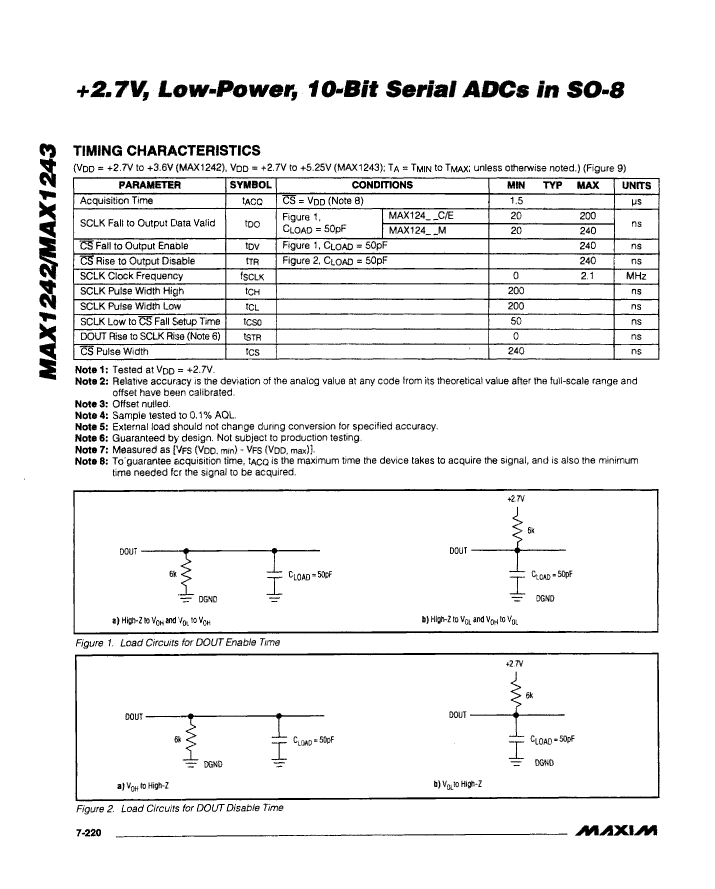

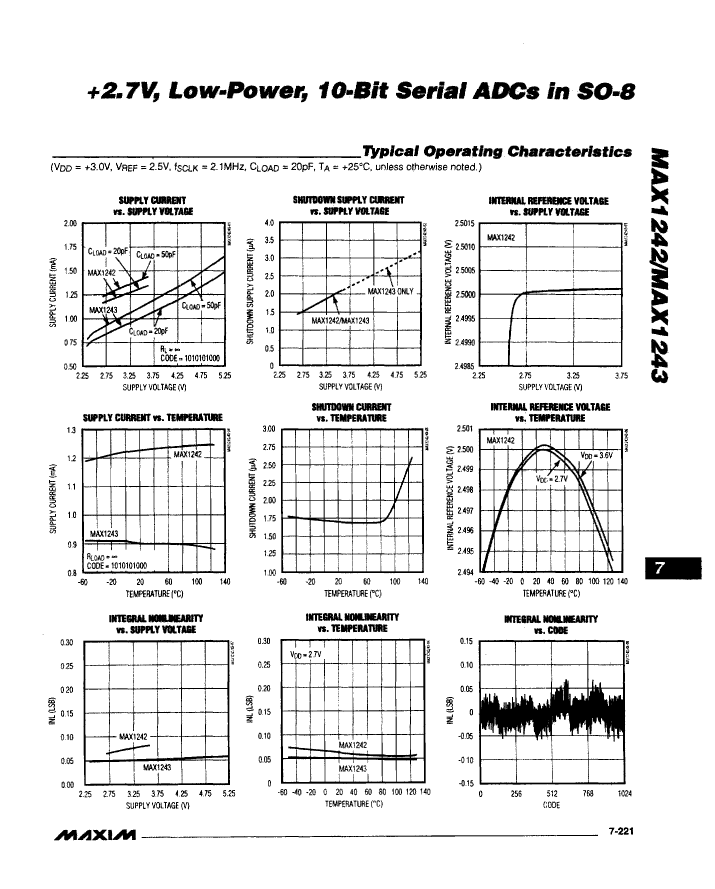

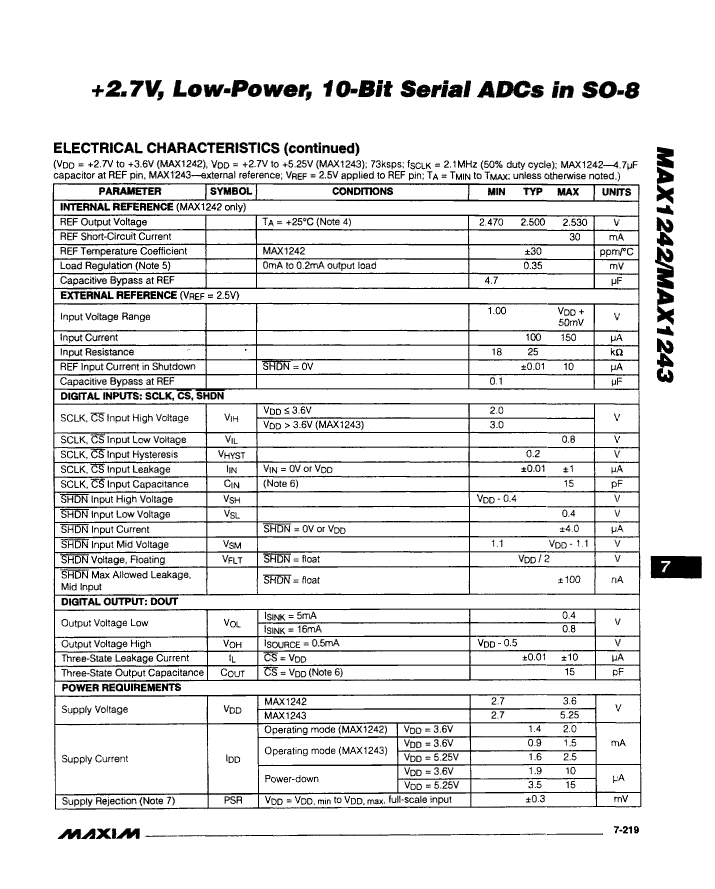

MAX1242CCPA: DescriptionADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001AB, DIP-8; CategoryAnalog mixed-signal IC converter; File Size648KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX1242CCPA Overview

ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001AB, DIP-8

MAX1242CCPA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, MS-001AB, DIP-8
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum analog input voltage	2.53 V
Minimum analog input voltage
Maximum conversion time	7.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.375 mm
Maximum linear error (EL)	0.0488%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	10
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	SERIAL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/3.3 V
Certification status	Not Qualified
Sampling rate	0.0073 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	4.572 mm
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

MAX1242CCPA Related Products

	MAX1242CCPA	MAX1242CMJA	MAX1242DCSA	MAX1242CCSA	MAX1242CEPA	MAX1242DCPA	MAX1242DMJA	MAX1242DEPA
Description	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001AB, DIP-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, CDIP8, 0.300 INCH, CERDIP-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8, 0.150 INCH, MS-012A, SO-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8, 0.150 INCH, MS-012A, SO-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001AB, DIP-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001AB, DIP-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, CDIP8, 0.300 INCH, CERDIP-8	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001AB, DIP-8
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	DIP	SOIC	SOIC	DIP	DIP	DIP	DIP
package instruction	0.300 INCH, PLASTIC, MS-001AB, DIP-8	0.300 INCH, CERDIP-8	SOP, SOP8,.25	0.150 INCH, MS-012A, SO-8	0.300 INCH, PLASTIC, MS-001AB, DIP-8	0.300 INCH, PLASTIC, MS-001AB, DIP-8	0.300 INCH, CERDIP-8	0.300 INCH, PLASTIC, MS-001AB, DIP-8
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
ECCN code	EAR99	3A001.A.2.C	EAR99	EAR99	EAR99	EAR99	3A001.A.2.C	EAR99
Maximum analog input voltage	2.53 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum conversion time	7.5 µs	7.5 µs	7.5 µs	7.5 µs	7.5 µs	7.5 µs	7.5 µs	7.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T8	R-GDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-GDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.0488%	0.0488%	0.0977%	0.0488%	0.0488%	0.0977%	0.0977%	0.0977%
Humidity sensitivity level	1	1	1	1	1	1	1	1
Number of analog input channels	1	1	1	1	1	1	1	1
Number of digits	10	10	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	85 °C	70 °C	125 °C	85 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	SOP8,.25	SOP8,.25	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	245	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	240	245	NOT SPECIFIED
power supply	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.0073 MHz	0.0073 MHz	0.0073 MHz	0.0073 MHz	0.0073 MHz	0.0073 MHz	0.0073 MHz	0.0073 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK
Maximum seat height	4.572 mm	5.08 mm	1.75 mm	1.75 mm	4.572 mm	4.572 mm	5.08 mm	4.572 mm
surface mount	NO	NO	YES	YES	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	20	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
length	9.375 mm	-	4.9 mm	4.9 mm	9.375 mm	9.375 mm	-	9.375 mm
