REVISION A
C1
CMIT-XXX-XX-X-D-XX
((No OF POS / 19) x .5000[12.700]) +.4500[11.430] REF
.5000 12.700 REF
.0080 0.203 REF
02
.155 3.94
REF
01
18 EQ SPACES
@ .0250[.635]
PLATING SPECIFICATION
-C: ELECTRO-POLISHED SELECTIVE
(USE T-1SXX-XX-C & T-1G5-XX-G)
.235 5.97
REF
*
*
*
*
No OF POSITIONS
-019, -038, -057, -076,
-095, -114, -133
(PER ROW)
LEAD STYLE
-01: .1680[4.267]
-02: .2861[7.267]
-03: .4042[10.267]
-04: .6000[15.240]
-05: .7080[17.983]
-06: .8350[21.209]
OPTION
-K: POLYAMIDE FILM PAD
(USE K-500-300, SEE FIG. 3)
DO NOT
SCALE FROM
THIS PRINT
ROW SPECIFICATION
-D: DOUBLE (USE MIT-19-XX-D-XX
& MITH-19-XX-D-XX )
No OF BANKS
.0125 0.318 REF
* = SEE SHEET 2
"A"
MIT-19-XX-D-XX
T-1S43-XX-X
.045 1.143 REF
(MATING AREA)
C3
"B" REF
C2
"A"
.003[.08]
.001[.03]
.047
- .005
1.19
- 0.13
+.002
+0.05
"A"
.0230 0.584 REF
POLARIZATION NOTCH
T-1G5-XX-X
SEE TABLE 2
.0200 0.507 REF
.0150 0.381 REF
.280 7.112 REF

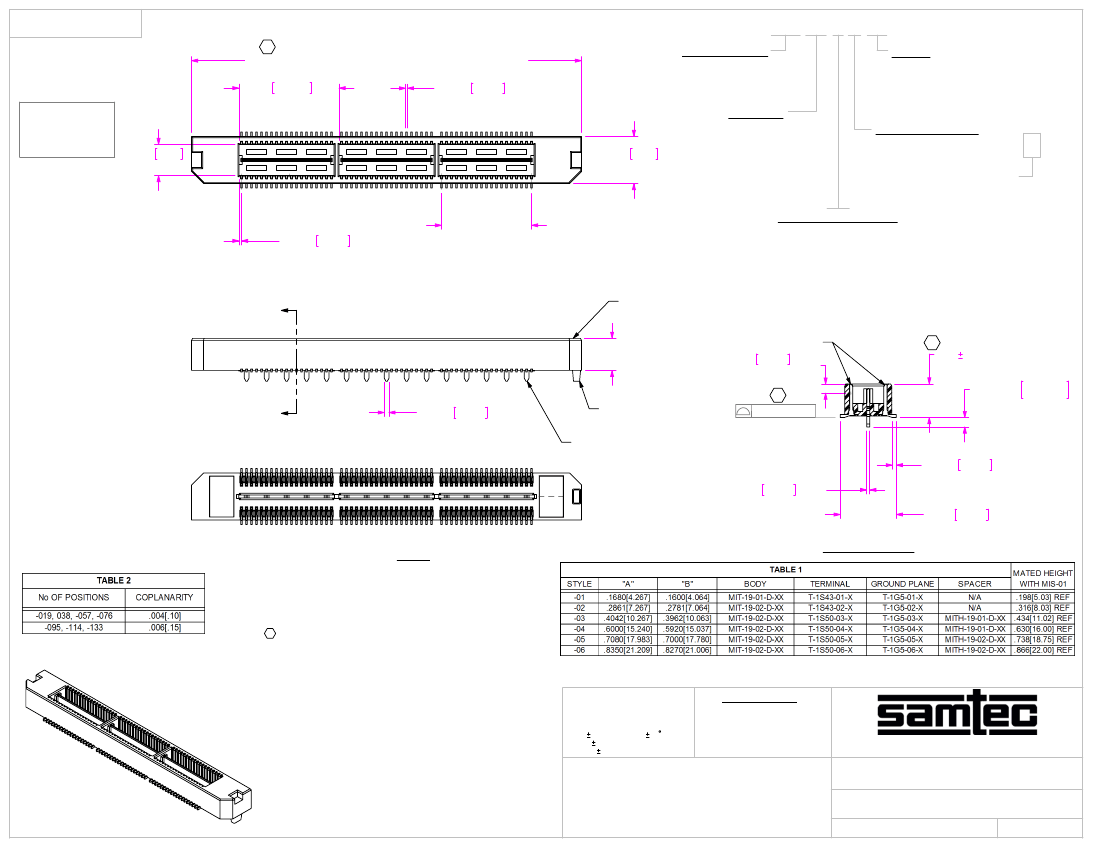

CMIT-057-01-X-D SHOWN
FIG. 1
SECTION "A"-"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: SEE TABLE 2.
3. BURR ALLOWANCE: .0015[.038] MAX.
4. MINIMUM TERMINAL RETENTION: 8 OZ.
5. MINIMUM GROUND PLANE RETENTION: 1 LB.
6. MAXIMUM ALLOWABLE BOW: .002[.05] INCH/INCH AFTER ASSEMBLY.
7. PARTS TO BE MOLDED TO POSITION.
*
*
*
*
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOS BRONZE
GROUND PLANE: PHOS BRONZE
F:\DWG\MISC\MKTG\CMIT-XXX-XX-X-D-XX-MKT.SLDDRW
.635mm DOUBLE ROW HS TERMINAL ASSEMBLY
DWG. NO.
CMIT-XXX-XX-X-D-XX
10/08/07
SHEET
1
OF
2
BY:
B. PERRY
REVISION A
02
.235 5.97
REF
01
.265 6.73
REF
"B"
MIT-19-02-D-XX
T-1S50-XX-X
.278 7.07 REF
.118 3.00 REF
C5
C4
"A"
.003[.08]
.002[.05]
SEE TABLE 2
"B"
T-1G5-XX-X
MITH-19-01-D-XX
.047
- .005
1.19
- 0.13
.0150 0.381 REF
.0195 0.495 REF
+.002
+0.05
.2650 6.731 REF

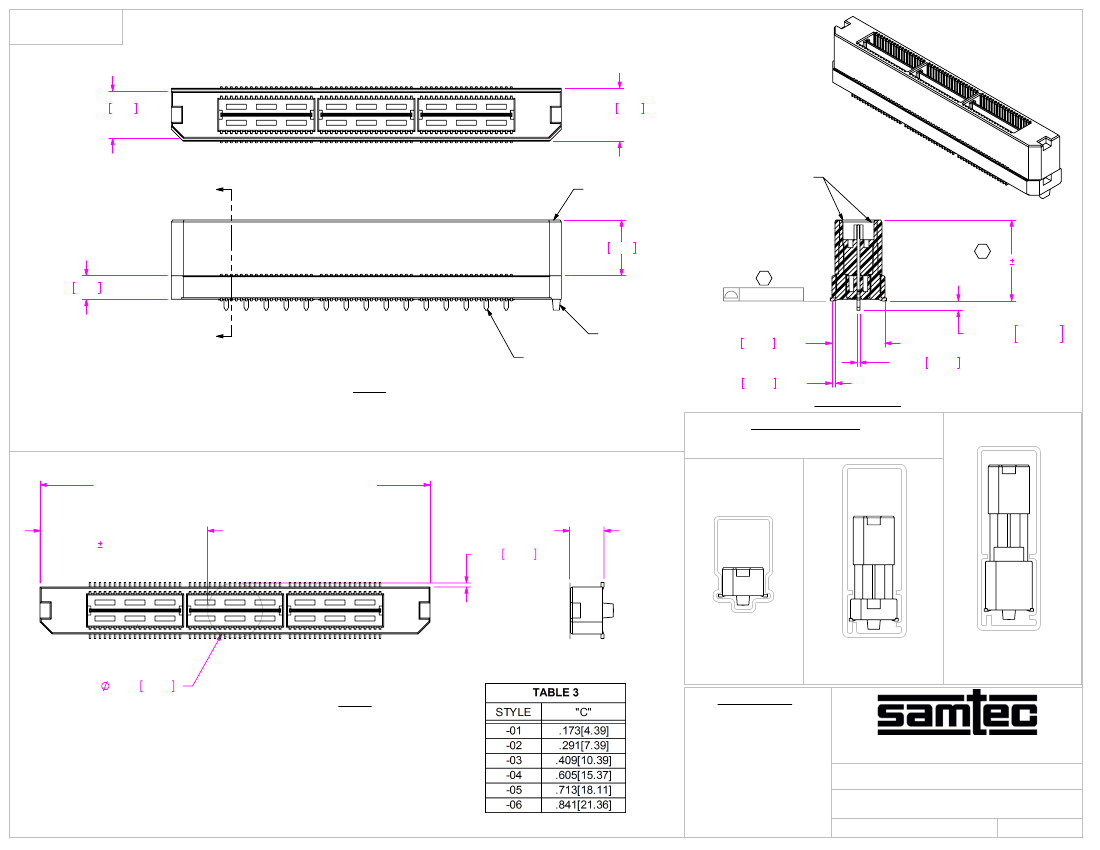

CMIT-057-03-X-D SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
FIG. 2
SECTION "B"-"B"
[PARTS TO HAVE POSITION #1 LOADED IN
SAME DIRECTION AS ARROW ON TUBE]
PACKAGING VIEW
((No OF POS / 19) x .5000[12.700]) +.4500[11.430] REF
((((No OF POS / 19) x .5000
[12.700]) / 2) +.0875[2.223])
.020[.51]
"C"
.020 0.508
TUBE: PT-1-24-01-86
PLUG: TP- 07 (2)
.2750 6.985
[LEAD STYLES -01, -02]
TUBE: PT-1-24-01-98
PLUG: TP-26 (2)
[LEAD STYLES -03 & -04]
TUBE: PT-1-24-01-102
PLUG: TP-26 (2)
[LEAD STYLES -05 & -06]
FIG. 3
-K: POLYAMIDE FILM PAD OPTION
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.635mm DOUBLE ROW HS TERMINAL ASSEMBLY
CMIT-XXX-XX-X-D-XX
10/08/07
SHEET
2
OF
2
F:\DWG\MISC\MKTG\CMIT-XXX-XX-X-D-XX-MKT.SLDDRW
BY:
B. PERRY
