TECHNICAL DATA SHEET
adaptor
SnapN 50
PLUG – N 50
jack
53QS153-K00N5

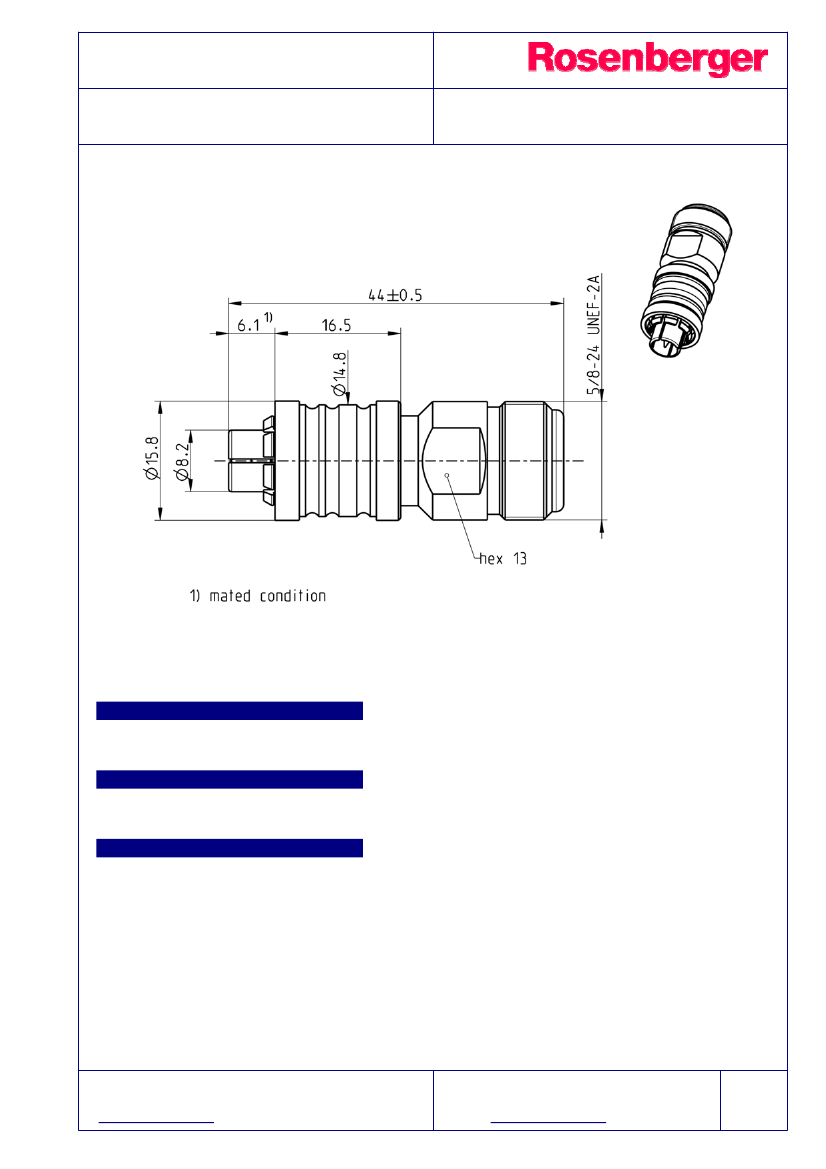

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
SnapN side compatible to
N side according to
IEC 60169-16, MIL-PRF-39012, CECC 22210
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Spring bronze
Brass
Brass
PTFE
Plating
AuroDur®, gold plated
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
adaptor
SnapN 50
PLUG – N 50
jack
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
Intermodulation
(3
rd
order)
53QS153-K00N5
50
DC to 11 GHz
32 dB, DC to 3 GHz
25 dB, 3 to 6 GHz
0.05 dB x
3
f [GHz]
5 x10 M
1.0 m
1.0 m
2500 V rms
500 V rms
-90 dB, 100 MHz to 3 GHz
-80 dB, 3 GHz to 6 GHz
-155 dBc @ 1.8 GHz (2 x 43 dBm)
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
Coupling test torque
Recommended torque
SnapN side
min. 200
28 N
30 N (typ.)
30 N (typ.)
N/A
N/A
N side
min. 500
28 N
N/A
N/A
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-45°C to +125°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
41 g/pce
