Medium-High Voltage Multilayer Ceramic Capacitors
QMK432BJ104KM-T
Features
Item Summary
0.1uF±10%, 250V,
X5R/B, 1812/4532 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 500pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
0.1 uF ± 10 %
1812/4532
250 V
2.5 %
X5R
-55 to +85 ℃
B
-25 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
4.5 ±0.40 mm
3.2 ±0.30 mm
2.5 ±0.20 mm
0.90 ±0.60 mm
2018.03.09
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

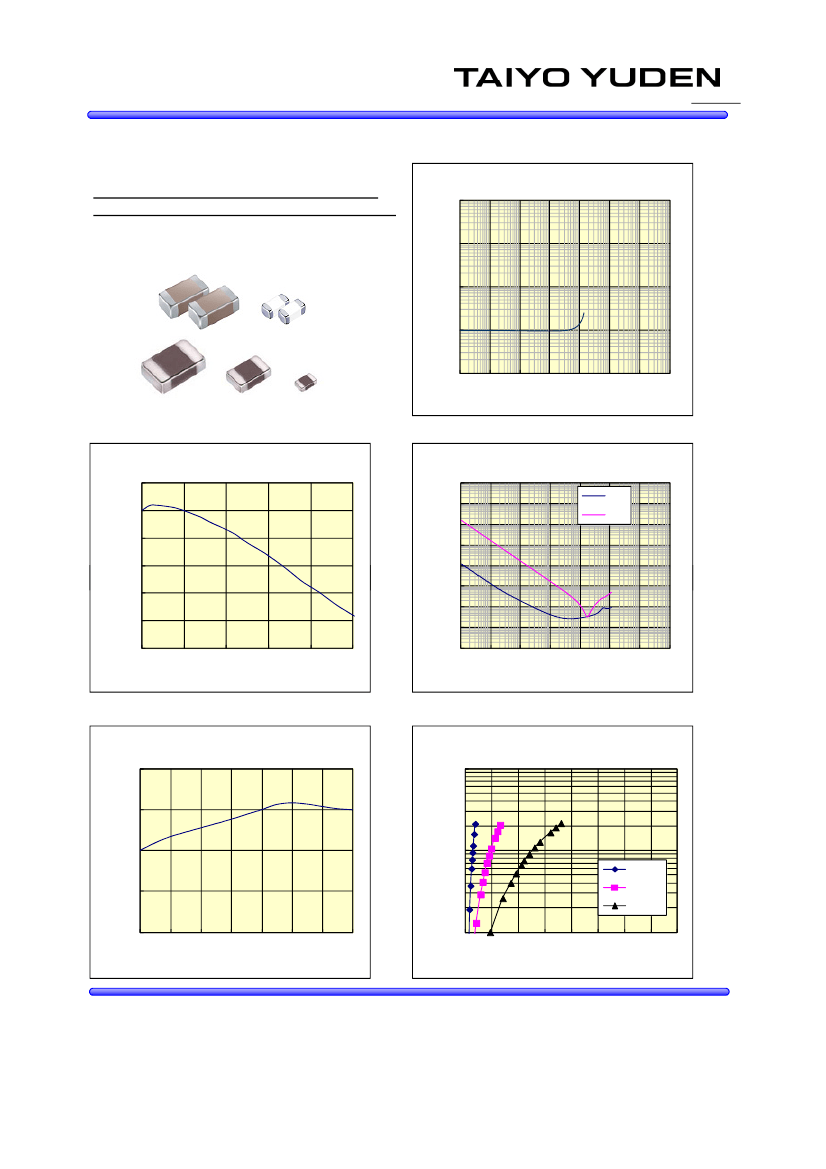

Multi Layer Ceramic Capacitor
○QMK432BJ104KM
250V 4532 B/X5R 0.1uF +/- 10% t=2.7mmMAX
250V 1812 B/X5R 0.1uF +/- 10% t=0.106inchMAX
100
-Electrical Characteristics Data-
16QA03
RoHS compliance product
QMK432BJ104KM
Capacita nce Freq.
10
Capacitance[uF]
1
0.1
0.01
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
10
0
-10
QMK432BJ104KM
DC Bias Char.
100000
10000
1000
QMK432BJ104KM
Impedance,ESR Freq.
ESR
Z
-20
-30
-40
-50
0
50
100
150
200
DC Bias Voltage[V]
250
Z,ESR[O
Z,ESR[OHM]
dC/C
dC/C[%]
100
10
1
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
QMK432BJ104KM
Capacitance Temp.
10
100
QMK432BJ104KM
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
