HDRA-EA36LFDT-SL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HDRA-EA36LFDT-SL

Preview

HDRA-EA36LFDT-SL: DescriptionTelecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, M2, Plug,; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

HDRA-EA36LFDT-SL Overview

Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, M2, Plug,

HDRA-EA36LFDT-SL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK
body width	0.197 inch
subject depth	0.374 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	4u inch
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

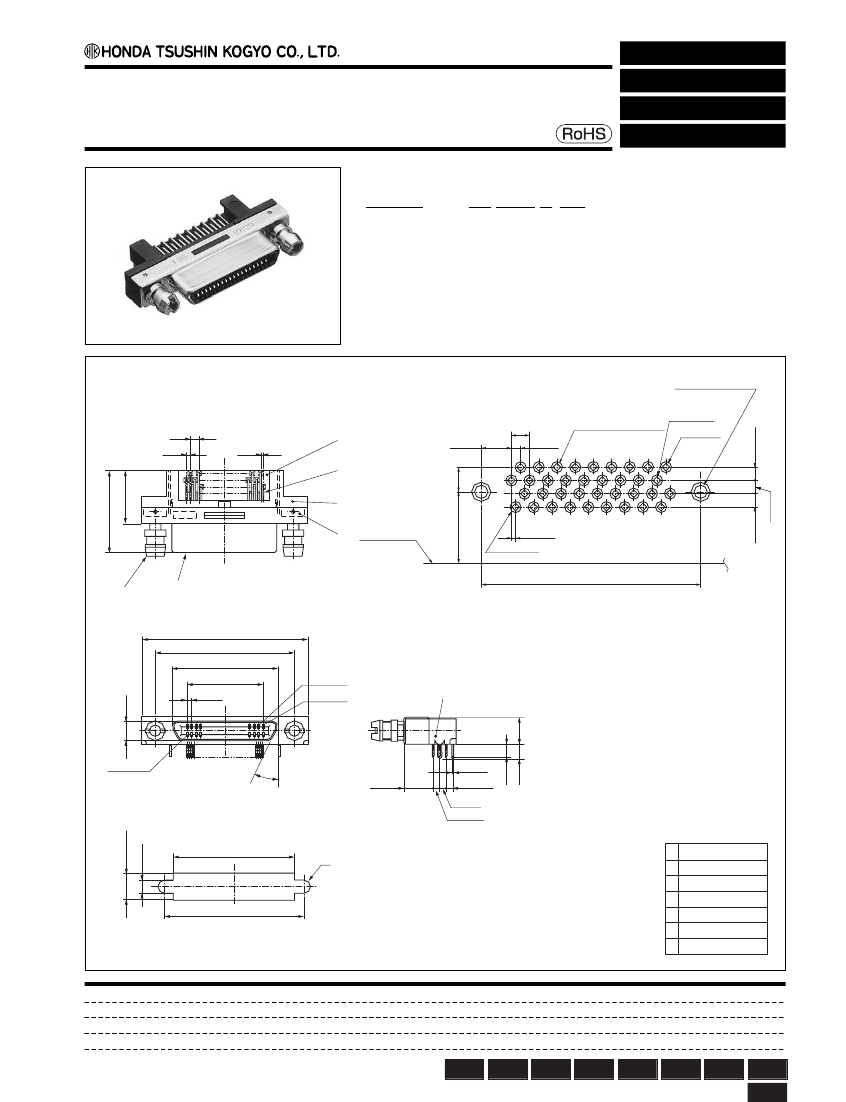

0.8mm pitch connector

Right-angle through hole type female connector for PCB

HDRA-EA36LFDT-( )+

●

Configuration of product Part No.

For PCB

Right-angle Through hole

ANSI/SFF8441

HDRA- EA 36 LFD T- ( )+

➀

➁

➂

➃ ➄

➀

Series name

➁

No. of contacts: 36

➂

Type of contact

LFD: Right-angle through hole type, female

➃

Provided with board lock mechanism

➄

Lock screw

Blank: None

SL : Provided (Thickness of panel: 1.12 mm)

2-ø1.2

±0.05

(P.T.H.)

±0.1

PADø2.25

1.6

±0.03

2.775

±0.05

2.25

±0.05

0.8

±0.03

36-ø0.65

±0.05

(P.T.H.)

PADø1

±0.1

POS.#2

POS.#1

1.15

±0.03

1.15

±0.03

19.55

±0.05

Recommended PCB layout

t=1.6mm

Through

hole

1.6

0.8

0.4

➀

➁

9.5

14.7

➄

➃

6.3MAX.

➂

HDRA LFD

Edge of PCB

0.4

±0.03

POS.#36

(Two lock screws are supplied with a connector.)

29.9

24.9

18.86

0.8≈17=13.6

3.46

0.8

POS.#2

POS.#1

➅

➆

5

25˚

5.3

1.2

1.15

4.88

2.4

±0.08

2.08

2.28

POS.#36

0.3

1.15

●

Components

21.9

≠0.1

–0

R

➀

Bracket

➁

Contacts

➂

Insulator

➃

Shell

➄

Square nuts

Select the connector according to panel thickness.

For the application without panel, use washers or

special lock screw (P/N: HDRA-E68LFD-7C).

24.9

±0.1

Recommended panel cut-out dimensions

➅

Lock screw

➆

Board lock pin

Mating connector:

HDRA series IDC type male cable connector

Note●

Jack screw is not available at present.

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

1.2

±0.03

HDRA-EA36LFDT-SL Related Products

	HDRA-EA36LFDT-SL	HDRA-EA36LFDT-SL+	HDRA-EA36LFDT+	HDRA-EA36LFDT
Description	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, M2, Plug,	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, M2x0.4, Plug,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	36	36	36	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
