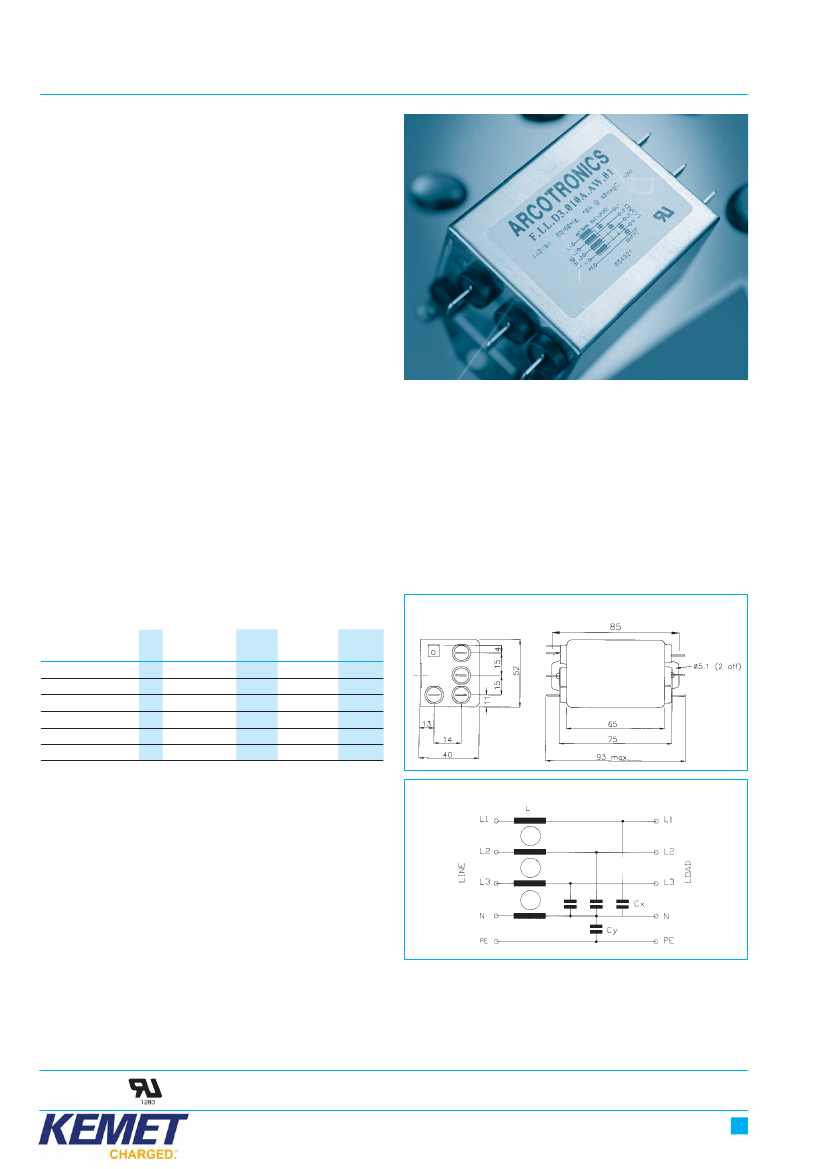

Chassis Mount Filters
Three phase and neutral - general purpose
This three phase and neutral filter series provides a cost-effective
level of suppression within a compact enclosure. The filter housing’s
small footprint and low-profile ensures ease of installation within
manufacturers original equipment.
The AW series is designed to suit a wide variety of general purpose
power applications, equipment cabinets and industrial control
systems.
F.LL.D3
series-AW type
•
Current ratings from 3A to 20A
•

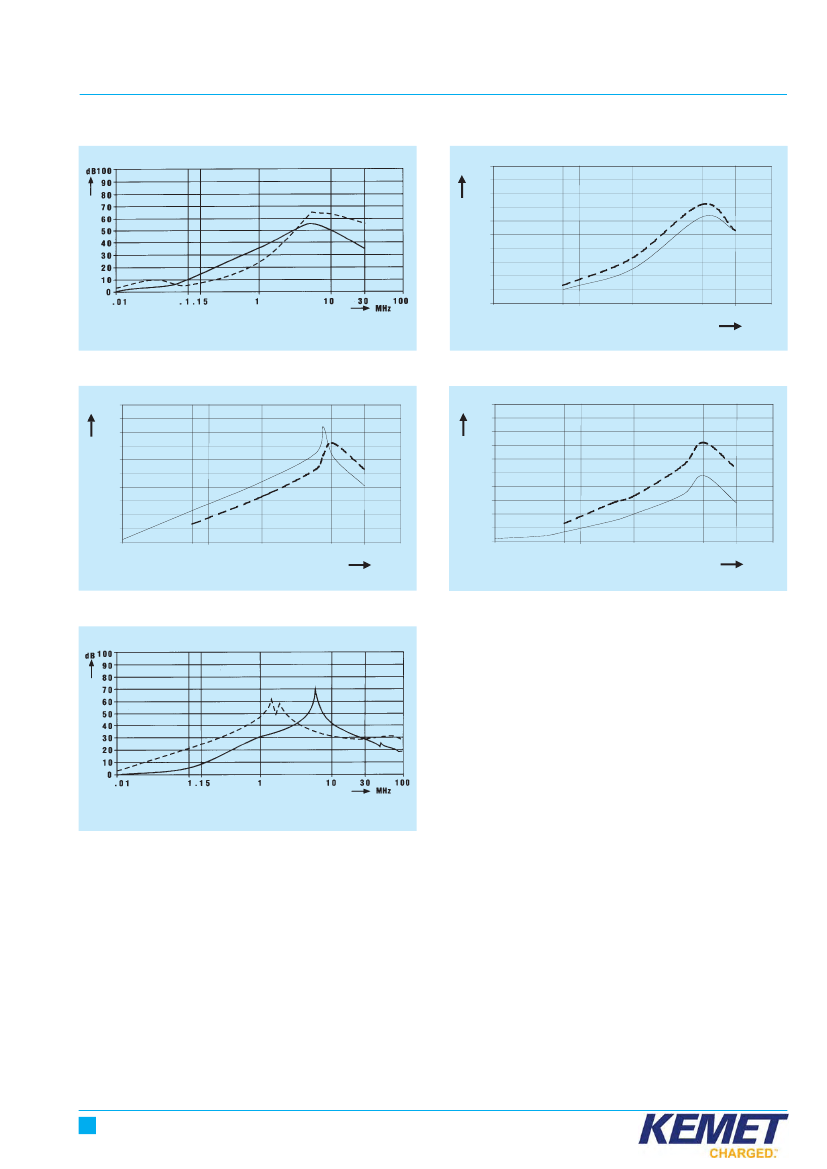

Good high frequency attenuation
•
Screw and fast-on termination styles
•
Low-profile and compact enclosure
Mechanical Specifications
Manufacture:
metal enclosure;
electrical components sealed with
self-extinguishing resin.
Connections:
faston 6.3 x 0.8mm (3A to 10A)
M4 threaded studs (20A).
Climatic category:
Electrical Specifications
Rated voltage (V
R
):
440V, 50/60Hz
Rated current (I
R
):
Voltage test (2
S
.):
referred to room temperature = 40°C
line to ground 2700 Vdc
line to line 1075 Vdc
HPF (25/085/21):
Temperature range: -25°C to +85°C
Leakage current (I
L
):
at V
R
/
√3,
50 Hz max value
Filter Range
Code
F.LL.D3.003A.AW.03
F.LL.D3.003A.AW.04
F.LL.D3.006A.AW.04
F.LL.D3.010A.AW.01
F.LL.D3.010A.AW.02
F.LL.D3.020A.AW.01
l
R
(A)
3
3
6
10
10
20
L
(mH)
4x0.25
4x0.45
4x0.45
4x1.5
4x0.2
4x0.25
Cx
(µF)
3x0.1
3x0.1
3x0.1
3x0.1
3x0.1
3x0.1
Cy
(pF)
22000
4700
4700
22000
4700
22000
I
L
(mA)
2.3
0.5
0.5
2.3
0.5
2.3
Dimensions (mm) and connections
Circuit diagram
