FTP302AS220S-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FTP302AS220S-S

FTP302AS220S-S: DescriptionData Line Filter, 1 Function(s), 100V, 5A,; CategoryAnalog mixed-signal IC filter; File Size87KB，2 Pages; ManufacturerMaruwa

Download Datasheet Parametric View All

FTP302AS220S-S Overview

Data Line Filter, 1 Function(s), 100V, 5A,

FTP302AS220S-S Parametric

Parameter Name	Attribute value
Maker	Maruwa
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
capacitance	22 µF
filter type	DATA LINE FILTER
Installation type	PANEL MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Rated current	5 A
Rated voltage	100 V

Preview

Download Datasheet

View All

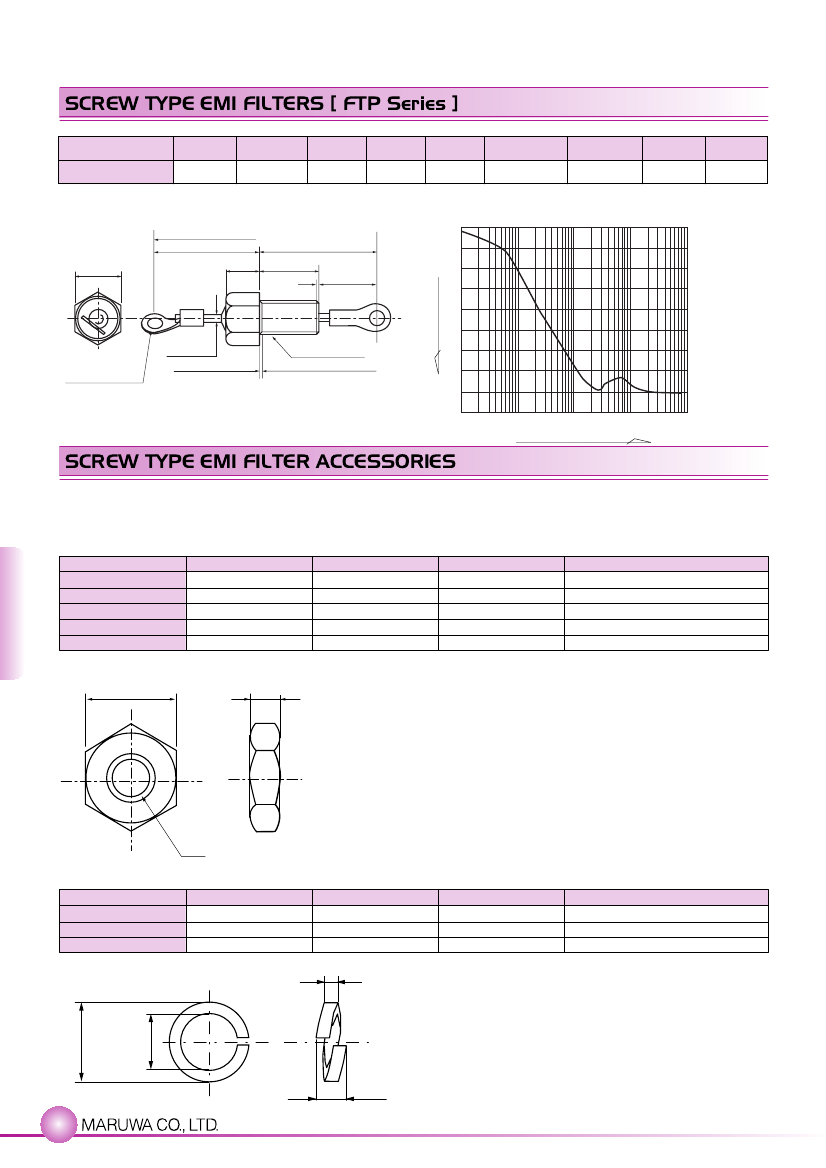

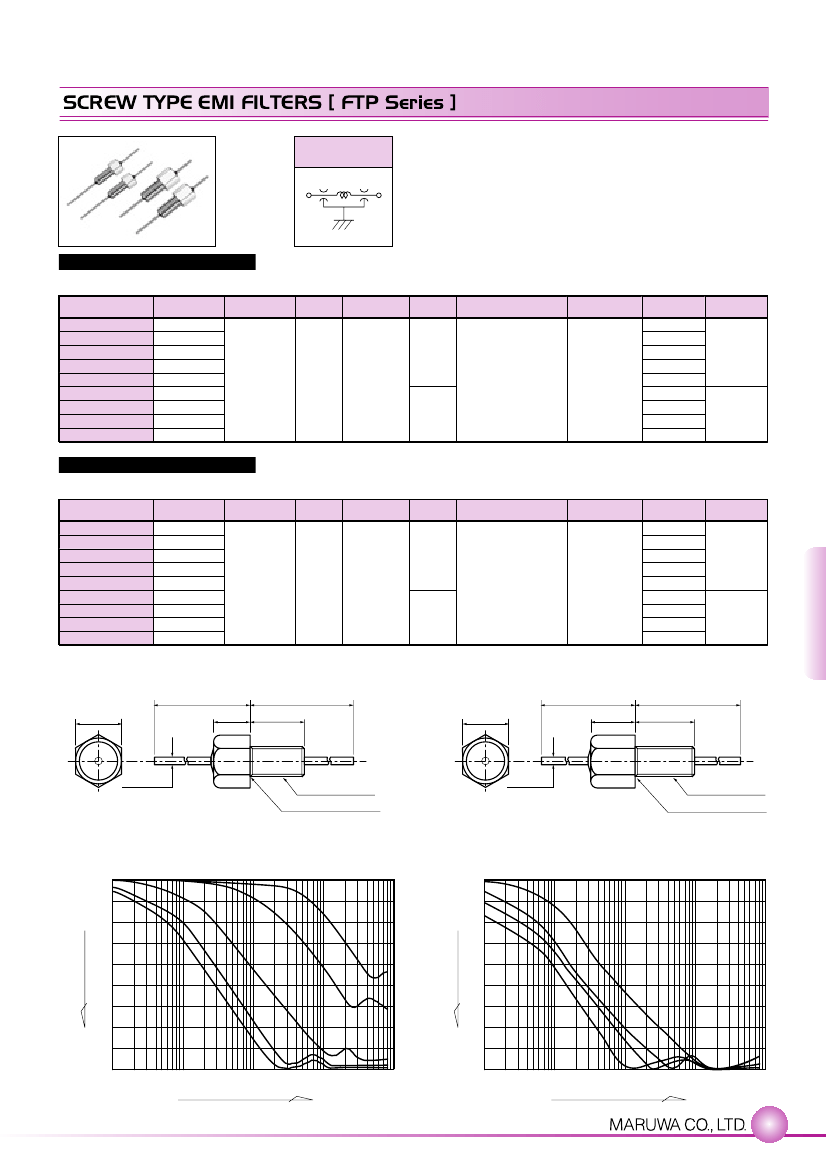

SCREW TYPE EMI FILTERS [ FTP Series ]

Equivalent circuit

MARUWA

GENERAL CATALOG

The FTT series filters are screw type EMI filters with type

circuit structure using a feed through ceramic capacitor and

multilayer suppressors, and achieve large, steep attenuation

to suppress EMI efficiently over a broad range up to GHz.

Metric thread type

Part Number List • Specifications for M3, M4 Thread Type

Part number

FTP302AS220S-S

FTP302AS101S-S

FTP302AS152S-S

FTP302AS682S-S

FTP302AS103S-S

FTP402AS222S-S

FTP402AS103S-S

FTP402AS223S-S

FTP402AS473S-S

Capacitance

22pF

100pF

1,500pF

6,800pF

10,000pF

2,200pF

10,000pF

22,000pF

47,000pF

Capacitance

tolerance

Rated Withstanding Rated

voltage

current

Temperature

characteristics

Temp. range

Insertion

loss

Style

5Adc

+50% –20%

100Vdc

250Vdc

S (+22~–22%)

–25~+85°C

Style 1

10Adc

Style 2

Inch thread type

Part Number List • Specifications for No.5-44 UNF-2A, No.8-32 UNC-2A Thread Type

Part number

FTP322AS220S-S

FTP322AS101S-S

FTP322AS152S-S

FTP322AS682S-S

FTP322AS103S-S

FTP412AS222S-S

FTP412AS103S-S

FTP412AS223S-S

FTP412AS473S-S

Capacitance

22pF

100pF

1,500pF

6,800pF

10,000pF

2,200pF

10,000pF

22,000pF

47,000pF

Capacitance

tolerance

Rated Withstanding Rated

voltage

current

Temperature

characteristics

Temp. range

Insertion

loss

Style

5Adc

+50% –20%

100Vdc

250Vdc

S (+22~–22%)

–25~+85°C

Style 1

10Adc

Style 2

Dimensions (mm)

Style 1

10.0 1.0

4.0 0.1

3.0 0.2

18.0 1.0

6.0 0.2

5.0 0.1

Style 2

12.0 1.0

5.0 0.2

16.0 1.0

7.0 0.2

φ0.65

0.1

M3 P0.5

No.5-44 UNF-2A

φ0.8

0.1

M4 P0.7

No.8-32 UNC-2A

Shell plating spec. : Nickel

Incomplete thread : 1.0 or less

Shell plating spec. : Nickel

Incomplete thread : 1.0 or less

Insertion loss (Reference)

FTP30, FTP32 Type Insertion Loss data

Insertion loss (dB)

100

Frequency (MHz)

1000

10000

Insertion loss (dB)

100

Frequency (MHz)

1000

10000

FTP40, FTP41 Type Insertion Loss data

123

EMI FILTERS
